Toy Box Ty909T 2-Channel Infrared Remote Control Helicopter User Manual

1. Sarrera

The Toy Box Ty909T is a 2-channel infrared remote control helicopter designed for stable and agile flight, making it an excellent choice for beginners. This helicopter features a fine-tuning function for precise control and a wide-range infrared system for enhanced stability during operation. Equipped with a cool LED light frame, it offers visibility for night flights. Its compact and lightweight design contributes to its agility and speed. For safety, the helicopter incorporates double-layer protection and low voltage eragiketa.

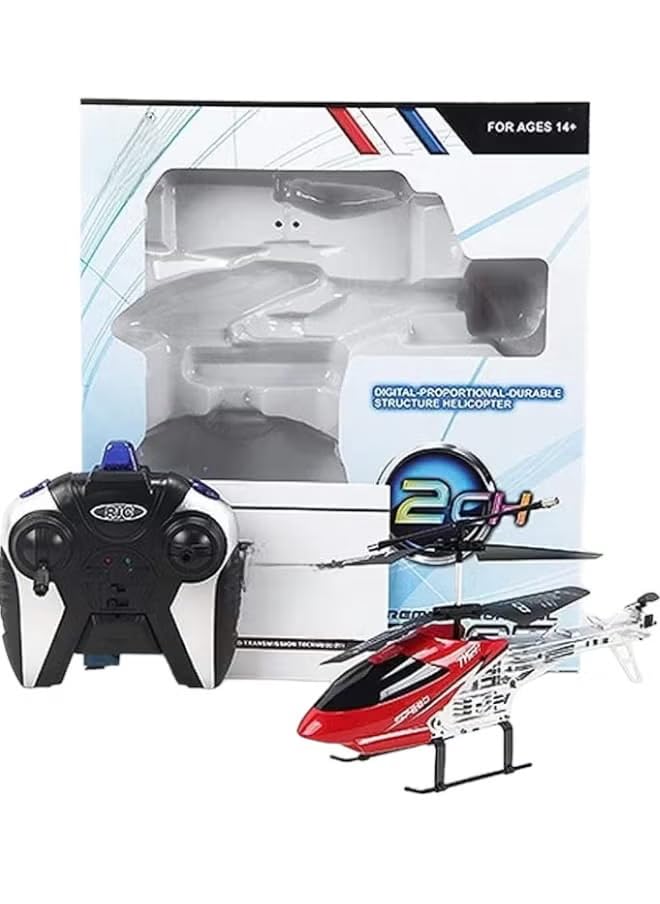

Image: The Toy Box Ty909T helicopter and remote control displayed within its retail packaging.

2. Segurtasun informazioa

Please read and understand all safety warnings before operating the helicopter. Failure to follow these instructions may result in injury or damage to the product.

• Adinaren gomendioa: This product is suitable for users aged 14 years and above.
• Barruko erabilera soilik: This helicopter is designed for indoor flight. Avoid flying outdoors where wind or other environmental factors can cause loss of control.
• Garbitu eremua: Ensure a clear, open space free from obstacles, people, and pets before flying.
• Bateriaren segurtasuna:
  • Ez nahastu bateria zaharrak eta berriak, edo bateria mota desberdinak.
  • Sartu bateriak polaritate zuzenarekin.
  • Ez kargatu kargatu gabeko bateriak.
  • Kendu agortutako bateriak berehala.
  • Supervise children during battery installation and charging.
• Saihestu kontaktua: Keep hands, face, and hair away from rotating blades.
• Ura eta hezetasuna: Ez jarri helikopteroa edo urrutiko agintea uretan edo hezetasunean.
• Gainbegiratzea: Erabiltzaile gazteenentzat helduen gainbegiratzea gomendatzen da.

3. Paketearen edukia

Egiaztatu behean zerrendatutako elementu guztiak zure paketean sartuta daudela:

• Ty909T Remote Control Helicopter
• Urruneko aginte infragorria
• USB kargatzeko kablea
• AC Wall Adapter (Charger)
• Erabiltzailearen eskuliburua (dokumentu hau)

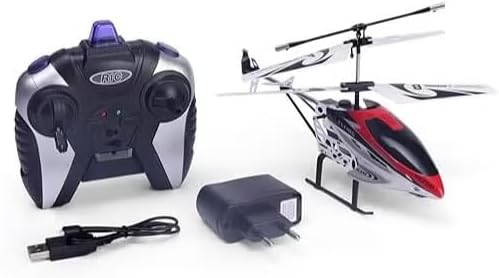

Image: The Ty909T helicopter, its remote control, USB charging cable, and AC wall adapter.

4. Konfigurazioa

4.1 Charging the Helicopter Battery

1. Ziurtatu helikopteroaren pizteko etengailua "OFF" posizioan dagoela.
2. Konektatu USB kargatzeko kablearen mutur txikia helikopteroaren kargatzeko atakara.
3. Connect the large end of the USB charging cable to the AC wall adapter.
4. Plug the AC wall adapter into a standard electrical outlet.
5. The indicator light on the charger will illuminate (color may vary) to show charging is in progress.
6. Kargatzeak normalean 45-60 minutu inguru irauten du. Ez kargatu gehiegi.
7. Once charging is complete, the indicator light may change color or turn off. Disconnect the charger.

Oharra: Always allow the helicopter battery to cool down for 10-15 minutes after flight before recharging.

4.2 Urrutiko agintearen bateriak instalatzea

1. Bilatu bateriaren konpartimentua urrutiko agintearen atzealdean.
2. Ireki bateriaren konpartimenduaren estalkia.
3. Insert the required number of AA batteries (not included) according to the polarity markings (+/-) inside the compartment.
4. Itxi bateriaren konpartimenduaren estalkia ondo.

Irudia: Xehetasun zehatza view of the Ty909T helicopter and its remote control, showing the design and components.

4.3 Helikopteroa eta urrutiko agintea parekatzea

1. Jarri helikopteroa gainazal lau eta berdindu batean.
2. Turn on the helicopter's power switch. The helicopter's LED lights will flash.
3. Piztu urrutiko agintea. Urrutiko agintearen adierazle-argia keinuka hasiko da.
4. Move the throttle stick (left stick) all the way up, then all the way down.
5. The remote and helicopter lights will become solid, indicating successful pairing.
6. Parekatzeak huts egiten badu, itzali bi gailuak eta errepikatu urratsak.

5. Funtzionamendu-argibideak

5.1 Oinarrizko kontrolak

• Azeleragailuaren palanka (ezkerreko palanka):
  • Push up to increase altitude (ascend).
  • Pull down to decrease altitude (descend).
• Directional Stick (Right Stick):
  • Push up to move forward.
  • Pull down to move backward.
  • Sakatu ezkerrera biratzeko.
  • Eskuinera biratzeko, sakatu eskuinera.
• Mozgailu-botoiak: Small buttons near the directional stick are used to fine-tune the helicopter's stability if it drifts without input.

5.2 First Flight Tips

• Start with gentle throttle inputs to get a feel for lift-off.
• Practice hovering at a low altitude before attempting complex maneuvers.
• If the helicopter drifts, use the trimmer buttons to adjust its stability. For example, if it drifts left, press the right trimmer button repeatedly until it hovers steadily.
• Always maintain line of sight with the helicopter.
• When landing, slowly reduce the throttle until the helicopter gently touches down.

6. Mantentzea

• Garbiketa: Use a soft, dry cloth to clean the helicopter and remote control. Do not use water or cleaning solvents.
• Biltegiratzea: When not in use, store the helicopter and remote in a cool, dry place, away from direct sunlight and extreme temperatures. Remove batteries from the remote if storing for extended periods.
• Bateria zaintzea:
  • Do not leave the helicopter connected to the charger unattended for prolonged periods.
  • If the helicopter will not be used for a long time, discharge the battery to about 50% for optimal storage.
• Palan ikuskatzea: Regularly check the rotor blades for any damage or cracks. Replace damaged blades immediately to ensure safe flight.

7. Arazoak

8. Zehaztapenak

9. Bermea eta Laguntza

Specific warranty information for the Toy Box Ty909T helicopter is not provided in the product details. Please refer to your retailer's return policy or contact the manufacturer directly for warranty claims and technical support.

Laguntza gehiago lortzeko, bisita dezakezu Toy Box brand page on Amazon.
