Locstar LS-8015FM Keyless Entry Door Lock User Manual

1. Sarrera

This manual provides detailed instructions for the installation, operation, and maintenance of your Locstar LS-8015FM Keyless Entry Door Lock. Please read this manual thoroughly before installation and use to ensure proper function and safety.

2. Segurtasun informazioa

• Ez saiatu sarraila zeuk desmuntatzen edo konpontzen. Jarri harremanetan bezeroarentzako arreta-zerbitzuarekin laguntza jasotzeko.
• Use only the specified battery type (4 AA alkaline batteries). Do not mix old and new batteries or different types of batteries.
• Keep mechanical keys in a secure location outside the property to prevent lockout in case of electronic failure or dead batteries.
• Protect your passcode from unauthorized access.

3. Paketearen edukia

Instalazioa hasi aurretik, egiaztatu osagai guztiak daudela:

• Smart Lock Assembly (Exterior and Interior Handles)
• Lock Body / Latch
• Erabiltzailearen Gida
• Muntatzeko Torlojuak eta Osagarriak
• Giltza mekanikoak

Image: Complete set of accessories for the Locstar LS-8015FM smart lock.

4. Zehaztapenak

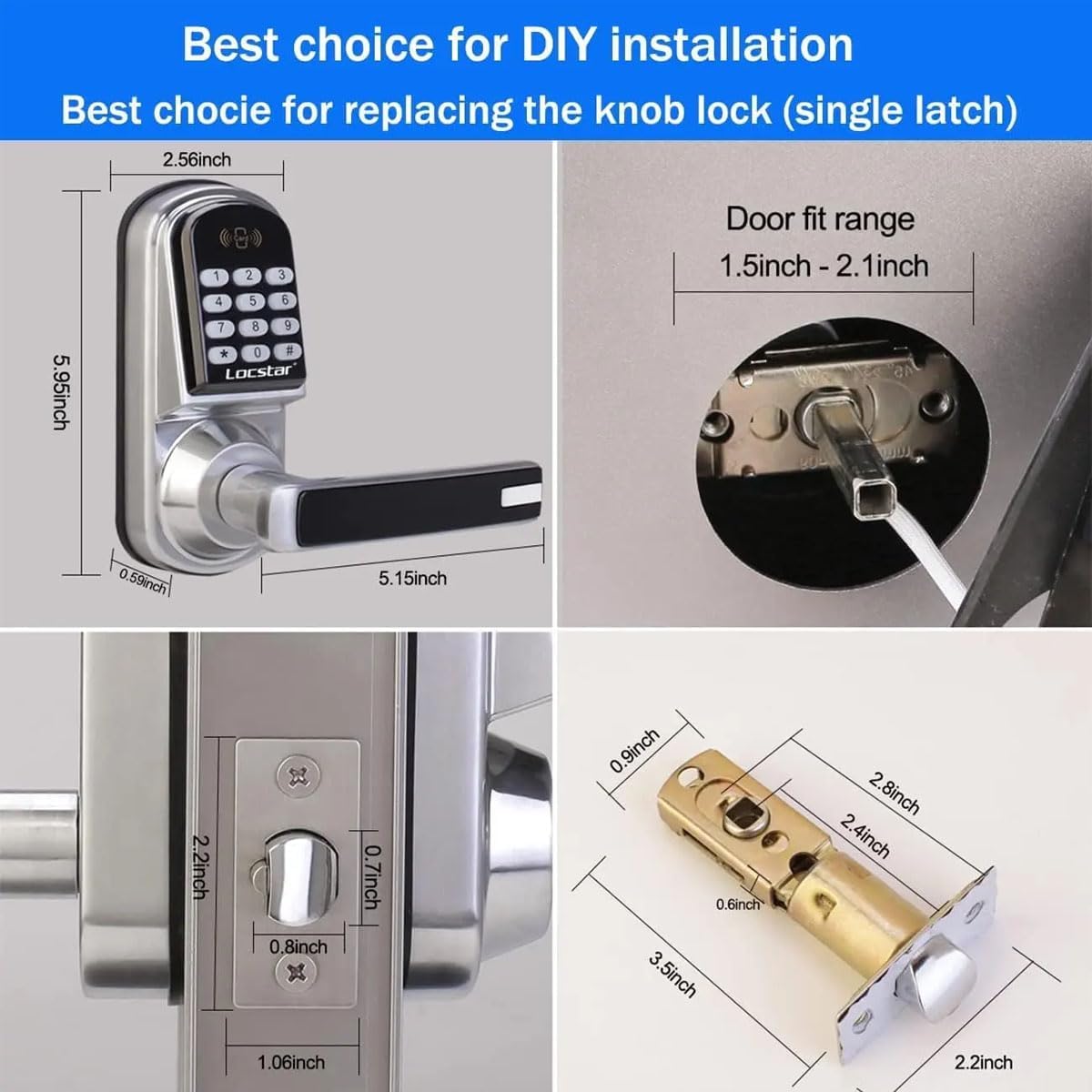

Image: Detailed dimensions for the Locstar LS-8015FM lock and its latch, suitable for DIY installation.

5. Konfigurazioa eta instalazioa

The Locstar LS-8015FM lock is designed for easy DIY installation, typically requiring only a Phillips screwdriver. It is compatible with most standard door types and thicknesses (1.5 to 2.1 inches).

5.1 Prestaketa

• Ensure your door is within the specified thickness range.
• Gather a Phillips head screwdriver.
• Remove any existing door hardware.

Image: The Locstar LS-8015FM smart lock ready for DIY installation on a door.

5.2 Instalazio-urratsak

1. Install the lock tongue: Insert the latch into the door edge and secure it with screws.
2. Instalatu aurreko panela: Connect the front panel to the lock tongue, rotate, and tighten the insertion holes.
3. Secure the center shaft: Install the center shaft and insert the pin into the fork, ensuring it is secure.
4. Lerrokatu eta txertatu: Align the holes and insert the lock assembly into the door.
5. Thread the cable: Carefully thread the connecting cable through the back panel of the door.
6. Secure the back panel: Attach the back panel to the door with screws.
7. Konektatu kablea: Connect the cable from the front panel to the back panel.
8. Instalatu bateriak: Insert four AA alkaline batteries into the battery compartment.
9. Berrezarri (beharrezkoa bada): Press and hold the reset button for 10 seconds to restore default settings. (Press 0# for default unlocking).
10. Cover the back panel: Attach the cover to the back panel and tighten the screws to complete installation.

Image: Installation steps 1-6 for the Locstar LS-8015FM smart lock.

Image: Installation steps 7-12 for the Locstar LS-8015FM smart lock, including battery installation and final cover attachment.

6. Funtzionamendu-argibideak

The Locstar LS-8015FM offers multiple convenient ways to unlock your door.

Irudia: Gainetikview of unlocking methods: Card, Passcode, and Key, along with the lock's aluminum alloy construction and battery box location.

6.1 Desblokeatzeko metodoak

• Pasahitz bidezko desblokeoa: Enter your programmed passcode on the keypad, then press '#'. The lock will provide audible and visual feedback upon successful entry.
• Txartelaren desblokeoa: Present a registered IC card to the card reader area on the lock. The lock will unlock automatically.
• Giltza desblokeatzeko: Insert the mechanical key into the keyway and turn to unlock the door. This is a backup method for emergencies or battery depletion.

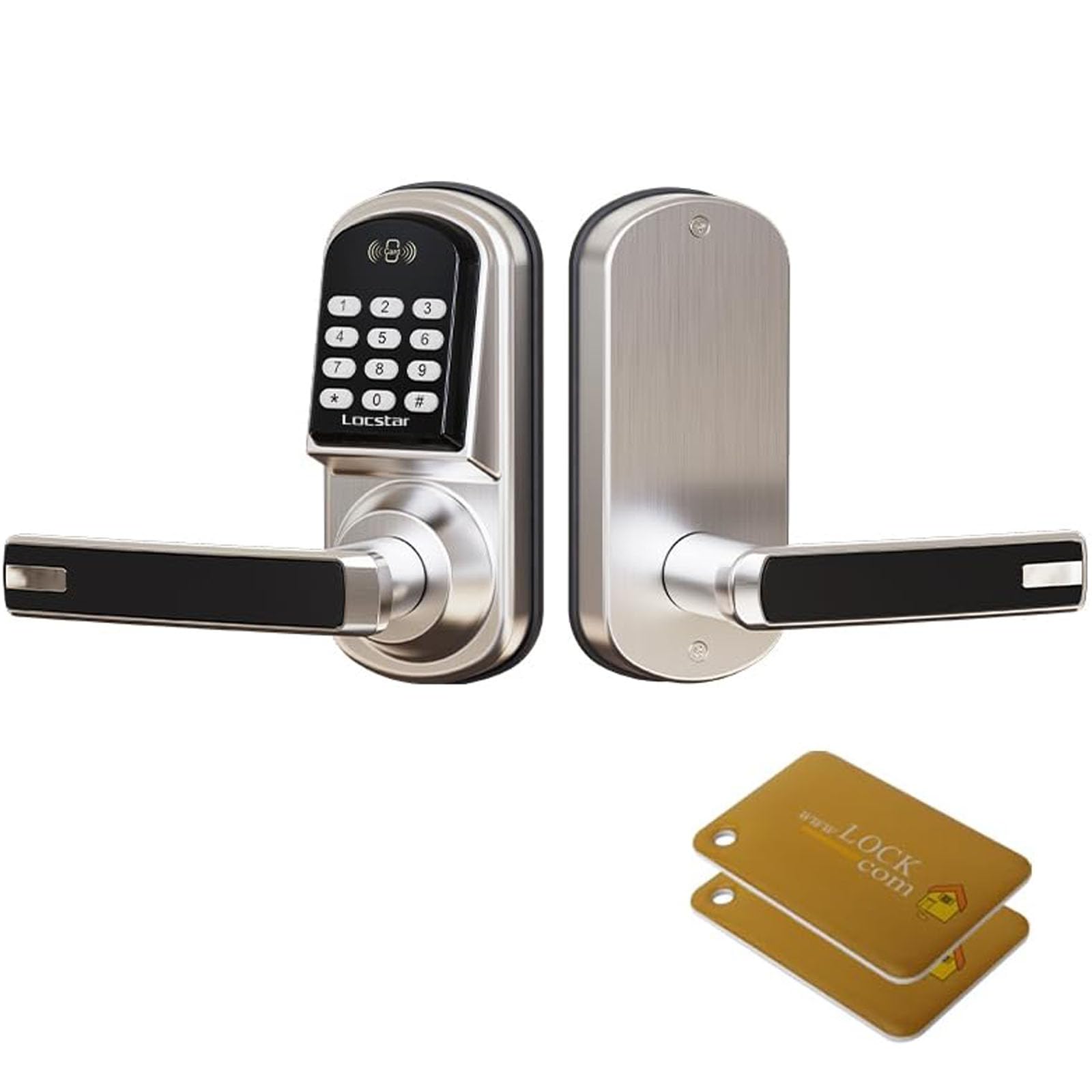

Image: Visual representation of IC card and password unlock options for the Locstar smart lock.

6.2 Programming Passcodes and Cards

Refer to the specific programming section in your detailed user guide for initial setup and modification of user passcodes and IC cards. This typically involves entering a master code followed by specific commands to add or delete user credentials.

6.3 Blokeo automatikoaren funtzioa

The lock is equipped with an auto-lock feature that automatically re-locks the door after a set period once it has been unlocked. This feature enhances security and can usually be configured or disabled through the lock's programming menu.

6.4 Backlit Keypad

The keypad features backlighting, allowing for clear visibility and operation even in low-light conditions or at night.

Image: The Locstar LS-8015FM smart lock with its backlit keypad clearly visible at night.

7. Mantentzea

7.1 Bateria ordezkatzea

The lock requires 4 AA alkaline batteries. When the batteries are low, the lock will typically provide an audible or visual low-battery warning. Replace all four batteries simultaneously to ensure optimal performance.

• Open the battery compartment cover on the interior side of the lock.
• Kendu bateria zaharrak.
• Sartu AA pila alkalino berriak, polaritate zuzena (+/-) ziurtatuz.
• Itxi bateriaren konpartimenduaren estalkia.

7.2 Garbiketa

Garbitu giltzarrapoaren kanpoaldea oihal leun eta lehor batekinamp zapirik gabe. Saihestu garbitzaile urratzaileak, disolbatzaileak edo spray kimikoak erabiltzea, hauek akabera eta osagai elektronikoak kaltetu baititzakete.

8. Arazoak

If you encounter issues with your Locstar LS-8015FM lock, refer to the following common problems and solutions:

• Blokeoak ez du erantzuten: Check battery levels. Replace batteries if necessary. Ensure the cable connection between the front and back panels is secure.
• Pasakodea ez dabil: Verify that you are entering the correct passcode. Ensure the lock is not in a 'locked out' state due to multiple incorrect entries. Try resetting the lock to factory settings (refer to installation step 5.2, point 9).
• Mechanical key not working: Ensure the key is fully inserted and turned correctly. If the key is bent or damaged, do not force it.
• Blokeo automatikoa ez da aktibatzen: Check the lock's programming settings to ensure the auto-lock feature is enabled and configured with the desired delay.
• Difficulty turning handle: Ensure the lock body/latch is properly aligned and installed. Check for any obstructions in the door frame or strike plate.

Arazo iraunkorretarako, jarri harremanetan bezeroarentzako arreta-zerbitzuarekin.

9. Bermea eta Laguntza

Locstar provides a comprehensive warranty that covers defects in materials and workmanship for the LS-8015FM Keyless Entry Door Lock. For specific warranty terms and conditions, please refer to the warranty card included with your product or contact Locstar customer support.

Bezeroarentzako Arreta

If you have any questions, require technical assistance, or need to report an issue, please contact Locstar customer support through the retailer where the product was purchased or via the official Locstar webgunea.
