Xech Solar Beam Rechargeable Solar Torch Light

Produktua amaituview

The Xech Solar Beam is a versatile, high-power rechargeable solar torch light designed for various lighting needs. It features dual charging capabilities (USB-C and solar panel), multiple light modes, and a detachable design for flexible use. This manual provides instructions for safe and efficient operation of your device.

Ezaugarri nagusiak

• Karga bikoitza: Supports both USB-C and solar panel charging for convenience and eco-friendly power.
• Lau argi modu: Includes Long Range, Short Range, SOS, and Side Light for diverse illumination requirements.
• Diseinu desmuntagarria: The light module can be separated from the diffuser for use as a handheld torch, desk lamp, or mounted light.
• Trinkoa eta eramangarria: Lightweight and sturdy design, suitable for travel, outdoor activities, and emergency kits.
• Erabilera anitzeko funtzionaltasuna: Functions as a torch, solar lamp, study light, and camping linterna.

Osagaiak

The Xech Solar Beam consists of two primary components:

1. Argi-modulua: Contains the LED light source, solar panel, USB-C charging port, power button, and battery indicator.
2. Difusorea: A cylindrical housing that provides 360-degree soft light when the light module is inserted.

Konfigurazioa eta Muntaketa

To assemble the Xech Solar Beam for diffused lighting:

1. Take the light module and the diffuser.
2. Align the light module with the top opening of the diffuser.
3. Gently push the light module downwards into the diffuser until it is securely seated.

To use as a handheld torch or mounted light, simply pull the light module upwards to detach it from the diffuser.

Irudiaren deskribapena: The left panel illustrates the light module being inserted into the diffuser. The right panel shows the assembled unit emitting 360-degree soft light.

Kargatzeko jarraibideak

The Xech Solar Beam offers two charging methods:

1. USB-C kargatzea

• Locate the USB-C charging port on the light module.
• Konektatu emandako USB-C kargatzeko kablea atakara.
• Konektatu kablearen beste muturra USB egokitzaile bateragarri batera (ez dago barne) edo ordenagailuko USB ataka batera.
• The battery indicator lights will show charging status.

2. Eguzki kargatzea

• Ensure the solar panel on top of the light module is clean and unobstructed.
• Place the light module (or the assembled unit) in direct sunlight.
• Solar charging is slower than USB-C charging and is ideal for outdoor use or maintaining charge.

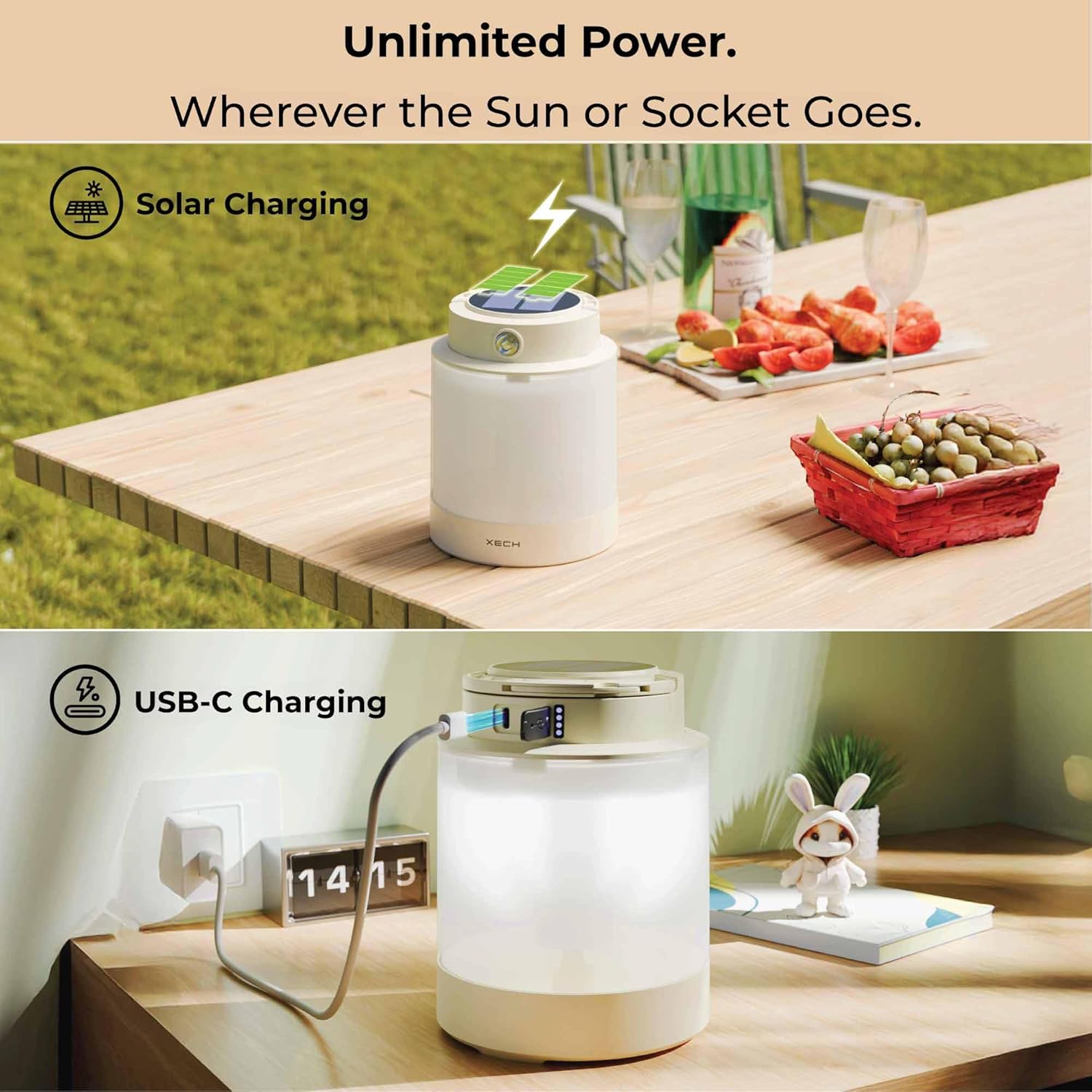

Irudiaren deskribapena: The top panel shows the device charging via its solar panel in an outdoor setting. The bottom panel shows the device connected to a wall adapter via a USB-C cable for indoor charging.

Operating Instructions and Light Modes

The Xech Solar Beam features a single intuitive button for operation and mode switching.

Piztu/Itzali

• Sakatu pizteko botoia behin argia pizteko.
• Argia itzaltzeko, sakatu eta eutsi pizteko botoia 2 segundo inguru.

Argi moduak aldatzea

Once the light is on, short press the power button to cycle through the following modes:

1. Sormen luzeko habea: Provides a focused, powerful beam for distance visibility. Ideal for outdoor walks or searching.
2. Short Range Beam: Offers a softer, wider spread of light, suitable for indoor use or reading.
3. SOS modua: Emits a flashing signal for emergency situations.
4. Side Light (Diffused Lamp): Illuminates the surrounding area with a soft, even light. Best used when the light module is inserted into the diffuser.

Irudiaren deskribapena: The top panel shows the device emitting a 'Rim Light'. The bottom left panel shows the device used as a 'Focused Torch' to illuminate a car wheel. The bottom right panel shows the device as a 'Soft Diffused Lamp' on a desk.

Irudiaren deskribapena: The top panel shows a close-up of the light module's top, highlighting the power button and battery indicator. The bottom panel shows the light module hanging by its integrated hook, demonstrating its versatility.

Aplikazio polifazetikoak

The Xech Solar Beam is designed for a wide range of uses:

• Campesan: Hang it inside your tent for ambient lighting.
• Sukaldea: Provides supplementary light during cooking or power outages.
• Night Walks: Use the focused torch mode for clear path illumination.
• Study Desks: Offers soft, diffused light for reading or working.
• Larrialdiko babeskopia: A reliable light source during power cuts.

Irudiaren deskribapena: A four-panel image showing the Xech Solar Beam in use: hanging in a tent for camping, providing light in a kitchen, illuminating a path during a night walk, and serving as a desk lamp for studying.

Zainketa eta Mantentzea

• Garbiketa: Garbitu gailua zapi leun eta lehor batekin. Ez erabili garbitzaile urratzailerik eta ez sartu uretan.
• Biltegiratzea: Denbora luzez erabiltzen ez denean, gorde leku fresko eta lehor batean, eguzki-argitik babestuta.
• Bateria zaintzea: For optimal battery life, charge the device regularly, even if not in frequent use. Avoid fully discharging the battery for prolonged periods.
• Uraren erresistentzia: Produktu hau ez da urarekiko erresistentea. Saihestu euri edo hezetasunarekiko esposizioa.

Arazoak konpontzea

• Argia ez pizten: Ensure the battery is charged. Connect to a USB-C power source or place in direct sunlight.
• Solar charging not working: Verify the solar panel is clean and exposed to direct sunlight. Shaded areas will significantly reduce charging efficiency.
• USB-C charging not working: Check the USB-C cable and power adapter for damage. Ensure the cable is fully inserted into the port.
• Light modes not switching: Ensure you are short-pressing the power button to cycle through modes. If unresponsive, try turning the device off and on again.

Zehaztapenak

Bermea eta Laguntza

For warranty information and customer support, please refer to the documentation provided with your purchase or contact Xech customer service directly. Keep your proof of purchase for any warranty claims.
