Sarrera
This manual provides detailed instructions for the installation, operation, and maintenance of your PROFLO Reston PF2412 Toilet Tank. Please read all instructions carefully before beginning installation to ensure proper function and safety. This product is designed to coordinate seamlessly with other PROFLO Reston line products.
Segurtasun informazio garrantzitsua
- Itxi beti komuneko ur-hornidura edozein instalazio edo mantentze-lan hasi aurretik.
- Wear appropriate safety gear, such as gloves and eye protection, during installation.
- Kontu handiz maneiatu zeramikazko osagaiak, txirbildu edo hausturarik ez egiteko.
- Ziurtatu konexio guztiak ondo itxita eta iragazgaitzak direla ihesak saihesteko.
- Produktu honek Kaliforniako Estatuak minbizia eta jaiotzetiko akatsak edo bestelako ugalketa-kalteak eragiten dituztela ezagutzen dituen produktu kimikoak ditu (65. Proposamenaren abisua). Garbitu eskuak manipulatu ondoren.
Paketearen edukia
Instalazioa hasi aurretik, egiaztatu osagai guztiak daudela:
- PROFLO Reston PF2412 Toilet Tank (White)
- Tank-to-bowl bolts, washers, and nuts (typically included with tank)
- Tank-to-bowl gasket
- Left-hand trip lever mechanism (pre-installed or included)
Note: Toilet bowl, seat, and water supply line are sold separately.
Instalazio-argibideak
This section outlines the steps for installing the PROFLO Reston PF2412 toilet tank onto a compatible toilet bowl.
Step 1: Prepare the Toilet Bowl
Ensure the toilet bowl is securely installed to the floor flange and the wax ring is properly seated. Clean the top surface of the toilet bowl where the tank will rest.
Step 2: Install the Tank-to-Bowl Gasket
Place the large rubber tank-to-bowl gasket over the flush valve opening on the underside of the toilet tank. Ensure it is seated firmly and evenly.

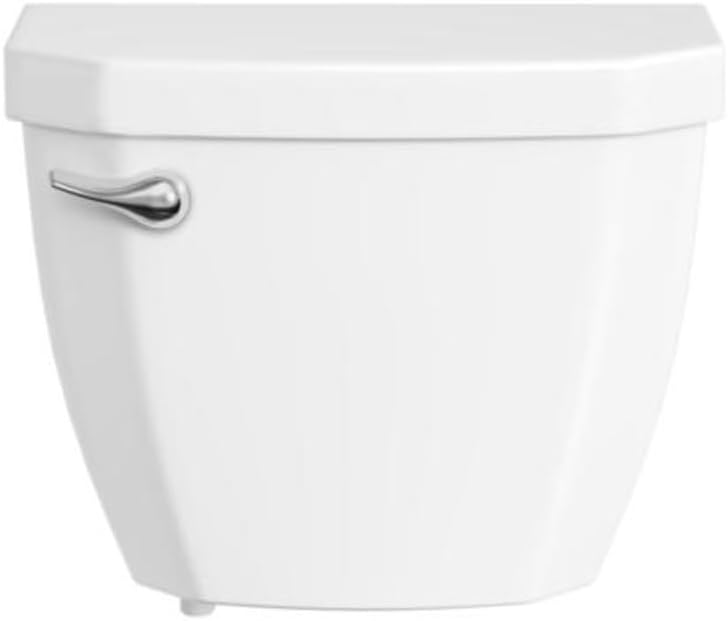

Image: The PROFLO Reston PF2412 toilet tank, showing its white vitreous china construction. This image represents the tank component being installed.
Step 3: Position the Tank
Carefully lift the toilet tank and align the bolt holes on the bottom of the tank with the corresponding holes on the back of the toilet bowl. Gently lower the tank onto the bowl, ensuring the gasket creates a seal.
Step 4: Secure the Tank
Insert the tank-to-bowl bolts through the holes in the tank and bowl. Place a rubber washer, then a metal washer, and finally a nut onto each bolt from underneath the bowl. Hand-tighten the nuts initially. Then, using a wrench, alternately tighten each nut a quarter turn at a time until the tank is snug and stable. Ez estutu gehiegi, honek zeramika pitzatu baitezake.

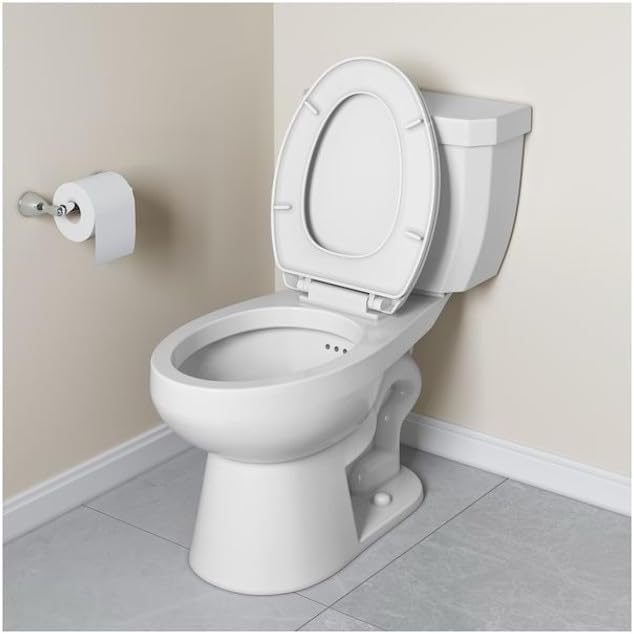

Image: A complete PROFLO Reston toilet assembly, illustrating the tank secured to the bowl. This view helps visualize the final installed position.
5. urratsa: Ur-hornidura konektatu
Connect the flexible water supply line (not included) from the shut-off valve to the fill valve shank on the underside of the toilet tank. Hand-tighten, then use a wrench for a final quarter-turn. Ez estutu gehiegi.
6. urratsa: egiaztatu ihesak
Slowly turn on the water supply valve. Allow the tank to fill. Inspect all connections (tank-to-bowl bolts, water supply line) for any signs of leaks. If leaks occur, gently tighten the connections further until they stop. Do not overtighten.
Funtzionamendu-argibideak
The PROFLO Reston PF2412 toilet tank operates with a standard left-hand trip lever for flushing.
- To flush the toilet, press down firmly on the left-hand trip lever located on the front left side of the tank.
- Hold the lever down briefly until the flush cycle begins.
- The tank will refill automatically after flushing.
This tank features a 1.28 Gallons Per Flush (GPF) design for efficient water usage.
Image: Diagram illustrating PROFLO Reston toilet features, including the anti-overflow channel, 3-inch flush valve, and backup trapway, which contribute to efficient and reliable operation.
Mantentzea
Garbiketa
Clean the exterior of the toilet tank with a soft cloth and mild, non-abrasive cleaner. Avoid harsh chemicals or abrasive scrubbers, as these can damage the vitreous china finish. For the interior, occasional cleaning with a toilet bowl cleaner is acceptable, ensuring it is safe for internal toilet components.
Ohiko egiaztapenak
- Periodically check the water level in the tank. It should be at the waterline mark indicated inside the tank.
- Inspect the fill valve and flush valve for proper operation.
- Ensure the trip lever operates smoothly and returns to its original position after flushing.
- Check for any signs of leaks around the base of the tank or the water supply connection.
Arazoak konpontzea
| Arazoa | Kausa posiblea | Irtenbidea |
|---|---|---|
| Komuna etengabe dabil edo txandaka piztu eta itzali. | Flapper not sealing, fill valve not shutting off, or water level too high. | Check flapper for debris or wear. Adjust fill valve to lower water level if necessary. Inspect fill valve for malfunction. |
| Garbiketa ahula. | Low water level in tank, clogged rim jets, or partially closed water supply valve. | Ensure water level is at the waterline mark. Clean rim jets under the bowl rim. Fully open the water supply valve. |
| Leak at tank-to-bowl connection. | Tank-to-bowl bolts loose, gasket improperly seated, or damaged gasket. | Gently tighten tank-to-bowl nuts alternately. Ensure gasket is properly positioned. Replace gasket if damaged. |
| Trip lever is stiff or not flushing. | Chain to flapper is tangled or too short/long, or lever mechanism is obstructed. | Adjust the length of the flapper chain. Clear any obstructions around the trip lever mechanism. |
Zehaztapenak
- Eredua: PF2412
- Marka: PROFLO
- Kolorea: Zuria
- Materiala: Txina bortitza
- Flux bolumena: 1.28 Gallons Per Flush (GPF)
- Trip Lever Placement: Ezkerreko Eskua
- Product Dimensions (Tank Only): 19.4" L x 10.4" W x 17.4" H
- Elementuaren pisua: 37.75 kilo
- UPC: 199242004768

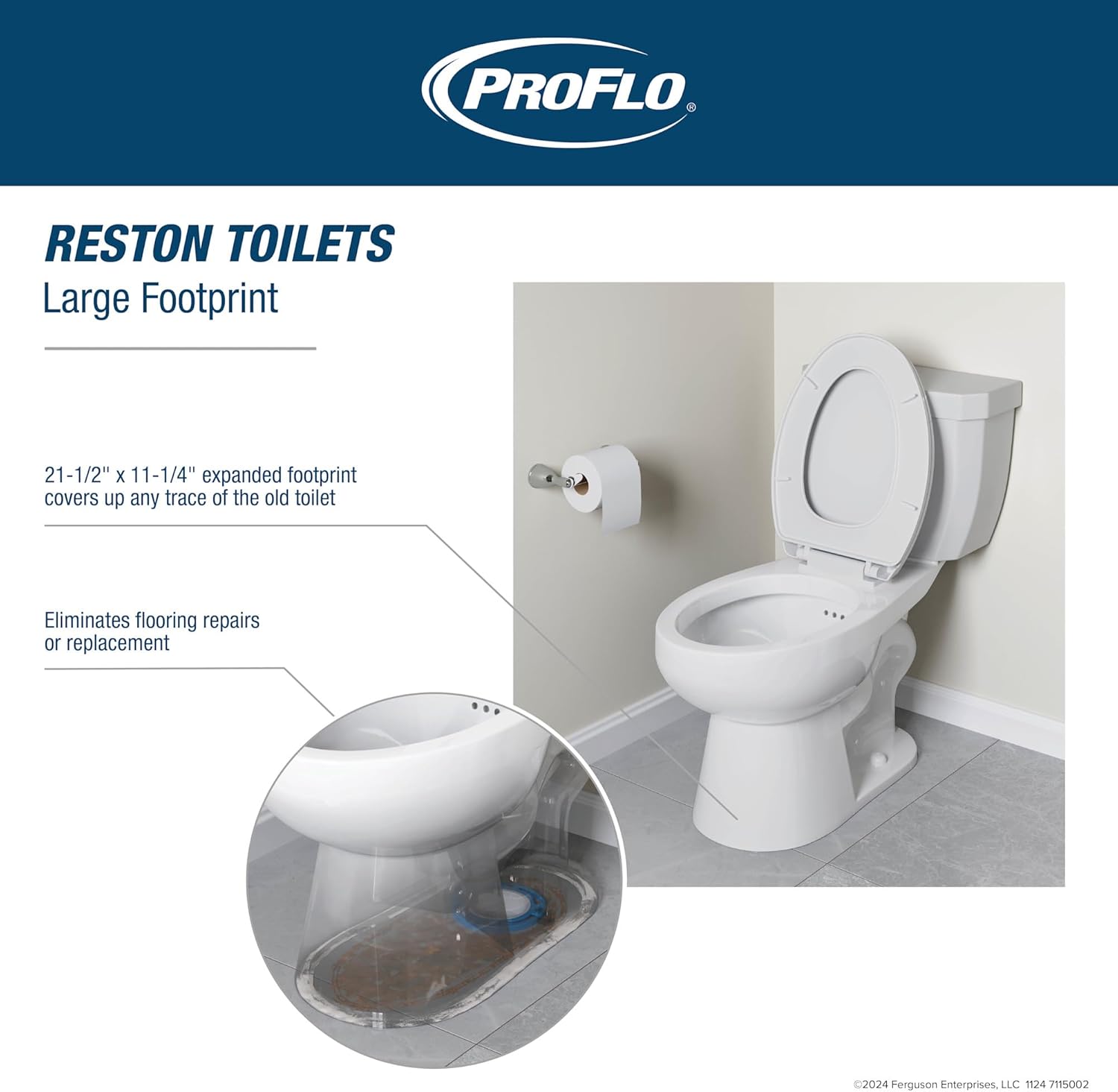

Image: Diagram illustrating the "Large Footprint" feature of the PROFLO Reston toilet, showing how its base can cover traces of an old toilet, potentially simplifying installation and reducing the need for flooring repairs.
Bermea eta Laguntza
For warranty information and technical support, please contact PROFLO customer service. Refer to your purchase documentation or the PROFLO official website for the most current warranty details and contact information.
PROFLO Customer Service: Mesedez, bisitatu the PROFLO Store on Amazon or the official PROFLO weblaguntza baliabideen gunea.
