SEAFLO 31-Series DC Diaphragm Pump Instruction Manual

1. Sarrera

This manual provides essential information for the safe and efficient operation, installation, and maintenance of your SEAFLO 31-Series DC Diaphragm Pump. This 12V pump is designed for high-pressure applications, delivering a steady 1.8 GPM flow rate with a 100 PSI shut-off pressure. It is suitable for RV water systems, agricultural sprayers, marine use, and high-pressure cleaning applications. Please read this manual thoroughly before installation and use.

2. Segurtasun informazioa

• Always disconnect power before installing, servicing, or performing any maintenance on the pump.
• Ziurtatu energia iturria ponparen bolumenarekin bat datorrelatage requirements (12V DC). Incorrect voltage can damage the pump and pose a safety hazard.
• Do not pump flammable liquids or use the pump in explosive atmospheres.
• Protect the pump from freezing temperatures. Freezing can cause severe damage and void the warranty.
• Ensure all connections are secure and leak-free to prevent water damage or electrical shorts.
• Erabili babes pertsonaleko ekipamendu (BPE) egokia instalazioan eta mantentze-lanetan zehar.

3. Produktua amaitu daview eta Zehaztapenak

3.1 Ezaugarri nagusiak

• Powerful High-Pressure Performance: Delivers 1.8 GPM flow rate with 100 PSI shut-off pressure.
• Self-Priming & Run-Dry Safe: Capable of self-priming up to 6 feet and protected from damage when water runs low.
• Built-in Automatic Pressure Switch: Automatically starts and stops based on demand.
• Quiet & Efficient Operation: Engineered for low noise and vibration.
• Eraikuntza iraunkorra: Built with EPDM valves and a Santoprene diaphragm for harsh environments.
• Instalazio erraza: Features an industry-standard mounting pattern and threaded connections.

3.2 Fitxa teknikoak

3.3 Produktua View

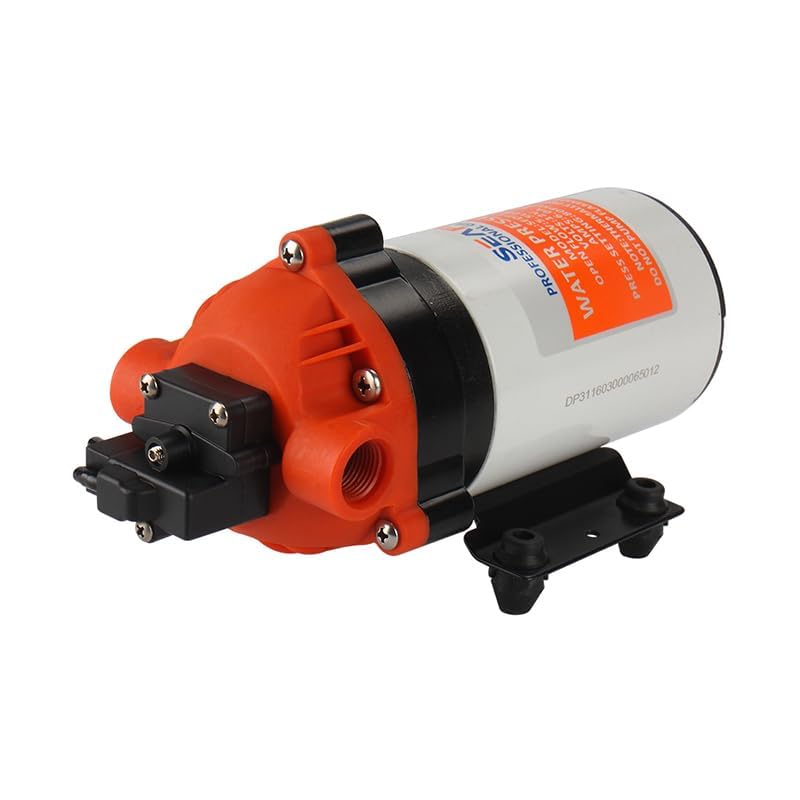

1. irudia: Angeludun view of the SEAFLO 31-Series DC Diaphragm Pump.

2. irudia: Aldea view of the pump, highlighting the product label with model and electrical specifications.

4. Konfigurazioa eta instalazioa

Proper installation is crucial for the pump's performance and longevity. Follow these guidelines:

4.1 Muntaketa

• Mount the pump in a dry, well-ventilated area, protected from direct sunlight and freezing temperatures.
• Use the integrated mounting feet to secure the pump to a solid surface. The industry-standard mounting pattern allows for quick installation.
• Mount the pump in a position that allows for easy access for maintenance and inspection.
• Ensure the pump is mounted below the water source for optimal self-priming, or within 6 feet (1.8m) of the water source if above.

4.2 Iturgintza-konexioak

3. irudia: Goitik behera view of the pump, showing the 3/8"-18 FNPT ports and included fittings.

• Connect the inlet port (marked with an arrow pointing towards the pump) to your water source using appropriate 3/8"-18 FNPT fittings.
• Connect the outlet port (marked with an arrow pointing away from the pump) to your distribution system.
• Use flexible hose on both inlet and outlet to minimize vibration and noise.
• Ensure all connections are tight to prevent leaks. Do not overtighten plastic fittings.
• Install a filter on the inlet side to protect the pump from debris.

4.3 Konexio elektrikoak

• Connect the pump to a 12V DC power source.
• Ensure correct polarity: Red wire to positive (+), Black wire to negative (-).
• Install an appropriate fuse (refer to pump specifications for Max Draw, 9.0A, and select a fuse slightly higher, e.g., 10A or 15A) in the positive (+) line as close to the power source as possible.
• Use marine-grade or automotive-grade wiring of sufficient gauge for the current draw and length of the run.
• All electrical connections should be waterproofed and protected from corrosion.

5. Funtzionamendu-argibideak

Once installed, operating the SEAFLO 31-Series pump is straightforward:

• Priming: Ensure the inlet line is submerged in water. The pump is self-priming up to 6 feet. Open a faucet or outlet on the discharge side to allow air to escape.
• Piztu: Apply 12V DC power to the pump. The pump will run until the system pressure reaches the shut-off pressure (100 PSI).
• Funtzionamendu automatikoa: The built-in pressure switch will automatically turn the pump off when the system reaches the set pressure and turn it back on when the pressure drops (e.g., when a faucet is opened).
• Run-Dry Protection: The pump is designed to run dry without damage, but continuous dry running should be avoided to prolong pump life.
• Tenperatura: Do not exceed the maximum liquid temperature of 140°F (60°C).

6. Mantentzea

Mantentze-lan erregularrak errendimendu optimoa bermatzen du eta ponparen bizitza luzatzen du.

• Ikuskatu konexioak: Periodically check all plumbing and electrical connections for tightness and signs of corrosion or wear.
• Sarrerako iragazkia garbitu: If an inlet filter is installed, clean it regularly to prevent debris from entering the pump and reducing flow.
• Negua (hala badagokio): If the pump is used in an environment where freezing temperatures are possible, drain all water from the pump and lines or flush with RV antifreeze to prevent damage.
• Garbiketa orokorra: Mantendu ponparen kanpoaldea garbi eta zikinkeriarik eta hondakinik gabe.

7. Arazoak

Laguntzarekin harremanetan jarri aurretik, berriroview arazo eta irtenbide ohikoenak hauek dira:

8. Bermea eta Laguntza

8.1 Bermearen informazioa

The SEAFLO 31-Series DC Diaphragm Pump is backed by a 4 urteko bermeaBerme honek materialen eta fabrikazioaren akatsak estaltzen ditu erabilera eta zerbitzu normaletan. Gorde erosketaren egiaztagiria bermearen erreklamazioak egiteko.

8.2 Bezeroarentzako laguntza

For technical assistance, warranty claims, or further inquiries, please contact SEAFLO customer support. Refer to the product packaging or the official SEAFLO webgunea kontaktu-informazio eguneratuena lortzeko.
