Belkin BoostCharge 20K Power Bank (BPB024) Instruction Manual

1. Bukatu daview

The Belkin BoostCharge 20K Power Bank is a portable charging solution designed to provide up to 30W of power. It features a built-in USB-C cable for convenient charging without additional cables. The power bank includes USB-C and USB-A ports, allowing for simultaneous charging of multiple devices. It also supports pass-through charging, enabling the power bank and a connected device to charge concurrently.

Image: Belkin BoostCharge Power Bank 20K in blue, pink, white, and black colors, showcasinbere diseinu dotorea.

2. Zer dago barne

Paketeak elementu hauek ditu:

• 1 x Belkin Power Bank kable integratua 20K PD 30W-rekin

3. Konfigurazioa

3.1 Bateriaren kargatze azkarra

Before first use, fully charge your Belkin BoostCharge 20K Power Bank. Connect the power bank to a wall charger using its integrated USB-C cable or a separate USB-C cable through the USB-C port. The LED indicator lights will show the charging status and battery level.

Image: Close-up of the Belkin Power Bank showing the LED indicator lights, which display the battery status.

3.2 Kargatzeko gailuak konektatzea

Zure gailuak kargatzeko:

1. Use the integrated USB-C cable to connect to a compatible device.
2. Alternatively, use your device's charging cable and connect it to either the USB-C port or the USB-A port on the power bank.
3. Ensure the connection is secure. Charging will begin automatically.

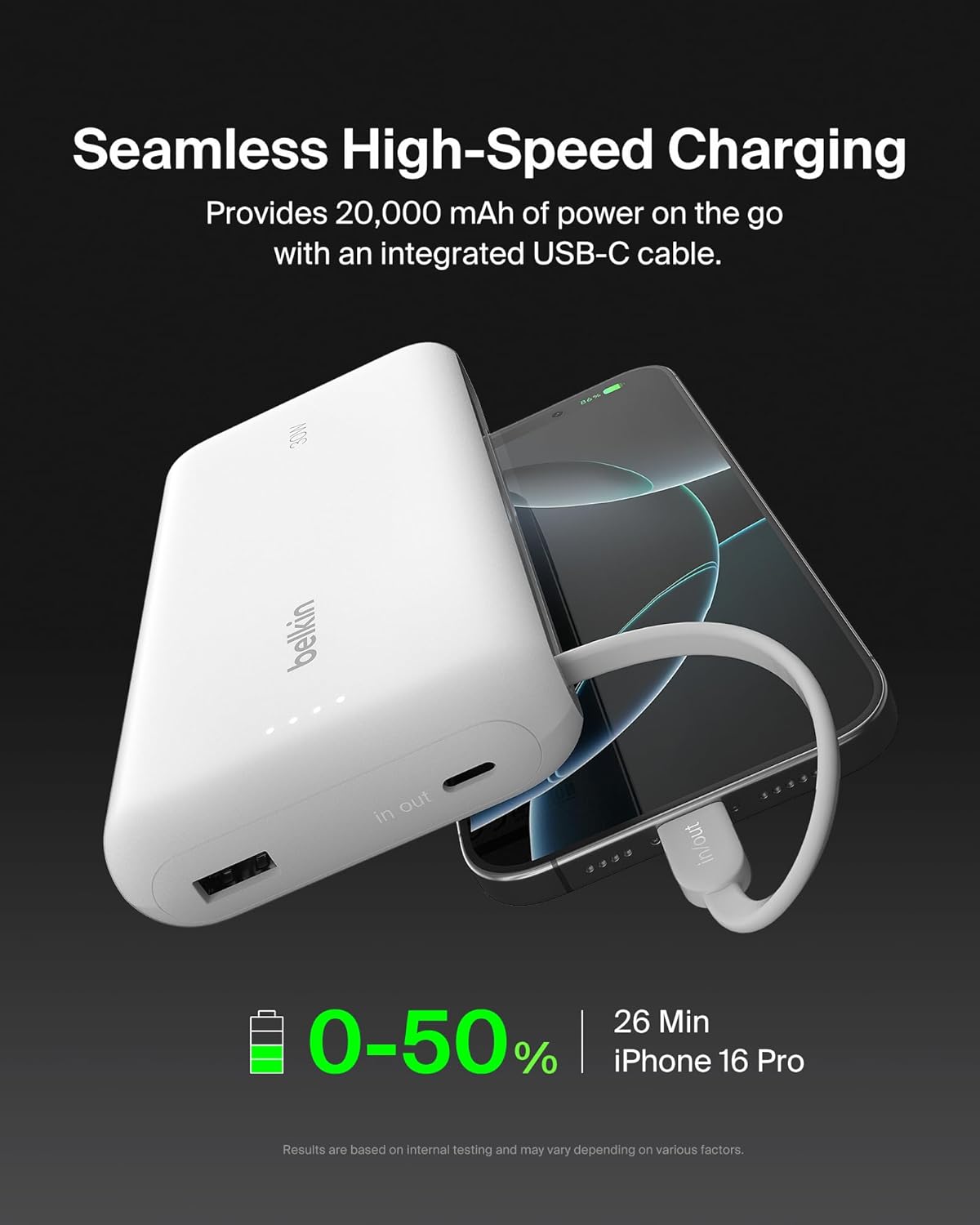

Image: The Belkin Power Bank connected to a smartphone using its integrated USB-C cable, demonstrating convenient charging.

4. Funtzionamendu-argibideak

4.1 Hainbat gailu kargatzea

The power bank allows you to charge up to three devices simultaneously using the built-in USB-C cable, the USB-C port, and the USB-A port. The total shared output is 30W.

Image: The Belkin Power Bank simultaneously charging a smartphone, tablet, and wireless earbuds, illustrating its multi-device charging capability.

4.2 Kargatze azkarraren gaitasuna

With a 30W output, the power bank can fast charge compatible smartphones and tablets. For example, an iPhone 16 Pro can charge from 0-50% in approximately 25 minutes. Charge times may vary based on environmental factors and device specifications.

Image: A graphic indicating the Belkin Power Bank provides up to 87 hours of additional battery life for an iPhone, highlighting its large capacity.

4.3 Pasabideko kargatzea

The power bank supports pass-through charging up to 15W. This feature allows you to charge the power bank itself while simultaneously charging two other devices connected to it.

Image: The Belkin Power Bank plugged into a wall outlet while simultaneously charging a smartphone, demonstrating pass-through charging.

4.4 LED adierazle argiak

The built-in LED lights indicate the power bank's battery status. Refer to the product packaging or Belkin's official website for specific light patterns and their corresponding battery levels.

5. Segurtasun informazioa

The Belkin BoostCharge 20K Power Bank incorporates SmartProtect technology, featuring rigorous 16-point testing and superior hardware design to ensure safety. This includes:

• Tenperaturaren babesa
• Gainkargaren babesa
• Drop Test Compliance
• Plug and Unplug Test Compliance
• Gainkorrontearen babesa
• Gain-uretantage Babesa
• Zirkuitu Laburreko Babesa
• Irteera Voltage Babesa
• Tenperatura altuko irteerako babesa
• Tenperatura baxuko irteerako babesa
• Tenperatura altuko sarrerako babesa
• Tenperatura baxuko sarrera babesa
• Seinaleen interferentziaren aurkako babesa

Image: A graphic illustrating Belkin's SmartProtect advanced safety testing, including temperature, overcharge, drop, and plug/unplug tests.

The power bank is designed with dual-chip protection to prevent damage from overvoltage, gehiegizko korrontea eta beste matxurak.

Irudia: Barneko bat view of the Belkin Power Bank highlighting its dual-chip protection system for enhanced safety.

5.1 Bidaia-betetzea

The power bank features 74 Wh (watt-hours), making it fully compliant with 100 Wh-limit TSA carry-on requirements for air travel. It is compact and suitable for both carry-on and checked luggage.

Image: A graphic indicating the Belkin Power Bank is 20,000mAh, Carry-On Compliant, and TSA Compliant, shown in an airport setting.

6. Zehaztapenak

7. Mantentzea

To ensure the longevity and optimal performance of your Belkin BoostCharge 20K Power Bank:

• Mantendu bateria eramangarria muturreko tenperaturetatik, eguzki-argitik eta hezetasunetik urrun.
• Saihestu potentzia-bankua erortzea edo eragin gogorrak jasan behar izatea.
• Garbitu kanpoaldea zapi leun eta lehor batekin. Ez erabili produktu kimiko gogorrik edo material urratzailerik.
• Gorde power banka leku fresko eta lehor batean erabiltzen ez duzunean.
• Fully charge the power bank at least once every three months to maintain battery health if stored for extended periods.

8. Arazoak

Zure power bank-arekin arazoak badituzu, jo ezazu honako ohiko irtenbide hauetara:

• Gailua ez da kargatzen:
  • Ensure the power bank is sufficiently charged. Check the LED indicator lights.
  • Egiaztatu kargatzeko kablea ondo konektatuta dagoela bai bateria eramangarrira bai zure gailura.
  • Try using a different charging cable or port on the power bank.
  • Confirm your device is compatible with the power bank's output specifications.
• Energia-bankua ez da kargatzen:
  • Ensure the wall adapter and charging cable used to charge the power bank are functioning correctly.
  • Try a different wall outlet or USB power source.
  • Check for any debris in the power bank's input port.
• Karga motela:
  • Ensure you are using a compatible fast-charging cable and adapter for your device.
  • Charging multiple devices simultaneously may reduce the charging speed for individual devices due to shared output.
  • Environmental factors can affect charging speed.

If the issue persists, please contact Belkin customer support.

9. Bermea eta laguntza

The Belkin BoostCharge 20K Power Bank comes with a 2 urteko bermea. Additionally, Belkin offers Connected Equipment Warranty (CEW) coverage. Belkin will repair or replace electronic devices damaged by an electrical charge while properly connected to this power bank, up to $2,500 US/AUD/€2,000/¥1,500.

Image: A graphic depicting a shield with a lightning bolt, symbolizing Belkin's Connected Equipment Warranty and 2-year coverage.

For detailed terms and conditions regarding the warranty and CEW, please visit the official Belkin webgunea: belkin.com/cew.

For further assistance or technical support, please visit the Belkin support page or contact their customer service.

10. Produktuen bideoak

11. Sustainability Commitment

Belkin is committed to minimizing environmental impact and driving accountability. This product is made with post-consumer recycled materials and features 100% plastic-free packaging.

Image: A graphic detailing Belkin's sustainability efforts, including Ecovadis award, 100% plastic-free packaging, greenhouse gas reduction, and tree planting initiatives.
