1. Sarrera
This manual provides essential information for the safe and efficient operation, installation, and maintenance of your Frigidaire PCFG3080A Professional 30-Inch Gas Range. Please read all instructions carefully before using the appliance.
Segurtasun informazio garrantzitsua
- 65. proposamena Abisua: Produktu honek karbono monoxidoa barne produktu kimikoen eraginpean jar dezake, Kaliforniako Estatuak ezagutzen dituenak jaiotza-akatsak edo ugalketa-kalte batzuk eragiten dituela. Informazio gehiago nahi izanez gero, joan www.P65Warnings.ca.gov.
- Ensure proper ventilation when operating the gas range.
- Ez gorde material sukoiak tresnaren barruan edo inguruan.
- Beti haurrak gainbegiratu aparatua erabiltzen ari denean.
2. Konfigurazioa eta instalazioa
Proper installation is crucial for the safe and optimal performance of your gas range. It is recommended that installation be performed by a qualified installer.
Despaketatzea eta Kokatzea
- Carefully remove all packaging materials, tape, and protective films from the range.
- Ensure the range is placed on a level surface. Adjustable leveling legs are provided to stabilize the unit.
- Verify that the gas supply connection is secure and free of leaks.
- Ensure electrical connections meet local codes and the appliance's requirements (120 Volts).
Hasierako Erabilera
Before first use, clean the oven interior and cooktop surfaces with a damp cloth. It is normal for a slight odor to be present during the first few uses as manufacturing oils burn off. This will dissipate with continued use.
Image: The Frigidaire PCFG3080A Professional Gas Range, showcasing its stainless steel finish and overall design.
3. Sukaldearen funtzionamendua
Your Frigidaire PCFG3080A gas range features a flexible six-burner cooktop with varying BTU outputs for diverse cooking needs, including an integrated cast iron griddle.
Erregailuen funtzionamendua
- The cooktop includes six sealed burners.
- To ignite a burner, push in and turn the corresponding knob to the 'Lite' position. Hold until the burner ignites, then adjust to your desired flame size (Low to High).
- The front left and front right burners offer 18,000 BTU for powerful heating, ideal for rapid boiling or searing.
- Other burners provide outputs of 7,500 BTU (back left, back middle, front middle) and 5,000 BTU (back right) for simmering and general cooking.
Integrated Cast Iron Griddle
The integrated cast iron griddle is designed for even heat distribution, perfect for pancakes, bacon, or grilled sandwiches. Place it over the center burners for optimal performance.
Irudia: Xehetasun zehatza view of the gas range's control panel with backlit LED knobs and the robust cast iron grates on the cooktop.
4. Labearen funtzionamendua
The 6 cu. ft. oven features a Total Convection System, offering various cooking modes for precise and efficient results.
Labearen Kontrolak
- The oven is controlled via a touch panel and dedicated knobs.
- Set the clock and timer using the touch controls.
- Backlit LED knobs indicate when a burner or oven function is active.
Sukaldaritza moduak
- Labean: Ohiko labeko pastelak, gailetak eta kazolak egiteko.
- Konbekzio labea: Uses a fan to circulate heat for even baking, ideal for multiple racks of food.
- Aire frijitua: Circulates hot air to produce crispy results with less oil. An Air Fry tray is included.
- Aurreberorik ez: Allows you to start baking immediately without waiting for the oven to preheat, saving time.
- Sukaldaritza motela: Cooks food at low temperatures (as low as 100°F) for extended periods, perfect for tenderizing meats.
- Lurrunetan labean: Incorporates steam for moist baked goods.
- Steam Roast: Combines steam with roasting for juicy meats with a crispy exterior.
- Konbekzio errea: Ideal for roasting large cuts of meat, ensuring even cooking and browning.
- Broil (Hi/Lo): Azkar gorritu eta gorritzeko.
Image: A temperature probe inserted into a roasted chicken, illustrating its use for precise cooking.
Tenperatura-zunda
The included temperature probe ensures precise cooking by monitoring the internal temperature of your food. Insert the probe into the thickest part of the food and set the desired temperature on the oven controls. The oven will automatically switch to a 'Keep Warm' setting once the target temperature is reached.
Image: The oven's slow cook function in action, showing a pot of food cooking at a low temperature.
Image: Chicken wings being air-fried in the oven using the included air fry tray.
Image: Cinnamon rolls baking in the oven, demonstrating the 'No Preheat' feature.
5. Mantentzea eta Garbiketa
Regular cleaning and maintenance will prolong the life and performance of your Frigidaire gas range.
Sukaldearen garbiketa
- Allow grates and burner caps to cool completely before cleaning.
- Remove grates and burner caps. Clean with warm, soapy water. For stubborn stains, a non-abrasive cleaner can be used.
- Wipe down the stainless steel cooktop surface with a soft cloth and a mild cleaner designed for stainless steel.
Labea Garbiketa
- Lurrun garbiketa: For light soil, use the Steam Clean function. Add water to the oven bottom and activate the cycle. This helps loosen food particles for easier wiping.
- Auto-garbiketa: For heavy soil, the oven features a self-clean cycle. Follow the instructions in the full user manual for proper use of this high-temperature cleaning function. Remove all racks and accessories before starting a self-clean cycle.
- Clean oven racks with warm, soapy water.

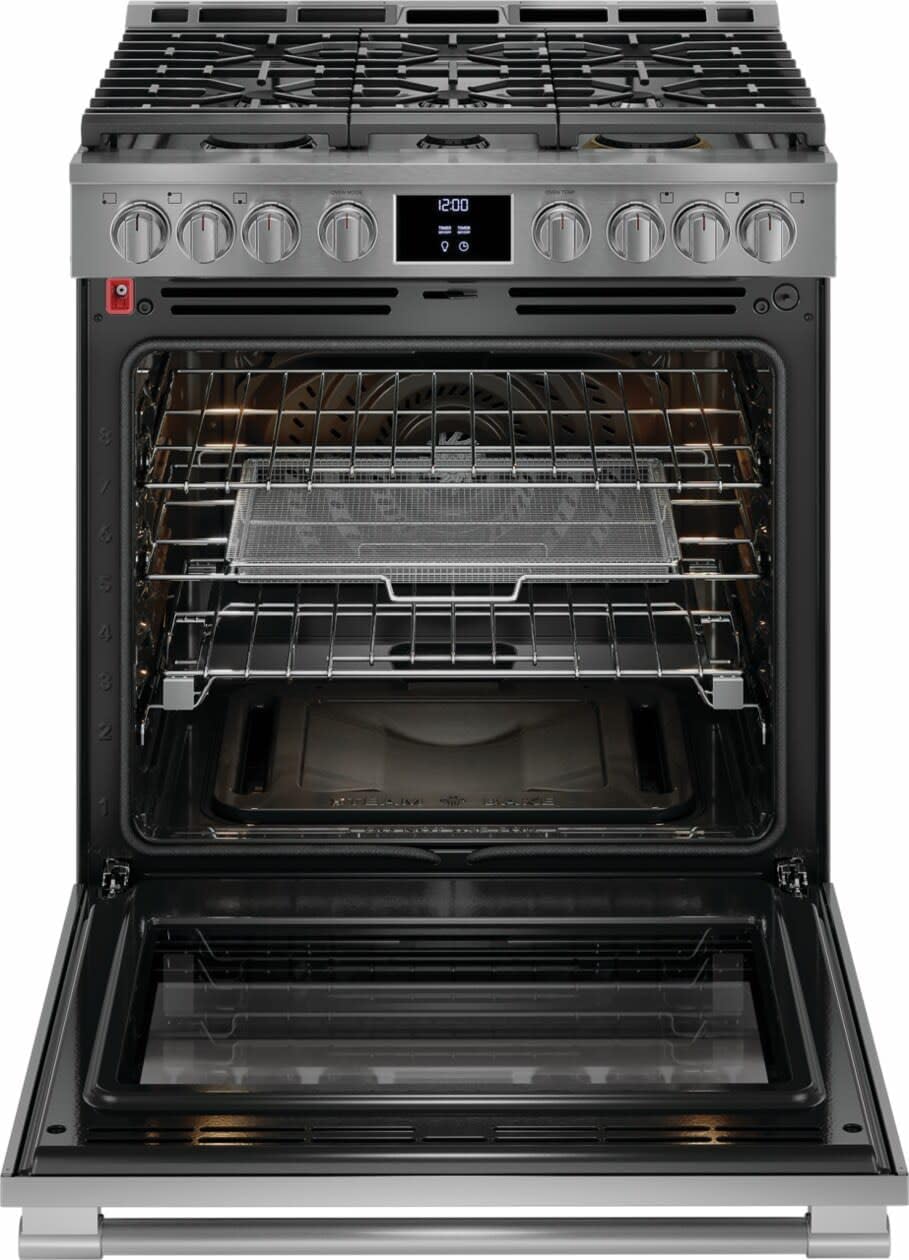

Image: The spacious oven interior, showing multiple rack positions and the air fry basket.
6. Arazoak
Atal honetan ohiko arazoei eta haien irtenbideei buruzko informazioa aurkituko duzu. Arazo konplexuagoetarako, jarri harremanetan bezeroarentzako arreta-zerbitzuarekin.
| Arazoa | Kausa posiblea | Irtenbidea |
|---|---|---|
| Erregailua ez pizten | Gas supply off, igniter dirty, burner cap misaligned | Check gas valve, clean igniter, correctly position burner cap |
| Labea ez da berotzen | Power supply issue, incorrect setting, door not closed properly | Check circuit breaker, verify oven mode and temperature, ensure door is fully closed |
| Sukaldaritza irregularra | Improper rack position, pan size/type, convection fan issue | Adjust rack position, use appropriate bakeware, ensure convection fan is operating |
| Lehen erabileran usaina | Manufacturing oils burning off | This is normal and will dissipate. Ensure good ventilation. |
7. Zehaztapenak
Detailed technical specifications for the Frigidaire PCFG3080A Professional Gas Range.
| Ezaugarri | Xehetasuna |
|---|---|
| Modelo zenbakia | PCFG3080AF |
| Labearen guztizko edukiera | 6 Cu. Ft. |
| Neurriak (W x D x H) | 30 x 26 x 35-5/8 inches |
| Sukaldeko sukaldeko erregailuak | 6 Sealed Gas Burners |
| Burner BTU (Front Left) | 18,000 BTU |
| Burner BTU (Front Right) | 18,000 BTU |
| Burner BTU (Back Left) | 7,500 BTU |
| Burner BTU (Back Right) | 5,000 BTU |
| Burner BTU (Back Middle) | 7,500 BTU |
| Burner BTU (Front Middle) | 7,500 BTU |
| Labe Mota | Total Convection with Broil Element |
| Kontrol mota | Knob and Touch Controls |
| Ezaugarri bereziak | Temperature Probe, No Preheat, Air Fry, Slow Cook, Steam Bake, Steam Roast, Convection Roast, Backlit LED Knobs, Integrated Cast Iron Griddle |
| Garbiketa Mota | Self-Clean, Steam Clean |
| Elikatze Hornidura | 120 Volt |
| Materiala | Altzairu herdoilgaitza |
| Elementuaren pisua | 178 kilo |
Image: Dimensional drawing of the Frigidaire PCFG3080A gas range, indicating its width, height, and depth.
8. Bermea eta Laguntza
Your Frigidaire PCFG3080A Professional Gas Range is covered by a 1 urteko fabrikatzailearen bermea. This warranty covers defects in materials or workmanship under normal household use.
For warranty claims, technical assistance, or to purchase replacement parts, please refer to the contact information provided in your warranty card or visit the official Frigidaire webgunea.
Dakarten osagaiak: Appliance Parts & Accessories.
