Dapper Supply DP-RAFS1205 Ride-On Commercial Floor Scrubber Machine User Manual

1. Sarrera

This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your Dapper Supply DP-RAFS1205 Battery Powered Ride-On Commercial Floor Scrubber Machine. Please read this manual thoroughly before operating the machine to ensure proper usage and to prevent injury or damage.

1.1. Segurtasun informazioa

• Always wear appropriate personal protective equipment (PPE) during operation and maintenance.
• Ensure the machine is turned off and disconnected from power before performing any maintenance or adjustments.
• Operate the machine only on surfaces designed for its use.
• Do not operate the machine in hazardous environments or near flammable materials.
• Mantendu eskuak, oinak eta arropa solteak pieza mugikorretatik urrun.
• Familiarize yourself with all controls and emergency stop procedures.

2. Produktua amaitu daview

The Dapper Supply DP-RAFS1205 is a battery-powered ride-on commercial floor scrubber designed for efficient cleaning of large floor areas. It features a 22-inch brush width, a 31.5-inch squeegee width, and a dual-tank system for clean and recovery water.

2.1. irudia: Aldea view of the Dapper Supply DP-RAFS1205 Ride-On Commercial Floor Scrubber Machine.

2.1. Osagai nagusiak

• Bolantea: Norabide-kontrolerako.
• Operator Seat: Provides comfortable seating for the user.
• Kontrol-panela: Contains power switch, brush controls, solution flow, and battery indicator.
• Soluzio depositua: Holds clean water and cleaning solution (18.5-gallon capacity).
• Berreskuratzeko depositua: Collects dirty water (19.8-gallon capacity).
• Garbitzeko eskuila: 22-inch diameter brush for scrubbing floors.
• Eskargailuen muntaia: 31.5-inch wide squeegee for water and debris collection.
• Front & Back Lights: For improved visibility in dimly lit areas.
• Babeskopia alarma: Enhances safety during reverse operation.

2.2. irudia: hurbileko planoa view of the control panel area, showing the key ignition and brush control.

3. Konfigurazioa

3.1. Despaketatzea eta Muntatzea

1. Kontu handiz atera makina bere paketetik. Begiratu bidalketa-kalterik dagoen.
2. Ziurtatu ontziratze-zerrendan zerrendatutako osagai guztiak daudela.
3. Attach any unattached components, such as the squeegee assembly, following the diagrams provided in the separate assembly guide (if applicable).

3.2. Hasierako bateria kargatzea

Before first use, fully charge the machine's battery. The battery system requires 7-8 hours for a full charge.

1. Locate the charging port on the machine.
2. Connect the provided charger to the machine and then to a standard 110V AC power outlet.
3. Monitor the charging indicator lights. Disconnect the charger once charging is complete.

3.3. Filling the Solution Tank

1. Open the lid of the clean water (solution) tank.
2. Fill the tank with clean water and an appropriate, manufacturer-approved cleaning solution according to the solution manufacturer's instructions. Do not overfill.
3. Securely close the tank lid.

4. Funtzionamendu-argibideak

4.1. Eragiketa aurreko kontrol-zerrenda

• Egiaztatu bateriaren karga-maila.
• Ensure solution tank is filled and recovery tank is empty.
• Verify brush and squeegee are properly installed and free of obstructions.
• Clear the area to be cleaned of any large debris or obstacles.

4.2. Makina martxan jartzea

1. Sit comfortably in the operator's seat.
2. Insert the key into the ignition and turn it to the 'ON' position.
3. Engage the main power switch on the control panel.

4.3. Garbiketa prozedura

1. Lower the scrub brush using the brush control lever/button.
2. Lower the squeegee assembly using its respective lever/button.
3. Activate the solution flow.
4. Begin driving the machine at a consistent, moderate speed. Overlapping passes slightly will ensure thorough cleaning.
5. The machine will scrub the floor, dispense solution, and then recover the dirty water through the squeegee into the recovery tank.
6. Utilize the front and back lights for enhanced visibility in low-light conditions. The backup alarm will sound when reversing.

Figure 4.1: An operator demonstrating the use of the Dapper Supply Ride-On Floor Scrubber.

4.4. Eragiketa ondoren

1. Raise the scrub brush and squeegee.
2. Turn off the solution flow.
3. Turn off the main power switch and remove the key.
4. Empty and rinse the recovery tank.
5. Rinse the solution tank if using cleaning chemicals.
6. Clean the squeegee blades and brush.

5. Mantentzea

Regular maintenance ensures optimal performance and extends the lifespan of your machine.

5.1. Eguneroko mantentze-lanak

• Empty and rinse both solution and recovery tanks thoroughly.
• Clean the squeegee blades and check for wear. Replace if damaged.
• Inspect the scrub brush for debris and wear. Remove any tangled materials.
• Wipe down the exterior of the machine.
• Check battery charge and recharge as needed.

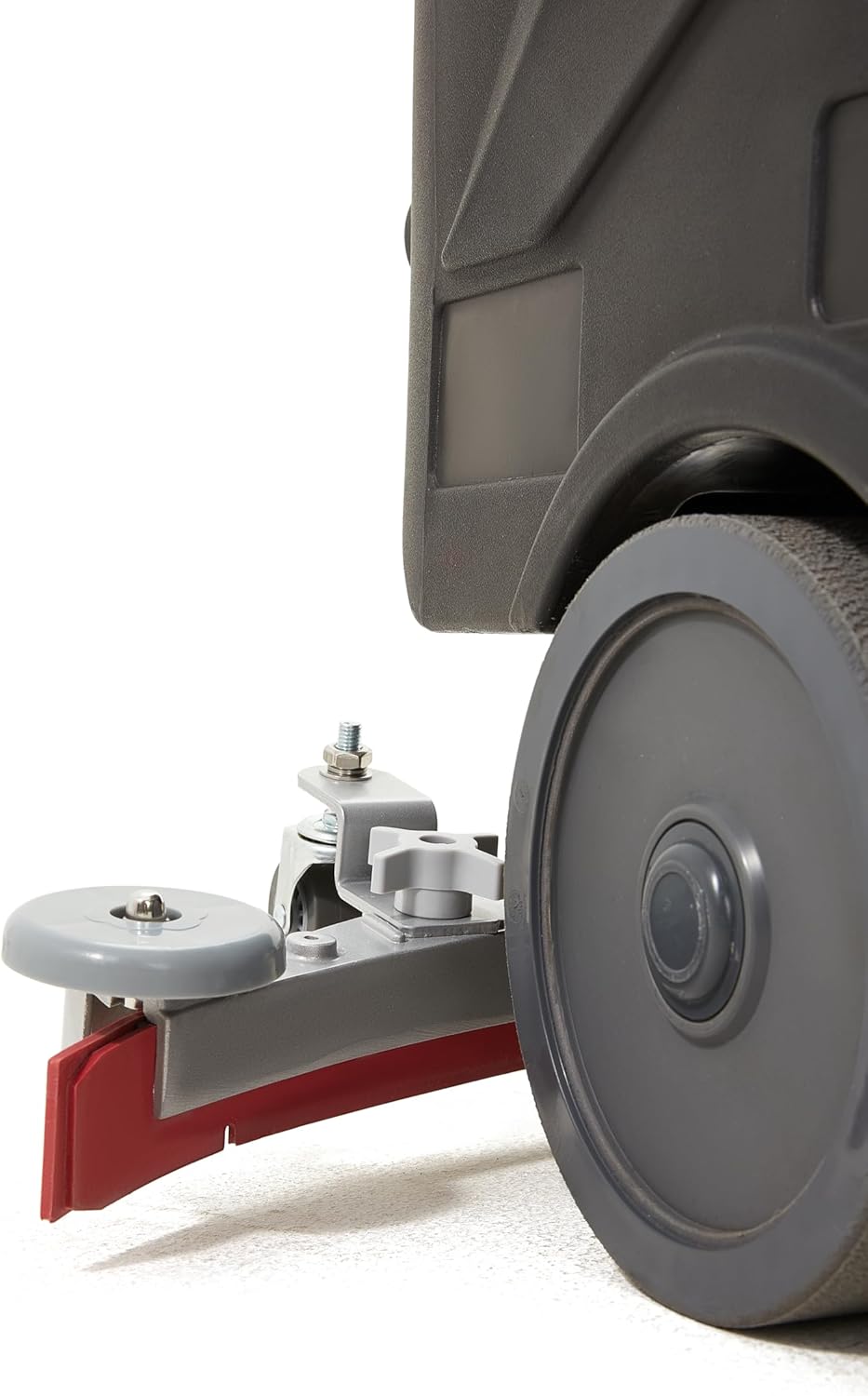

5.1. irudia: Xehetasuna view of the squeegee assembly, showing the blade and adjustment knob.

5.2. Asteroko mantentze-lanak

• Ikuskatu hodi eta konexio guztiak ihesak edo kalteak dauden.
• Check the condition of the wheels and casters.
• Clean the vacuum filter (if applicable).

5.2. Irudia: Azpialdea view showing the scrub brush, which should be regularly inspected and cleaned.

5.3. Bateria zaintzea

• Always recharge the battery after each use, even if not fully depleted.
• Saihestu bateria erabat deskargatzea, horrek bere iraupena laburtu baitezake.
• Store the machine in a cool, dry place when not in use, ensuring the battery is charged.

6. Arazoak

Atal honek ohiko funtzionamendu-arazoetarako irtenbideak eskaintzen ditu. Hemen zerrendatzen ez diren arazoetarako, jarri harremanetan bezeroarentzako arreta-zerbitzuarekin.

7. Zehaztapenak

Technical specifications for the Dapper Supply DP-RAFS1205.

8. Bermea eta Laguntza

8.1. Fabrikatzailearen bermea

The Dapper Supply DP-RAFS1205 Ride-On Commercial Floor Scrubber Machine is covered by a 1 urteko fabrikatzailearen bermea. This warranty covers defects in materials and workmanship under normal use. Please retain your proof of purchase for warranty claims. The warranty does not cover damage due to misuse, neglect, or unauthorized modifications.

8.2. Bezeroarentzako arreta

For technical assistance, parts, or warranty inquiries, please contact Dapper Supply customer support. You can find contact information on the official Dapper Supply webgunea edo zure erosketa plataformaren bidez.
