VINGLI Teddy Fleece Swivel Armless Criss Cross Chair Instruction Manual

1. Sarrera

This manual provides detailed instructions for the assembly, operation, and maintenance of your VINGLI Teddy Fleece Swivel Armless Criss Cross Chair. Designed for comfort and versatility, this chair features a dual-purpose base, a wide seat for cross-legged sitting, adjustable height, and a soft teddy fleece fabric. Please read this manual thoroughly before assembly and use to ensure proper function and safety.

2. Segurtasun informazioa

• Pisu-gaitasuna: Do not exceed the maximum weight capacity of 286 pounds (130 kg). Exceeding this limit may cause damage to the chair or result in injury.
• Muntaia: Ensure the chair is properly assembled according to the instructions to maintain stability and prevent accidents.
• Egonkortasuna: Always use the chair on a flat, stable surface. Avoid standing on the chair.
• Haurrak: Keep small parts away from children during assembly. This chair is intended for adult use.
• Mantentzea: Aldian-aldian egiaztatu torloju eta torloju guztiak ondo estututa daudela ziurtatzeko. Behar izanez gero, berriro estutu.

3. Paketearen edukia

Before beginning assembly, verify that all components are present and undamaged. The package includes all necessary hardware and tools for installation.

• Eserlekuko kuxina
• Bizkarraldea
• Oinarria (Izar Oinarria)
• Gas Igogailuaren Zilindroa
• Eserlekuaren mekanismoa
• Gurpilak (Gurpilak)
• Stationary Foot Pads
• Hardware paketea (torlojuak, arandelak, Allen giltza)

4. Muntaketa eta konfigurazio argibideak

Assembly can typically be completed by one person. Follow these steps carefully:

1. Attach Seat Mechanism to Seat: Align the seat mechanism with the pre-drilled holes on the underside of the seat cushion. Secure it using the provided screws and Allen wrench. Ensure the front of the mechanism faces the front of the seat.
2. Oinarria muntatu: Insert the casters or stationary foot pads into the holes at the end of each leg of the star base. Push firmly until they click into place.
3. Txertatu gas-igogailua: Jarri gas-igogailuaren zilindroa muntatutako oinarriaren erdiko zuloan.
4. Lotu eserlekua gas-igogailuari: Carefully place the seat assembly (with the mechanism attached) onto the top of the gas lift cylinder. Press down firmly to secure.
5. Lotu bizkarraldea: Align the backrest with the mounting points on the seat mechanism. Secure with the remaining screws.

Figure 1: Dual-Purpose Base Options. This image demonstrates the interchangeable base options: rolling casters for mobility and stationary foot pads for stability. The chair is shown with a person sitting cross-legged, emphasizing the wide seat.

Figure 2: Functional Adjustments. This diagram details the chair's functional adjustments, including the backrest recline (90-105 degrees), rocking tension control, seat height adjustment, and the dual-use base feature.

5. Funtzionamendu-argibideak

Your VINGLI Criss Cross Chair offers several adjustable features for personalized comfort:

• Altuera doitzea: To adjust the seat height, locate the lever on the right side beneath the seat. While seated, pull the lever up to lower the seat. To raise the seat, stand up and pull the lever up. Release the lever at your desired height. The adjustable height range from seat cushion to floor is 16.9-19.9 inches.
• Backrest Recline/Tilt: The chair features a recline function. Pull the lever on the left side beneath the seat to unlock the tilt mechanism, allowing the backrest to recline between 90 and 105 degrees. Push the lever back in to lock the backrest in an upright position.
• Rocking Tension: Adjust the rocking tension by turning the round knob located under the front of the seat. Turn clockwise to increase tension (making it harder to recline) and counter-clockwise to decrease tension (making it easier to recline).
• Biratu funtzioa: The chair seat can rotate 360 degrees for easy movement and access.
• Dual-Purpose Base: Depending on your needs, you can use either the rolling casters for mobility or the stationary foot pads for a fixed position. To switch, carefully remove the installed components from the base and insert the alternative set.

Figure 3: Chair Functionality. This diagram details the chair's functional adjustments, including the backrest recline (90-105 degrees), rocking tension control, seat height adjustment, and the dual-use base feature.

Figure 4: Armless Design and Support. This image illustrates the ergonomic support provided by the chair for the back, lumbar region, hips, and legs. It also shows how the armless design allows the chair to be easily tucked under a desk, saving space.

6. Mantentzea

• Garbiketa: For general cleaning of the teddy fleece fabric, use a soft brush or vacuum cleaner to remove dust and loose debris. For spills, blot immediately with a clean, dry cloth. For stubborn stains, use a mild fabric cleaner and test on an inconspicuous area first.
• Hardwarearen egiaztapena: Periodically inspect all screws and bolts to ensure they are tight. Retighten any loose fasteners to maintain the chair's stability and safety.
• Caster/Foot Pad Care: If using casters, regularly clean any hair or debris that may accumulate around the wheels to ensure smooth rolling. If using foot pads, ensure they are clean to prevent scratching floors.
• Saihestu produktu kimiko gogorrak: Do not use abrasive cleaners, solvents, or harsh chemicals on any part of the chair, as they may damage the finish or fabric.

7. Arazoak

• Aulkiaren kirrinka: Check all bolts and screws and tighten them. A small amount of silicone lubricant can be applied to moving parts if squeaking persists.
• Aulkia ezegonkorra sentitzen da: Ensure all assembly steps were followed correctly and all fasteners are securely tightened. Verify the chair is on a level surface.
• Gas-igogailua ez da doitzen: Check if the height adjustment lever is fully engaged or disengaged. If the issue persists, the gas lift cylinder may need replacement.
• Gurpilak ez dira leunki biratzen: Remove any debris (hair, lint) from the caster wheels. If damaged, casters may need to be replaced.

8. Zehaztapenak

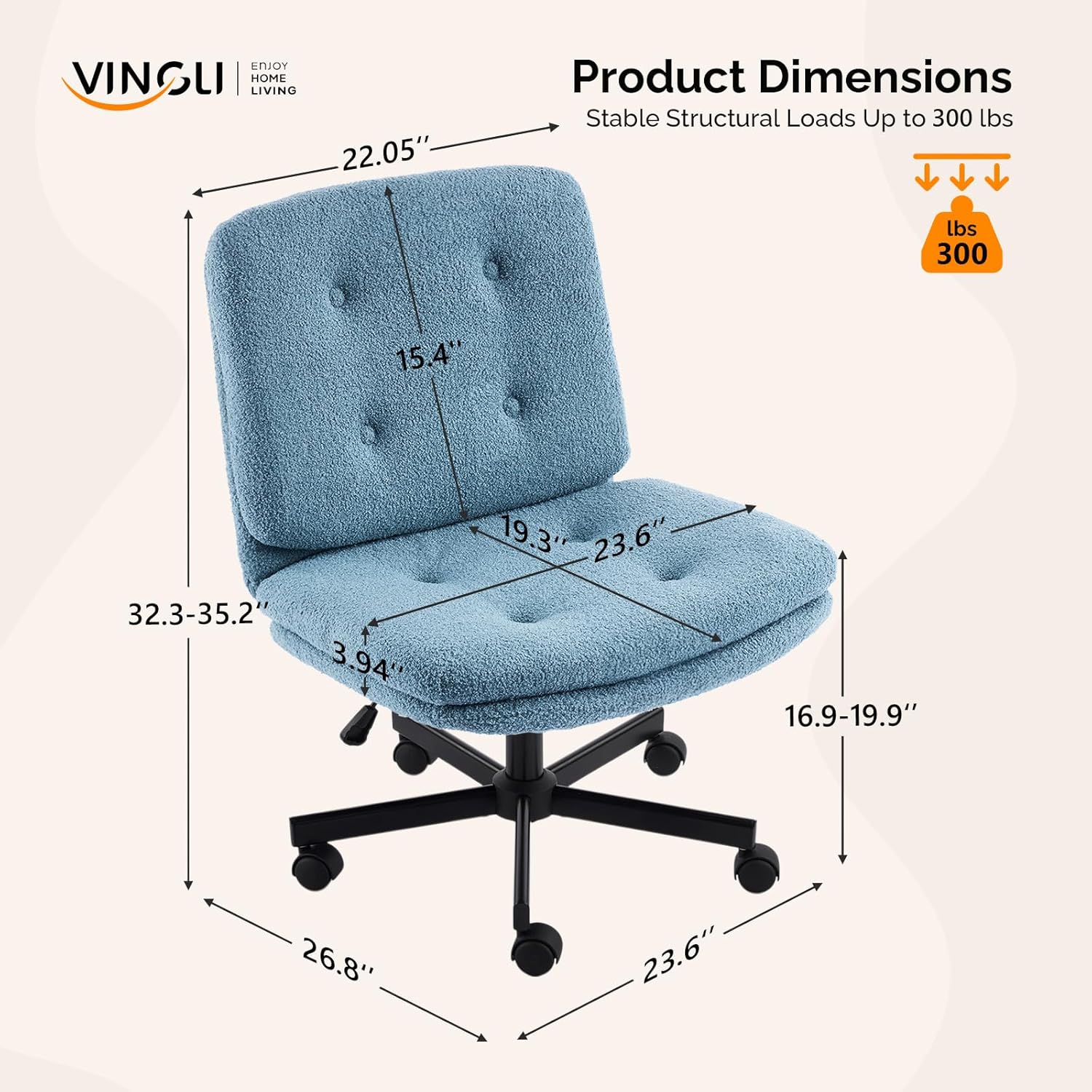

5 irudia: Produktuaren neurriak. This image illustrates the overall dimensions of the chair, including seat width, depth, backrest height, and adjustable seat height range.

9. Bermea eta Laguntza

For warranty information or technical support, please refer to the contact details provided at the point of purchase or visit the official VINGLI webgunea. Gorde erosketa-agiria erosketaren frogagiri gisa, berme-erreklamazioetarako.
