Impex 1200 mm-ko BLDC sabaiko haizagailua urrutiko agintearekin - ATOM 28 DXR erabiltzailearen eskuliburua

1. Sarrera

Thank you for choosing the Impex ATOM 28 DXR 1200 mm BLDC Ceiling Fan. This fan is designed for superior performance, energy efficiency, and quiet operation. Featuring a 1200 mm blade sweep, an aluminium body, and aerodynamically designed blades, it delivers high air flow. The Constant Speed Inverter Technology ensures consistent performance even during voltage fluctuations, and the smart RF remote provides convenient control over speed and timer functions. Please read this manual thoroughly before installation and operation to ensure safe and efficient use of your new ceiling fan.

1.1 Irudia: Gainetikview of Impex ATOM 28 DXR BLDC Ceiling Fan features, highlighting its energy efficiency, high air delivery, and smart remote control.

2. Segurtasun-argibideak

Sute, deskarga elektriko edo pertsonei lesioen arriskua murrizteko, kontuan hartu honako hau:

• Read all instructions carefully before installing and operating the fan.
• Instalazioa elektrizista kualifikatu batek egin behar du eta tokiko araudi elektriko guztien arabera.
• Ensure the power supply is disconnected at the main circuit breaker before installation or servicing.
• The mounting structure must be capable of supporting the weight of the fan (approximately 3.3 kg).
• Ez sartu hatzak edo bestelako objekturik haizagailuaren paletan haizagailua martxan dagoen bitartean.
• Ensure the fan is installed at a height where blades are at least 2.3 meters (7.5 feet) from the floor and 0.5 meters (1.6 feet) from any wall or obstruction.
• Erabili fabrikatzaileak hornitutako piezak soilik.
• Ez saiatu haizagailua zeuk konpontzen edo aldatzen. Jarri harremanetan zerbitzu-langile kualifikatuekin.

3. Paketearen edukia

Carefully unpack your Impex ATOM 28 DXR ceiling fan and ensure all items are present and undamaged. If any items are missing or damaged, please contact your retailer.

• 1 x Motor Unitatea
• 1 x Downrod
• 1 x Pair of Canopies
• 1 x Urruneko kontrola
• 1 x Erabiltzailearen eskuliburua
• 1 x Shackle
• 1 x Set of 3 Blades
• 1 x Berme Txartela

Figure 3.1: Diagram showing the fan's dimensions and all included components in the package.

4. Konfigurazioa eta instalazioa

Professional installation by a qualified electrician is highly recommended to ensure proper and safe setup.

1. Prestatu muntaketa kokalekua: Ensure the ceiling junction box is securely fastened and capable of supporting the fan's weight. Turn off power at the main circuit breaker.
2. Muntatu beheranzko haga: Insert the downrod through the canopy and motor housing. Secure the downrod to the motor unit using the provided pin and cotter pin.
3. Mount the Hanging Bracket: Attach the hanging bracket to the ceiling junction box using appropriate screws and washers.
4. Zintzilikatu haizagailua: Carefully lift the fan assembly and place the downrod ball into the hanging bracket. Ensure it is seated correctly.
5. Egin konexio elektrikoak: Connect the fan's electrical wires to the household wiring according to the wiring diagram in the user manual (refer to the included physical manual for detailed diagrams). Ensure all connections are secure and insulated.
6. Lotu Blades: Securely attach each of the three blades to the motor unit using the provided screws. Ensure they are firmly fastened.
7. Install the Canopies: Slide the upper and lower canopies up the downrod and secure them to cover the wiring and hanging bracket.
8. Azken egiaztapena: Double-check all connections and ensure no loose parts. Restore power at the main circuit breaker.

Figure 4.1: The Impex ATOM 28 DXR BLDC Ceiling Fan, fully assembled and ready for operation.

5. Funtzionamendu-argibideak

5.1 Urruneko kontrolaren funtzioak

Your Impex ATOM 28 DXR ceiling fan comes with a smart RF remote control for convenient operation from anywhere in the room. Insert 2 AAA batteries (not included) into the remote control before use.

• ON/OFF botoia: Sakatu haizagailua pizteko edo itzaltzeko.
• Speed Control Buttons (1-5): Select desired fan speed from 1 (lowest) to 5 (highest).
• Timer Buttons (1H, 2H, 4H, 6H, 8H): Set the fan to automatically turn off after the selected duration (1, 2, 4, 6, or 8 hours).

Figure 5.1: The smart RF remote control for the Impex ATOM 28 DXR fan, showing power, speed, and timer buttons.

6. Mantentzea

Mantentze-lan erregularrak zure sabaiko haizagailuaren errendimendu optimoa eta iraupen luzea bermatzen ditu.

• Garbiketa: Hautsak kendu haizagailuaren palen eta motorraren karkasaren eskuoihal leun batekin aldizka.amp cloth. Do not use abrasive cleaners or solvents. Ensure the fan is off and power is disconnected before cleaning.
• Palaren estutasuna: Aldian-aldian egiaztatu pala-torloju guztiak ondo estututa daudela. Pala solteek dardarka eta zarata eragin dezakete.
• Motoren lubrifikazioa: The BLDC motor is designed for maintenance-free operation and does not require lubrication.
• Ikuskapen Orokorra: Annually inspect the fan for any signs of wear, loose wiring, or damage.

7. Arazoak

If you encounter any issues with your fan, refer to the following table for common problems and solutions.

8. Produktuaren zehaztapenak

Detailed technical specifications for the Impex ATOM 28 DXR BLDC Ceiling Fan:

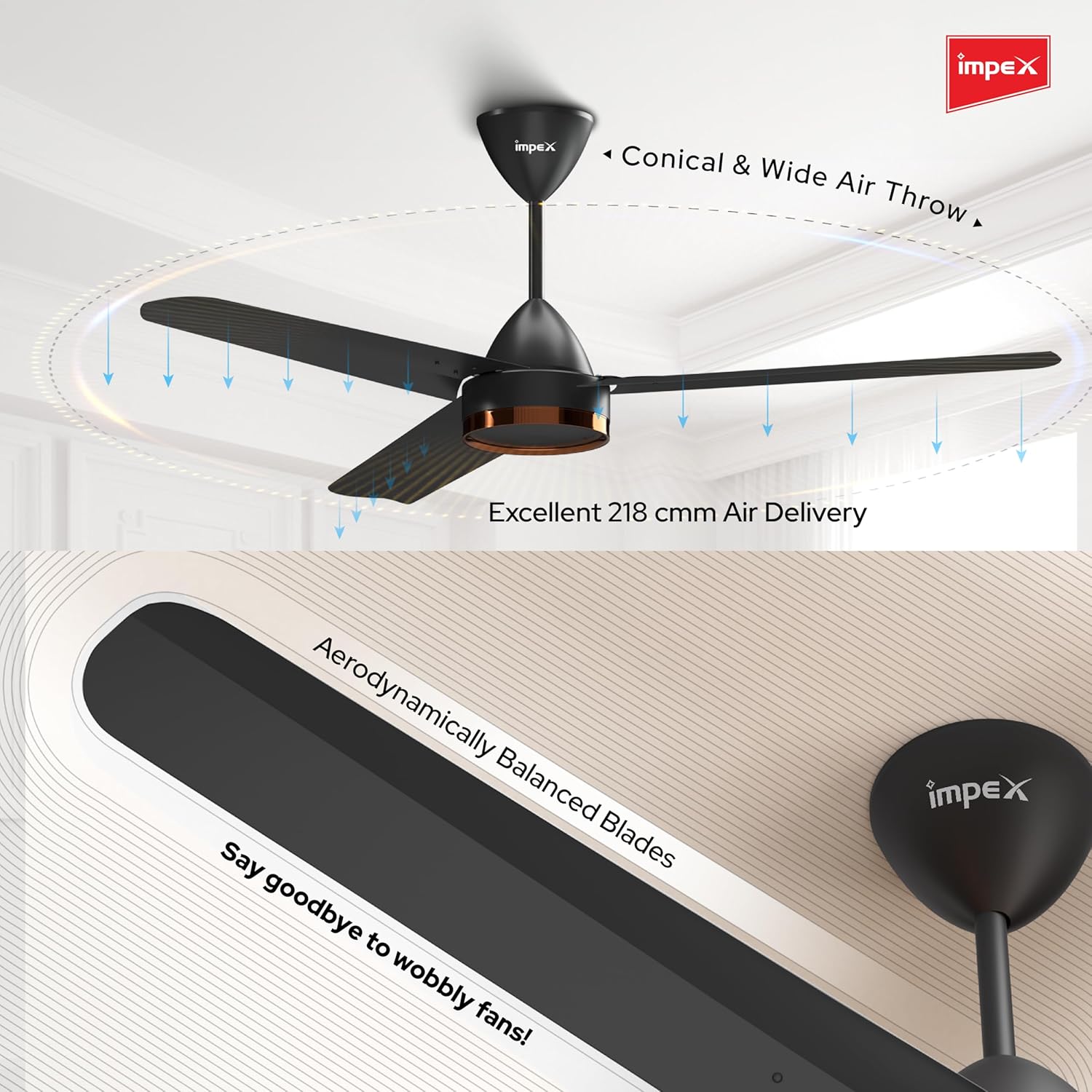

Figure 8.1: Illustration of the fan's conical and wide air throw, demonstrating its efficient air delivery.

9. Bermea eta Laguntza

The Impex ATOM 28 DXR BLDC Ceiling Fan comes with a 3 urteko bermea from the date of purchase, covering manufacturing defects. Please retain your purchase receipt as proof of purchase for warranty claims.

For technical assistance, troubleshooting not covered in this manual, or warranty claims, please contact Impex customer support. Refer to the warranty card included in your package for specific contact details and terms and conditions.

Fabrikatzailea: KCM Appliances Pvt Ltd
