1. Sarrera
This manual provides essential information for the safe and efficient operation of your Renogy 12V 20A AC-to-DC Portable LFP Battery Charger. Please read this manual thoroughly before use and retain it for future reference. This charger is designed specifically for Lithium Iron Phosphate (LiFePO4) batteries, offering automatic charging with a wide input voltage range and multiple electronic protections.
2. Segurtasun-argibideak
Always observe the following safety precautions to prevent personal injury or damage to the charger or battery.
- Irakurri argibide guztiak: Kargagailua erabili aurretik, irakurri kargagailuan, baterian eta bateria erabiltzen duen produktuan dauden argibide eta abisu-marka guztiak.
- Ondo aireztatutako guneetan erabili: Operate the charger in a well-ventilated area. Do not cover the charger during operation.
- Saihestu hezetasuna: Do not expose the charger to rain, snow, or excessive moisture.
- Proper connections: Ensure all connections are secure and correct before plugging the charger into an AC outlet.
- Deskonektatu energia: Always disconnect the AC power before making or breaking connections to the battery.
- Bateria mota: This charger is designed exclusively for 12V Lithium Iron Phosphate (LiFePO4) batteries. Do not attempt to charge other battery types (e.g., lead-acid, Ni-Cd, Ni-MH) as this may cause damage or injury.
- Damaged equipment: Do not operate the charger if it has received a sharp blow, been dropped, or otherwise damaged. Contact Renogy support for assistance.
- Children and unauthorized personnel: Keep the charger out of reach of children and ensure only qualified individuals operate the device.
3. Paketearen edukia
Egiaztatu elementu guztiak bertan daudela paketea desegiten duzunean:
- Renogy 12V 20A AC-to-DC Portable LFP Battery Charger (Model RBC20A1P)
- AC Charger Power Adapter Cable (1200mm 18AWG)
- Alligator Clips Cable (600mm 14AWG) with Blade Automotive Fuse Holder (30A) and Blade Fuse (30A)
4. Produktuaren ezaugarriak
The Renogy 12V 20A AC-to-DC Portable LFP Battery Charger offers advanced features for reliable battery charging:
- Automatic LFP Battery Charging: Designed for 12V Lithium Iron Phosphate (LiFePO4) batteries, providing an optimal charging profile.
- Wide Input Voltage Barrutia: Compatible with 100-240V AC power sources, making it versatile for various regions.
- Easy-to-Understand LED Indicator: A single LED provides clear status updates on the charging process.
- Simple Plug-and-Play Technology: Features alligator clips for straightforward connection to battery terminals.
- Babes elektronikoak: Includes safeguards against short circuit, over-current, over-voltage, bolumen azpikoatage, eta alderantzizko polaritatea.
- Lithium Activation: Capable of activating deeply discharged lithium batteries.
- Silent and Efficient Heat Dissipation: Fanless design ensures quiet operation.
5. Konfigurazioa eta instalazioa
Follow these steps to set up your Renogy battery charger:
- Bateria prestatu: Ensure the battery is a 12V Lithium Iron Phosphate (LiFePO4) type. Check the battery terminals for cleanliness and ensure they are free of corrosion.
- Connect Alligator Clips: Connect the red positive (+) alligator clip to the positive (+) terminal of the battery. Connect the black negative (-) alligator clip to the negative (-) terminal of the battery. Ensure a secure connection.
- Konektatu AC Power: Plug the AC Charger Power Adapter Cable into the charger's AC port. Then, plug the other end of the AC power adapter cable into a standard 100-240V AC electrical outlet.
- Egiaztatu konexioa: Kargagailuaren LED adierazlea piztuko da kargatze-egoera erakusteko.
6. Funtzionamendu-argibideak
Once connected, the charger will automatically begin the charging process. The LED indicator provides visual feedback:
- LED gorria: Bateria kargatzen ari dela adierazten du.
- LED berdea: Bateria guztiz kargatuta dagoela adierazten du.

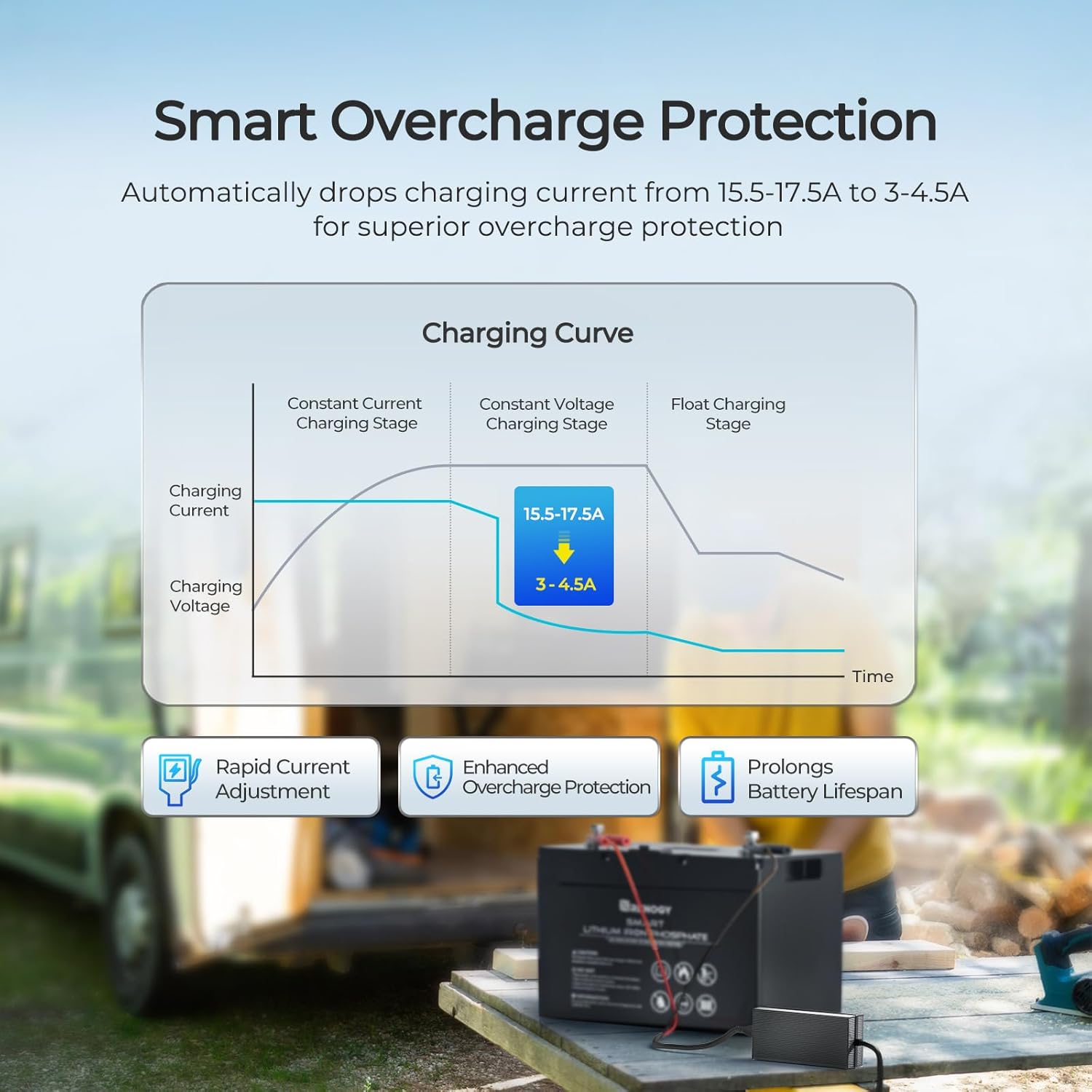

The charger employs a smart overcharge protection mechanism, automatically adjusting the charging current to maintain optimal battery health and prolong lifespan.

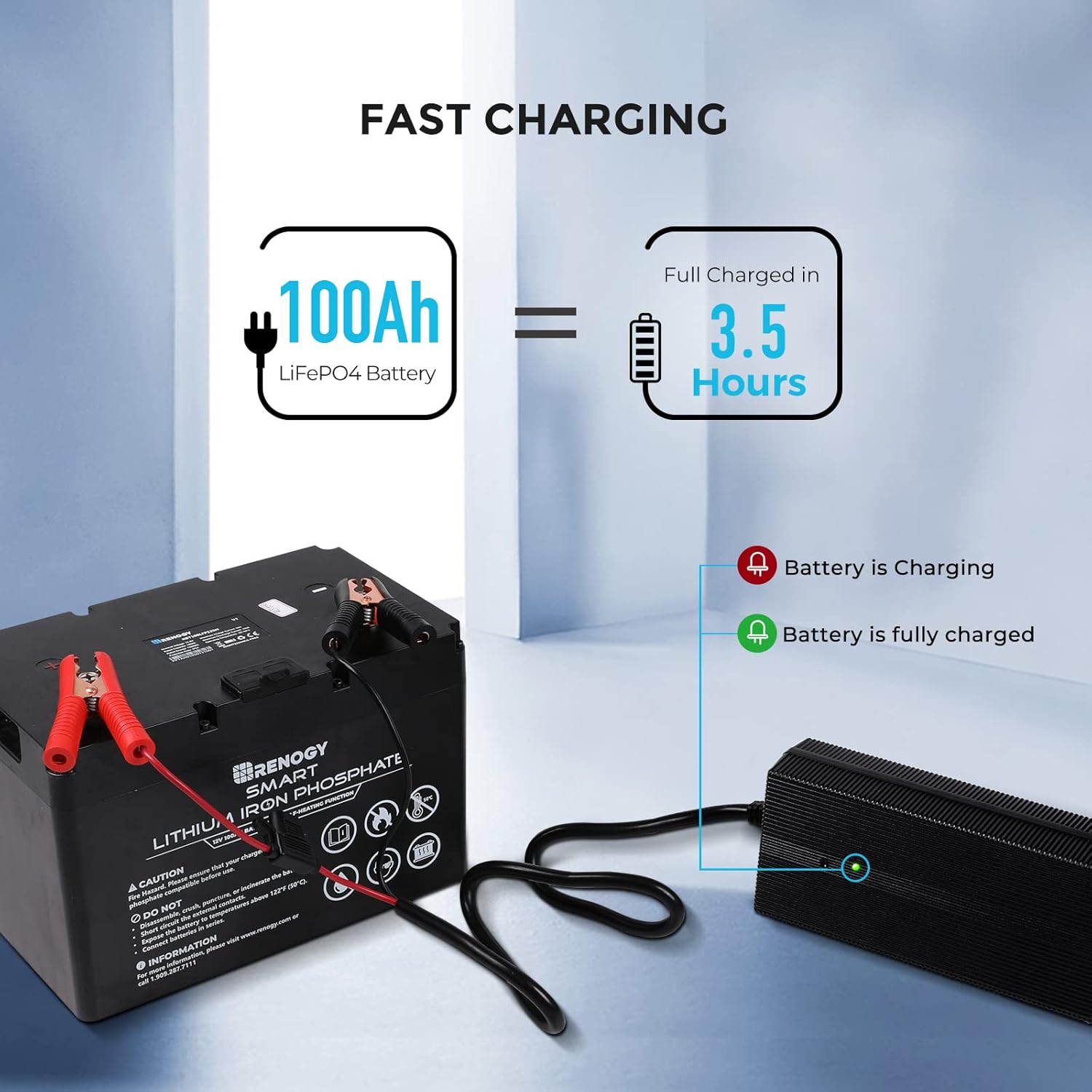

A 100Ah LiFePO4 battery can be fully charged in approximately 3.5 hours with this 20A charger.
7. Mantentzea
Kargagailuaren iraupena eta errendimendu optimoa bermatzeko:
- Garbiketa: Keep the charger clean and free from dust and debris. Use a dry cloth to wipe the exterior.
- Biltegiratzea: Erabiltzen ez duzunean, gorde kargagailua leku fresko eta lehor batean, eguzki-argitik eta muturreko tenperaturetatik urrun.
- Kableen ikuskapena: Periodically inspect the AC power cable and alligator clips cable for any signs of damage, fraying, or exposed wires. Replace if damaged.
- Fusiblearen egiaztapena: The alligator clips cable includes an inline blade fuse. If the charger stops working, check and replace the fuse if necessary (30A blade fuse).
8. Arazoak
Kargagailuarekin arazorik baduzu, kontsultatu hurrengo taula:
| Arazoa | Kausa posiblea | Irtenbidea |
|---|---|---|
| Kargagailuaren LEDa ez da pizten. | No AC power; Loose connections; Blown fuse; Faulty charger. | Check AC outlet and power cable. Ensure all connections are secure. Check and replace the 30A blade fuse in the alligator clips cable. If issues persist, contact Renogy support. |
| Charger LED is red but battery is not charging. | Poor battery connection; Battery fault. | Ensure alligator clips are securely attached to battery terminals. Verify battery voltage eta osasuna. |
| Charger LED is green but battery is not fully charged. | Incorrect battery type; Battery fault. | Confirm battery is a 12V LiFePO4 type. Test battery health. |
| Kargagailua gehiegi berotzen da. | Aireztapen eskasa; Gehiegizko karga. | Ensure charger is in a well-ventilated area and not covered. Disconnect and allow to cool. If overheating persists, contact Renogy support. |
9. Zehaztapenak
| Parametroa | Balioa |
|---|---|
| Eredua | RBC20A1P |
| Produktuaren neurriak | 2.52"S x 9.17"Z x 4.25"A (64 x 233 x 108 mm) |
| Elementuaren pisua | 5 libra (2.27 kg) |
| Irteera boltage | 12 voltio (DC) |
| Karga-korrontea | 20A |
| Sarrera boltage Barrutia | 100-240V AC |
| Autokontsumoa | 50mA |
| Bateria mota bateragarria | Litio burdina fosfatoa (LiFePO4) |
| Segurtasun Ziurtagiriak | UKCA, CE, CB, PSE |
| Kolorea | Beltza |
10. Bermea eta Laguntza
Renogy products are manufactured to high-quality standards. For warranty information, technical support, or service inquiries, please visit the official Renogy webwebgunera edo jarri harremanetan bezeroarentzako arreta-zerbitzuarekin. Gorde erosketa-agiria erosketaren frogagiri gisa berme-erreklamazioetarako.
Renogy Contact Information:
Webgunea: www.renogy.com
Support Email: [Refer to Renogy website for current support email]
Support Phone: [Refer to Renogy website for current support phone number]
