u-Box Rock Sliders Installation and User Manual

1. Sarrera

These u-Box tube rock sliders are designed to provide robust side and undercarriage protection for your vehicle. They feature a steel tube design that integrates with the vehicle's body lines, offering enhanced off-road clearance and a rugged aesthetic. The construction utilizes durable materials and a protective coating for longevity in various environments.

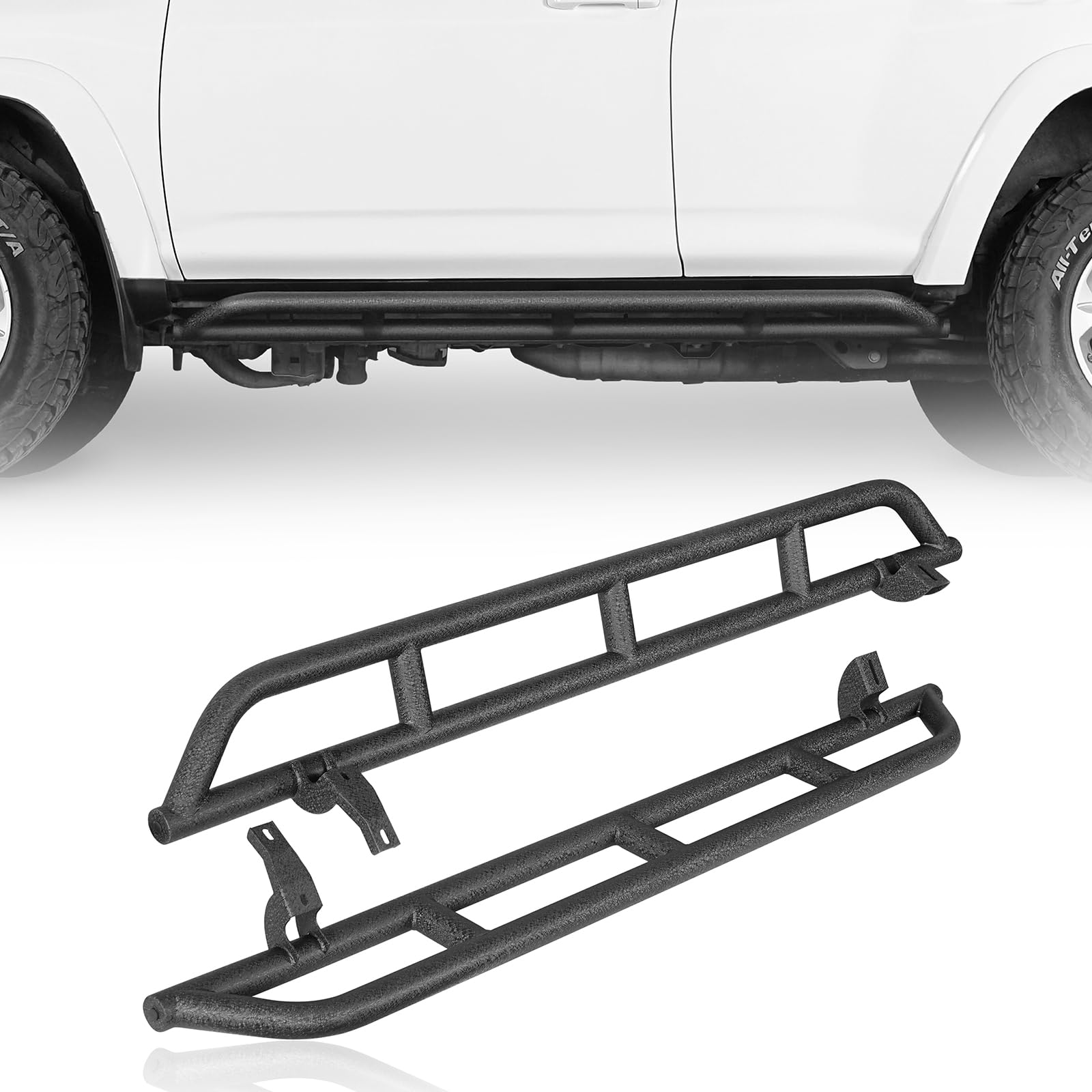

Figure 1.1: u-Box Rock Sliders installed on a Toyota 4Runner.

2. Bateragarritasuna

These rock sliders are compatible with the following vehicle models:

• 2010-2024 Toyota 4Runner 5th Generation models.

Bazterketak: Please note that these rock sliders are ez compatible with the following 4Runner trims:

• Mugatua
• Nightshade
• TRD Kirola
• 2010-2013 SR5

3. Zer dago kutxan

Instalazioa hasi aurretik, egiaztatu osagai guztiak daudela:

• 2 × Tube Sliders (Passenger & Driver Sides)
• Muntatzeko Hardware Kit
• Instalazio Gida (dokumentu hau)

Figure 3.1: Included Tube Sliders.

4. Segurtasun-neurriak

Always prioritize safety during installation and operation. Failure to follow these precautions may result in injury or damage to the product or vehicle.

• Erabili babes pertsonaleko ekipamendu (BPE) egokia, segurtasun betaurrekoak eta eskularruak barne.
• Ziurtatu ibilgailua gainazal lauan aparkatuta dagoela eta aparkaleku-balazta erabilita dagoela.
• Use jack stands to support the vehicle if lifting is required.
• Do not overtighten fasteners; refer to the torque specifications in the detailed installation guide (if provided separately).
• Mantendu haurrak eta maskotak lan-eremutik urrun.
• Urrats baten inguruan ziur ez bazaude, kontsultatu mekanikari profesional bati.

5. Instalatzeko jarraibideak

The u-Box rock sliders are designed for a straightforward bolt-on installation. No drilling is required, as they utilize existing factory mounting points on your vehicle. If your vehicle is equipped with factory running boards, they must be removed prior to installing these rock sliders.

5.1. Beharrezko tresnak (ez daude barne)

• Socket giltza multzoa
• Torque-giltza
• Segurtasun Betaurrekoak
• Eskularruak

5.2. Instalazio aurreko urratsak

1. Park the vehicle on a flat, stable surface and engage the parking brake.
2. If present, remove any existing factory running boards or side steps. Refer to your vehicle's owner's manual for specific removal instructions.
3. Identify the factory mounting points along the rocker panel area of your vehicle's frame.
4. Clean the mounting areas to ensure a secure fit.

5.3. Mounting the Rock Sliders

1. Position one of the tube sliders against the vehicle's frame, aligning the mounting brackets with the factory mounting points. Ensure you are using the correct slider for the passenger or driver side.
2. Secure the slider using the provided mounting hardware. Start all bolts by hand to prevent cross-threading.
3. Once all bolts are started, gradually tighten them using a socket wrench.
4. Refer to the detailed installation guide (included in the box) for specific torque specifications for each fastener. Ensure all bolts are tightened to the recommended torque.
5. Errepikatu prozesua ibilgailuaren kontrako aldean.
6. After installation, double-check all fasteners to ensure they are securely tightened.

Figure 5.1: Rock Sliders protecting the vehicle's side.

Figure 5.2: Close-up of installed rock slider.

5.4. Instalazio Bideoa

For a visual guide on installing u-Box accessories on a 4Runner, please refer to the video below. While this video showcases various accessories, it provides a general overview of the installation process and fitment.

Video 5.1: Off-Road Transformation - Hooke Road Accessories on 4Runner. This video demonstrates the installation and visual fitment of various u-Box accessories, including rock sliders, on a Toyota 4Runner.

6. Funtzionamendua eta Erabilera

The u-Box rock sliders are designed to protect your vehicle's rocker panels and undercarriage during off-road driving. Their high-and-tight design maximizes ground clearance, which is crucial for navigating challenging terrains.

• Rocker Panel Protection: The primary function is to shield the rocker panels from impacts with rocks, debris, and other obstacles encountered during off-road adventures.
• Undercarriage Safeguarding: They also contribute to the overall safeguarding of the vehicle's vulnerable undercarriage components.
• Hobetutako baimena: The design ensures that the sliders do not significantly reduce ground clearance, maintaining the vehicle's off-road capabilities.

Figure 6.1: Rock Sliders in action on challenging terrain.

7. Mantentzea

Regular maintenance will ensure the longevity and continued performance of your u-Box rock sliders.

• Ohiko garbiketa: Clean the rock sliders periodically with mild soap and water to remove dirt, mud, and road grime. Avoid harsh chemicals or abrasive cleaners that could damage the finish.
• Ikuskatu kalteak ikusteko: After off-road use, inspect the sliders for any signs of damage, such as dents, scratches, or bent components. Address any damage promptly to prevent further issues.
• Lotzeko elementuak egiaztatu: Periodically check all mounting bolts and nuts to ensure they remain tight. Re-tighten to factory specifications if necessary.
• Inspect Coating: The textured black powder coat with E-coating provides corrosion resistance. If the coating is chipped or scratched, consider touch-up paint to prevent rust.

7.1. irudia: Bitage finish for corrosion resistance.

8. Arazoak

Atal honek aurki ditzakezun arazo ohikoenei heltzen die.

• Doikuntza soltea: If the rock sliders feel loose after installation, re-check all mounting hardware. Ensure bolts are tightened to the recommended torque specifications. Over time, vibrations can cause fasteners to loosen, so periodic checks are important.
• Ezohiko zaratak: Rattling or squeaking noises may indicate loose hardware or contact between the slider and another vehicle component. Inspect all mounting points and check for any points of contact that might require adjustment.
• Korrosioa/Herdoila: While the product features a durable coating, severe impacts or prolonged exposure to harsh conditions without maintenance can lead to coating damage and potential corrosion. Clean and apply touch-up paint to damaged areas promptly.
• Difficulty Aligning: Ensure you have the correct slider for the correct side of the vehicle. Verify that no debris or obstructions are preventing proper alignment with the factory mounting points.

If you experience issues not covered here, please contact u-Box customer support for assistance.

9. Produktuaren zehaztapenak

9.1 irudia: Produktuaren neurriak.

10. Bermea eta bezeroarentzako laguntza

u-Box stands behind the quality of its products.

• Bermea: This product comes with a manufacturer warranty for 2 years from the date of purchase.
• Bezeroarentzako laguntza: Lifetime customer support is available from u-Box. For any inquiries, technical assistance, or warranty claims, please contact u-Box customer service through their official channels or the retailer where the product was purchased.
