KOTLIE EM-308A 5-in-1 Espresso Coffee Maker Instruction Manual

Sarrera

Thank you for choosing the KOTLIE EM-308A 5-in-1 Espresso Coffee Maker. This versatile machine is designed to provide a rich coffee experience with its 19-bar pressure system and 1400W fast-heating boiler. It supports multiple coffee formats including D*olce G*usto Capsules, Nes*presso Original Capsules, K-Cup Capsules, Ground Coffee, and 44mm ESE pods. Enjoy customizable brewing with four temperature options, a pre-wetting function for enhanced flavor, and smart technology for ease of use.

Segurtasun Informazioa

• Irakurri argibide guztiak aparatua erabili aurretik.
• Ez murgildu gailua, kablea edo entxufea uretan edo beste likido batzuetan.
• Ziurtatu liburukiatagAparatuan adierazitakoa zure tokiko sare elektrikoaren bolumenari dagokiotage konektatu aurretik.
• Deskonektatu beti aparatua korronte-hartunetik erabiltzen ez duzunean eta garbitu aurretik.
• Ez erabili aparaturik kablea edo entxufea hondatuta dagoenean, edo aparatuak gaizki funtzionatzen duenean edo nolabait hondatu ondoren.
• Mantendu haurrak tresnatik urrun funtzionamenduan eta garbiketan zehar.
• Use only cold, fresh water in the water tank. Do not use hot water or other liquids.
• Saihestu gainazal beroekin kontaktua. Erabili heldulekuak edo eskutokiak.

Paketearen edukia

Mesedez, egiaztatu elementu guztiak bertan daudela:

• KOTLIE EM-308A Coffee Machine
• 4 Coffee Capsule Adapters
• 2 Stainless Steel Pockets
• Tantaka erretilua
• Kafe koilara
• Ur depositua

Konfigurazioa

1. Despaketatzea: Kontu handiz kendu osagai guztiak ontzitik.
2. Hasierako garbiketa: Wash the water tank, drip tray, and all capsule adapters with warm, soapy water. Rinse thoroughly and dry.
3. Kokalekua: Place the coffee maker on a stable, flat, heat-resistant surface, away from heat sources and water.
4. Ur depositua bete: Fill the water tank with fresh, cold water up to the 'MAX' line. Ensure the tank is properly seated.
5. Lehen erabilera / Prestaketa: Before brewing coffee for the first time, run a cycle with only water to clean the internal system. Fill the water tank, place a cup on the drip tray, and press any brew button. Repeat this process 2-3 times.

Image: The KOTLIE EM-308A coffee maker showing its compact design, water tank, and the various capsule adapters included for different coffee types.

Funtzionamendu-argibideak

1. Choosing Your Coffee Type (5-in-1 System)

The KOTLIE EM-308A is compatible with five different coffee formats. Select the appropriate adapter for your chosen coffee:

• Nes*presso Original Capsules: Use the dedicated Nespresso adapter.
• D*olce G*usto Capsules: Use the dedicated Dolce Gusto adapter.
• K-Cup Capsules: Use the dedicated K-Cup adapter.
• Kafea lurra: Use the ground coffee adapter with the stainless steel pocket. Fill with 15g of fine espresso powder.
• 44mm ESE Pods: Use the ESE pod adapter with the stainless steel pocket.

Insert your chosen capsule or ground coffee into the correct adapter, then slide the adapter into the machine's slot. Press the handle down firmly to secure.

Image: The KOTLIE EM-308A coffee maker showcasing its compatibility with Nespresso Original, Dolce Gusto, K-Cup, 44mm ESE, and ground coffee using different adapters.

2. Setting Temperature and Volume

The machine offers four temperature options and seven cup volume levels:

• Tenperatura aukerak:
  • Blue Light: Cold brewing (add ice after brewing).
  • Green Light: Medium-low temperature (65-70°C / 149-158°F).
  • Yellow Light: Medium-high temperature (70-80°C / 158-176°F).
  • Red Light: High temperature (80-85°C / 176-185°F).
• Kopako bolumena: Use the smart touch panel to slide and select one of the 7-level cup volume options to customize your drink size.
• Pre-wetting Function: This function ensures more uniform extraction by eliminating dry spots in ground coffee, enhancing flavor and taste. It is automatically engaged for optimal brewing.

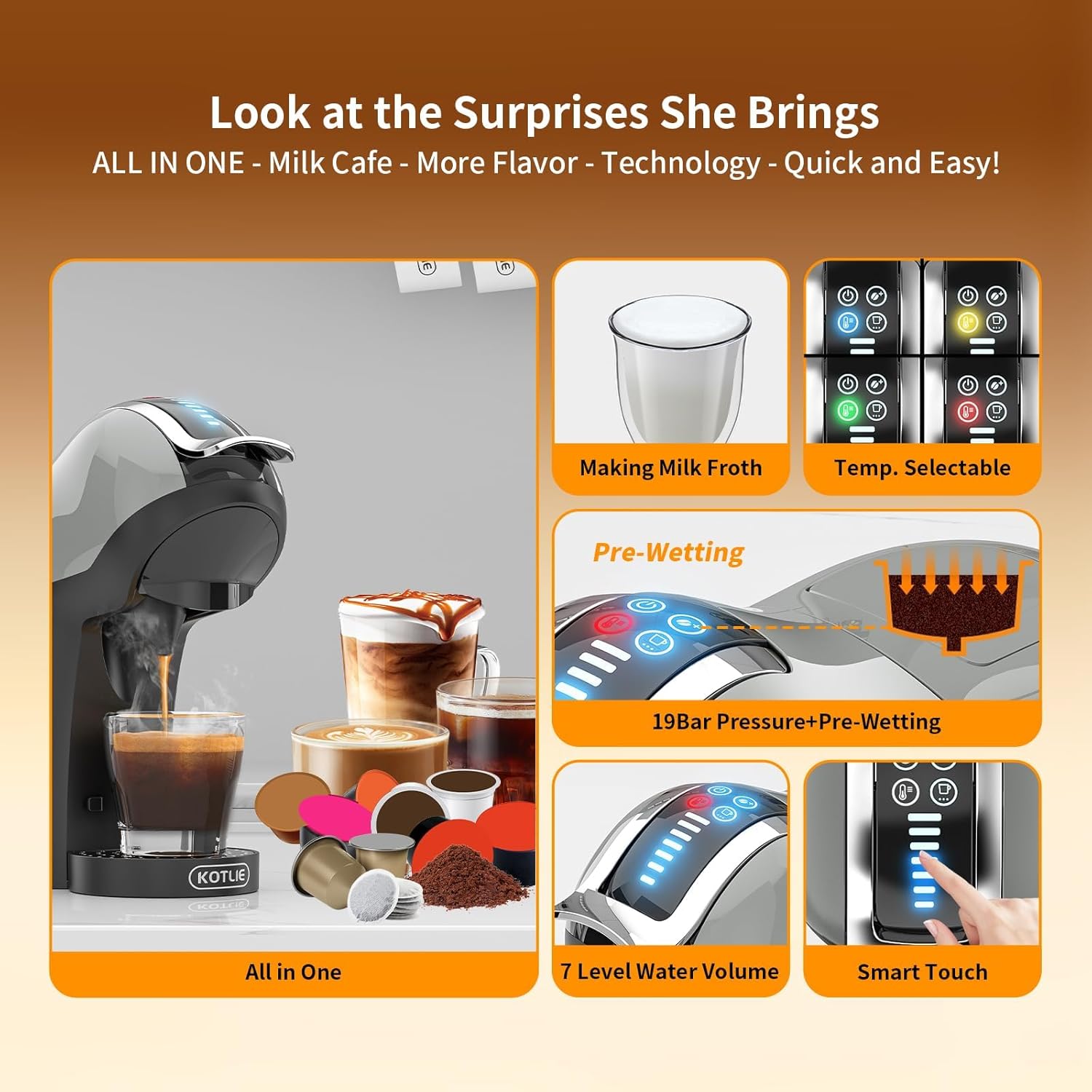

Image: The control panel of the KOTLIE EM-308A, highlighting the pre-wetting function, 19 Bar pressure, 7-level water volume selection, and smart touch interface.

Image: A visual guide to the multiple temperature options available on the KOTLIE EM-308A, ranging from cold/ice coffee to high-temperature brewing for various drinks.

3. Brewing Your Coffee

Once the water tank is filled, the adapter is loaded, and your desired temperature and volume are set, press the brew button. The machine will begin brewing your coffee. The 19-bar pressure ensures a rich crema and full-bodied flavor.

4. Making Fancy Coffee & Specialty Drinks

To create specialty drinks like Cappuccino, Latte, Espresso Macchiato, or Flat White:

• Use D*olce G*usto or SB*UX milk capsules to make milk froth or hot milk first.
• Then, brew a shot of espresso using your preferred coffee capsule or ground coffee.
• Combine the milk and espresso according to your desired proportions.

The machine can also be used to prepare other specialty drinks without coffee, such as hot chocolate, caramel hot chocolate, various teas (Citrus Honey Black Tea, Milk Tea, Indian Chai Tea, Peach Tea), and Uji Matcha.

Image: A step-by-step guide on how to prepare a mellow latte or cappuccino using the KOTLIE EM-308A, emphasizing the use of milk capsules and espresso.

Image: The KOTLIE EM-308A illustrating the one-click function for making dense milk froth, with options for moderate, thin, and thicker froth using color-coded buttons.

Image: The KOTLIE EM-308A shown preparing a variety of specialty drinks that do not contain coffee, such as hot chocolate, milk tea, and Uji Matcha.

Mantentzea

Garbiketa abisua

To ensure the machine's longevity and optimal performance, a cleaning reminder is programmed into the system. When all indicator lights flash rapidly, with only the brew button remaining functional, it indicates that descaling and cleaning are required. This is not a machine malfunction. Simply descale and clean the machine to restore normal operation.

Garbiketa orokorra

• Ur depositua: Regularly clean the water tank with warm, soapy water. Rinse thoroughly.
• Tantaketarako erretilua: Empty and clean the drip tray after each use to prevent overflow and maintain hygiene.
• Kapsula egokitzaileak: Clean all capsule adapters after each use to remove coffee residue.
• Kanpoaldea: Garbitu makinaren kanpoaldea leun batekin, damp oihalik. Ez erabili garbitzaile urratzailerik eta ez sartu makina uretan.

Arazoak konpontzea

• Machine Not Brewing / Lights Flashing: If all indicator lights flash rapidly and only the brew button works, it's a cleaning reminder. Descale and clean the machine.
• No Crema / Weak Coffee (Ground Coffee): Ensure you are using 15g of fine espresso powder (fine salt-like size). Too coarse powder leads to no crema, while too fine powder can clog the filter bowl, causing leaks or jamming.
• Coffee Not Dispensing (Capsules): Ensure the capsule is correctly inserted into the adapter and the adapter is properly seated in the machine. Some capsules may require specific orientation or pressure.
• Isurketak: Check that the water tank is correctly positioned and sealed. For ground coffee, ensure the grind size is appropriate to prevent clogging and leaks.
• Incompatible Capsules: The machine is compatible with Nes*presso Original, D*olce G*usto, K-Cup, and 44mm ESE pods. It is not compatible with Nes*presso Vertuo, L*O*R XXL, S*SEO, or F*rench R*oast capsules.
• Cold Brewing Issues: Do not use instant milk capsules or tea capsules for cold brewing, as this can lead to machine damage.

Image: Important reminders detailing compatible capsule types, instructions for making fancy coffee with milk capsules, and a warning against cold brewing with instant milk or tea capsules.

Image: Further important reminders covering the recommended 15g of fine espresso powder for brewing, tips for beginners on coffee powder extraction, and the importance of warming cups for optimal coffee temperature.

Zehaztapenak

Bermea eta Laguntza

For warranty information and customer support, please refer to the documentation included with your product or visit the official KOTLIE webgunea. Gorde erosketa-agiria erosketaren frogagiri gisa, berme-erreklamazioetarako.
