HUMZOR Z100 Bluetooth 5.2 OBD2 Scanner Instruction Manual

1. Produktua amaitu daview

The HUMZOR Z100 OBD2 Scanner is a Bluetooth 5.2 diagnostic tool designed to provide comprehensive vehicle diagnostics and maintenance functions. It connects wirelessly to your iOS or Android device via the NexzDAS application, offering full OBD2 functionality, 9+ reset functions, and bidirectional control capabilities.

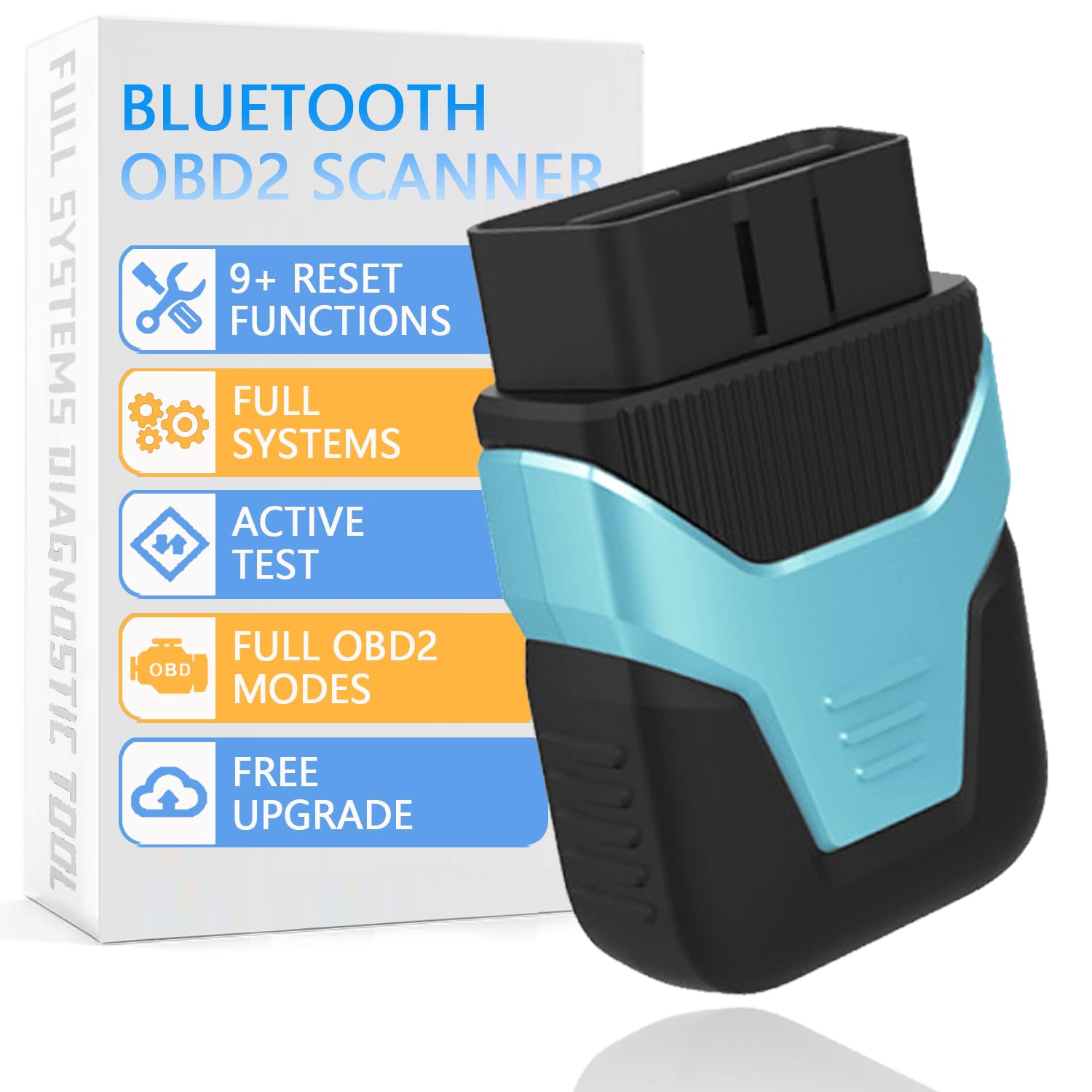

Figure 1: HUMZOR Z100 OBD2 Scanner device.

2. Konfigurazioa eta instalazioa

2.1 Aplikazioaren instalazioa

The HUMZOR Z100 requires the NexzDAS application for operation. Download the app from the Apple App Store (for iOS) or Google Play Store (for Android).

Figure 2: NexzDAS App download options and Bluetooth connectivity.

2.2 Gailuaren konexioa

1. Aurkitu zure ibilgailuaren OBD-II ataka, normalean gidariaren aldeko aginte-panelean aurkitzen dena.
2. Plug the HUMZOR Z100 device into the OBD-II port. The device will power on, indicated by LED lights.
3. Jarri ibilgailuaren piztea 'ON' posizioan (motorra itzalita).
4. Open the NexzDAS app on your smartphone. The app will automatically search for and connect to the Z100 device via Bluetooth 5.2. Ensure Bluetooth is enabled on your smartphone.

Figure 3: Step-by-step guide for connecting the HUMZOR Z100 to your vehicle.

3. Funtzionamendu-argibideak

3.1 Sistemaren diagnostiko osoa

The HUMZOR Z100 supports full OBD2 functionality, allowing you to read and clear fault codes, view system status, I/M readiness, freeze frames, and data streams across various vehicle systems including Engine, SRS, ABS, BMS, ESP, SAS, IMMO, and TPMS.

Figure 4: Visual representation of the all-system diagnostic capabilities.

3.2 Kontrol bidirekzionala (proba aktiboa)

Utilize the bidirectional control feature to send commands directly from your smartphone to your vehicle's ECU. This allows for proactive detection and testing of components like windows, windshield wipers, and headlights, aiding in quick problem identification.

Figure 5: Smartphone interface demonstrating bidirectional control over vehicle components.

4. Mantentze-funtzioak

The Z100 offers over 9 reset functions to assist with common vehicle maintenance tasks:

• ABS odoljarioa: ABS sistematik airea ateratzen du.
• Bateria berrezarri: Registers new batteries and resets battery management systems.
• Olioaren berrezarpena: Olio-aldaketa baten ondoren olio-zerbitzuko argia berrezartzen du.
• Throttle Learning: Ordeztu edo garbitu ondoren, balbula-gorputza egokitzen du.
• TPMS berrezarri: Pneumatikoen Presioaren Kontrol Sistema berrezartzen du.
• SAS Berrezarri: Zuzendaritza-angeluaren sentsorea berrezartzen du.
• DPFaren birsorkuntza: Diesel Partikula Iragazkiaren birsorkuntza abiarazten du.
• Injector Adjustment: Codes new injector values into the ECU.
• EPB Berrezarri: Aparkaleku-balazta elektronikoa berrezartzen du.

6 Irudia: Gainetikview of the 9+ maintenance and reset functions.

5. Arazoak

5.1 Aplikazioen konexio arazoak

If the app fails to connect or crashes, ensure your smartphone's Bluetooth is enabled and the Z100 device is properly plugged into the OBD-II port. Restarting the app or your phone may resolve temporary issues. For persistent problems, verify the app is updated to the latest version.

5.2 I/M Readiness Interpretation

The I/M Readiness display indicates whether your vehicle's emission-related systems are ready for testing. A 'PASS' status with green checkmarks for all monitors indicates readiness. If certain monitors are 'Not Ready' or 'Not Supported', the vehicle may not pass an emissions test. The app's display may not always clearly differentiate between ready and not-ready states for all monitors; consult your vehicle's manual for specific drive cycle requirements to set all monitors.

5.3 Diagnostiko Arazo Kodeak (DTC)

The scanner displays Current, Pending, and History DTCs. Note that Permanent DTCs cannot be cleared by the scanner and require the underlying issue to be resolved before they self-clear after a sufficient number of drive cycles. A low battery condition can sometimes trigger numerous fault codes across various systems; clearing these codes after addressing the battery issue is recommended.

6. Zehaztapenak

• Marka: HUMZOR
• Eredua: Z100 OBD2 Bluetooth Scanner
• Konektibitatea: Bluetooth 5.2
• Onartutako protokoloak: J1850 (PWM, VPW), ISO9141-2, ISO-14230-4 (KWP, KWP-5BPS), ISO-15765-4 (CAN, CAN-B, CAN-C, CAN-D)
• Bateragarritasuna: Most 12V OBD2-compliant vehicles (US 1996+, Europe 2002+, Asia 2008+)
• Sistema eragilea: Compatible with iOS & Android (NexzDAS app)
• Hizkuntzak: 16 hizkuntza onartzen ditu
• Elementuaren pisua: 3.52 ontza
• Paketearen neurriak: 4.3 x 3.1 x 1.27 hazbete

7. Zer dago kutxan

• 1 x HUMZOR Z100 OBD2 Bluetooth Scanner

8. Bermea eta Laguntza

The HUMZOR Z100 comes with lifetime free software upgrades. For any issues or questions regarding compatibility or usage, please contact HUMZOR customer support via Amazon (providing car brand/year/model). Responses are typically provided within 24 hours. The product also includes a 30-day free return policy.
