Sarrera
This manual provides detailed instructions for the assembly, operation, maintenance, and troubleshooting of your Jocoevol Full Upholstered LED Bed Frame. Please read this manual thoroughly before assembly and use to ensure safe and proper functionality. Keep this manual for future reference.
Segurtasun Informazioa
Segurtasun-neurri garrantzitsuak:
- Do not load more than 1000 pounds onto the bed frame. Exceeding this weight limit may cause structural damage or injury.
- Follow all assembly instructions carefully to ensure the stability and safety of the bed frame. Incorrect assembly can lead to instability.
- Avoid using sharp objects near the upholstery to prevent tears or damage to the velvet fabric.
- Ensure all electrical connections for the charging station and LED lights are properly secured and away from moisture.
- Keep small children away from the assembly area and small parts during installation.
Konfigurazioa eta Muntaketa
Your Jocoevol bed frame is designed for straightforward assembly. All necessary tools, labeled parts, and clear instructions are included in the packaging. It is recommended to assemble the bed frame with at least two people.
Muntatzeko urratsak:
- Unpack all components and verify against the parts list provided in the included installation manual.
- Begin by assembling the main frame structure, ensuring all bolts are securely tightened.
- Attach the upholstered side rails and footboard.
- Install the metal support slats. These slats feature silent strips and snap into place, eliminating the need for a box spring.
- Assemble the 2-tier storage headboard, integrating the charging station and LED light strip.
- Insert the two storage drawers into the designated slots under the bed frame.

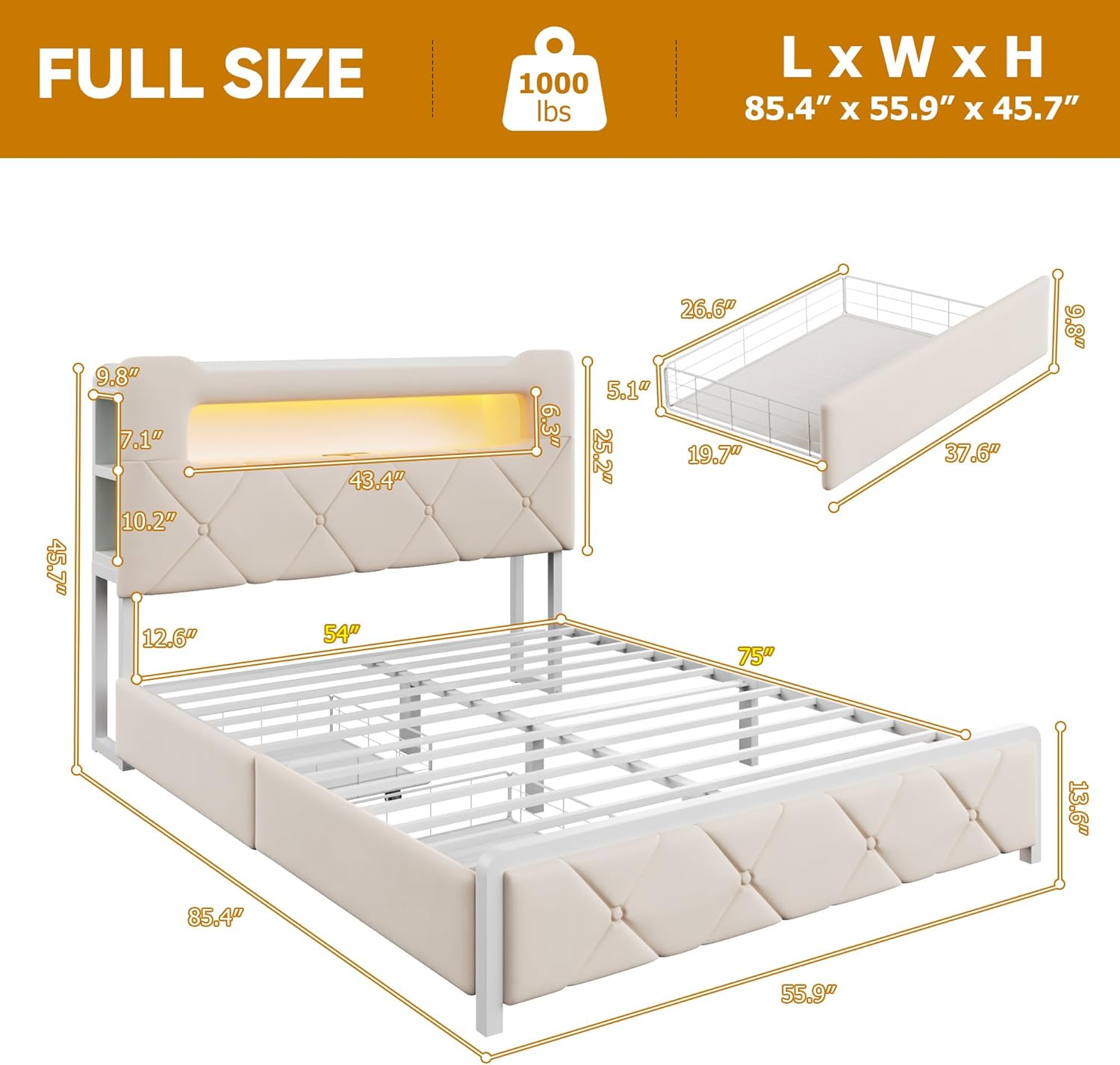

Figure 1: Detailed dimensions and structural components of the bed frame.
Figure 2: Illustration of the Velcro strap system for quick and secure slat assembly.
Funtzionamendu-argibideak
Biltegiratze tiraderak:
The bed frame includes two large storage drawers designed for silent gliding. These drawers can be positioned in any of the four side locations under the bed, offering flexibility to suit your room layout. The locking mechanism ensures drawers remain securely in place when closed. Bottom dust mats provide additional support and keep contents clean.

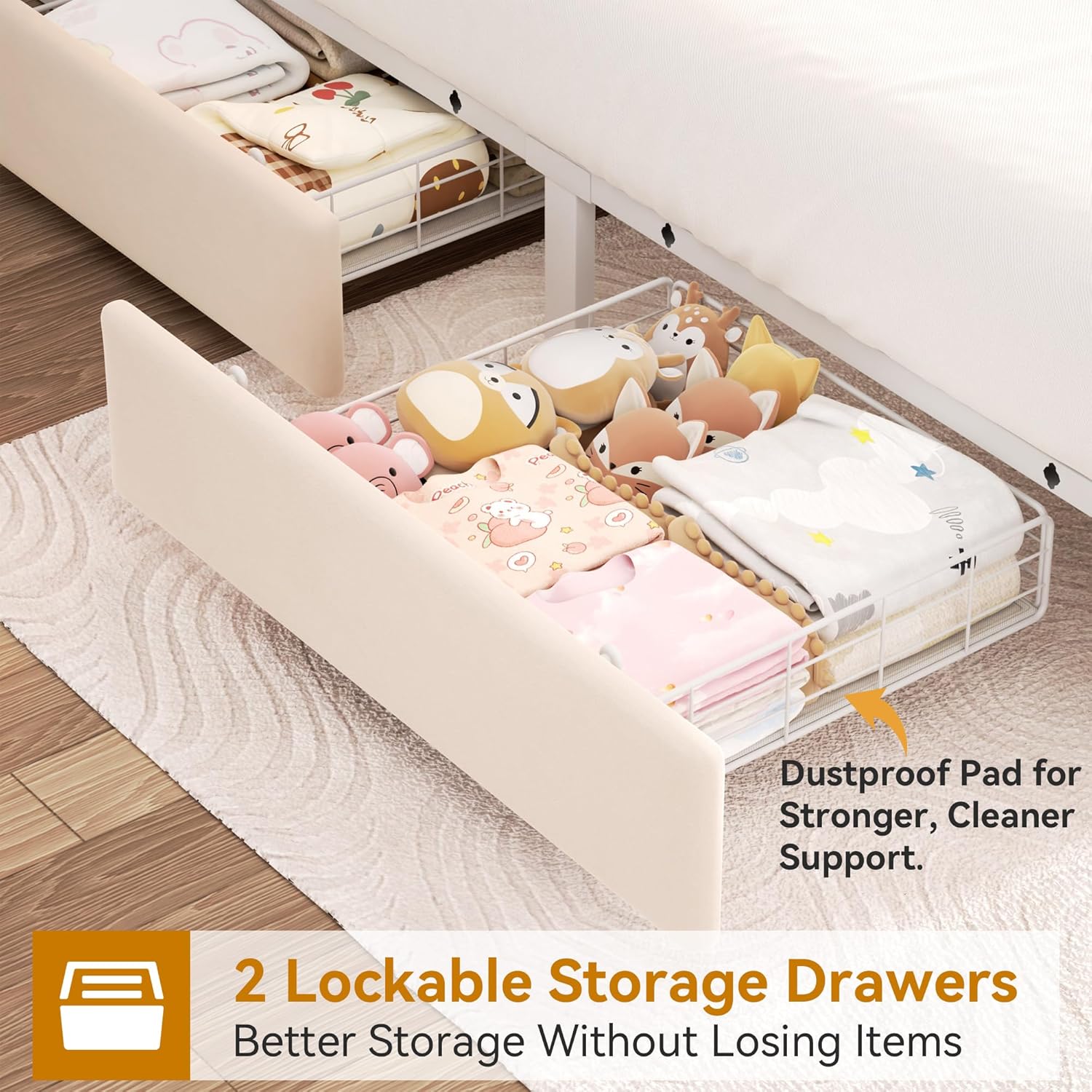

Figure 3: Storage drawer with dustproof pad for cleaner and stronger support.
2-Tier Storage Headboard & Charging Station:
The headboard features an 8.5-inch wide double-layer shelf for storing books and other items, acting as a mini bookcase. An 11.8-inch deep side cubby provides additional accessible storage. The integrated charging station includes two AC outlets, two USB ports, and one Type-C port, allowing convenient charging of electronic devices.
Figure 4: Multi-functional headboard with easy book storage, 2-tier side shelves, and tufted button design.
Figure 5: Charging station with multiple power outlets and USB ports for device charging.
RGB LED argi adimendunak:
The built-in RGB LED headboard lights offer over 16 million colors and 20+ light effects. Control the lights using the provided remote control or a compatible mobile application. The lights can sync with music, providing dynamic ambiance. Features include adjustable brightness, various modes, and a timing function.
Figure 6: Smart RGB lights with music sync, app control, and remote functionality.
Mantentzea
Tapizeriaren zainketa:
- Regularly vacuum the velvet upholstery using a soft brush attachment to remove dust and debris.
- For spills, blot immediately with a clean, dry cloth. Avoid rubbing, as this can spread the stain and damage the fabric.
- For tougher stains, use a mild upholstery cleaner specifically designed for velvet. Test on an inconspicuous area first.
- Keep the bed away from direct sunlight to prevent fading of the velvet fabric.
Frame and Slats:
- Aldian-aldian egiaztatu torloju eta konexio guztiak ondo estututa daudela ziurtatzeko. Behar izanez gero, berriro estutu.
- Garbitu metalezko markoa iragarkiarekinamp hautsa kentzeko zapi bat. Saihestu garbitzaile urratzaileak.
- The 9.8-inch clearance under the bed allows for easy cleaning. Regularly clean the floor area beneath the bed to prevent dust accumulation.
Arazoak konpontzea
If you encounter any issues with your Jocoevol bed frame, please refer to the following common solutions:
| Arazoa | Kausa posiblea | Irtenbidea |
|---|---|---|
| Ohe-egiturak ez du funtzionatzen edo kirrinka egiten du. | Loose connections; slats not properly seated. | Ensure all bolts are tightened. Check that all metal slats are securely snapped into their designated positions. The silent strips on the slats are designed to minimize noise. |
| LED argiak ez dira funtzionatzen. | Power connection issue; remote control battery low; light strip damage. | Verify the power cord for the LED lights is securely plugged into a working outlet. Check the remote control battery and replace if necessary. If the issue persists, contact customer support. |
| Kargatzeko estazioak ez du energiarik ematen. | Power cord disconnected; device not compatible. | Ensure the charging station's power cord is fully plugged into a wall outlet. Test with a different device to confirm the issue is with the charging station and not the device itself. |
| Biltegiratze tiraderak ez dira leunki irristatzen. | Oztopoa; gurpilak zikinak edo hondatuta daude. | Check for any objects obstructing the drawer's path. Clean the wheels and tracks. Ensure the drawers are correctly aligned in their slots. |
If you are unable to resolve an issue using the troubleshooting steps above, please contact Jocoevol customer support for assistance.
Zehaztapenak
| Ezaugarri | Xehetasuna |
|---|---|
| Tamaina | Osoa |
| Produktuaren neurriak | 85.4"L x 55.9"Z x 45.7"A |
| Ezaugarri bereziak | Bookcase Headboard, Charging Station, Side Storage, Smart RGB LED, Storage Drawers |
| Kolorea | Beixa |
| Akabera mota | Belusezko tapizeria |
| Dakarten osagaiak | Drawer, Headboard, Slat, Installation Manual |
| Koltxoi tamaina bateragarria | Osoa |
| Marka | Jokoebol |
| Muntaia Beharrezkoa | Bai |
| Oheburuko materiala | Belusa |
| Elementuaren pisua | 106.9 kilo |
| Elementuaren eredu-zenbakia | FZZH24103001 |
Bermea eta Laguntza
Jocoevol is committed to providing quality products and customer satisfaction. If you have any questions or require assistance before or after purchase, our dedicated support team is available to help. Please refer to the contact information provided in your product packaging or visit the official Jocoevol website for support details. Our team aims to respond to inquiries within 24 hours.
For information regarding product warranties, please consult the documentation included with your purchase or contact customer support directly.
