BEGWVDJTP S1BW-2A Single Stage AC Power Filter Instruction Manual

1. Sarrera

This instruction manual provides essential information for the safe and effective installation, operation, and maintenance of the BEGWVDJTP S1BW-2A Single Stage AC Power Filter. This device is designed to reduce electromagnetic interference (EMI) and radio frequency interference (RFI) in AC power lines, thereby improving the stability and performance of connected electronic equipment. Please read this manual thoroughly before installation and keep it for future reference.

2. Segurtasun informazioa

OHARRA: Deskarga elektrikoaren arriskua. Instalazioa langile kualifikatuek bakarrik egin behar dute.

• Always disconnect power to the circuit before installing or servicing the filter.
• Ensure proper grounding of the filter and connected equipment.
• Ez gainditu zehaztutako bolumenatage and current ratings of the filter.
• Avoid installing the filter in damp edo ingurune hezeak.
• Do not open the filter housing; there are no user-serviceable parts inside.
• Egiaztatu konexio guztiak seguru daudela argindarra berrezarri aurretik.

3. Produktua amaitu daview

The BEGWVDJTP S1BW-2A is a compact, single-stage AC power filter designed for easy integration into various electrical systems. It features lead-type connections for straightforward wiring and mounting tabs for secure installation.

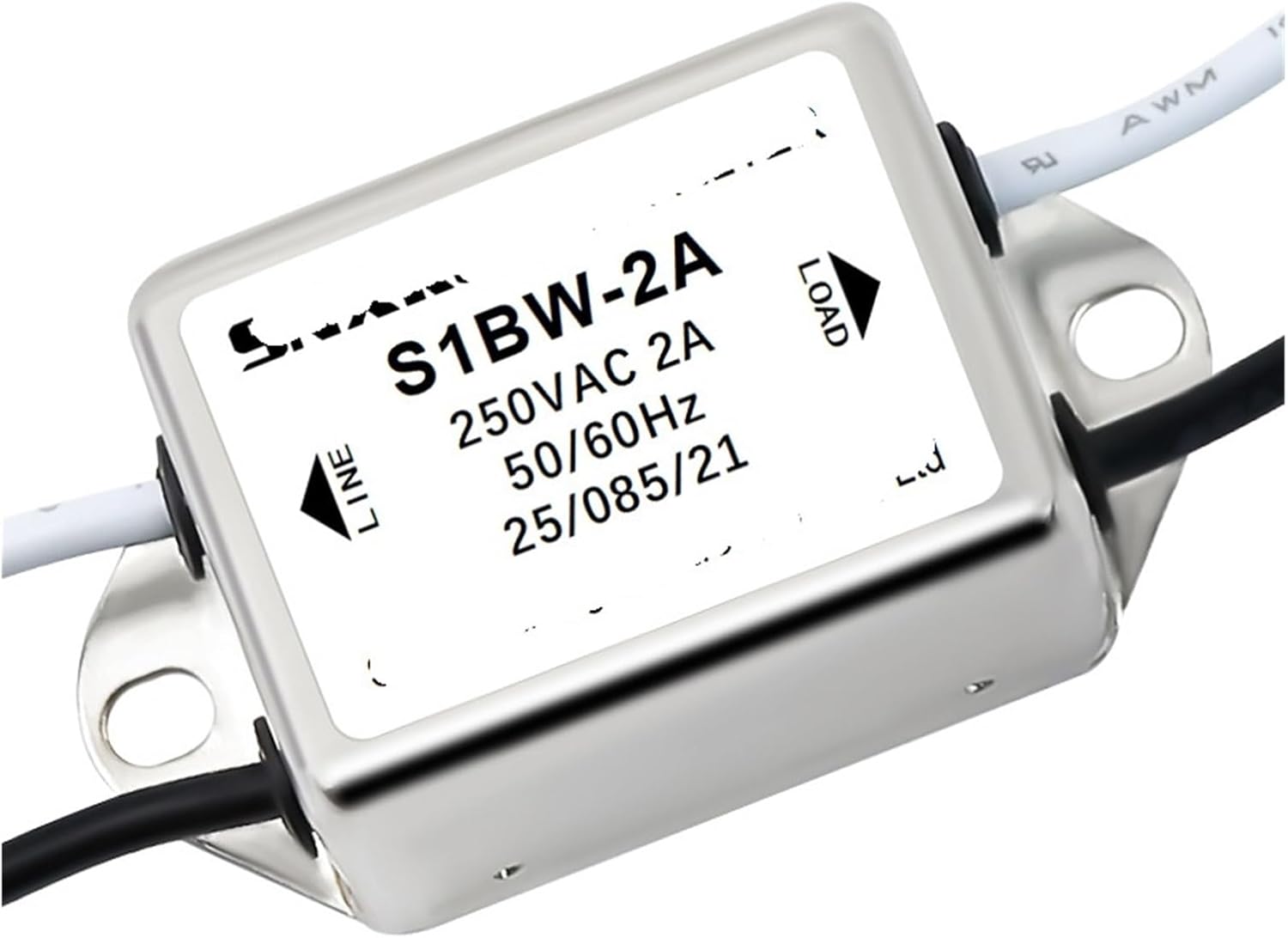

3.1. irudia: Aurrealdea view of the BEGWVDJTP S1BW-2A Power Filter, showing the model number, voltage, frequency, and connection points (LINE and LOAD).

3.2. irudia: Goiena view of the BEGWVDJTP S1BW-2A Power Filter, highlighting the lead wires for connection.

3.3. irudia: Atzekoa view of the BEGWVDJTP S1BW-2A Power Filter, illustrating the mounting tabs and compact design.

4. Zehaztapenak

5. Konfigurazioa eta instalazioa

Follow these steps carefully to install the BEGWVDJTP S1BW-2A Power Filter. Ensure all safety precautions are observed.

1. Potentzia deskonexioa: Before beginning any installation, ensure the main power supply to the circuit where the filter will be installed is completely disconnected. Use a voltage tester to confirm the absence of power.
2. Muntaketa: The filter features integrated mounting tabs. Secure the filter to a stable, non-conductive surface using appropriate screws or fasteners. Ensure the mounting location is dry and free from excessive heat.
3. Kableatu konexioak:
   • Identify the "LINE" input wire and the "LOAD" output wire on the filter. These are typically marked on the filter housing.
   • Connect the incoming AC power line (source) to the "LINE" input wire of the filter.
   • Connect the "LOAD" output wire of the filter to the power input of the equipment you wish to protect.
   • Ensure all connections are tight and insulated properly to prevent short circuits or accidental contact.
4. Lurreratzea: Ensure the metal housing of the filter is properly grounded to the system's protective earth. This is crucial for effective EMI suppression and safety.
5. Azken egiaztapena: Egiaztatu berriro kableatu konexio guztiak zuzenak eta seguruak direla. Ziurtatu kable biluzik ez dagoela agerian.
6. Berrezarri boterea: Instalazioa amaitu eta egiaztatu ondoren, kontu handiz itzuli korrontea zirkuituari.

Instalazio prozesuaren edozein atalen inguruan ziur ez bazaude, kontsultatu elektrizista kualifikatu bati.

6. Funtzionamendu-argibideak

The BEGWVDJTP S1BW-2A Power Filter operates passively once correctly installed. No user interaction or configuration is required for its operation. It continuously filters the AC power supply to reduce electromagnetic interference.

• Ensure the filter is always connected within its specified voltage eta korronte mugak.
• The filter will begin functioning immediately upon power being supplied to the circuit.

7. Mantentzea

The BEGWVDJTP S1BW-2A Power Filter requires minimal maintenance. Regular inspections are recommended to ensure continued safe and effective operation.

• Ikus-ikuskapena: Periodically inspect the filter and its connections for any signs of physical damage, corrosion, or loose wiring.
• Garbiketa: If necessary, gently clean the exterior of the filter with a dry, soft cloth. Do not use liquid cleaners or solvents. Ensure power is disconnected before cleaning.
• Ingurumen-baldintzak: Ensure the operating environment remains within suitable conditions (dry, moderate temperature) to prevent damage to the filter.

Do not attempt to open or repair the filter. Refer any issues to qualified service personnel.

8. Arazoak

If you experience issues after installing the power filter, consider the following troubleshooting steps:

• No Power to Equipment:
  • Verify that the main power supply to the circuit is active.
  • Check all wiring connections (LINE, LOAD) to ensure they are secure and correctly wired.
  • Ziurtatu iragazkia ez dagoela kaltetuta.
• Interference Persists:
  • Confirm the filter is correctly installed and grounded.
  • Ensure the filter's current and voltage ratings are appropriate for the connected equipment.
  • The source of interference might be external to the power line (e.g., radiated EMI). Consider additional shielding or different types of filters if necessary.

9. Ezabatzea

When the BEGWVDJTP S1BW-2A Power Filter reaches the end of its service life, it should be disposed of according to local environmental regulations. Do not dispose of electrical components with general household waste. Contact your local waste management authority for information on recycling electronic waste.
