Nilight 12V/24V 360A Remote Battery Disconnect Switch Instruction Manual

Sarrera

Thank you for choosing the Nilight 12V/24V 360A Remote Battery Disconnect Switch. This device is designed to provide a convenient and secure method for disconnecting your vehicle's battery, preventing power drain, and offering an anti-theft solution. It features wireless remote control operation and an integrated LED voltmeter for real-time battery monitoring. Please read this manual thoroughly before installation and operation to ensure proper use and safety.

Produktua amaituview

Ezaugarri nagusiak

• Korronte handiko balorazioa: Rated for 360A starting current and 200A continuous current at 12V/24V, suitable for various automotive vehicles.
• LED Voltmeter Display: Integrated display allows for direct monitoring of battery voltage, enhancing safety and convenience.
• Energia-kontsumo ultra-baxua: Utilizes a magnetic hold relay with a standby current of only 0.005A (5mA) to conserve battery power.
• Haririk gabeko urrutiko kontrola: Includes two paired wireless remote controls with an operating range of up to 165 feet (50 meters) for convenient battery disconnection.
• Anti-Theft Functionality: Remotely disconnecting the battery adds an extra layer of security.
• Vol. Baxuatage Babesa: Automatically disconnects if voltage drops below 12V (for 12V systems) or 24V (for 24V systems) to prevent deep discharge.

Paketearen edukia

Egiaztatu elementu guztiak paketean daudela:

• 1 x 360 Amp Remote Battery Disconnect Switch Unit
• 2 x Wireless Remote Control Keys
• 1 x Terminal blokea
• 1 x Installation Copper Pillar
• 1 x Black Negative Wire
• 1 x Stud
• 3 x Kable loturak

Image: The Nilight Remote Battery Disconnect Switch main unit with its two wireless remote controls.

Zehaztapenak

Image: Detailed dimensions of the Nilight Remote Battery Disconnect Switch and its associated components.

Segurtasun Informazioa

Always prioritize safety when working with automotive electrical systems. Failure to follow these guidelines may result in injury or damage to the product or vehicle.

• Always disconnect the vehicle's battery before beginning any electrical installation or maintenance.
• Erabili babes pertsonaleko ekipamendu egokia, segurtasun-betaurrekoak eta eskularruak barne.
• Ensure the vehicle is turned off and the ignition key is removed before installation.
• Avoid short circuits. Do not allow tools or metal objects to bridge battery terminals or other electrical components.
• Ensure all connections are secure and properly insulated to prevent arcing or corrosion.
• Ez gainditu zehaztutako korronte eta bolumen mugaktage ratings of the device.
• Keep the product away from water, excessive heat, and flammable materials.

Konfigurazioa eta Instalazioa

Follow these steps for proper installation of the Nilight Remote Battery Disconnect Switch:

1. Ibilgailua prestatu: Turn off the vehicle's engine and remove the ignition key. Disconnect the negative terminal of the vehicle's battery first to prevent accidental short circuits.
2. Bateriaren terminalak identifikatu: Locate the positive (+) and negative (-) terminals of your vehicle's battery.
3. Muntatu etengailua: Choose a suitable, secure location near the battery for mounting the disconnect switch. Ensure it is protected from excessive moisture and heat.
4. Konektatu terminal positiboa: Connect the positive (+) terminal of the battery to the input side of the disconnect switch (marked 'POS'). Use the provided copper pillar and terminal block if necessary.
5. Connect Vehicle's Positive Cable: Connect the vehicle's main positive cable to the output side of the disconnect switch.
6. Connect Negative Wire: Connect the provided black negative wire from the switch (marked 'NEG') to the vehicle's chassis ground or the battery's negative terminal.
7. Berriro konektatu bateria: Konektatu berriro ibilgailuaren bateriaren terminal negatiboa.
8. Proba funtzionaltasuna: Use the remote control to turn the power ON and OFF. Verify that the vehicle's electrical system responds correctly.

Image: Wiring diagram illustrating the connection of the remote battery disconnect switch to a vehicle's battery system.

Funtzionamendu-argibideak

Urruneko agintea erabiliz

The Nilight Remote Battery Disconnect Switch comes with two wireless remote controls for convenient operation.

• To Connect Power (ON): Press the 'ON' button on the remote control. The switch will engage, connecting the battery to the vehicle's electrical system.
• To Disconnect Power (OFF): Press the 'OFF' button on the remote control. The switch will disengage, disconnecting the battery from the vehicle's electrical system. This is recommended when the vehicle is not in use for extended periods to prevent battery drain and for anti-theft purposes.

Image: A hand operating the wireless remote control to activate the battery disconnect switch in a vehicle.

LED Voltmeter Display

The integrated LED display on the switch unit provides real-time battery voltage irakurketak.

• Monitor the display to check your battery's charge status.
• The switch features low voltage protection, automatically disconnecting the battery if the voltage drops below a critical level (12V for 12V systems, 24V for 24V systems) to prevent deep discharge and prolong battery life.

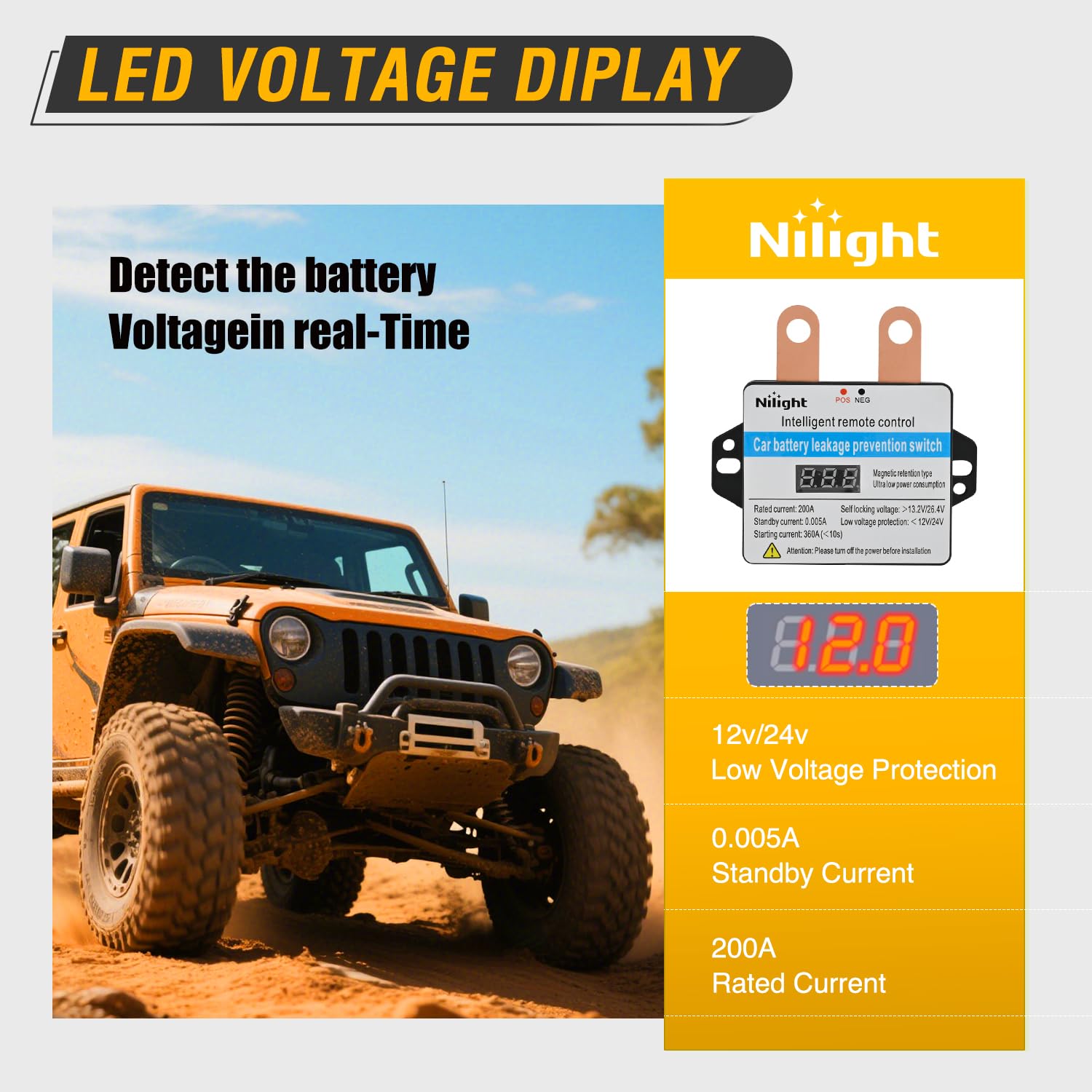

Image: The LED voltmeter display on the Nilight Remote Battery Disconnect Switch showing real-time voltage irakurketak.

Mantentzea

To ensure optimal performance and longevity of your Nilight Remote Battery Disconnect Switch, follow these simple maintenance guidelines:

• Ikuskatu konexioak: Periodically check all electrical connections to ensure they are tight and free from corrosion. Loose connections can lead to poor performance or overheating.
• Garbitu terminalak: Keep battery terminals and switch connections clean. Use a wire brush and battery terminal cleaner if necessary.
• Egiaztatu kableak: Inspect the wiring for any signs of wear, fraying, or damage. Replace damaged wires immediately.
• Mantendu lehorra: While the unit is designed for automotive environments, avoid direct exposure to excessive moisture or submersion.

Arazoak konpontzea

If you encounter issues with your Nilight Remote Battery Disconnect Switch, refer to the following common problems and solutions:

• Switch Does Not Respond to Remote:
  • Egiaztatu urrutiko agintearen bateria eta ordezkatu behar izanez gero.
  • Ziurtatu funtzionamendu-eremuaren barruan zaudela (165 oin arte).
  • Verify that the switch unit is receiving power and its indicator lights are functioning.
• Battery Still Drains When Disconnected:
  • Confirm that the switch is fully disengaged (OFF position).
  • Check for any parasitic draws that might be bypassing the disconnect switch. Ensure all accessories are connected through the switch.
• Vehicle Does Not Start After Connecting:
  • Ziurtatu etengailua 'ON' posizioan dagoela.
  • Check all battery and switch connections for tightness and corrosion.
  • Egiaztatu bateria bolumenatage using the LED display or a multimeter.
• LED Voltmeter Display Not Working:
  • Check power connections to the switch unit.
  • If the unit is receiving power but the display is off, contact customer support.

If these steps do not resolve the issue, please contact Nilight customer support for further assistance.

Bermea eta Laguntza

Nilight products are manufactured to high-quality standards. Specific warranty information is typically provided with your product packaging or can be found on the official Nilight webgunea. Gorde erosketaren egiaztagiria bermearen erreklamazioetarako.

For technical support, troubleshooting assistance, or warranty inquiries, please visit the official Nilight website or contact their customer service department. Contact details are usually available on the product packaging or webgunea.

Aplikazioak

The Nilight Remote Battery Disconnect Switch is suitable for a wide range of 12V/24V automotive and marine applications, including:

• Kotxeak
• Kamioiak
• Autokarabana
• Itsasontziak
• Other vehicles with 12V or 24V battery systems

Irudia: Adibamples of vehicles such as cars, trucks, and boats, demonstrating the wide range of applications for the Nilight Remote Battery Disconnect Switch.
