1. Segurtasun informazioa
Please read all safety instructions carefully before using the BORUIT RJ28 Mini Flashlight. Keep this manual for future reference.
- Ez begiratu zuzenean argi-izpira. The high intensity light can cause temporary vision impairment or eye damage.
- Mantendu linterna haurren eskura.
- Do not disassemble or modify the flashlight. This may cause damage and void the warranty.
- Erabili emandako C motako kargatzeko kablea edo baliokide ziurtatu bat soilik.
- Saihestu linterna denbora luzez tenperatura altuetan edo eguzki-argia zuzenean erabiltzean.
- The flashlight has an IP66 water resistance rating, meaning it is protected against powerful water jets. It is not designed for submersion.
2. Produktua amaitu daview
The BORUIT RJ28 is a compact and versatile EDC (Everyday Carry) flashlight designed for various applications, from daily tasks to outdoor emergencies.
Ezaugarri nagusiak
- Super Mini tamaina: Extremely compact body (6.4 cm length x 1.9 cm diameter), weighing only 35g.
- Argiztapen indartsua: Main LED provides up to 410 lumens with a maximum illumination distance of 50 meters.
- Versatile Side Light: Features RGB side light for ambient lighting, signaling, or warning.
- Argiztapen modu anitz: 4 main light modes (Strong, Low, Medium, SOS) and 17 side light modes (White Strong/Low, various colored lights, colored breathing light, red-blue flashing warning light).
- Karga erosoa: Type-C charging port, full charge in approximately 110 minutes.
- Bateria adierazlea: Red light for charging, green light for full charge.
- Eraikuntza iraunkorra: Made from high-quality aluminum alloy, anti-drop, and IP66 water-resistant.
- Diseinu praktikoa: Integrated clip for hands-free use and magnetic base for attachment to metal surfaces.
Paketearen edukia
- BORUIT RJ28 Mini Flashlight
- USB-C kargatzeko kablea
- Pocket Clip (pre-installed or separate)
- Keychain Ring
- Erabiltzailearen eskuliburua
Image: BORUIT RJ28 Mini Flashlight showing package contents including the flashlight, USB-C cable, clip, and keychain, along with product dimensions.
3. Konfigurazioa
Hasierako karga
- Locate the Type-C charging port on the flashlight.
- Konektatu emandako USB-C kablea linternara eta USB elikatze-iturri bateragarri batera (adibidez, hormako egokitzailea, ordenagailuko USB ataka).
- The battery indicator light will illuminate gorria kargatzean.
- Guztiz kargatuta dagoenean, adierazle-argia piztuko da berdea. A full charge takes approximately 110 minutes.
- Disconnect the charging cable after the light turns green.
Image: The BORUIT RJ28 Mini Flashlight connected to a Type-C charging cable, showing the red indicator light for charging.
4. Funtzionamendu-argibideak
The BORUIT RJ28 features a main front light and a multi-color side light, each with distinct operating modes.
Argiaren Eragiketa Nagusia
The main light is controlled by a dedicated button, typically located near the front of the flashlight.
- Piztu/Desaktibatu: Press and hold the main light button for approximately 0.5 seconds to turn the main light on or off.
- Ziklo moduak: While the main light is on, short press the button to cycle through modes: Strong → Low → Medium → SOS.
Alboko argien funtzionamendua
The side light, featuring white and RGB options, is controlled by a separate button, usually located on the side.
- Piztu/Desaktibatu: Press and hold the side light button for approximately 0.5 seconds to turn the side light on or off.
- Ziklo moduak: While the side light is on, short press the button to cycle through modes: White Strong → White Low → Red → Green → Blue → Orange → Yellow → Cyan → Purple → Red Breathing → Green Breathing → Blue Breathing → Orange Breathing → Yellow Breathing → Cyan Breathing → Purple Breathing → Red-Blue Flashing (Warning Light).
Funtzio magnetikoa
The flashlight features a magnetic base, allowing it to be securely attached to metal surfaces for hands-free illumination.

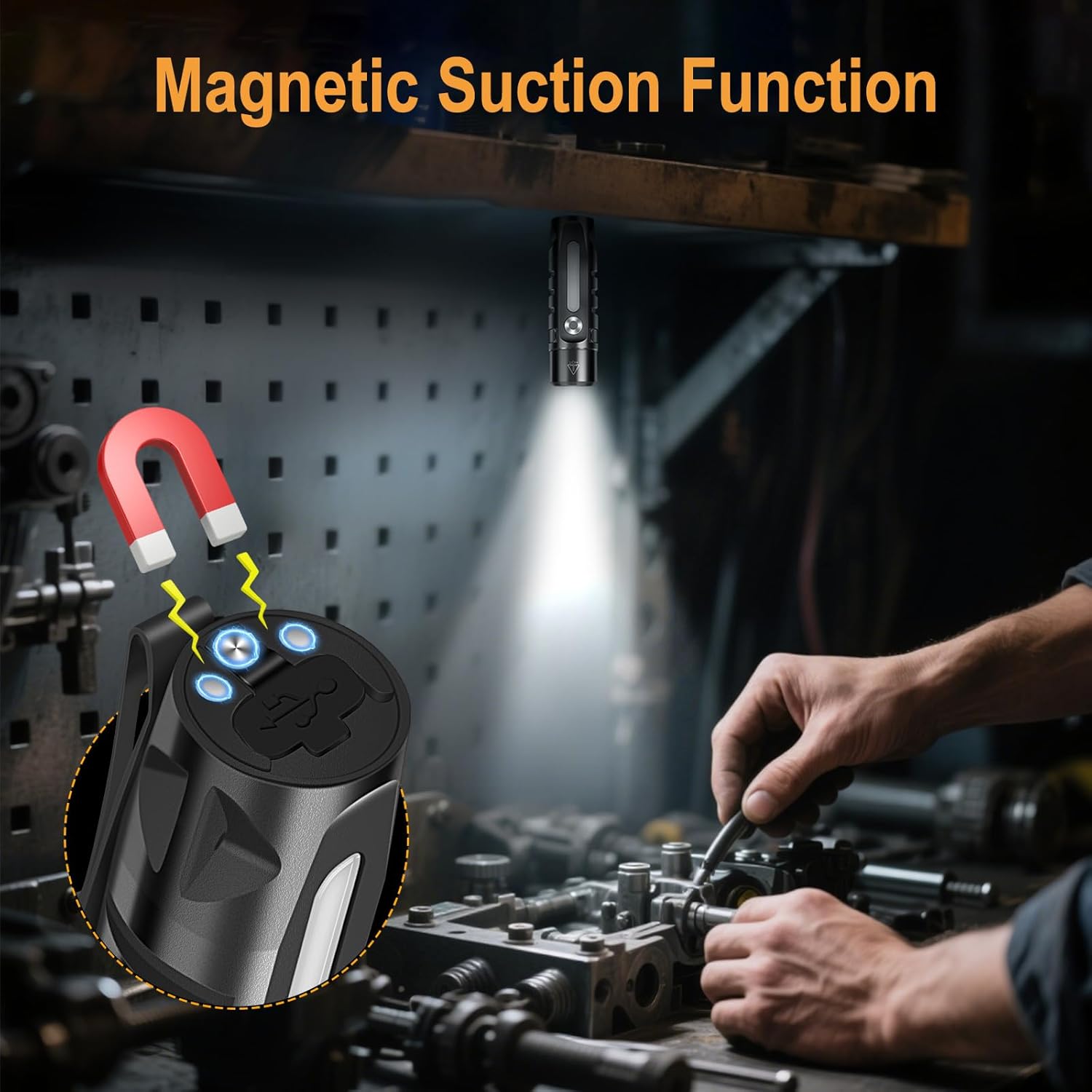

Image: The BORUIT RJ28 Mini Flashlight attached magnetically to a metal surface, providing downward illumination for repair work.
Clip Usage

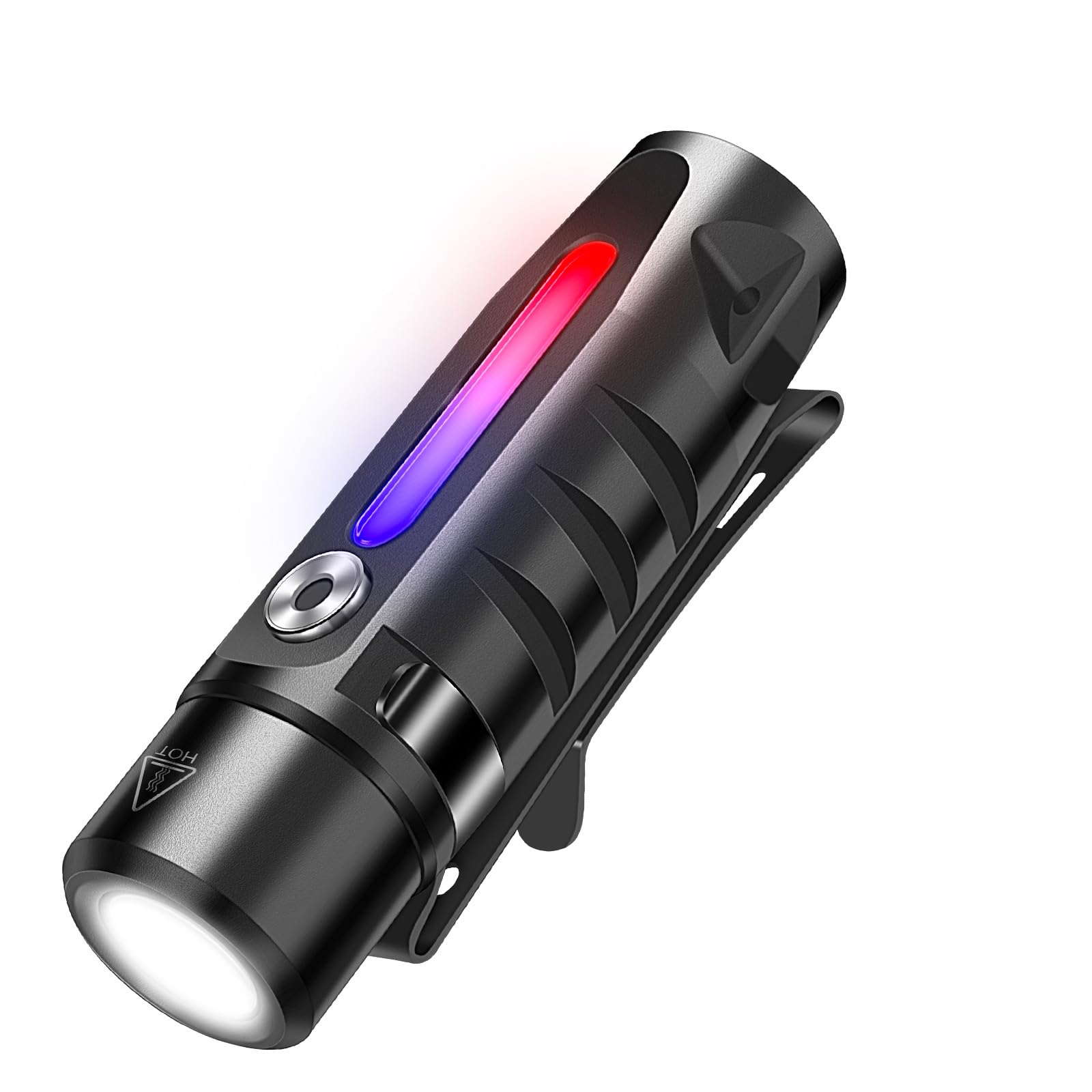

The integrated clip provides versatile attachment options, such as clipping onto a hat brim, backpack strap, or pocket.
Image: Demonstrations of the BORUIT RJ28 Mini Flashlight being used with its portable clip as a hat lamp, signal lamp on a backpack, and service lamp on a shirt pocket.
Aplikazio polifazetikoak
Image: Four scenarios showing the BORUIT RJ28 Mini Flashlight in use: everyday carry in a pouch, outdoor walking at night, dog walking, and repairing an engine.
5. Mantentzea
Proper maintenance ensures the longevity and optimal performance of your BORUIT RJ28 Mini Flashlight.
- Garbiketa: Garbitu linternaren gorputza oihal leun batekin,amp oihal. Ez erabili garbitzaile edo disolbatzaile urratzailerik.
- Biltegiratzea: Store the flashlight in a cool, dry place away from direct sunlight and extreme temperatures. If storing for extended periods, charge the battery to about 50% every 3-6 months to maintain battery health.
- Bateria zaintzea: Avoid fully discharging the battery frequently. Recharge promptly when the battery indicator shows low power.
- Uraren erresistentzia: Ensure the charging port cover is securely closed to maintain IP66 water resistance.
6. Arazoak
If you encounter issues with your BORUIT RJ28 Mini Flashlight, refer to the following common problems and solutions:
| Arazoa | Kausa posiblea | Irtenbidea |
|---|---|---|
| Linterna ez da pizten. | Bateria baxua. Funtzionamendu okerra. | Kargatu linterna guztiz. Eduki sakatuta pizteko botoia 0.5 segundoz. |
| Linterna ez da kargatzen. | Kargatzeko kablea ez da behar bezala konektatuta. Kable edo energia-iturri akastuna. | Ensure the USB-C cable is fully inserted. Probatu beste USB-C kable edo korronte egokitzaile batekin. |
| Argiaren irteera apala da. | Bateria baxua. Modu okerra hautatu da. | Kargatu berriro linterna. Cycle through modes to select a brighter setting. |
Arazoak jarraitzen badu, jarri harremanetan bezeroarentzako arreta-zerbitzuarekin.
7. Zehaztapenak
| Ezaugarri | Zehaztapena |
|---|---|
| Marka | BORUIT |
| Modelo zenbakia | V8-1 (RJ28) |
| Neurriak (L x W x H) | 6.4 x 1.9 x 1.9 cm (19P x 19l x 64H millimeters) |
| Pisua | 35 gramo |
| Materiala | Aluminioa |
| Bateria | 1 Lithium-ion (200 mAh) - included |
| Kargatzeko ataka | C motakoa |
| Kargatzen Voltage | 5V 1A |
| Main Light Brightness | 410 Lumenseraino |
| Argiztapen-distantzia maximoa | 50 metro |
| Uraren Erresistentzia | IP66 |
| Ezaugarri bereziak | Multiple lighting modes, Clip, Magnetic base, RGB side light, SOS, Colored breathing light |
| Ziurtagiria | CE |
Energia Etiketaren Informazioa
Image: Energy label for BORUIT V8-1 (RJ28) showing energy efficiency class G and 5 kWh/1000h consumption. For more details, scan the QR code or visit eprel.ec.europa.eu/qr/1514000.
8. Bermea eta Laguntza
For warranty information, please refer to the terms and conditions provided by your retailer at the time of purchase. Keep your proof of purchase for any warranty claims.
If you require technical assistance or have questions not covered in this manual, please contact the retailer or BORUIT customer support through their official webgunea edo harremanetarako kanalak.
