VEVOR Chest Freezer User Manual

1. Segurtasun informazioa

Please read all safety warnings and instructions carefully before installing, operating, or maintaining this appliance. Keep this manual for future reference.

Segurtasun Elektrikoa

• Ziurtatu elikadura hornidura bolumenarekin bat datorrelatagetxetresna elektrikoaren balorazio-etiketan zehaztuta dago.
• Ez erabili luzapenik edo lurrik gabeko moldagailurik.
• Deskonektatu beti izozkailua garbitu edo mantentze-lanak egin aurretik.
• Ez ukitu entxufea esku bustiekin.

Segurtasun Orokorra

• Tresna hau ez da gaitasun fisiko, sentsorial edo mental murriztua duten edo esperientzia eta ezagutza falta duten pertsonek (haurrak barne) erabiltzeko, baldin eta haien segurtasunaz arduratzen den pertsona batek gailuaren erabilerari buruz gainbegiratu edo jarraibiderik eman ez badu.
• Mantendu aireztapen-zuloak oztoporik gabe.
• Ez gorde substantzia lehergarririk (adibidez, aerosol latak, propultsatzaile sukoi batekin) aparatu honetan.
• Ez kaltetu hozte-zirkuitua.
• Ez erabili gailu mekanikorik edo bestelako baliabiderik desizozteko prozesua bizkortzeko, fabrikatzaileak gomendatutakoak ez ezik.

2. Produktua amaitu daview

The VEVOR BD-355JA Chest Freezer provides a spacious 12.8 Cu.ft (345 L) storage capacity, designed for efficient and reliable freezing of various food items. It features a top-open door, adjustable temperature control, and convenient storage baskets.

Image 2.1: VEVOR Chest Freezer with its lid open, showcasing the large interior capacity and the four removable storage baskets.

Ezaugarri nagusiak:

• Edukiera zabala: 12.8 Cu.ft / 345 L for ampjanari biltegiratzea.
• Tenperatura erregulagarria: 7-level temperature control knob for precise settings.
• Removable Baskets: Four included baskets for organized storage of smaller items.
• Balanced Hinge Door: Lid stays open at angles from 45° to 90° for hands-free access.
• Blokeagarria den tapa: Provides security for stored contents.
• Mugikortasuna: Equipped with 6 casters for easy relocation.
• LED argiztapena: Interior LED light for improved visibility.
• Hozte eraginkorra: Low energy consumption (1.28 kWh/day) with a stable freezing system.

3. Konfigurazioa eta instalazioa

3.1 Paketatzea

1. Kendu ontziratzeko material guztiak, aparra eta zinta itsasgarria barne.
2. Inspect the freezer for any shipping damage. Report any damage to your retailer immediately.
3. Clean the interior and exterior of the freezer with a damp zapia erabili aurretik.

3.2 Jartzea

• Place the freezer on a firm, level surface away from direct sunlight and heat sources (e.g., oven, radiator).
• Ensure adequate air circulation around the freezer. Allow at least 10 cm (4 inches) of space on the sides and back, and 30 cm (12 inches) above the unit for proper ventilation.
• Avoid placing the freezer in areas with high humidity.

3.1 irudia: Albokoa view of the VEVOR Chest Freezer, highlighting the ventilation grid for efficient heat dissipation.

3.3 Berdinketa

The freezer is equipped with 6 casters for mobility. Ensure the freezer is stable and level before operation to prevent vibrations and ensure proper door sealing. If necessary, adjust the leveling feet (if present, or ensure casters are locked if applicable) to achieve stability.

3.4 Hasierako piztea

1. After placement, wait at least 2-4 hours before plugging in the freezer. This allows the refrigerant to settle.
2. Plug the freezer into a dedicated, grounded electrical outlet.
3. The power indicator light will illuminate. Allow the freezer to run empty for 2-3 hours to reach its operating temperature before loading food.

4. Funtzionamendu-argibideak

4.1 Tenperatura Kontrola

The freezer features a 7-level adjustable thermostat knob located on the front panel. Rotate the knob to select your desired temperature setting.

4.1 irudia: Xehetasun zehatza view of the temperature control knob and indicator lights on the VEVOR Chest Freezer.

• Settings range from MIN to MAX. MIN indicates warmer temperatures, while MAX indicates colder temperatures.
• The temperature range for freezing is approximately -28°C to -12°C (-18.4°F to 10.4°F).
• The temperature range for refrigeration (if applicable, check model specifics) is approximately 0°C to 10°C (32°F to 50°F). Refer to the product specifications for exact ranges.
• For initial fast freezing, set the knob to MAX for several hours, then adjust to your desired long-term storage temperature.

4.2 Adierazle argiak

• Argiaren adierazle argia: Illuminates when the freezer is connected to power.
• Compressor Operation Indicator Light: Illuminates when the compressor is actively cooling. It will cycle on and off as the freezer maintains temperature.

4.3 Using Storage Baskets

The four removable storage baskets are designed to help organize smaller items and provide easier access to frequently used foods without having to dig through the main compartment.

• Place baskets on the designated ledges inside the freezer.
• Lift baskets out when accessing items below.

5. Mantentzea eta Garbiketa

5.1 Desizoztea

Defrost the freezer when the frost layer on the interior walls reaches a thickness of about 0.5 cm (0.2 inches). Excessive frost reduces cooling efficiency.

1. Deskonektatu izozkailua korronte-hartunetik.
2. Kendu janari-elementu guztiak eta gorde beste izozkailu edo hozkailu batean.
3. Open the lid and place towels on the floor around the freezer to catch melting ice.
4. Locate the drain plug (if present) at the bottom of the freezer and remove it to allow water to drain.
5. Use the provided plastic scraper (or a similar non-sharp tool) to gently remove ice. Do not use metal tools or sharp objects, as this can damage the cooling system.
6. Behin desizoztuta, barrualdea ondo garbitu eta lehortu.
7. Replace the drain plug, plug in the freezer, and allow it to cool down before returning food.

Image 5.1: Accessories for the VEVOR Chest Freezer, including the defrosting shovel and waterproof stopper.

5.2 Barne eta Kanpoko Garbiketa

• Deskonektatu beti izozkailua garbitu aurretik.
• Clean the interior with a solution of mild detergent and warm water. Rinse thoroughly and dry completely to prevent odors and mold.
• Garbitu kanpoaldea leun batekin, damp oihal. Saihestu garbitzaile edo disolbatzaile urratzaileak.
• Clean the condenser coils at the back or bottom of the freezer periodically (e.g., every 6-12 months) using a soft brush or vacuum cleaner to ensure efficient operation.

6. Arazoak

Bezeroarentzako arreta-zerbitzuarekin harremanetan jarri aurretik, egiaztatu honako arazo eta irtenbide ohikoenak:

7. Zehaztapenak

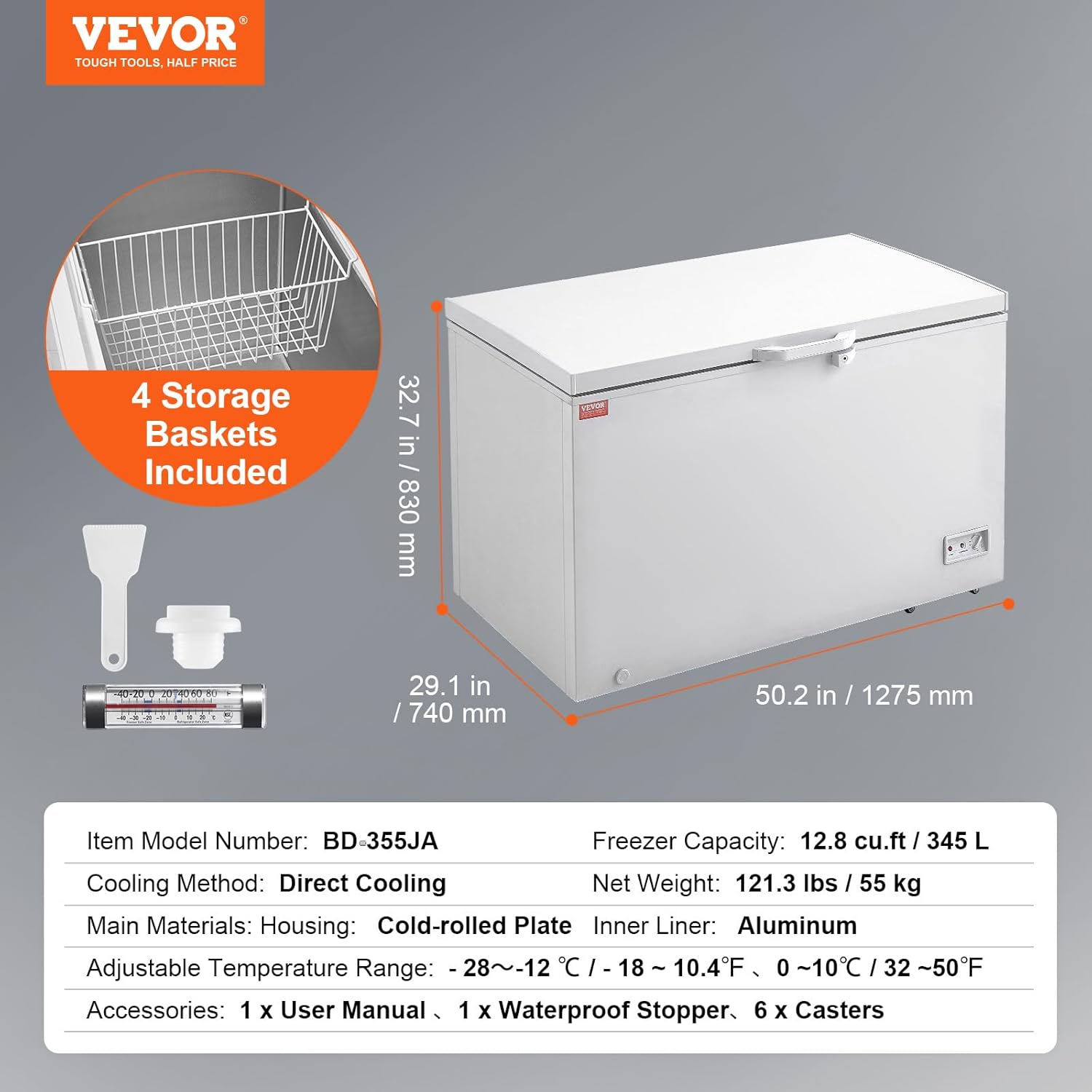

Image 7.1: Diagram showing the dimensions and key specifications of the VEVOR Chest Freezer.

8. Bermea eta Laguntza

8.1 Bermearen informazioa

This VEVOR Chest Freezer is covered by a manufacturer's warranty. Please refer to the warranty card included with your purchase or visit the official VEVOR webwebgunean bermearen baldintza zehatzak ikusteko. Gorde erosketaren frogagiria bermearen erreklamazioetarako.

8.2 Bezeroarentzako laguntza

For technical assistance, troubleshooting not covered in this manual, or warranty inquiries, please contact VEVOR customer support through their official webgunea edo erosketa-dokumentazioan emandako harremanetarako informazioa.

Webgunea: www.vevor.com
