Elitech Digital Manifold Gauge Set DMG-2SE Instruction Manual

Sarrera

This manual provides comprehensive instructions for the safe and efficient operation, setup, and maintenance of the Elitech Digital Manifold Gauge Set, model DMG-2SE. This device is designed for precise measurement of pressure and temperature in HVAC, refrigeration, and air conditioning systems. Please read this manual thoroughly before use to ensure proper functionality and safety.

Segurtasun Informazioa

Beti erabili babes pertsonaleko ekipamendu (EPI) egokia, segurtasun-betaurrekoak eta eskularruak barne, hozgarriak maneiatzen dituzunean.
Ensure all hose connections are secure and leak-free before applying pressure or vacuum to a system.
Do not exceed the maximum working pressure of the hoses (500 PSI) or the gauge (800 PSI). Exceeding these limits can cause equipment damage or personal injury.
Use the device in a well-ventilated area to prevent the accumulation of refrigerant vapors.
Refer to local and national regulations for proper refrigerant handling, recovery, and disposal procedures.
Keep the device away from moisture, direct sunlight, and extreme temperatures to prevent damage to electronic components.
Ez saiatu gailua desmuntatzen edo aldatzen. Mantendu konponketa guztiak langile kualifikatuen esku.

Produktua amaituview eta Osagaiak

The Elitech DMG-2SE is a digital manifold gauge designed for HVAC/R professionals, offering accurate pressure and temperature measurements. It features a high-definition LCD screen, intuitive controls, and robust construction for reliable performance.

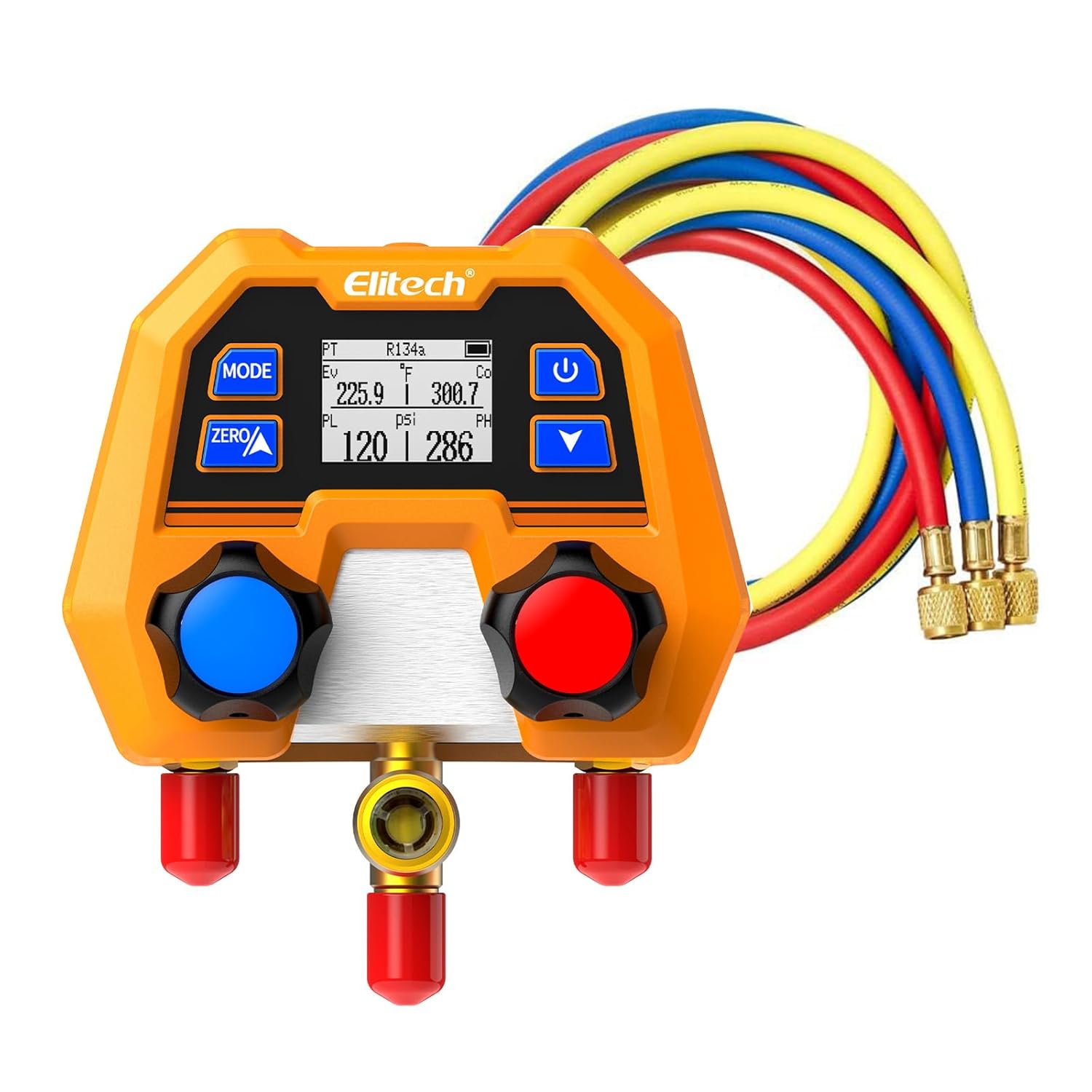

Elitech Digital Manifold Gauge Set DMG-2SE with refrigerant hoses — *Figure 1: Elitech Digital Manifold Gauge Set DMG-2SE with included refrigerant charging hoses.*

Key features of Elitech DMG-2SE including 88 refrigerant types, real-time pressure, multi-unit toggle, observation window, refrigerant charge/recovery, 1% accuracy, rugged design, and 200H battery life. — 2 Irudia: Gainetikview of key features including support for 88 refrigerant types, real-time pressure and saturation temperature display, multi-unit toggle, observation window, refrigerant charge/recovery functions, ±1% accuracy, rugged design, and 200-hour battery life.

Diagram of Elitech DMG-2SE showing LCD display, control buttons, valve knobs, refrigerant hose connection ports, sight glass, battery compartment, information label, and hanging mount. — Figure 3: Labeled diagram of the DMG-2SE showing the LCD display, control buttons, valve knobs, refrigerant hose connection ports (1/4" SAE), sight glass, battery compartment, information label, and hanging mount.

Hozgarrien mahukak

The included refrigerant charging hoses are color-coded for easy identification and proper connection.

Three refrigerant charging hoses in red, yellow, and blue, each 59 inches long with 1/4 inch SAE screw threads. — *Figure 4: The included 59-inch (1.5m) refrigerant charging hoses with 1/4" SAE screw threads.*

Close-up of refrigerant hose connections, indicating red for high pressure, blue for low pressure, and yellow for refrigerant. — *Figure 5: Color coding for refrigerant hoses: Red for high pressure, Blue for low pressure, and Yellow for refrigerant.*

Zehaztapenak

Presio-tartea: -14 eta 800 psi artean
Zehaztasuna: ±1% FS (Full Scale)
Ebazpena: 1 psi
Presio-unitateak: psi, kg/cm², kPa, MPa, bar, inHg
Tenperatura-unitateak: ° C / ° F
Hozgarri bateragarriak: Supports 88 types (e.g., R11, R12, R22, R134a, R410a, R404a, R407c, R507, R32, R290, R600a, R1234yf, etc.). The device defaults to 18 types and can be updated via an app.
Hodiaren luzera: 59 hazbete (1.5 m)
Hodi-konexioak: 1/4" SAE
Mahuka laneko presioa: 500 PSI (Yellow, Blue, Red)
Mahuka-leherketa-presioa: 4000 PSI (Yellow, Blue, Red)
Potentzia: 2 x AAA batteries (replaceable)
Bateriaren iraupena: 200 ordu gutxi gorabehera
Neurriak: Approximately 4.3 inches (11 cm) width, 5.3 inches (13.5 cm) height, 2.9 inches (7.4 cm) depth.
Pisua: Gutxi gorabehera 1.5 lb (680 g)

Konfigurazioa

Bateriaren instalazioa: Open the battery compartment located on the back of the unit. Insert two AAA batteries, ensuring correct polarity (+/-). Close the compartment securely.
Hasierako piztea: Sakatu pizteko botoia (U symbol) to turn on the device. The LCD screen will illuminate.
Unitatearen hautaketa: Use the "MODE" button to cycle through available measurement units (psi, kg/cm², kPa, MPa, bar, inHg for pressure; °C/°F for temperature). Select your preferred units by stopping on the desired option.
Refrigerant Selection: Press the "MODE" button repeatedly until the refrigerant type (e.g., R134a) flashes on the display. Use the up/down arrow buttons to scroll through the list of supported refrigerants. Confirm your selection by pressing "MODE" again or by waiting a few seconds for the selection to auto-confirm.
Zeroing the Pressure: Before connecting the gauge to any system, ensure it is at atmospheric pressure (not connected to any pressure source). Press the "ZERO" button to calibrate the pressure reading to zero. This ensures accurate measurements.

Funtzionamendu-argibideak

Hodiak konektatzea

Konektatu mahuka urdina to the low-pressure service port of the HVAC/R system.
Konektatu mahuka gorria to the high-pressure service port of the HVAC/R system.
Konektatu mahuka horia to the service port of your vacuum pump, refrigerant tank, or recovery machine.
Ensure all connections are hand-tightened, then slightly snugged with a wrench to prevent refrigerant leaks.

Presioa eta tenperatura neurtzea

With the hoses connected to the system, slowly open the appropriate valve knobs on the manifold gauge to allow system pressure to reach the internal sensors.
The LCD will display real-time pressure readings for both the high and low sides of the system.
Simultaneously, the display will show the corresponding saturation temperatures (evaporation and condensation temperatures) for the currently selected refrigerant.
The "PT" (Pressure-Temperature) mode shows pressure and saturation temperature. "Ev" (Evaporation) and "Co" (Condensation) indicate the saturation temperatures, while "PL" (Low Pressure) and "PH" (High Pressure) indicate the actual system pressures.

Close-up of the Elitech DMG-2SE digital display showing pressure and temperature readings for R134a refrigerant. — *6. irudia: Adibample of the digital display showing pressure and saturation temperature readings.*

Refrigerant Charging/Recovery

The DMG-2SE provides accurate pressure readings essential for refrigerant charging and recovery processes. Always follow industry best practices and local regulations for these operations.

Kargatzeko: Connect the yellow hose to the refrigerant tank. Purge any air from the yellow hose before opening the manifold valve to the system. Monitor the pressure readings on the DMG-2SE to ensure the correct charge is added.
For Recovery: Connect the yellow hose to a certified refrigerant recovery machine. Follow the recovery unit's instructions and monitor system pressures on the DMG-2SE during the recovery process.

Mantentzea

Garbiketa: Garbitu gailua leun batekin, damp cloth. Do not use abrasive cleaners, solvents, or immerse the unit in water.
Bateria ordezkatzea: Replace batteries when the low battery indicator appears on the display. Ensure the device is powered off before opening the battery compartment and replacing the two AAA batteries.
Hodien ikuskapena: Regularly inspect all refrigerant hoses for signs of wear, cracks, cuts, or damage. Replace damaged hoses immediately to prevent refrigerant leaks and ensure safety.
Biltegiratzea: Store the manifold gauge set in a clean, dry place, away from direct sunlight, extreme temperatures, and corrosive environments.

Arazoak konpontzea

Arazoa	Kausa posiblea	Irtenbidea
Gailua ez da pizten	Bateria hutsik edo gaizki instalatuta	Ordeztu bateriak, polaritate zuzena ziurtatuz.
Presio-irakurketa okerrak	Gauge not zeroed; Leaking connections; Incorrect refrigerant selected	Zero the gauge before use. Check all hose connections for leaks. Verify the correct refrigerant type is selected.
Pantailak "Err" erakusten du	Sensor error or measurement out of range	Power off and restart the device. If the error persists, contact customer support.

Bermea eta Laguntza

For detailed warranty information, technical support, or service inquiries regarding your Elitech Digital Manifold Gauge Set DMG-2SE, please contact Elitech customer service. Refer to the product packaging or the official Elitech webwebgunea, harremanetarako datu eta laguntza baliabide eguneratuenak lortzeko.

Elitech Webgunea: www.elitech.com
