Dyness 24V 100Ah LiFePO4 Lithium Battery Instruction Manual

1. Sarrera

Thank you for choosing the Dyness 24V 100Ah LiFePO4 Lithium Battery. This manual provides essential information for the safe and efficient operation, installation, and maintenance of your battery. Please read it thoroughly before use.

The Dyness 24V 100Ah LiFePO4 battery is designed with A+ Grade lithium iron phosphate cells, offering exceptional durability, safety, and long-lasting power. It features a smart 100A Battery Management System (BMS) for comprehensive protection and supports flexible expansion for various applications.

2. Segurtasun informazioa

WARNING: Risk of Fire, Explosion or Burns.

DO NOT Short circuit.
DO NOT Reverse connections from charger to battery.
DO NOT Disassemble.
DO NOT Throw into fire or incinerate.
DO NOT Heat above 70°C (158°F).
Use ONLY recommended battery charger.
DO NOT MIX-WIRE IT WITH LEAD ACID/GEL/AGM BATTERY.
Always wear insulating gloves during installation and wiring.

3. Produktuaren ezaugarriak

High Performance A+ Grade Cells: Built with premium lithium iron phosphate cells for exceptional durability, safety, and long-lasting power. Each cell is professionally tested.
Smart 100A BMS Protection: Integrated Battery Management System safeguards against overcharge, over-discharge, overcurrent, short circuit, overheating, and includes advanced low-temperature cut-off.
Extreme Cold Environments Battery Protection: Advanced low-temperature cut-off ensures safe and reliable performance even in cold climates.
Expandable Energy: Supports flexible expansion with series or parallel connections. Up to 4P2S connection can create a 51.2V 400Ah battery bank (20.48kWh).
Aplikazio zabalak: Ideal for RVs, campers, trolling motors, marine systems, golf carts, solar setups, and emergency backup power.
Bluetooth bidezko monitorizazioa: Upgraded Bluetooth monitoring allows real-time data access via a smartphone app.

4. Konfigurazioa eta instalazioa

4.1 Dimentsio fisikoak eta pisua

The Dyness 24V 100Ah battery is designed to be compact and manageable for various installations.

Elementuaren pisua: 44.3 kilo
Produktuaren neurriak: 8.11 x 20.9 x 8.54 hazbete

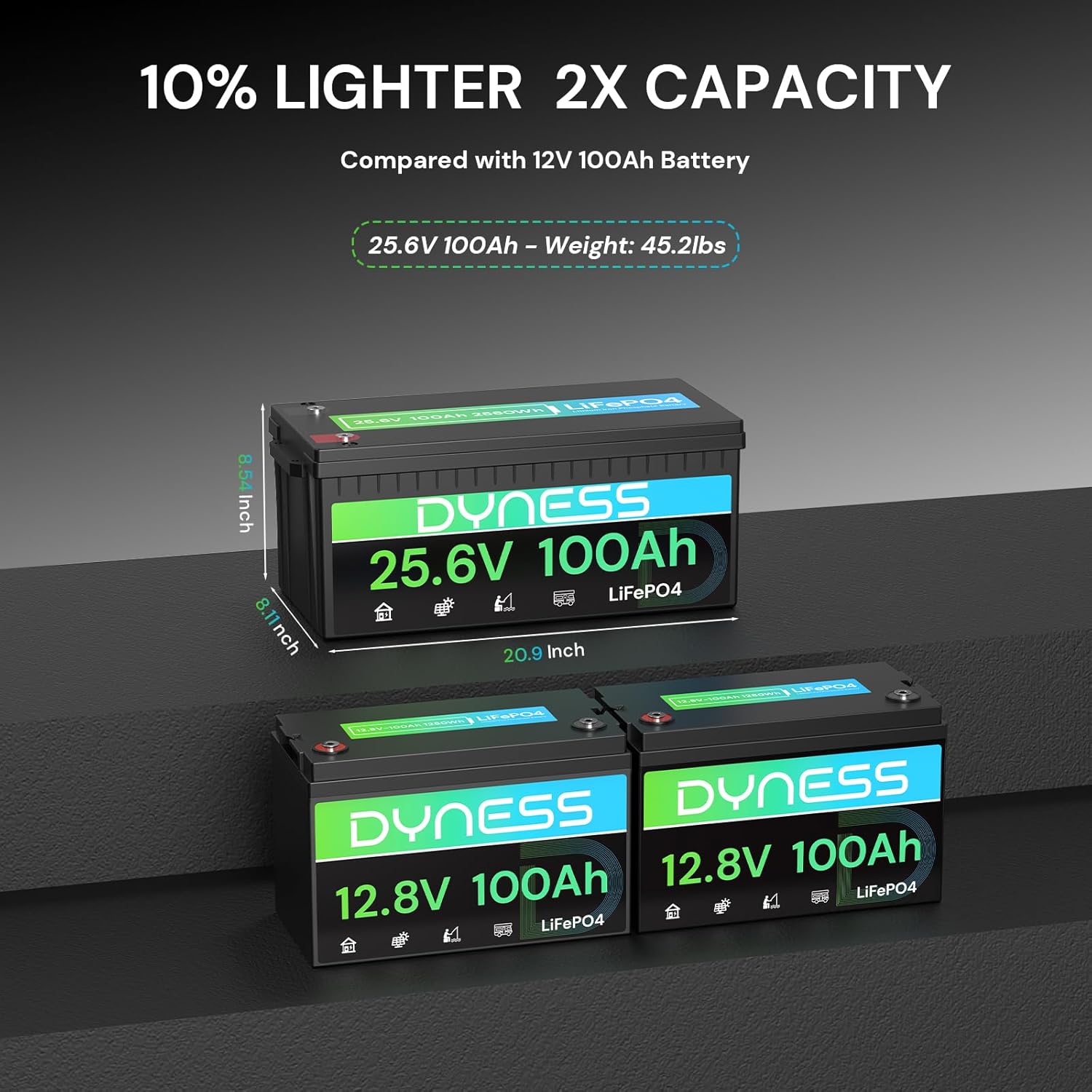

Dyness 24V 100Ah LiFePO4 battery dimensions compared to two 12V 100Ah batteries. — Image: Dyness 24V 100Ah LiFePO4 battery with dimensions labeled, showing it is 10% lighter and offers 2X capacity compared to two 12V 100Ah batteries.

4.2 Konexio-aukerak

The Dyness 24V 100Ah LiFePO4 battery supports both parallel and series connections to meet diverse power requirements.

Konexio paraleloa: Connect up to 4 identical batteries in parallel to increase overall capacity while maintaining the 24V nominal voltage. This can create a 24V (25.6V) 400Ah battery system.
Serie konexioa: Konektatu gehienez 2 bateria berdin seriean bolumena handitzekotage. Adibidezample, two 24V 100Ah batteries in series will create a 48V (51.2V) 100Ah battery system.
Combined Series & Parallel: For maximum energy storage, up to 4P2S connection is supported, allowing for a 51.2V 400Ah battery bank with 20.48kWh capacity.

Diagram showing various series and parallel connection configurations for Dyness 25.6V 100Ah batteries, illustrating energy and output power for 1P, 2S/2P, 2S2P, 2S3P, and 2S4P systems. — Image: Connection diagram illustrating how to combine multiple Dyness 25.6V 100Ah batteries in series and parallel to achieve higher voltage and capacity systems, up to 20.48kWh.

4.3 Hasierako karga

Upon arrival, the battery typically carries about 30%-50% capacity due to shipping regulations. It is recommended to fully charge the battery before its first use. Use a compatible LiFePO4 charger for optimal performance and battery longevity.

5. Funtzionamendu-argibideak

5.1 Bluetooth monitorizazioa

The Dyness 24V 100Ah battery features upgraded Bluetooth monitoring, allowing you to access real-time battery data directly from your smartphone. This eliminates the need for external meters or opening battery compartments.

Connect Instantly: Pair your smartphone with the battery via Bluetooth.
Monitor Key Data: Track remaining battery capacity, individual cell voltages, guztira boltage, current, power, and estimated remaining runtime.
Jakinarazpenak: Receive alerts and notifications regarding battery status and potential issues.

Video: This video demonstrates how to connect to the Dyness 24V 100Ah LiFePO4 battery via Bluetooth and monitor its status, including capacity, cell voltages, and runtime, directly from a smartphone app. It highlights the convenience of checking battery data without physical access.

5.2 Aplikazio tipikoak

This battery is versatile and suitable for a wide range of applications:

RV & Camper: Provides reliable power for all your on-the-road electrical needs.
Marine Systems & Trolling Motors: Offers long-lasting and stable power for boats and electric trolling motors.
Solar Systems: Excellent for home solar storage and off-grid power systems due to its high cycle life and expandability.
Emergency Backup Power: A dependable solution for backup power during outages.

Dyness 25.6V 100Ah LiFePO4 battery powering various appliances like a coffee maker, oven, electric fan, and laptop, with an RV in the background. — Image: The Dyness 25.6V 100Ah LiFePO4 battery is shown powering common appliances such as a coffee maker, oven, electric fan, and laptop, demonstrating its capacity for various uses in an outdoor setting with an RV.

Collage of images showing the Dyness 25.6V 100Ah LiFePO4 battery in various applications: RV camping, marine/boat, solar system, and home off-grid. — Image: A visual representation of the Dyness 25.6V 100Ah LiFePO4 battery's versatility, illustrating its use in RV camping, marine environments, solar power systems, and off-grid home setups.

6. Mantentzea

LiFePO4 batteries require minimal maintenance compared to lead-acid batteries, but proper care ensures maximum lifespan and performance.

Tenperaturaren kudeaketa: The built-in BMS includes low-temperature cut-off protection, preventing charging below 0°C (32°F) and discharging below -20°C (-4°F). Ensure the battery operates within its specified temperature range for optimal performance.
Ohiko ikuskapena: Periodically check battery terminals for corrosion or loose connections. Keep the battery clean and dry.
Biltegiratzea: For long-term storage, charge the battery to approximately 50% State of Charge (SOC) and store it in a cool, dry place. Avoid storing above 70°C (158°F).

Dyness 25.6V 100Ah LiFePO4 battery in a snowy outdoor setting, illustrating its low temperature cut-off protection features. — Image: The Dyness 25.6V 100Ah LiFePO4 battery is depicted in a winter scene, highlighting its low-temperature cut-off protection, which prevents discharging below -4°F (-20°C) and charging below 32°F (0°C).

7. Zehaztapenak

Ezaugarri	Xehetasuna
Marka	Dyness
Eredua	24V 100Ah 160L
liburukiatage	25.6 Volt
Bateriaren zelulen konposizioa	Litio burdina fosfatoa (LiFePO4)
Bateria Edukiera	100 Ah (2560 Wh)
Elementuaren pisua	44.3 kilo
Produktuaren neurriak	8.11 x 20.9 x 8.54 hazbete
BMS	Smart 100A BMS with Low-Temperature Cut-off
Bizitza Zikloa	4000+ Deep Cycles
Konexio-laguntza	Up to 4P2S (20.48kWh)
Jarraipena	Upgraded Bluetooth Monitoring

8. Bermea eta Laguntza

Dyness provides professional technical support and online customer service with a fast response within 24 hours. If you have any product-related issues or questions, do not hesitate to contact the Dyness support team directly.

Bermea: The product comes with a 10-year lifetime claim, indicating long-term reliability.
Bezeroarentzako arreta: Available for technical assistance and product inquiries.

Customer service representatives with headsets, indicating after-sales support for Dyness products. — Image: Customer service representatives are shown with headsets, symbolizing the professional technical support and online customer service provided by Dyness, with a promise of fast response within 24 hours.
