1. Produktua amaitu daview
The Wayne 3/4 HP Submersible Sump Pump (Model 57526-WYN2) is designed for indoor use to effectively remove water from basements and crawl spaces. Constructed with corrosion-resistant stainless steel and a cast-iron volute, this pump offers durability and reliable performance. Its top suction design helps prevent air lock and minimizes clogging from debris. This unit is capable of pumping up to 5,490 gallons per hour and features an enhanced switch design tested for over 1 million cycles.

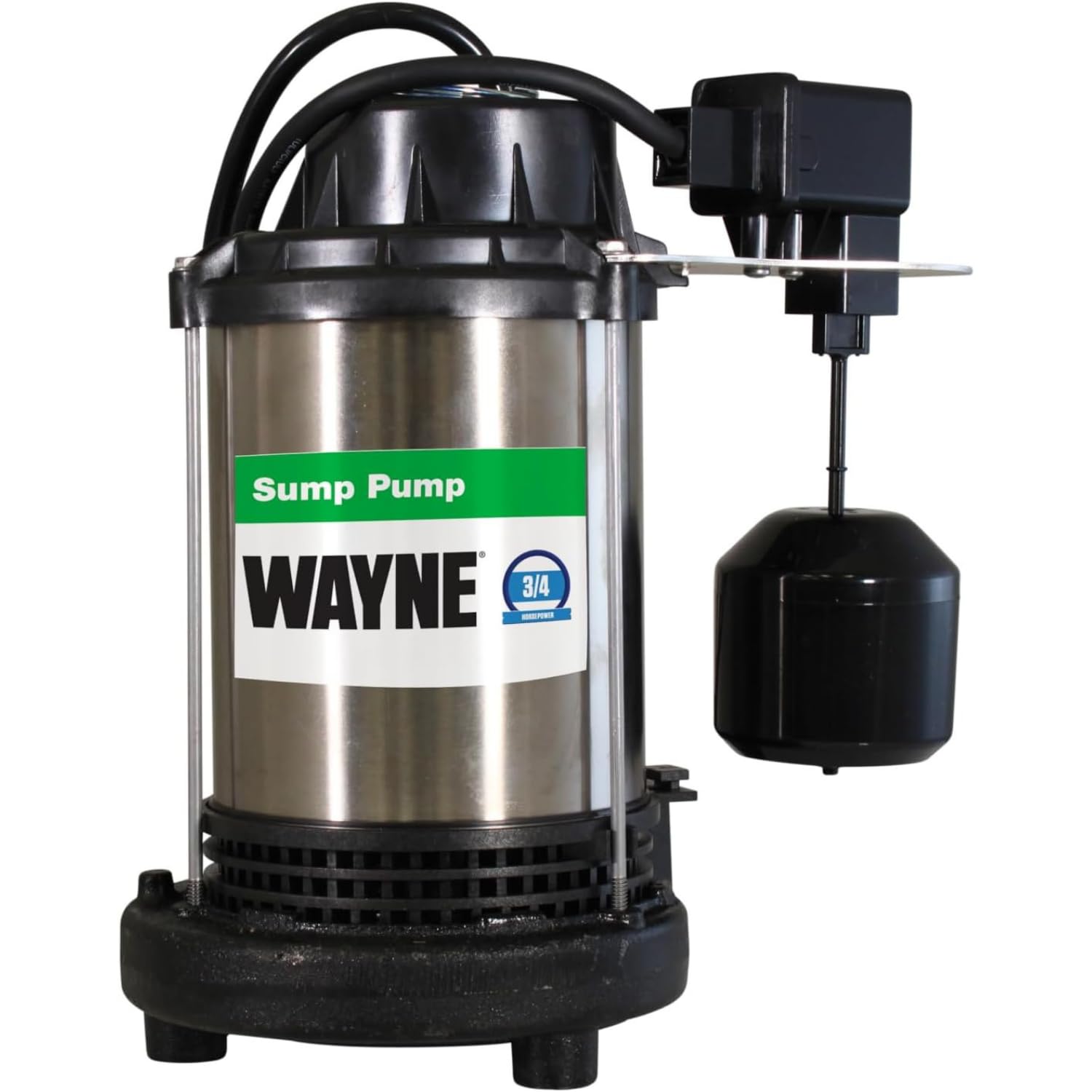

1.1. irudia: Aurrealdea view of the Wayne 3/4 HP Submersible Sump Pump.
2. Segurtasun informazioa
Read and understand all instructions before installing or operating this pump. Failure to follow these instructions may result in electric shock, fire, serious injury, or death.
2.1 Segurtasun orokorra
- This pump is designed for pumping clear water only. Do not use for flammable or corrosive liquids, or for sewage.
- Ensure the pump is placed on a solid, level surface in the sump basin.
- Keep hands and feet clear of the pump during operation.
- Ez erabili ponpa kablea edo entxufea hondatuta badago.
- Always disconnect power before servicing or performing maintenance on the pump.
2.2 Segurtasun elektrikoa
- Connect to a properly grounded, 120V AC, 60 Hz outlet only.
- Ez kendu lurrerako hatza elikadura-kabletik.
- Ez erabili luzapen kablerik.
- Ensure the electrical circuit is protected by a Ground Fault Circuit Interrupter (GFCI).
- All electrical wiring should comply with local codes and regulations.
3. Paketearen edukia
Egiaztatu elementu guztiak bertan daudela paketea desegiten duzunean:
- Wayne 3/4 HP Submersible Sump Pump (Model 57526-WYN2)
- Erabiltzailearen eskuliburua
4. Konfigurazioa eta instalazioa
Proper installation is crucial for optimal pump performance and longevity. This pump is designed for easy installation, typically within 15 minutes.
4.1 Instalazioaren aurreko egiaztapenak
- Ensure the sump basin is at least 11 inches in diameter.
- Verify the power outlet is a grounded 120V AC, 60 Hz GFCI-protected receptacle.
- Gather necessary tools: pipe wrench, PVC cement, hacksaw or pipe cutter, measuring tape.
4.2 Instalazio-urratsak
- Step 1: Prepare the Sump Basin. Clean the sump basin thoroughly, removing any debris or sediment. Place the pump on the bottom of the basin, ensuring it is stable and facing away from the inlet pipe.
- Step 2: Install Discharge Plumbing. Connect a 1-1/2 inch NPT discharge pipe to the pump. Install a check valve in the discharge line above the pump to prevent back-flow of water into the sump basinZiurtatu konexio guztiak iragazgaitzak direla.
- Step 3: Secure Power Cord and Optional Gate/Ball Valve. If desired, install a gate or ball valve in the discharge line for easier future maintenance. Secure the power cord to the discharge pipe using cable ties, ensuring it does not interfere with the float switch operation.
- Step 4: Test the Pump. Bete b.asin with water to the 'ON' level (approximately 9 inches). The pump should activate and begin discharging water. Allow the pump to run until the water reaches the 'OFF' level (approximately 4 inches). Verify proper operation and check for any leaks.
4.1 irudia: Adibideaample of a Wayne Sump Pump installed in a sump basin.
5. Funtzionamendu-argibideak
The Wayne 3/4 HP Sump Pump operates automatically via an integrated vertical float switch. When water in the sump basin rises to the 'ON' level, the float activates the pump. The pump will continue to run until the water level drops to the 'OFF' level, at which point the float deactivates the pump.
5.1 Float Switch Operation
The float switch is designed to prevent hang-ups and ensure reliable activation. It is factory-set for optimal 'ON' and 'OFF' levels. Ensure the float has a clear path of movement within the sump basin and does not come into contact with the basin walls or other pipes.
5.1 irudia: Gertuko planoa view of the pump's vertical float switch mechanism.
Image 5.2: The enhanced switch design is tested for over 1 million on/off cycles, ensuring dependable starts.
6. Mantentzea
Regular maintenance ensures the long-term reliability and efficiency of your sump pump. Always disconnect power before performing any maintenance.
6.1 Ohiko egiaztapenak (hilero)
- Inspect Sump Basin: Remove any debris, dirt, or sediment that may have accumulated in the basin.
- Egiaztatu flotagailu-etengailua: Manually lift the float to ensure it moves freely and activates the pump. The pump should turn on when the float is raised and turn off when lowered.
- Ikuskatu elikatze-kablea: Check the power cord for any signs of damage, fraying, or wear.
- Proba funtzionamendua: Pour water into the sump basin to simulate a high water event and ensure the pump activates and discharges water correctly.
6.2 Garbiketa
If the pump's intake screen becomes clogged, disconnect power, remove the pump from the basin, and clean the screen with a brush and water. Ensure all debris is removed before reinstalling.
7. Arazoak
This section addresses common issues you might encounter with your sump pump. For problems not listed here, contact customer support.
| Arazoa | Kausa posiblea | Irtenbidea |
|---|---|---|
| Ponpak ez du martxan | No power; tripped GFCI; faulty float switch; motor overload. | Check power connection and GFCI. Reset if tripped. Inspect float switch for obstruction. Allow motor to cool if overloaded. |
| Ponpak etengabe funtzionatzen du | Float switch obstructed; check valve faulty; water continuously entering basin. | Clear float switch path. Inspect check valve for proper function. Identify and address source of continuous water inflow. |
| Ponpa martxan dabil baina ez du ura ponpatzen | Clogged intake screen; air lock; discharge pipe obstruction; low water level. | Clean intake screen. Ensure pump is fully submerged. Check discharge pipe for blockages. Ensure water level is above 'ON' level. |
| Ponpa zaratatsua da edo gehiegi bibratzen du | Debris in impeller; pump not stable; worn bearings. | Disconnect power and inspect impeller for debris. Ensure pump is on a stable surface. If bearings are worn, pump may require professional service or replacement. |
8. Zehaztapenak
Technical specifications for the Wayne 3/4 HP Submersible Sump Pump, Model 57526-WYN2.
| Ezaugarri | Xehetasuna |
|---|---|
| Marka | Wayne |
| Modelo zenbakia | 57526-WYN2 |
| Zaldi-potentzia (HP) | 3 / 4 HP |
| Energia iturria | Kable elektrikoa |
| liburukiatage | 120 Volt |
| Gehienezko Emaria | 5,490 litro orduko (91.5 GPM) |
| Gehienezko Altxatze Altuera | 25 Oin |
| Materiala | Altzairu herdoilgaitza, burdinurtua |
| Produktuaren neurriak (L x W x H) | 10.5" x 9" x 11" |
| Elementuaren pisua | 20.7 libra (9.41 kg) |
| Isurketaren tamaina | 1-1/2" NPT |
| Minimum Sump Basin Diametroa | 11 hazbetekoa |
| ON Maila | 9 hazbetekoa |
| OFF Maila | 4 hazbetekoa |
Image 8.1: Product dimensions and flow rate chart at various discharge heights.
9. Bermearen informazioa
This Wayne Sump Pump (Model 57526-WYN2) is covered by a 5 urteko berme mugatua from the date of purchase. This warranty covers defects in materials and workmanship under normal use and service. It does not cover damage resulting from misuse, abuse, accident, neglect, improper installation, or unauthorized repairs. Keep your proof of purchase for warranty claims.
10. Laguntza eta Kontaktua
For technical assistance, troubleshooting beyond this manual, or warranty inquiries, please contact Wayne customer support. Refer to the official Wayne webgunea edo produktuaren ontzia kontaktu-informazio eguneratuena lortzeko.
When contacting support, please have your pump's model number (57526-WYN2) and date of purchase readily available.
