1. Sarrera
This manual provides essential instructions for the safe installation, operation, and maintenance of your VARMINPOOL 27000BTU Pool Heat Pump. This unit is designed to efficiently heat and cool pools up to 7,000 gallons, offering year-round climate control for your swimming environment. Please read this manual thoroughly before installation and use to ensure optimal performance and longevity of your heat pump.
2. Segurtasun informazioa
OHARRA: Segurtasun-jarraibide hauek ez betetzeak lesio larriak edo heriotza eragin ditzake.
- Segurtasun elektrikoa: Ensure the unit is connected to a properly grounded 120V/60Hz electrical outlet with a maximum 15.0A circuit. All electrical work must be performed by a qualified electrician and comply with local codes. Do not operate the unit with damaged power cords or plugs.
- Uraren hurbiltasuna: Install the heat pump at a safe distance from the pool to prevent accidental immersion. Do not operate the unit if it has been submerged in water.
- Aireztapena: Maintain adequate clearance around the unit for proper airflow. Do not block the air intake or exhaust vents.
- Haurrak eta maskotak: Mantendu haurrak eta maskotak unitatetik urrun funtzionamenduan zehar.
- Mantentzea: Deskonektatu korrontea mantentze-lan edo garbiketa egin aurretik.
- Instalazio profesionala: While designed for user-friendly setup, professional installation is recommended to ensure compliance with all local regulations and optimal performance.
3. Produktua amaitu daview
The VARMINPOOL 27000BTU Pool Heat Pump is an advanced system designed for efficient pool climate control. Key features include:
- Efficient Climate Control: Heats or cools pools up to 7,000 gallons, suitable for pools around 12’ x 18’ x 4’.
- WiFi konexio adimenduna: Remote control and monitoring via the Smart Life app.
- Energia-kontsumo baxua: Optimized energy use for reduced operating costs.
- Eraikuntza iraunkorra: Built with galvanized steel panels that stand up to harsh weather for reliable outdoor use year after year.
- Funtzionamendu isila: Operates at approximately 48dB, comparable to a quiet library.
- Eragiketa sorta zabala: Capable of operating in low ambient temperatures down to 25°F.
3.1. irudia: Aurrealdea view of the VARMINPOOL 27000BTU Pool Heat Pump with app interface.

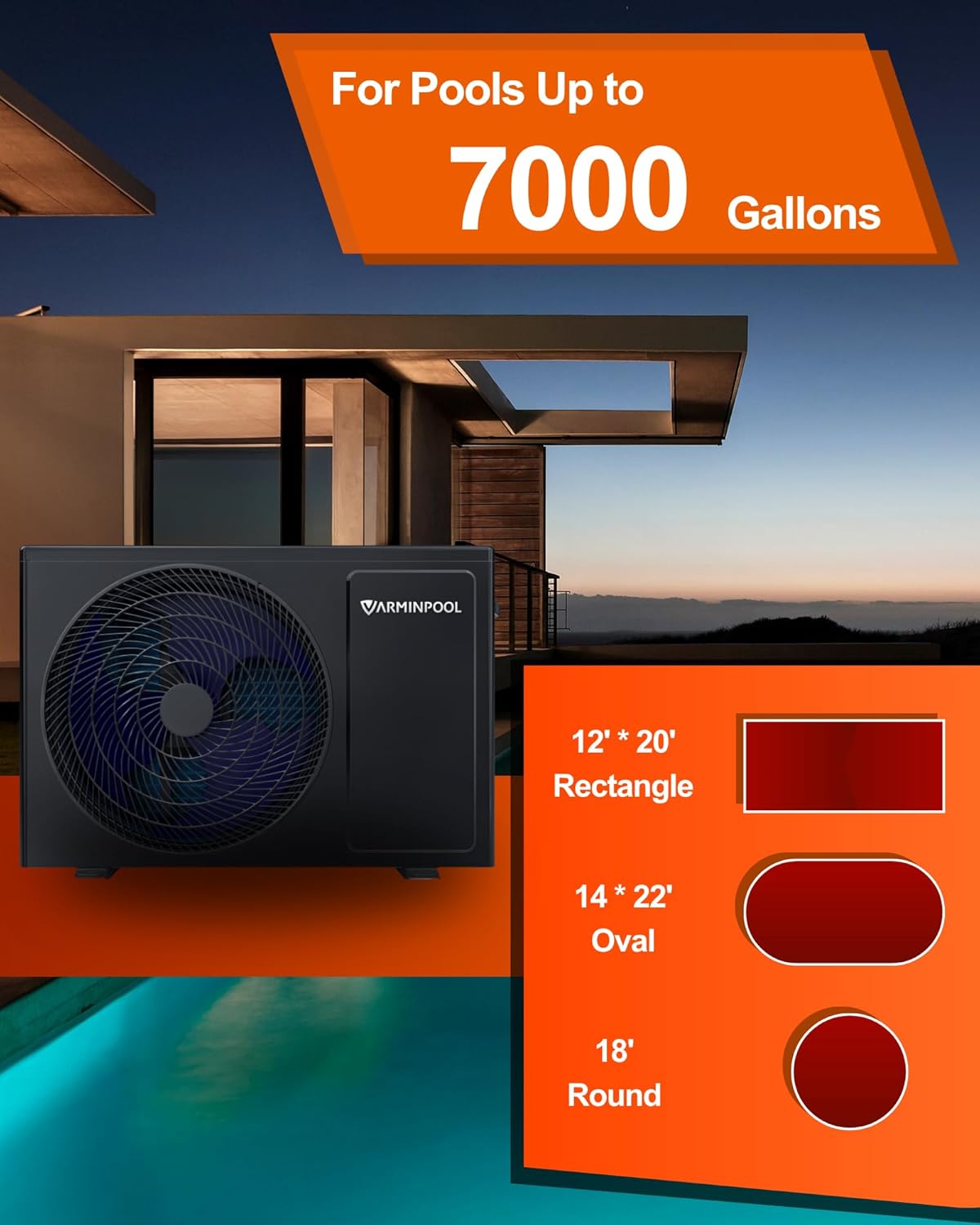

Figure 3.2: Recommended pool capacities for the heat pump.

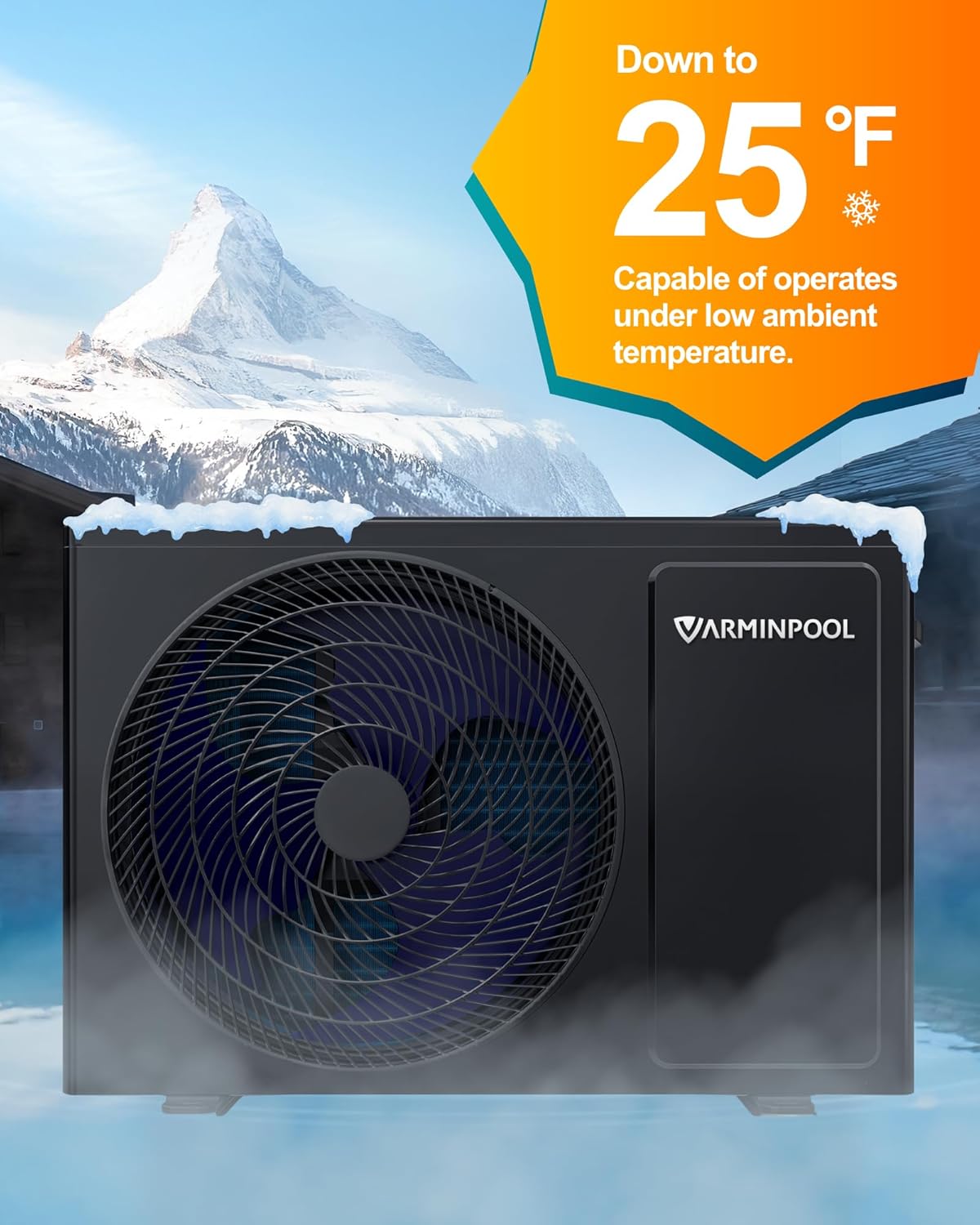

Figure 3.3: Heat pump capable of operating in low ambient temperatures.
4. Konfigurazioa eta instalazioa
4.1 Jartzea
Position the heat pump on a stable, level surface. Ensure adequate clearance (at least 20 inches) around the unit for unrestricted airflow to the fan and coils. Avoid placing the unit in enclosed spaces or directly against walls that would impede ventilation.
4.2 Konexio elektrikoa
The unit requires a 120V/60Hz power supply with a dedicated circuit capable of handling a maximum of 15.0A. Use a grounded outlet. Consult a qualified electrician to ensure proper wiring and compliance with local electrical codes.
4.3 Iturgintza-konexioa
Connect the heat pump to your pool's filtration system. The unit is designed for a flow rate of 25 GPM (1500 GPH). The heat pump features 1.25-inch Intex-style hose connections with metal clamps. Adapters may be required to connect to different pool hose sizes (e.g., 1.5-inch PVC pipes). Ensure all connections are secure and leak-free.
4.1. irudia: Adibample plumbing connection diagram. Refer to your specific pool setup for exact hose routing.
5. Funtzionamendu-argibideak
5.1 Hasierako piztea
Once installed and plumbed, ensure the pool pump is running to circulate water through the heat pump. Then, connect the heat pump to the power supply. The unit will perform a self-check.
5.2 Smart Life App Control
The VARMINPOOL heat pump can be controlled remotely via the Smart Life app. Download the app from your device's app store (Google Play or Apple App Store). Follow the in-app instructions to pair your heat pump with your smartphone via WiFi.
- Tenperatura ezarpena: Use the app to set your desired pool temperature. The heating range is 59-104°F, and the cooling range is 45-87°F.
- Modu aukeraketa: Switch between heating and cooling modes as needed.
- Programazioa: Utilize the app's scheduling feature for automatic heating and cooling cycles.
- Jarraipena: View current water temperature and operational status from anywhere.
Figure 5.1: Smart Life App interface for remote control.
Figure 5.2: Illustration of heating and cooling modes.
6. Mantentzea
Regular maintenance ensures efficient operation and extends the lifespan of your heat pump.
- Clean Coils and Fan: Periodically inspect and clean the evaporator coils and fan blades to remove debris, leaves, and dirt. Blocked coils reduce efficiency.
- Egiaztatu ur-emaria: Ensure consistent water flow through the unit. Clean pool filters regularly to prevent reduced flow.
- Ikuskatu konexioak: Annually check all electrical and plumbing connections for tightness and signs of wear or corrosion.
- Neguan egitea: In colder climates, follow proper winterization procedures to protect the unit from freezing. This typically involves draining water from the unit and covering it. Consult a professional if unsure.
7. Arazoak
Bezeroarentzako arreta-zerbitzuarekin harremanetan jarri aurretik, kontsultatu ohiko arazo eta irtenbide hauek.
| Arazoa | Kausa posiblea | Irtenbidea |
|---|---|---|
| Unitatea ez da pizten | Argirik ez, etengailua jauzi egin du, konexioa askatu da. | Check power supply, reset breaker, ensure connections are secure. |
| Berokuntza/hozte errendimendu eskasa | Low ambient temperature, dirty coils, insufficient water flow, incorrect settings. | Ensure ambient temperature is within operating range (above 25°F for heating), clean coils, check pool pump and filter, verify app settings. |
| Unit covered in ice | Malfunction, low refrigerant, factory settings issue. | This can indicate a malfunction. A factory reset may resolve the issue. If the problem persists, contact customer support. |
| Oily film on pool water | Possible residue from manufacturing or internal component. | Monitor for persistence. If it continues, contact customer support. |
8. Zehaztapenak
| Atributua | Xehetasuna |
|---|---|
| Marka | VARMINPOOL |
| Modelo zenbakia | KSPF-007L1MR1A1 |
| Tamaina | 27000BTU |
| liburukiatage | 120 Volt |
| Energia iturria | AC |
| Korronte maximoa | 15.0A |
| Elementuaren pisua | 80 kilo |
| Produktuaren neurriak (L x W x H) | 33 x 14 x 22 hazbete |
| Emaria | 25 GPM or 1500 GPH |
| Berogailua | 59-104 °F |
| Hozte barrutia | 45-87 °F |
| Funtzionamendu-giro-tenperatura | 25°F-ra arte |
| Zarata Maila | 48 dB |
9. Bermea eta Laguntza
9.1 Produktuaren bermea
The VARMINPOOL 27000BTU Pool Heat Pump comes with a 36-month product protection warranty erosketa-datatik aurrera. Berme honek fabrikazio-akatsak estaltzen ditu eta funtzionamendu fidagarria bermatzen du erabilera-baldintza normaletan. Gorde erosketaren egiaztagiria berme-erreklamazioetarako.
Figure 9.1: 36-Month Product Protection Warranty.
9.2 Bezeroarentzako laguntza
For technical assistance, troubleshooting, or warranty inquiries, please contact VARMINPOOL customer support. Our team is available to provide professional support and guidance.
- Laguntzaren erabilgarritasuna: 7 days a week, 24 hours a day (Email Service, holidays included).
- Harremanetarako informazioa: Refer to the VARMINPOOL official webwebgunean edo zure produktuaren ontzian kontaktu-datu eguneratuenak lortzeko.
Extended protection plans (3-Year and 4-Year) are also available for purchase separately to provide additional coverage beyond the standard warranty period.
