VENTS-US Frigate ERV 150 Ventilation System Instruction Manual

1. Sarrera

This manual provides essential information for the safe and efficient installation, operation, and maintenance of your VENTS-US Frigate ERV 150 Ventilation System. This unit is designed to provide balanced ventilation, bringing fresh, filtered outdoor air into your home while exhausting stale indoor air. It incorporates an enthalpy core for heat and humidity recovery, contributing to year-round energy savings and improved indoor comfort.

2. Segurtasun informazioa

Please read all instructions carefully before installation and operation. Failure to follow these instructions may result in property damage, personal injury, or death. Retain this manual for future reference.

• Segurtasun elektrikoa: Ensure the unit is properly grounded. Disconnect power before performing any service or maintenance. All electrical work must be performed by a qualified electrician in accordance with local and national electrical codes.
• Instalazioa: Install the unit in a location that allows for proper airflow and access for maintenance. Do not block air inlets or outlets.
• Mantentzea: Only use genuine VENTS replacement parts. Regular maintenance is crucial for optimal performance and safety.
• Haurrak eta maskotak: Mantendu haurrak eta maskotak unitatetik urrun funtzionamenduan eta mantentze-lanetan zehar.
• Abisua: The inspection door is recommended to be opened for at least 20 seconds after the product is switched off from power mains.

3. Produktua amaitu daview

The VENTS-US Frigate ERV 150 is a compact, high-performance energy recovery ventilation system. It features a durable steel casing with a multilayer aluminum-zinc coating for corrosion resistance. The unit is equipped with dynamically balanced centrifugal fans for quiet and efficient airflow, and an enthalpy core for both heat and humidity recovery, eliminating the need for a condensate drain.

3.1. Kanpokoa View

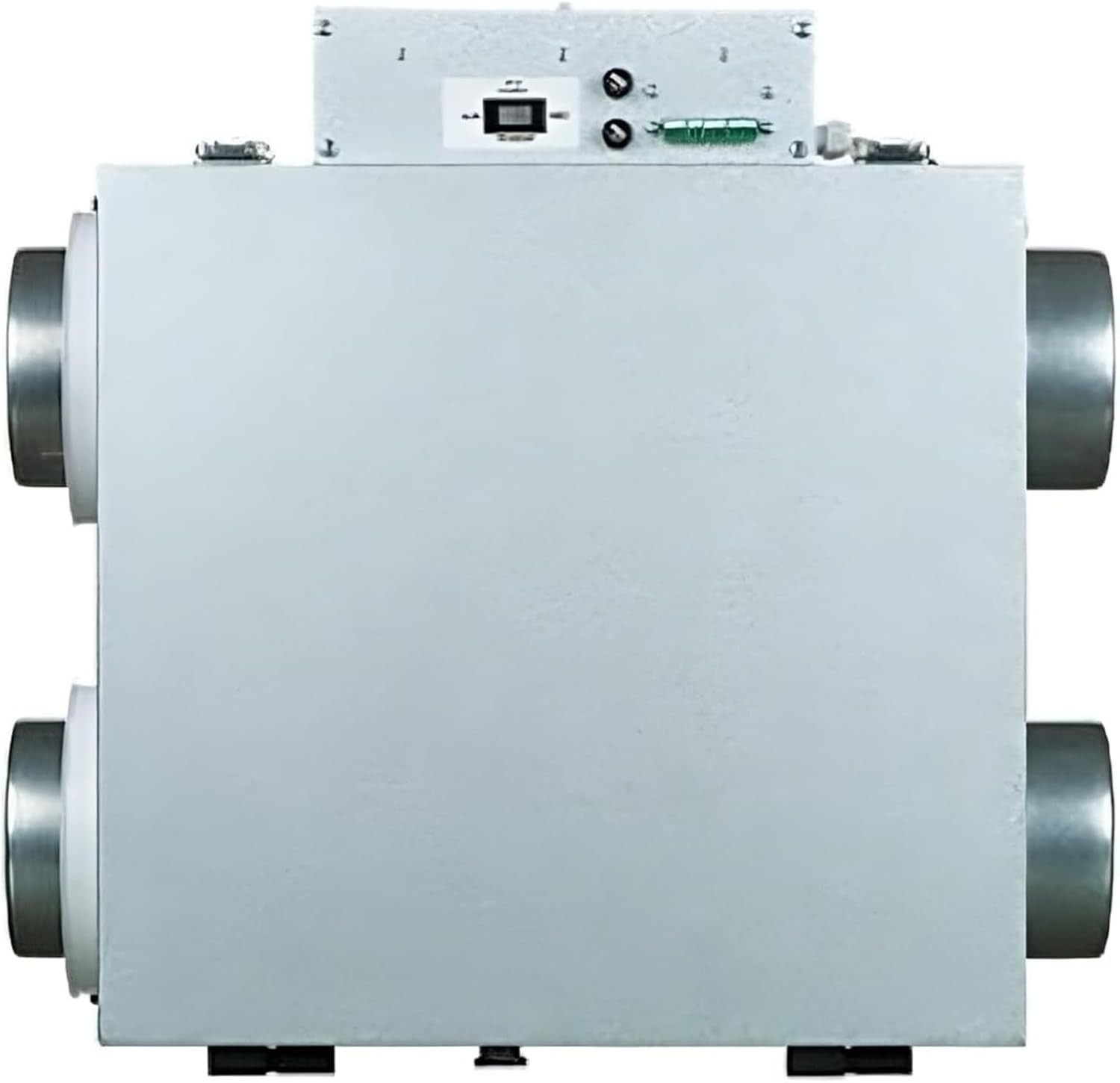

Irudiaren deskribapena: A front and top view of the VENTS-US Frigate ERV 150 ventilation system. The unit is silver-grey with two circular duct connections visible on the front panel. A control box is mounted on the top right side.

Irudiaren deskribapena: Alde bat view of the VENTS-US Frigate ERV 150 ventilation system. The power cord is visible, extending from the control box on the side. Two circular duct connections are visible on the left side of the unit.

3.2. Barne osagaiak

The unit's internal design facilitates efficient air exchange and energy recovery. It includes a plate heat exchanger (enthalpy core) and two centrifugal fans for supply and exhaust airflows.

Irudiaren deskribapena: The VENTS-US Frigate ERV 150 ventilation system with its top service panel open, revealing the internal components. A white filter is visible, positioned diagonally within the unit, separating the airflows. Two circular fan housings are visible on either side of the filter.

Irudiaren deskribapena: A diagram illustrating the air paths within the VENTS-US Frigate ERV 150 ventilation system. Arrows indicate fresh air from outside, stale air from the room, utilized exhaust air, and air supplied to the room, demonstrating the heat and humidity exchange process through the central core.

3.3. Produktuaren bideoaview

Bideoaren deskribapena: This video provides a full 360-degree view of the VENTS-US Frigate ERV 150 Whole House Ventilation System, showcasing its exterior design and compact form factor.

4. Konfigurazioa

The VENTS-US Frigate ERV 150 is designed for permanent ceiling mount installation. Proper planning for ductwork and electrical connections is essential.

4.1. Neurriak

Irudiaren deskribapena: A technical diagram illustrating the dimensions of the VENTS-US Frigate ERV 150 ventilation system from top, front, and side perspectives. Key measurements are provided in inches, showing the unit's compact size for installation.

4.2. Dakarten osagaiak

The package includes the whole house ventilation system, power cord, filters, and mounting brackets. Additional ductwork and installation hardware may be required and are not included.

5. Funtzionamendu-argibideak

The unit features an integrated control panel for managing fan speeds and operational modes.

5.1. Abiadura kontrolatzea

The control panel allows for independent fan speed adjustment from 0% to 100%. A simple mode switch provides options for Low, Medium, and Standby operation, catering to various ventilation needs.

5.2. Frost Prevention Cycle

The Frigate ERV 150 includes an electronic defrost system to protect the energy core during cold weather. This system automatically cycles to defrost and resume normal operation when outdoor temperatures drop below 23°F (-5°C).

Bideoaren deskribapena: This video demonstrates the VENTS-US Frigate ERV 150's frost prevention cycle. It visually explains how the supply motor is temporarily turned off, allowing warm indoor air to defrost the core, ensuring continuous operation in cold conditions.

6. Mantentzea

Regular maintenance ensures the longevity and optimal performance of your ventilation system.

• Iragazkiaren garbiketa/ordezkapena: The unit comes with washable MERV 6 filters for both supply and exhaust airflows. These filters should be regularly inspected and cleaned or replaced as needed to maintain air quality and system efficiency. Optional MERV 13 or aluminum pre-filters are available for enhanced protection.
• Service Panel: The unit includes a safety interlock switch that powers down the unit when the service panel is opened, ensuring safety during maintenance.
• Garbiketa orokorra: Garbitu unitatearen kanpoaldea aldian-aldian zapi leun eta lehor batekinamp oihal. Ez erabili garbitzaile edo disolbatzaile urratzailerik.

7. Arazoak

If you experience issues with your VENTS-US Frigate ERV 150, please refer to the following common troubleshooting steps:

• Potentziarik gabe: Check the power connection and ensure the unit is plugged into a functional outlet. Verify that the circuit breaker has not tripped.
• Aire fluxu murriztua: Inspect filters for excessive dirt or blockages. Clean or replace filters as necessary. Check for obstructions in the ductwork.
• Ezohiko zarata: Ensure the unit is securely mounted. Check for any loose components or debris inside the unit. If the noise persists, contact customer support.
• System Not Operating: Confirm the service panel is fully closed, as the safety interlock switch will prevent operation if open.

For persistent issues or complex repairs, contact VENTS-US customer support.

8. Zehaztapenak

9. Bermea eta laguntza

The VENTS-US Frigate ERV 150 is backed by a bi urteko bermea, ensuring lasting performance and peace of mind.

For technical assistance, warranty claims, or to learn more about VENTS-US products, please contact:

• Webgunea: vents-us.com
• Telefonoa: 888-640-0925
