1. Sarrera
This user manual provides essential information for the safe and efficient operation, installation, and maintenance of your KATOOL Portable Mid-Rise Scissor Lift, Model AK-X66. Designed for automotive shops, home garages, and industrial use, this lift offers a robust 6000 LBS lifting capacity and a maximum lifting height of 48 inches. Please read this manual thoroughly before operating the equipment to ensure proper use and to prevent injury or damage.
2. Segurtasun informazioa
OHARRA: Segurtasun-jarraibide hauek ez betetzeak lesio larriak edo heriotza eragin ditzake.
- Always read and understand the entire manual before operating the lift.
- Ensure the lift is placed on a level, solid, and non-slip surface capable of supporting the lift's weight plus the maximum rated load.
- Do not exceed the maximum lifting capacity of 6000 LBS (2721 kg).
- Ensure the vehicle is properly centered and stable on the lift pads before raising. Use appropriate vehicle lifting points.
- Never work under a lift that is not properly secured by its mechanical safety locks.
- Mantendu eskuak, oinak eta arropa mugitzen diren piezen aurka.
- Do not operate the lift if any part is damaged or malfunctioning. Contact KATOOL support for replacement parts.
- Langile trebatu eta baimenduek bakarrik erabili beharko lukete ekipamendu hau.
- Wear appropriate personal protective equipment (PPE), including safety glasses and steel-toed boots.
- Deskonektatu elektrizitatea edozein mantentze edo konponketa egin aurretik.
- Mantendu lan-eremua garbi eta ondo argiztatuta.
3. Paketearen edukia
Upon unpacking, verify that all components are present and undamaged. If any items are missing or damaged, contact your supplier immediately.
- KATOOL Portable Mid-Rise Scissor Lift (AK-X66)
- Potentzia Hidraulikoaren Unitatea
- Lift Pads and Extensions
- Hydraulic Hoses and Fittings
- Funtzionamendu eskuliburua (dokumentu hau)
- Muntatzeko Hardwarea
4. Zehaztapenak
| Zehaztapena | Balioa |
|---|---|
| Eredua | AK-X66 |
| Marka | KATOOL |
| Karga Ahalmena | 6000 LBS (2721 kg) |
| Max. Altxatze Altuera | 48 hazbete (121.9 cm) |
| Kolorea | Gorria |
| Automozio Fit Mota | Egokitze unibertsala |
| UPC | 618716725171 |
5. Konfigurazioa eta instalazioa
Proper setup is crucial for the safe and effective operation of your scissor lift. Follow these steps carefully.
5.1 Gunearen prestaketa
- Choose a level, concrete floor with sufficient strength to support the lift and maximum load.
- Ensure adequate overhead clearance for the maximum lifting height of 48 inches plus the height of the vehicle.
- Provide sufficient clear space around the lift for safe operation and movement.
5.2 Muntaketa
- Deskonprimitu osagai guztiak eta egiaztatu paketearen edukiaren zerrendarekin.
- Position the main lift frame in the desired location.
- Connect the hydraulic hoses from the lift to the hydraulic power unit. Ensure all connections are tight and free of leaks.
- Fill the hydraulic power unit reservoir with appropriate hydraulic fluid (not included). Consult the power unit manual for fluid type and capacity.
- Connect the power unit to a suitable electrical supply as per its specifications.
- Install the adjustable lift pads onto the lift arms. These pads can be adjusted to fit various vehicle frame points.
6. Funtzionamendu-argibideak
Follow these steps for safe and effective operation of your KATOOL Scissor Lift.
6.1 Eragiketa aurreko kontrol-zerrenda
- Ensure the lift is on a level surface.
- Egiaztatu fluido hidraulikoaren maila.
- Inspect hydraulic hoses and connections for leaks or damage.
- Verify all safety locks are functioning correctly.
- Clear the area around the lift of any obstructions.
6.2 Ibilgailu bat altxatzea
- Carefully drive the vehicle onto the lift, ensuring it is centered and positioned correctly over the lift pads.
- Adjust the lift pads to contact the vehicle's designated lifting points. Ensure stable contact.
- Activate the "UP" button on the hydraulic power unit. The lift will begin to raise.
- Raise the vehicle slowly, observing its stability. If any instability is noted, lower the vehicle immediately and re-position.

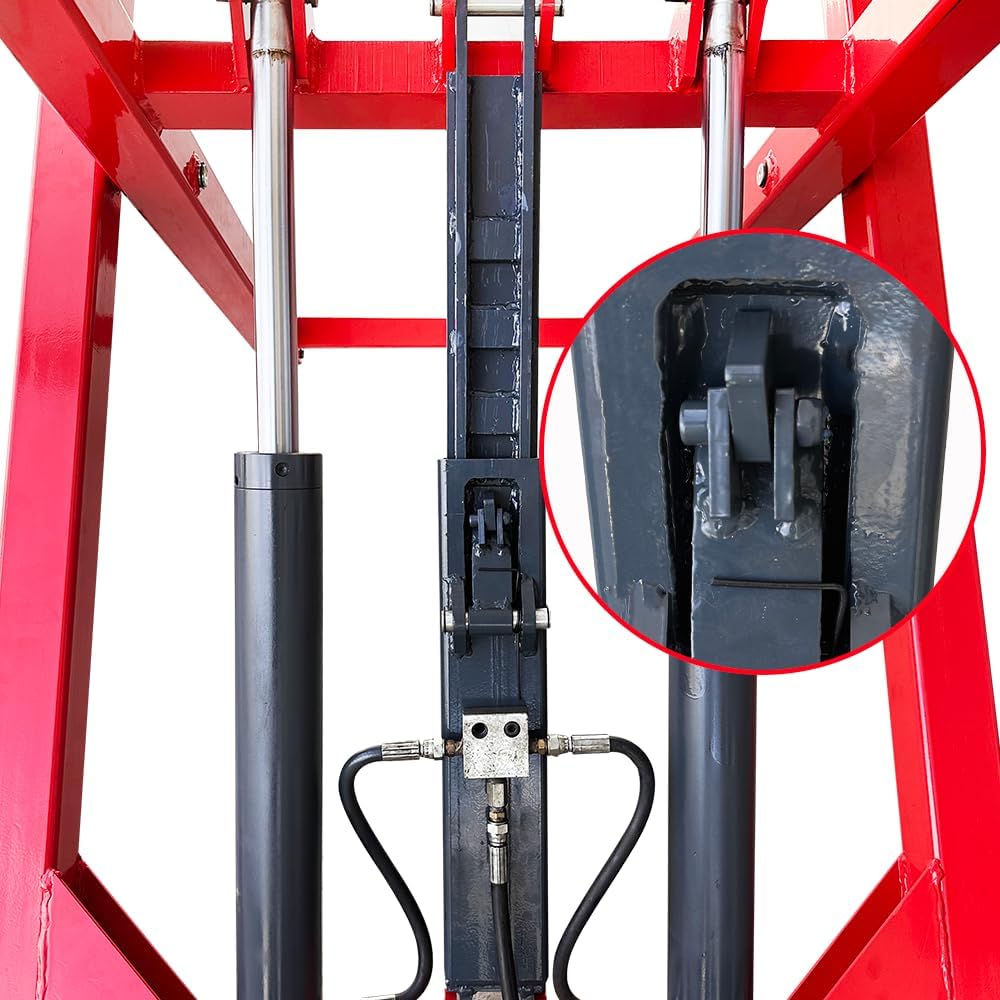

- Once the desired height is reached, engage the mechanical safety locks. The lift is equipped with multiple locking positions.
- Slightly lower the lift onto the safety locks by pressing the "DOWN" button briefly until the weight rests on the locks. This ensures the vehicle is securely supported.
- Before working under the vehicle, gently shake the vehicle to confirm it is stable on the lift.
6.3 Ibilgailu bat jaistea
- Ensure the area beneath and around the vehicle is clear of personnel and obstructions.
- Slightly raise the lift off the safety locks by pressing the "UP" button for a short duration.
- Disengage the mechanical safety locks. Refer to the specific mechanism on your lift for proper disengagement.
- Press the "DOWN" button on the hydraulic power unit. The lift will slowly descend.
- Once the lift is fully lowered, carefully drive the vehicle off the lift.
7. Mantentzea
Regular maintenance ensures the longevity and safe operation of your KATOOL Scissor Lift.
7.1 Eguneko egiaztapenak
- Inspect for any visible damage, leaks, or loose connections.
- Egiaztatu fluido hidraulikoaren maila.
- Ensure safety locks engage and disengage smoothly.
7.2 Monthly Checks
- Lubricate all pivot points and moving parts with appropriate grease.
- Check all bolts and fasteners for tightness.
- Inspect hydraulic hoses for wear, cracks, or bulges.
7.3 Urteko mantentze-lanak
- Replace hydraulic fluid.
- Inspect all structural components for signs of fatigue or corrosion.
- Have a qualified technician perform a thorough inspection and service.
8. Arazoak
This section provides solutions to common issues you might encounter with your scissor lift.
| Arazoa | Kausa posiblea | Irtenbidea |
|---|---|---|
| Lift does not raise | No power to hydraulic unit; Low hydraulic fluid; Air in hydraulic system; Malfunctioning pump. | Check power connection and circuit breaker; Fill hydraulic fluid to proper level; Bleed air from system; Contact KATOOL support. |
| Lift lowers slowly or erratically | Air in hydraulic system; Leaking hydraulic hose/fitting; Worn seals in cylinders. | Bleed air from system; Inspect and tighten/replace leaking components; Contact KATOOL support for seal replacement. |
| Safety locks not engaging | Obstruction; Damaged mechanism; Misalignment. | Clear obstruction; Inspect mechanism for damage; Ensure lift is level; Contact KATOOL support. |
9. Bermea eta Laguntza
KATOOL stands behind the quality of its products. For warranty information, technical support, or to order replacement parts, please contact KATOOL customer service. Keep your purchase receipt and product model number (AK-X66) handy when contacting support.
For the most up-to-date warranty details and contact information, please visit the official KATOOL website or refer to the documentation provided at the time of purchase.
