TiFFCOFiO Outdoor Timer with Remote Control and Dusk to Dawn Sensor

1. Sarrera

This manual provides essential information for the safe and effective use of your TiFFCOFiO Outdoor Timer. This device is designed to automate the control of outdoor electrical appliances, such as holiday lights, garden lighting, and other outdoor decorations. It features a remote control for convenient operation and a dusk to dawn sensor for automatic activation based on ambient light conditions. Please read this manual thoroughly before installation and operation, and retain it for future reference.

Figure 1: TiFFCOFiO Outdoor Timer and Remote Control. The image displays the black outdoor timer unit with its short power cord and two grounded outlets, alongside its white remote control.

2. Segurtasun informazioa

Funtzionamendu segurua bermatzeko, jarraitu beti jarraibide hauek:

• This product is ETL Listed, indicating compliance with North American safety standards.
• The timer is designed for outdoor use and features a waterproof construction. However, to maintain its waterproof performance, it must be mounted vertically at least 2 feet (0.6 meters) above the ground.
• Ez murgildu tenporizadorea uretan.
• Ziurtatu wat osoatage of connected devices does not exceed 1875 watts (15A).
• Always plug the timer into a grounded 120V AC outlet.
• Keep the remote control dry and away from extreme temperatures.

3. Produktuaren osagaiak

The TiFFCOFiO Outdoor Timer package includes:

• 1 x TiFFCOFiO Outdoor Timer Unit (Model TF-261A)
• 1 x Urruneko kontrola
• 1 x CR2032 bateria (aurrez instalatuta urrutiko agintean)
• 1 x Erabiltzailearen eskuliburua

Figure 2: Close-up of the TiFFCOFiO Outdoor Timer unit, highlighting its two grounded electrical outlets and the integrated wall mount hole for secure installation.

4. Konfigurazioa

Jarraitu urrats hauek hasierako konfiguraziorako:

1. Aukeratu kokapena: Select an outdoor location for the timer that is protected from direct heavy rain and allows for vertical mounting at least 2 feet above the ground.
2. Mount the Timer: Use the integrated wall mount hole on the back of the timer to securely attach it to a wall or sturdy surface. Ensure the outlets face downwards to prevent water ingress.
3. Konektatu energia elektrikora: Plug the timer's power cord into a grounded 120V AC outdoor electrical outlet.
4. Konektatu gailuak: Plug your outdoor lights or other electrical devices into the two grounded outlets on the timer.
5. Urruneko kontrolaren bateria: The remote control comes with a pre-installed CR2032 battery. Remove any plastic tab if present to activate the battery.

Figure 3: Illustration showing the two methods of controlling the TiFFCOFiO Outdoor Timer: directly via the manual power button on the unit, or wirelessly using the remote control.

5. Funtzionamendu-argibideak

The TiFFCOFiO Outdoor Timer offers multiple operating modes, controllable via the remote or the manual power button on the unit.

5.1 Urruneko kontrolaren funtzioak

The remote control uses a 2.4GHz RF signal, providing a strong anti-interference ability and a range of up to 100 feet, even through walls or doors.

• ON: Turns the connected devices ON continuously.
• DESaktibatuta: Turns the connected devices OFF continuously.
• DUSK (Light Sensor Mode): Activates the light sensor. Devices will turn ON at dusk and turn OFF at dawn.
• 2H / 4H / 5H / 6H / 8H (Countdown Timer Modes): When the DUSK mode is active, pressing one of these buttons will set the devices to turn ON at dusk and automatically turn OFF after the selected duration (2, 4, 5, 6, or 8 hours).

5.2 Eskuzko Kontrola

The power button on the timer unit allows for manual ON/OFF control, overriding any programmed settings. Press the button to cycle between ON and OFF states.

Figure 4: Visual representation of the dusk to dawn sensor functionality, showing how the timer automatically activates lights as evening approaches and deactivates them at sunrise.

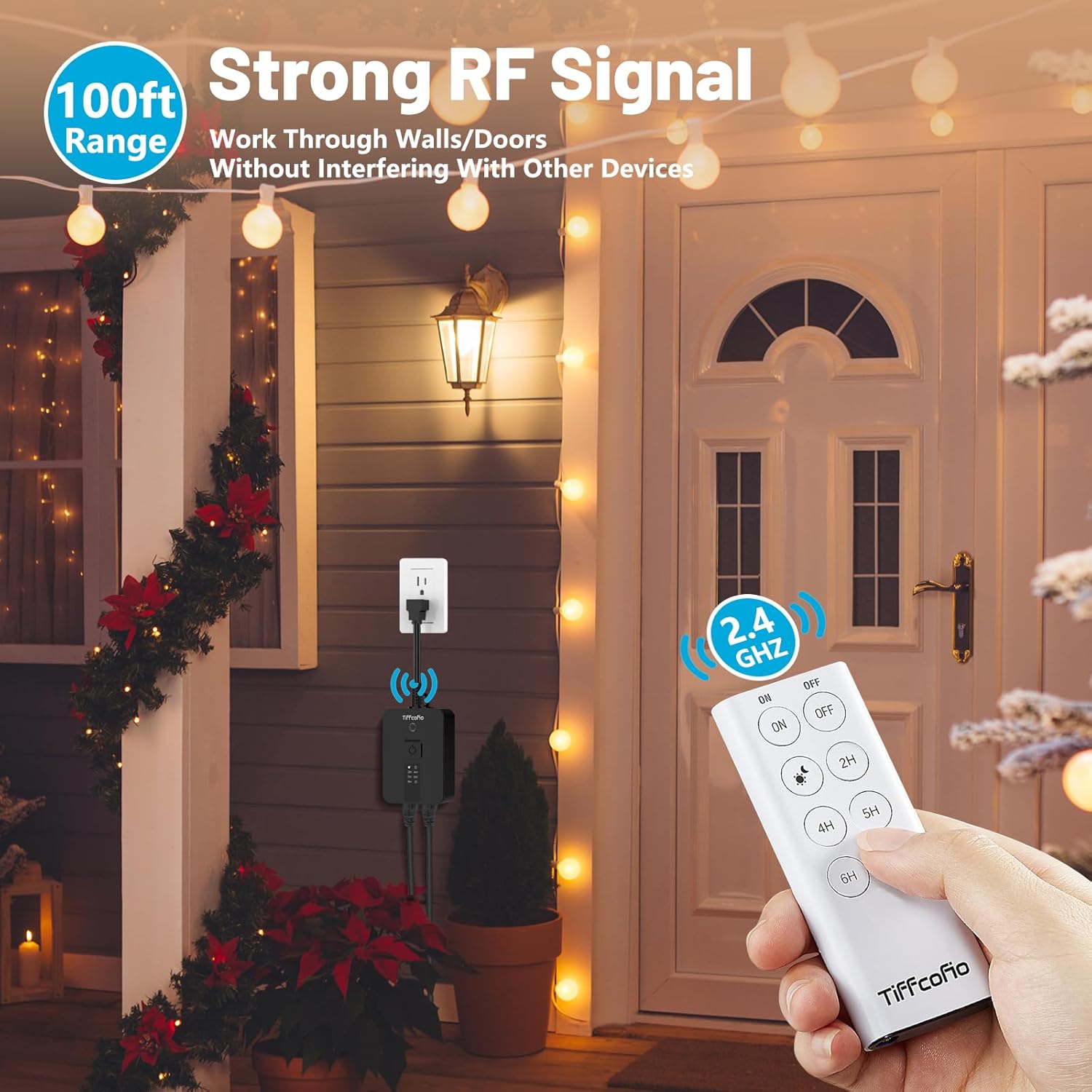

Figure 5: Demonstrates the 100-foot range of the remote control, allowing users to operate the outdoor timer from inside their home without interference.

6. Mantentzea

To ensure the longevity and proper functioning of your outdoor timer:

• Regularly inspect the timer and its cords for any signs of damage or wear.
• Keep the light sensor clean and free from obstructions to ensure accurate dusk to dawn detection.
• When not in use for extended periods, store the timer in a dry, protected area.
• Garbitzeko, garbitu iragarkiarekinamp oihal. Ez erabili produktu kimiko gogorrak edo garbitzaile urratzaileak.

Figure 6: Illustrates the weatherproof construction of the TiFFCOFiO Outdoor Timer, designed to withstand various outdoor conditions like rain.

7. Arazoak

If you encounter issues with your TiFFCOFiO Outdoor Timer, refer to the following common problems and solutions:

• Devices not turning ON/OFF:
  • Ensure the timer is securely plugged into a working outlet.
  • Check if the connected devices are properly plugged into the timer's outlets.
  • Verify the remote control battery is functional.
  • Confirm the selected timer mode is appropriate for your desired operation.
• Timer not responding to remote control:
  • Ensure you are within the 100-foot operating range.
  • Ordeztu urrutiko agintearen bateria beharrezkoa bada.
  • Minimize obstructions between the remote and the timer unit.
• Timer does not retain settings after power interruption:
  • This timer is designed to reset to an OFF state after a power failure or if unplugged. Re-select your desired operating mode after power is restored.
• Light sensor not working correctly:
  • Ensure the light sensor on the timer unit is not obstructed by dirt, debris, or other objects.
  • Avoid placing the timer near artificial light sources that could interfere with its dusk/dawn detection.

8. Zehaztapenak

9. Bermea eta Laguntza

TiFFCOFiO provides a 2-year free warranty and return guarantee for this product. If you are unsatisfied for any reason, we will exchange or refund unconditionally. For any questions or assistance, our professional and reliable after-sales service team is available to help you within 6 hours. Please refer to the contact information provided with your purchase or visit the official TiFFCOFiO store on Amazon for support.

Amazon dendaren esteka: TiFFCOFiO Amazon Store
