FLIPSKY FSESC 110100 Bolumen Handiatag110V-ko abiadura-kontrolagailu elektronikoaren erabiltzailearen eskuliburua

1. Sarrera

This manual provides comprehensive instructions for the safe and efficient operation of your FLIPSKY FSESC 110100 High Voltage Electronic Speed Controller (ESC). Please read this manual thoroughly before use to ensure proper setup and to prevent damage to the device or connected components.

2. Produktua amaitu daview

The FLIPSKY FSESC 110100 is a high-performance electronic speed controller designed for demanding applications such as fighting robots, electric surfboards, and AGV robots. It features an aluminum PCB for enhanced heat dissipation and supports high voltage sarrerak.

2.1. irudia: Aurrealdea view of the FLIPSKY FSESC 110100 High Voltage ESC, showing the main power input and motor phase wires.

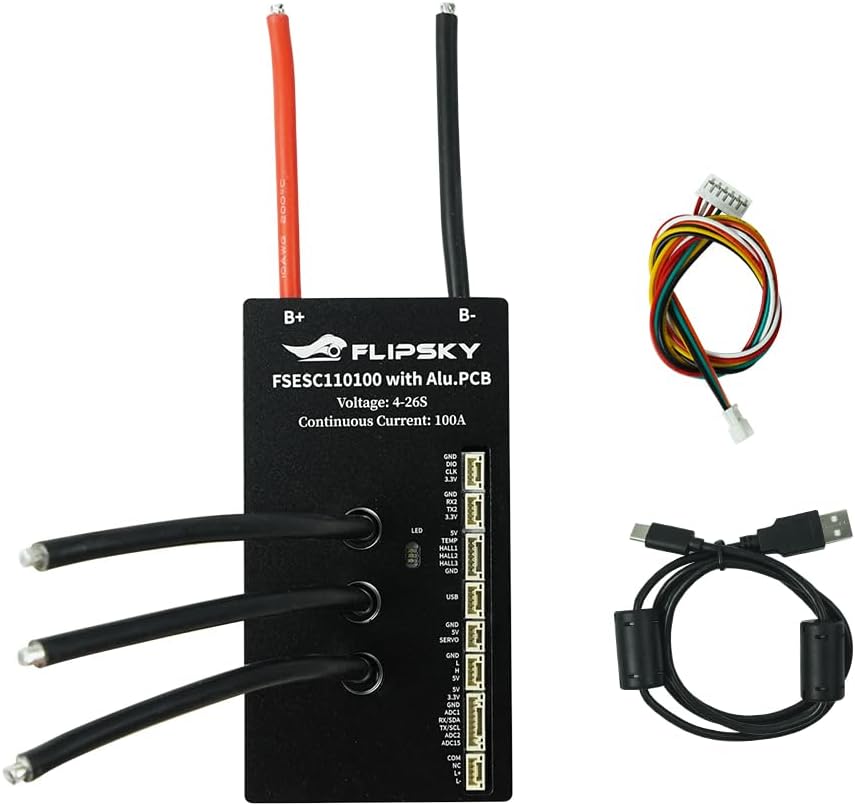

Figure 2.2: The FSESC 110100 ESC along with its various connection cables and accessories, including a USB cable and sensor wires.

3. Zehaztapenak

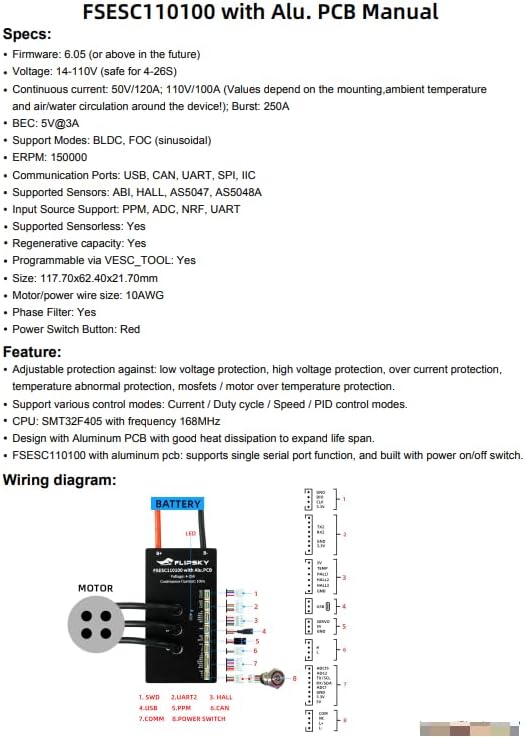

Figure 3.1: Manufacturer's detailed specifications for the FSESC 110100.

• Firmwarea: 6.05 (edo gorago)
• liburukiatage: 14-110V (safe for 4-26S battery configurations)
• Etengabeko korrontea: 50V/120A; 110V/100A (Note: Values depend on mounting, ambient temperature, and air/water circulation)
• Leherketaren korrontea: 250A
• BEC: 5V@3A
• Onartutako moduak: BLDC, FOC (sinusoidal)
• ERPM: 150000
• Komunikazio Portuak: USB, CAN, UART, SPI, IIC
• Onartutako sentsoreak: ABI, HALL, AS5047, AS5048A
• Input Source Support: PPM, ADC, NRF, UART
• Sensorless Operation: Bai
• Birsortzeko gaitasuna: Bai
• Programagarria: Via VESC_TOOL
• Neurriak: 117.70 x 62.40 x 21.70 mm
• Motor/Power Wire Size: 10AWG
• Phase Filter: Bai
• Pizteko botoia: Gorria
• CPU: SMT32F405 with 168MHz frequency
• Materiala: Aluminum Alloy (for PCB)
• Pisua: 0.3 kilogramo

Ezaugarri nagusiak:

• Adjustable protection against: low voltage, bolumen handikoatage, over current, temperature abnormalities, MOSFETs/motor over-temperature.
• Supports various control modes: Current, Duty cycle, Speed, PID control.
• Designed with Aluminum PCB for good heat dissipation and extended lifespan.
• Integrates single serial port function and Bluetooth module for convenient parameter connection and real-time data reading.
• Built-in power on/off switch.

4. Component Identification and Wiring

Understanding the various ports and connections is crucial for correct setup. Refer to the diagrams below for detailed identification.

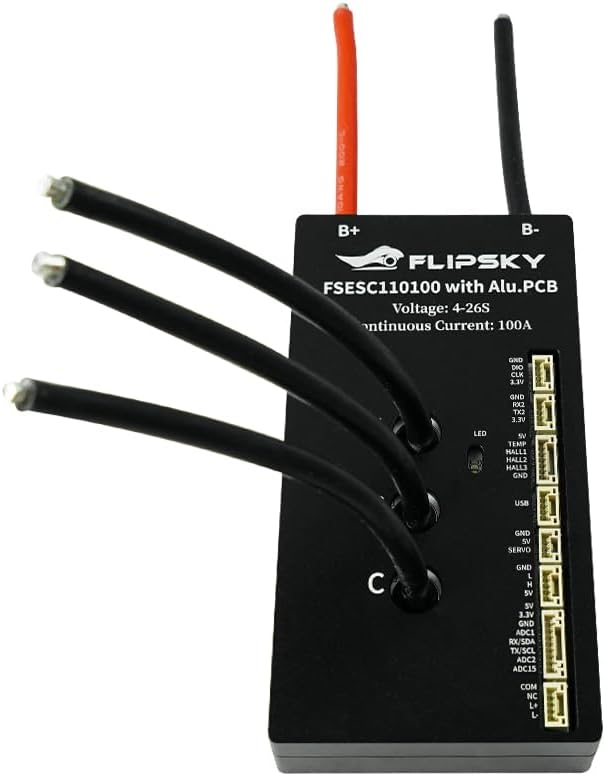

Figure 4.1: Comprehensive wiring diagram illustrating connections for battery, motor, and various communication/sensor ports.

4.2. irudia: hurbileko planoa view of the various communication and sensor ports on the FSESC 110100, with labels for each connection.

Portuaren deskribapenak:

• B+ / B-: Main battery positive and negative connections.
• Motor Phase Wires (A, B, C): Connect to the motor's three phase wires.
• LEDa: Egoera adierazle argia.
• USBa: For connecting to a computer for configuration via VESC_TOOL.
• UART: Universal Asynchronous Receiver/Transmitter port for communication with external devices (e.g., Bluetooth module, display).
• TXAKURRA: Controller Area Network bus for multi-ESC setups.
• SPI: Serial Peripheral Interface.
• IIC: Inter-Integrated Circuit (I2C) bus.
• ARETOA: Hall sensor input for sensored motor operation.
• PPM: Pulse Position Modulation input for remote control.
• ADCak: Analog-to-Digital Converter input for analog controls.
• NRF: Nordic Radio Frequency module support.
• Switch potentziala: Red button for power control.

5. Konfiguratzeko argibideak

1. Segurtasuna lehenik: Ensure all power sources are disconnected before making any connections. Wear appropriate safety gear.
2. Muntaketa: Securely mount the FSESC 110100 in a location with adequate airflow for heat dissipation. The aluminum PCB is designed for good heat transfer, but proper mounting is still essential.
3. Bateria konexioa: Connect your battery pack (4-26S, 14-110V) to the B+ (positive) and B- (negative) terminals. Ensure correct polarity.
4. Motor konexioa: Connect the three phase wires from your motor to the A, B, and C terminals on the ESC. If using a sensored motor, connect the Hall sensor cable to the HALL port.
5. Kontrol-sarrera: Connect your chosen control input (e.g., PPM receiver, UART device) to the corresponding port.
6. Initial Configuration (VESC_TOOL):

   Download and install the latest VESC_TOOL software from the official VESC project website or FLIPSKY support page.

   Connect the FSESC 110100 to your computer via the USB port.

   Launch VESC_TOOL and follow the motor setup wizard to configure your motor and ESC parameters. This includes motor detection, battery voltage limits, current limits, and control mode settings.

   Save your configuration to the ESC.

7. Bluetooth Module (Optional): If using the integrated Bluetooth module, you can connect to the ESC via a mobile app (e.g., VESC Tool app) for real-time data monitoring and parameter adjustment.

6. Funtzionamendu-argibideak

1. Piztu: After completing all connections and configuration, press the red power switch button to power on the ESC. The LED indicator will illuminate.
2. Kontrola: Operate your device using the configured input source (e.g., remote control, joystick). The ESC will translate your commands into motor control.
3. Jarraipena: Use VESC_TOOL or a connected Bluetooth app to monitor real-time data such as motor RPM, current, voltage, and temperature during operation.
4. Babes-ezaugarriak: The ESC is equipped with various protection features (low/high voltage, over current, over temperature). If a protection limit is reached, the ESC may reduce power or shut down to prevent damage. Identify and resolve the cause of the protection activation.
5. Itzali: When finished, press the red power switch button to power off the ESC.

7. Mantentzea

• Ohiko ikuskapena: Periodically inspect all wiring and connections for signs of wear, damage, or loose contacts.
• Garbiketa: Keep the ESC clean and free from dust, dirt, and moisture. Use a soft, dry cloth for cleaning. Avoid using solvents or harsh chemicals.
• Beroaren kudeaketa: Ensure the ESC has adequate ventilation during operation. Avoid operating in excessively hot environments.
• Firmware eguneraketak: Check the FLIPSKY website or VESC project for firmware updates. Updating firmware can improve performance and add new features. Follow update instructions carefully.

8. Arazoak

9. Bermea eta Laguntza

The FLIPSKY FSESC 110100 comes with a 2 hilabeteko bermea erosketa-datatik aurrera. Berme honek erabilera-baldintza normaletan fabrikazio-akatsak estaltzen ditu.

For technical support, troubleshooting assistance, or warranty claims, please contact FLIPSKY customer service through their official website or the retailer from whom you purchased the product. Please have your purchase receipt and product serial number available.

For the latest VESC_TOOL software and documentation, please visit the official VESC project webgunea: www.vesc-project.com
