Cecotec Cremmaet Cube Automatic Coffee Machine User Manual

1. Sarrera

Thank you for choosing the Cecotec Cremmaet Cube Automatic Coffee Machine. This compact super-automatic coffee machine is designed to deliver high-quality espresso and coffee with convenience. Featuring 1350W power, 19 bar pressure, a 10g pressing system, pre-infusion, Thermoblock technology, 5 grind levels, and a tactile control panel, it ensures a rich and aromatic coffee experience. Please read this manual carefully before first use to ensure proper operation and maintenance.

2. Segurtasun-argibideak

Beti jarraitu oinarrizko segurtasun neurriak tresna elektrikoak erabiltzean, sute, deskarga elektriko eta lesio arriskua murrizteko.

• Ziurtatu liburukiatagGailuan adierazitako e-ak zure sareko bolumenari dagokiotage konektatu aurretik.
• Ez sartu gailua, korronte-kablea edo entxufea uretan edo beste likidoren batean.
• Mantendu aparatua haurren eskura.
• Ez erabili aparatua kablea edo entxufea hondatuta dagoenean, edo aparatuak gaizki funtzionatzen duenean edo nolabait hondatu ondoren.
• Saihestu gainazal beroekin kontaktua. Erabili heldulekuak edo eskutokiak.
• Deskonektatu entxufetik erabiltzen ez duzunean eta garbitu aurretik. Utzi hozten piezak jarri edo kendu aurretik, eta aparatua garbitu aurretik.
• Erabili fabrikatzaileak gomendatutako osagarriak soilik.

3. Produktua amaitu daview

The Cecotec Cremmaet Cube is designed for ease of use and compact integration into your kitchen. Familiarize yourself with its main components:

• Ur depositua: Located on the side, with a capacity of 1.1 liters.
• Bean Hopper: Top-mounted, holds up to 110g of coffee beans.
• Kontrol-panela: Tactile buttons for power, coffee selection, and hot water.
• Kafearen txorrota: Adjustable height for various cup sizes up to 180mm.
• Tantaketarako erretilua: Gehiegizko likidoa biltzen du eta garbitzeko kendu daiteke.
• Kafe-hondar ontzia: Collects used coffee pucks, located behind the drip tray.

3.1. irudia: Amaituview of the Cecotec Cremmaet Cube coffee machine, showing its compact design and main components.

4. Konfigurazioa

4.1 Desontziratzea eta hasierako garbiketa

1. Kontu handiz atera kafe-makina bere paketetik.
2. Kendu ontziratzeko material guztiak eta babes-filmak.
3. Garbitu ur-depositua, tanta-ontzia eta kafe-hondarren ontzia ur epelarekin eta detergente leunarekin. Ondo garbitu eta lehortu.
4. Garbitu makinaren kanpoaldea iragarkiarekinamp oihal.

4.2 Ur depositua betetzea

1. Kendu ur-depositua makinaren albotik.
2. Fill the tank with fresh, cold drinking water up to the 'MAX' level indicator.
3. Jarri ur-depositua berriro makinan, ondo finkatuta dagoela ziurtatuz.

Image 4.1: A hand filling the transparent water tank of the coffee machine with water.

4.3 Babarrun-ontzia betetzea

1. Ireki makinaren goialdean dagoen kafe-ontziaren tapa.
2. Bota kafe ale osoak ontzira. Ez bete gehiegi.
3. Close the lid securely to preserve bean freshness.

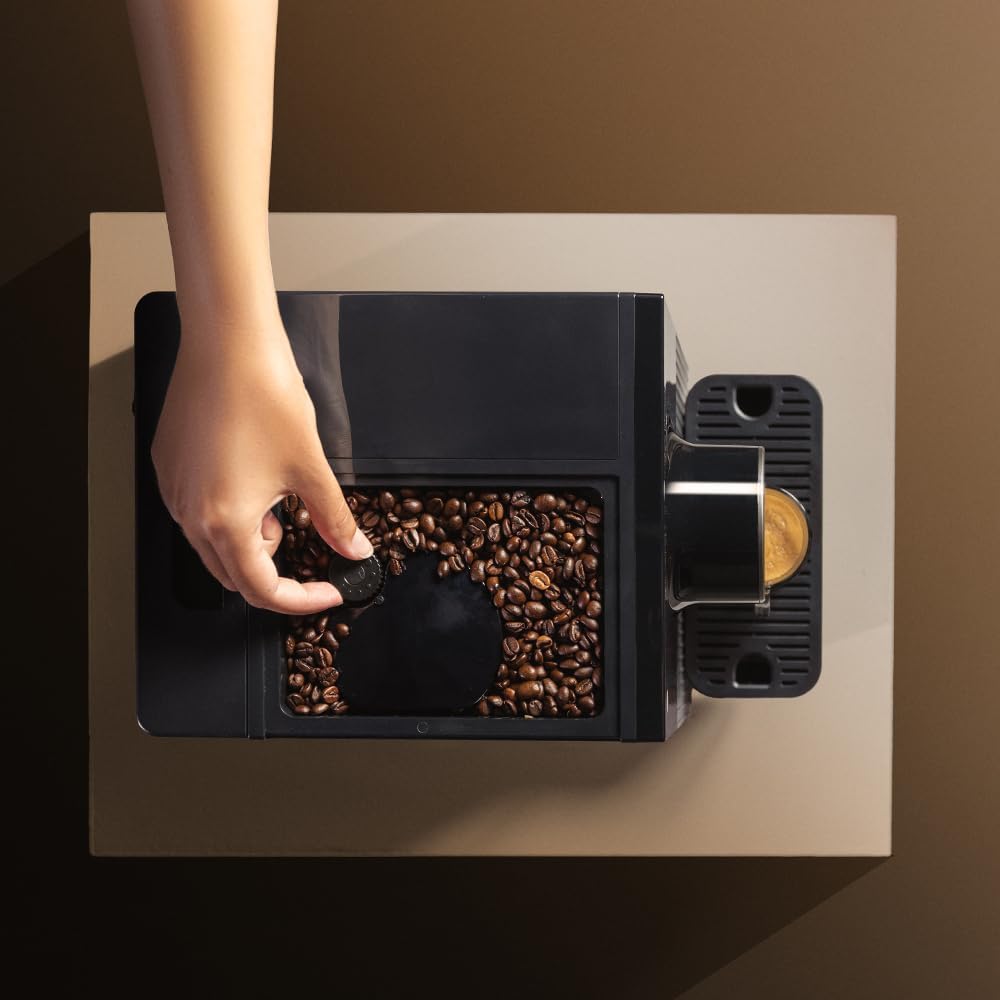

Image 4.2: A hand adding coffee beans into the top-mounted bean hopper of the machine.

4.4 Lehen erabilera / Prestaketa

1. Entxufatu makina lurrera konektatutako entxufe batera.
2. Press the power button to turn on the machine. It will perform an initial rinse cycle.
3. Jarri ontzi bat kafe-kanporaren azpian.
4. The machine may prompt you to run a hot water cycle to prime the system. Follow the instructions on the control panel or refer to the specific hot water function in section 5.3.
5. Discard the water from the priming cycle. The machine is now ready for use.

5. Kafe-makina funtzionatzea

5.1 Piztu/Itzaltzea

• Pizteko: Sakatu pizteko botoia (O) on the control panel. The machine will heat up and perform an automatic rinse.
• Desaktibatzeko: Sakatu pizteko botoia (O) again. The machine will perform a final rinse before shutting down.

Image 5.1: A finger pressing the power button on the tactile control panel.

5.2 Kafea egitea

The machine offers two types of coffee with a single touch.

1. Place a cup under the coffee spout. Adjust the spout height if necessary to fit your cup (up to 180mm).
2. Press the desired coffee button (e.g., single espresso, double espresso).
3. The machine will grind the beans, pre-infuse, and brew your coffee.
4. Garagardo prozesua automatikoki geldituko da.

Image 5.2: Freshly brewed coffee pouring into a glass cup from the machine's spout.

Image 5.3: Two different coffee machines, one with a small espresso cup and another with a larger coffee mug, demonstrating versatility.

5.3 Adjusting Grind Level

The machine features 5 adjustable grind levels to suit your preference. The grind adjustment knob is typically located inside the bean hopper. Turn the knob to select a finer or coarser grind. Adjustments should only be made while the grinder is operating.

5.4 Ur beroaren funtzioa

For infusions or tea, the machine provides a hot water option.

1. Jarri edalontzi bat kafe-iten azpian.
2. Press the hot water button on the control panel.
3. Hot water will dispense. Press the button again to stop the flow.

5.5 Saving Coffee Settings

The machine allows you to save your preferred coffee volume. To do this:

1. Press and hold the desired coffee button until the machine starts brewing.
2. Release the button when the coffee reaches your desired volume. The machine will remember this setting for future use.

6. Mantentzea

Garbiketa eta mantentze erregularrak zure kafe-makinaren errendimendu optimoa eta iraupena bermatzen dituzte.

6.1 Eguneko garbiketa

• Tantaka-erretilua eta kafe-hondarren ontzia: Hustu eta garbitu egunero. Makinak adieraziko du kafe-hondarren ontzia beteta dagoenean.
• Kafearen txorrota: Garbitu iragarkiarekinamp oihal bat kafe-hondakinak kentzeko.

6.2 Astero/Hilean behingo garbiketa

• Ur depositua: Clean thoroughly with warm water and mild detergent.
• Prestaketa unitatea: The brew unit is removable for cleaning. Consult the machine's internal diagrams for removal instructions. Rinse under running water until clean. Allow to air dry before reinserting.

6.3 Kalifikatzailea

The machine features an automatic descaling function. The frequency of descaling depends on water hardness and usage. The machine will indicate when descaling is required.

1. When the descaling indicator lights up, prepare a descaling solution according to the descaler manufacturer's instructions.
2. Bota soluzioa ur deposituan.
3. Follow the on-screen prompts or specific button sequence for initiating the descaling cycle.
4. After the descaling cycle, rinse the water tank and run several cycles with fresh water to thoroughly flush the system.

7. Arazoak

Hona hemen ohiko arazo batzuk eta haien konponbideak:

If you encounter issues not listed here or if solutions do not resolve the problem, please contact Cecotec customer support.

8. Zehaztapenak

9. Bermea eta Laguntza

The Cecotec Cremmaet Cube Automatic Coffee Machine comes with a standard manufacturer's warranty. Please refer to the warranty card included in your product packaging for specific terms and conditions.

For technical assistance, troubleshooting, or warranty claims, please contact Cecotec customer support through their official webwebgunea edo zure erosketarekin emandako harremanetarako informazioa.

Oharra: Ez da produktuaren bideo ofizialik aurkitu txertatzeko emandako datuetan.
