Karcher Cordless Pressure Washer OC Handy Compact CB 1.328-125.0 & Handheld Cleaner CVH 3 1.198-357.0 Instruction Manual

1. Produktua amaitu daview

This manual provides detailed instructions for the Karcher Cordless Pressure Washer OC Handy Compact CB 1.328-125.0 and the Karcher Handheld Cleaner CVH 3 1.198-357.0. These devices are designed for convenient and efficient cleaning tasks both indoors and outdoors. The Cordless Pressure Washer offers portable high-pressure cleaning without the need for a fixed water tap or power source, while the Handheld Cleaner provides quick and easy vacuuming for various surfaces.

Key Features of the Cordless Pressure Washer:

• Eramangarritasuna: Compact, palm-sized design for easy transport.
• Independentzia: Operates without a direct water tap connection or external power supply.
• Aniztasuna: Ideal for quick cleaning of outdoor equipment such as sports gear, camping items, fishing equipment, and bicycles.

Key Features of the Handheld Cleaner:

• Arinak: Extremely light, comparable to a single plastic bottle, for comfortable use.
• Xurgapen indartsua: Efficiently cleans various surfaces.
• Hauts-ontzi handia: 0.15L capacity reduces the frequency of emptying.
• Aplikazio zabala: Suitable for cleaning sofas, window sashes, bathroom floors, car interiors, stairs, kitchen counters, and more.

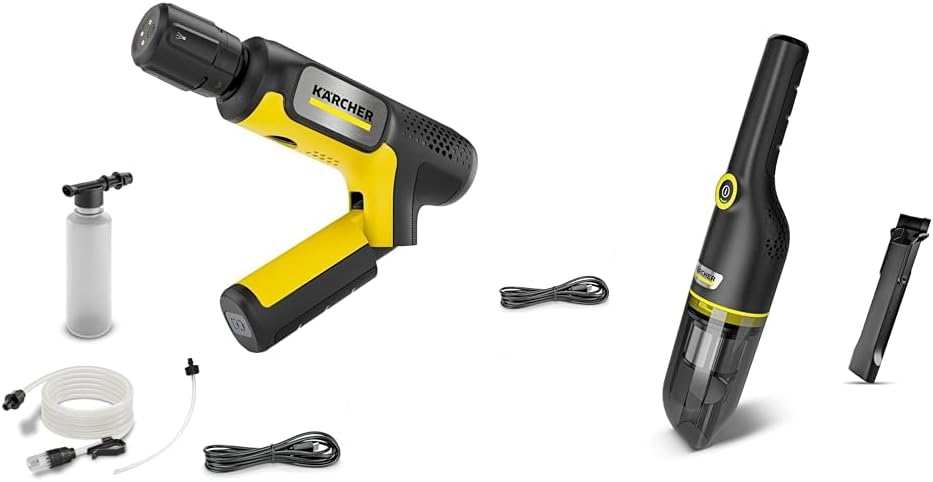

Image 1.1: The Karcher Cordless Pressure Washer OC Handy Compact CB 1.328-125.0 and Handheld Cleaner CVH 3 1.198-357.0 included in the set.

2. Konfigurazioa

2.1 Cordless Pressure Washer Setup

1. Kargatu bateria: Before first use, fully charge the device's battery using the provided charger. Ensure the charging indicator shows a full charge.
2. Konektatu ur-hornidura:
   • Using a Bucket: Place the suction hose with filter into a bucket of clean water. Ensure the filter is fully submerged.
   • Using a Water Tap (Optional Adapter): If using an optional adapter for direct tap connection, attach it securely to the device and the tap.
3. Lotu ihinztagailuaren tobera: Select the appropriate spray nozzle for your cleaning task and securely attach it to the spray gun.

2.2 Handheld Cleaner Setup

1. Kargatu bateria: Fully charge the handheld cleaner's battery before initial use. The charging status will be indicated by the device's LED.
2. Assemble Attachments: Attach any desired nozzles or brushes (e.g., crevice tool, brush nozzle) to the cleaner's suction inlet as needed for your cleaning task.
3. Hauts-ontzia egiaztatu: Ensure the dust container is empty and properly secured before operation.

3. Funtzionamendu-argibideak

3.1 Operating the Cordless Pressure Washer

1. Piztu: Sakatu pizteko botoia presio-garbigailua pizteko.
2. Ponpa leheneratzea: If using a bucket, hold the spray gun open until water flows out steadily, indicating the pump is primed.
3. Hasi garbitzen: Direct the spray nozzle towards the surface to be cleaned, maintaining an appropriate distance to avoid damage. Adjust the spray pattern if your nozzle allows.
4. Itzali: Release the trigger and press the power button to turn off the device after use.

Garrantzitsua: Always test on an inconspicuous area first. Do not aim the spray at people, animals, or electrical equipment.

3.2 Operating the Handheld Cleaner

1. Piztu: Press the power button to start the handheld cleaner.
2. Aspiragailua: Move the suction inlet over the area to be cleaned. Use appropriate attachments for corners, crevices, or delicate surfaces.
3. Itzali: Sakatu berriro pizteko botoia gailua itzaltzeko.
4. Hauts-ontzi hutsa: Regularly empty the dust container to maintain optimal suction power.

3.3 Produktuen bideoak

4. Mantentzea

4.1 Cordless Pressure Washer Maintenance

• Toberak garbiak: After each use, rinse the spray nozzle to prevent blockages.
• Iragazkien garbiketa: Regularly check and clean the water intake filter to ensure proper water flow and prevent debris from entering the pump.
• Biltegiratzea: Store the device in a dry, frost-free location. Ensure all water is drained from the pump and hoses before storing to prevent freezing damage.
• Bateria zaintzea: Store the battery in a partially charged state if not used for extended periods. Avoid fully discharging the battery before recharging.

4.2 Handheld Cleaner Maintenance

• Hauts-ontzi hutsa: Empty the dust container after each use or when it reaches its maximum capacity to maintain suction power.
• Garbitu iragazkia: The cleaner's filter should be regularly cleaned according to the instructions in the full product manual. A dirty filter can reduce suction performance.
• Garbitu: Garbitu garbigailuaren kanpoaldea iragarkiarekinamp hautsa eta zikinkeria kentzeko zapia.
• Bateria zaintzea: Follow general battery care guidelines, similar to the pressure washer, to prolong battery life.

5. Arazoak

5.1 Cordless Pressure Washer Issues

5.2 Handheld Cleaner Issues

6. Zehaztapenak

7. Bermea eta laguntza

For detailed warranty information and customer support, please refer to the official Karcher website or contact Karcher customer service directly. Keep your proof of purchase for warranty claims.

Sareko baliabideak: Visit the official Karcher webproduktuen erregistrorako, maiz egiten diren galderetarako eta laguntza-material gehigarrietarako gunea.

Jarri harremanetan laguntzarekin: Contact information for Karcher customer service can typically be found on the product packaging or the official webgunea.
