MCHOSE Mix 87 TKL Wired Gaming Keyboard User Manual

Sarrera

This manual provides detailed instructions for the setup, operation, maintenance, and troubleshooting of your MCHOSE Mix 87 TKL Wired Gaming Keyboard. Please read this manual thoroughly to ensure proper use and to maximize the performance of your device.

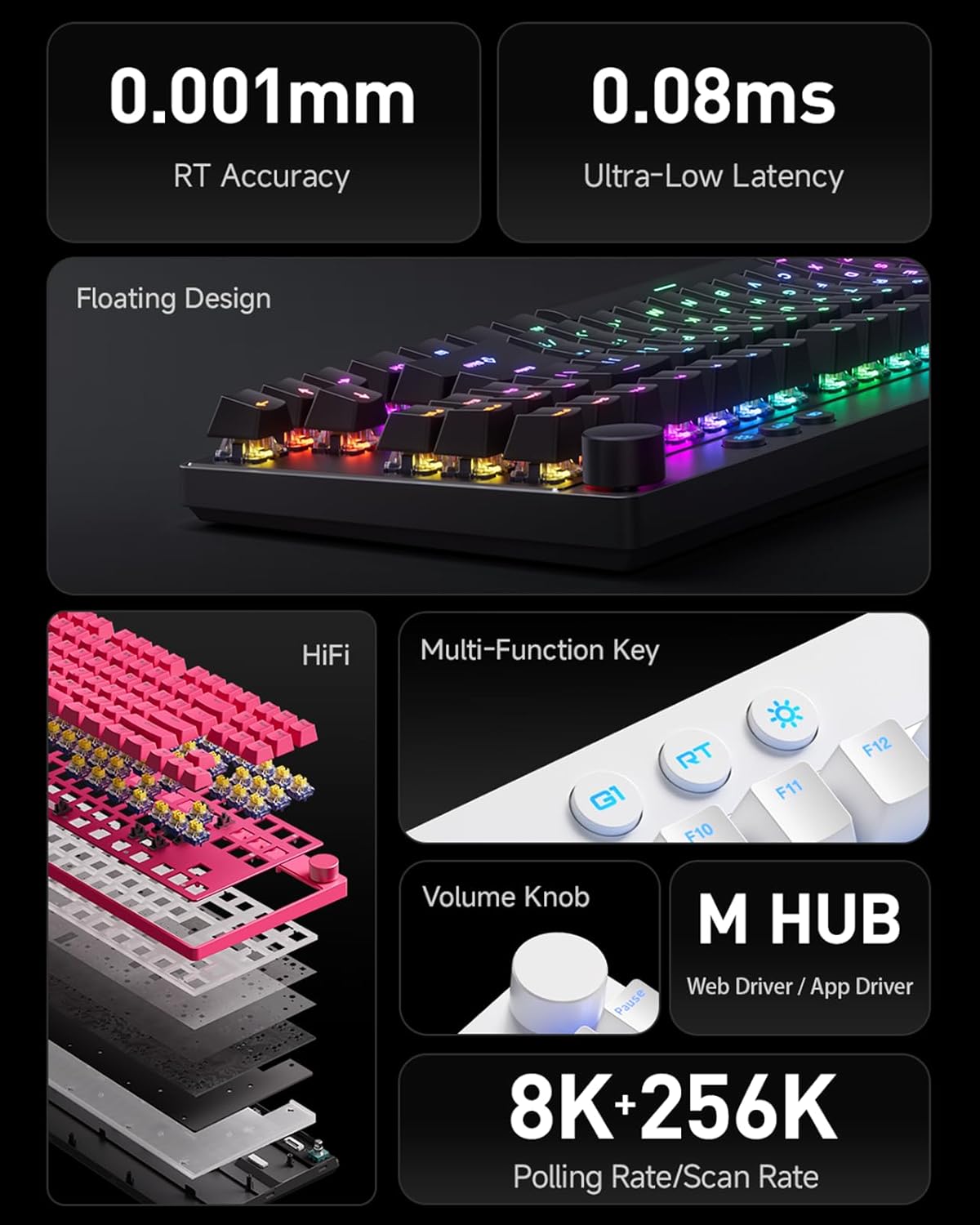

Irudia: Gainetikview of MCHOSE Mix 87 TKL keyboard features, highlighting 0.001mm RT Accuracy, 0.08ms Ultra-Low Latency, Floating Design, HiFi sound dampening, Multi-Function Key, Volume Knob, M HUB software, and 8K Polling Rate / 256K Scan Rate.

1. Konfigurazioa

1.1 Paketearen edukia

Egiaztatu elementu guztiak paketean daudela:

• MCHOSE Mix 87 TKL Wired Gaming Keyboard
• USB-C kablea
• Erabiltzailearen eskuliburua (dokumentu hau)
• Tekla-tapoien erauzgailua (barne badago)
• Etengailu-ateragailua (barruan badago)

1.2 Teklatua konektatzea

1. Locate the USB-C port on the back or side of the MCHOSE Mix 87 keyboard.
2. Konektatu emandako USB-C kablearen mutur bat teklatuaren USB-C atakara.
3. Connect the other end of the USB-C cable to an available USB port on your computer, gaming console (PS5, XBOX), or laptop.
4. Teklatua automatikoki ezagutuko du zure sistema eragileak.

1.3 Driver Installation (MCHOSE Driver)

For advanced customization and features, install the MCHOSE driver software:

• Bisitatu MCHOSE ofiziala webgunea (www.mchose.com) to download the latest MCHOSE driver (M HUB Web/App Driver).
• Jarraitu pantailako argibideei instalazioa amaitzeko.
• The driver allows for key remapping, RGB lighting adjustments, and activation of advanced gaming features like Rapid Trigger and Berserk Mode.
• All settings can be saved to the keyboard's onboard memory.

2. Funtzionamendu-argibideak

2.1 Oinarrizko teklatuaren funtzioak

The MCHOSE Mix 87 functions as a standard TKL keyboard for typing and general computer use upon connection.

2.2 Volume Knob Operation

Image: Close-up of the volume knob on the MCHOSE Mix 87 TKL keyboard, illustrating its functions: Rotate to Adjust Volume and Press to Mute.

• Biratu: Turn the knob clockwise to increase volume, and counter-clockwise to decrease volume.
• Prentsa: Sakatu botoia audioa isilarazteko edo aktibatzeko.

2.3 Multi-Function Keys and RGB Lighting

Image: Close-up of the multi-function keys (G1, RT, Adjustable Lighting) and volume knob on the MCHOSE Mix 87 TKL keyboard.

The keyboard features dedicated multi-function keys for quick access to specific features:

• G1 Key: One-Key Desktop Switch (Customizable). This key can be configured via the MCHOSE driver for various functions.
• RT Key: One-Key Profile Switching. Use this key to cycle through different Rapid Trigger profiles configured in the MCHOSE driver.
• Lighting Key (Sun icon): Adjustable Lighting Brightness. Press this key to cycle through different RGB brightness levels or lighting effects. Further customization is available through the MCHOSE driver.

2.4 Advanced Customization (MCHOSE Driver)

Image: Diagram illustrating advanced features of the MCHOSE Mix 87 TKL keyboard, including Magnetic Switch Algorithm 3.0, RT Smart (15-Level Adjustability), ADC Direct Connection for WASD keys, and Customizable Dynamic Keystroke Travel (DKS, SOCD, MT, TGL, RS, key macros).

The MCHOSE driver unlocks the full potential of your keyboard:

• Gakoen birmapping: Assign custom functions to any key.
• RGB argiztapena: Customize per-key RGB lighting, effects, and brightness.
• Abiarazle azkarra: Adjust the sensitivity and behavior of Rapid Trigger for instant key activation and deactivation.
• Berserk Mode: Activate specialized gaming modes for enhanced performance.
• Erregulagarria den aktuazio-puntua: Set the actuation point for each key from 0.1mm to 4.0mm to match your preference.
• Dynamic Keystroke Travel (DKS): Configure multiple actions based on key press depth.
• Simultaneous Opposite Cardinal Directions (SOCD): Manage conflicting directional inputs for precise movement in games.
• Makro grabaketa: Create and assign complex key sequences to a single key.
• Beste ezaugarri batzuk: Explore MT (Mod-Tap), TGL (Toggle), and RS (Rapid Stop) functionalities for advanced control.

3. Mantentzea

3.1 Teklatua garbitzea

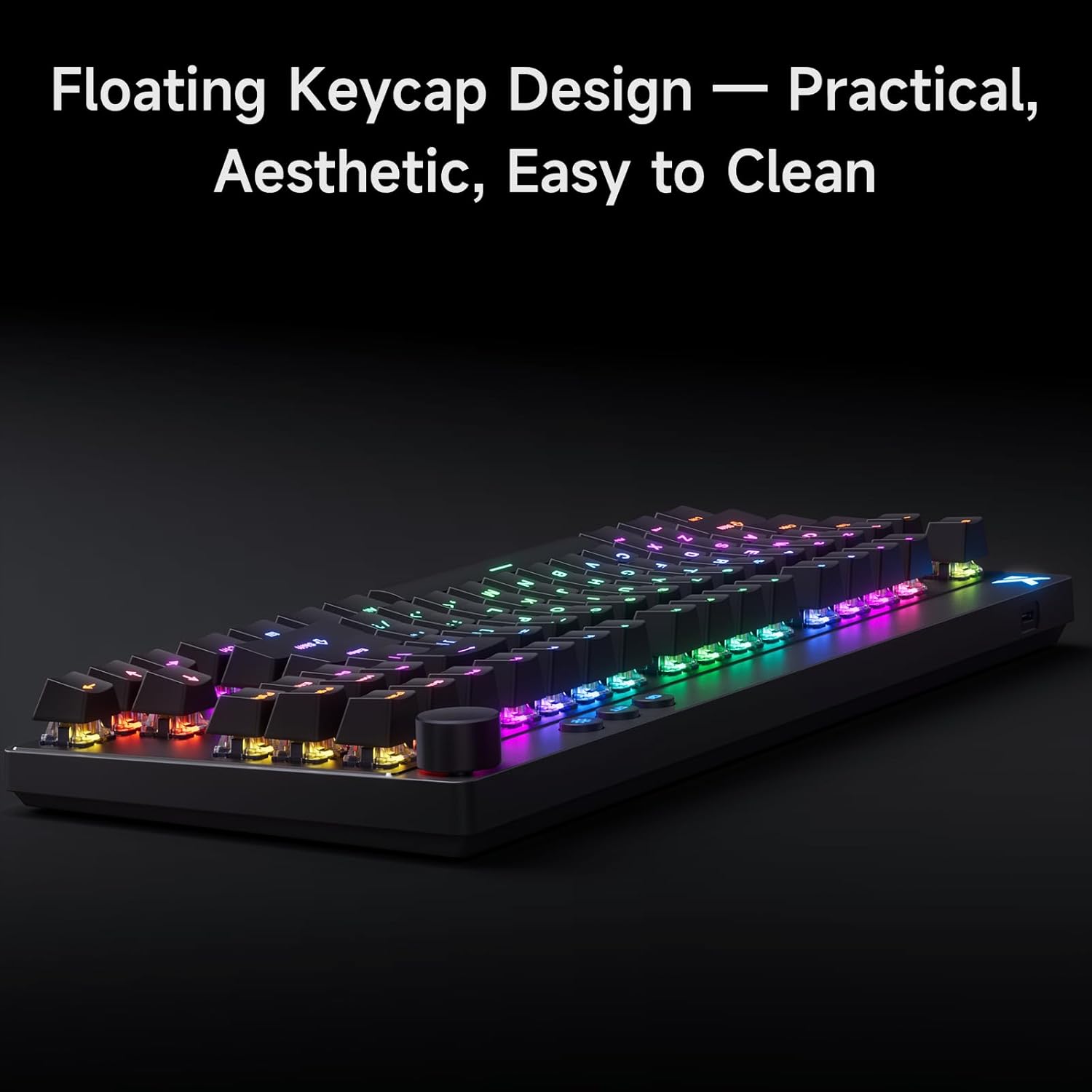

Image: The MCHOSE Mix 87 TKL keyboard showcasing its floating keycap design, which facilitates easy cleaning and maintenance.

The MCHOSE Mix 87 TKL keyboard features a floating keycap design, which makes cleaning easier:

• Hautsa kentzea: Erabili aire konprimituzko lata bat tekla-tapoien arteko hautsa eta hondakinak kentzeko.
• Tekla-tapoien garbiketa: Gently remove keycaps using a keycap puller (if provided). Clean keycaps with a soft, damp cloth and mild soap solution. Ensure keycaps are completely dry before reattaching.
• Gainazalaren garbiketa: Wipe the keyboard surface with a soft, lint-free cloth. For stubborn marks, slightly dampen the cloth with water or a mild electronics cleaner. Avoid excessive moisture.
• Etengailuen mantentze-lanak: The keyboard uses magnetic switches. Avoid disassembling the switches unless you are familiar with the process, as it may void your warranty.

Deskonektatu beti teklatua ordenagailutik garbitu aurretik.

4. Arazoak

4.1 Teklatuak ez du erantzuten

• Egiaztatu konexioa: Ensure the USB-C cable is securely connected to both the keyboard and the computer's USB port. Try a different USB port.
• Kableen osotasuna: Test with a different USB-C cable if available, to rule out a faulty cable.
• Berrabiarazi ordenagailua: Sometimes a simple system restart can resolve connectivity issues.
• Gidariaren egiaztapena: Verify that the MCHOSE driver is installed correctly and up to date.

4.2 Giltzak ez dira erregistratzen edo bi aldiz idazten ari dira

• Kalibrazio Dinamiko Egokitzailea 2.0: The keyboard features Adaptive Dynamic Calibration 2.0, which automatically recalibrates key actuation on every press. This should prevent most issues related to inconsistent key presses.


Image: A user interacting with the MCHOSE Mix 87 TKL keyboard, illustrating the function of Adaptive Dynamic Calibration 2.0 for precise and stable key actuation without manual adjustment.

• Clean Keycaps/Switches: Dust or debris under a keycap can interfere with switch operation. Refer to the Maintenance section for cleaning instructions.
• Gidariaren ezarpenak: Check the MCHOSE driver for any custom actuation point settings that might be too sensitive or too deep for your typing style. Reset to default if necessary.

4.3 RGB argiztapen arazoak

• Distira doitzea: Use the dedicated lighting key (sun icon) to adjust brightness.
• MCHOSE Driver: All RGB lighting customization is managed through the MCHOSE driver. Ensure the driver is running and settings are applied.
• Software-gatazkak: If you have other RGB control software installed, it might conflict with the MCHOSE driver. Try disabling other software.

5. Zehaztapenak

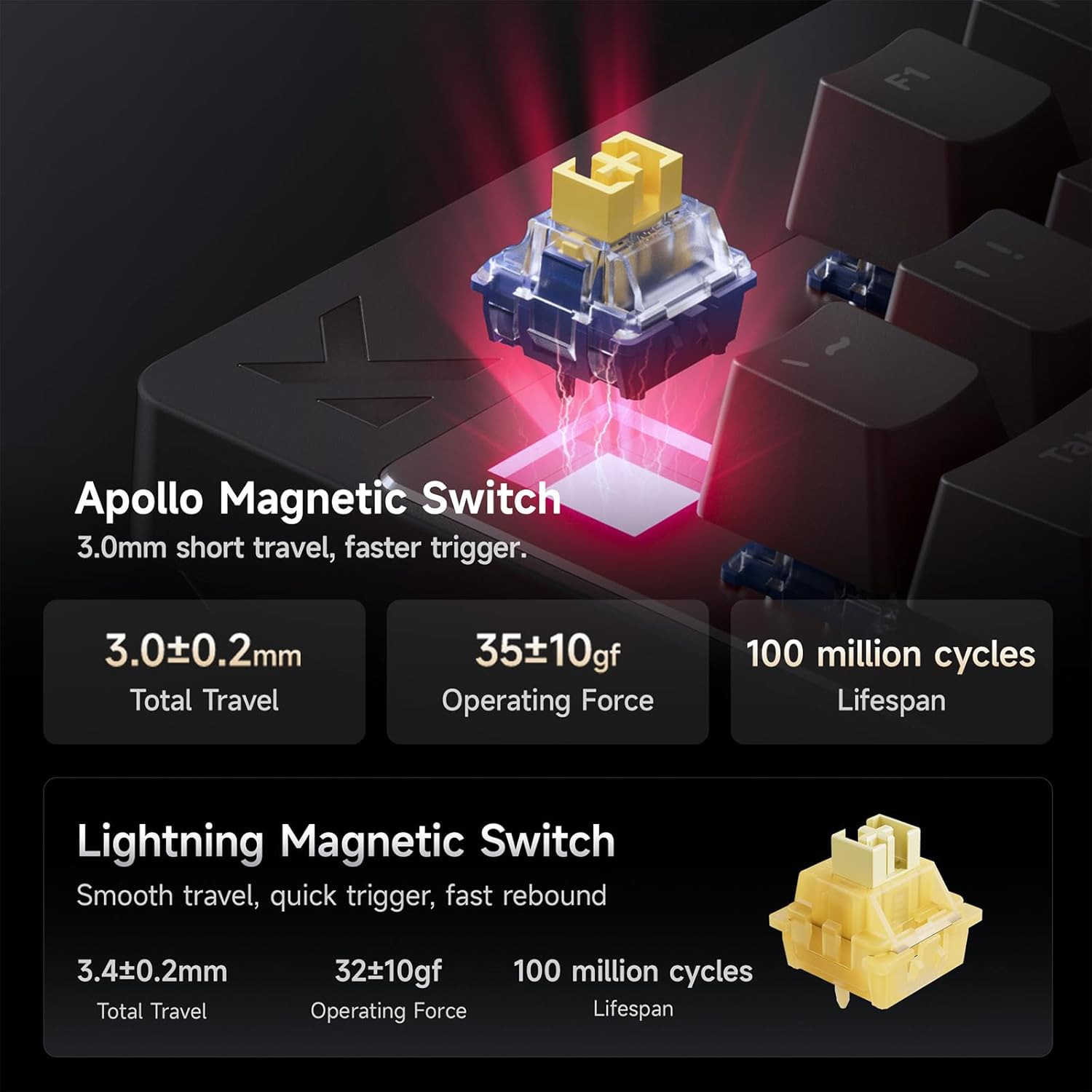

Image: Detailed specifications for the Apollo Magnetic Switch and Lightning Magnetic Switch, including total travel, operating force, and lifespan.

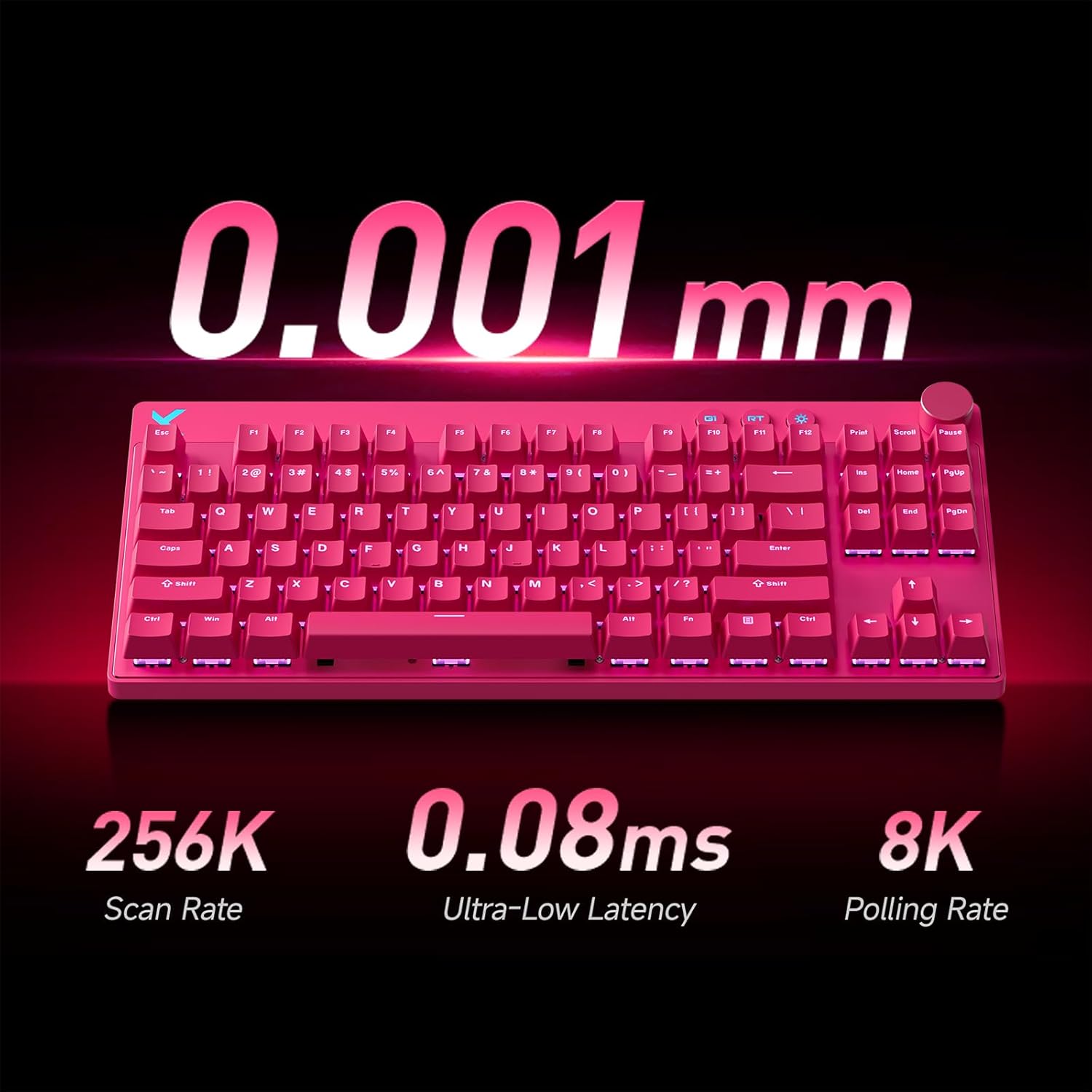

Image: A pink MCHOSE Mix 87 TKL keyboard highlighting key performance metrics: 256K Scan Rate, 0.08ms Ultra-Low Latency, and 8K Polling Rate.

6. Bermearen informazioa

MCHOSE products are covered by a limited warranty against defects in materials and workmanship. The specific duration and terms of the warranty may vary by region and product. Please retain your proof of purchase for warranty claims.

For detailed warranty information, please visit the official MCHOSE webwebgunean edo jarri harremanetan bezeroarentzako laguntzarekin.

7. Bezeroarentzako arreta

If you encounter any issues or have questions regarding your MCHOSE Mix 87 TKL Wired Gaming Keyboard that are not covered in this manual, please contact MCHOSE customer support:

• Webgunea: www.mchose.com (for FAQs, driver downloads, and support contact information)
• Posta elektronikoa: Refer to the MCHOSE weblaguntza-helbide elektroniko espezifikoak ikusteko gunea.
• Sareko baliabideak: Check the MCHOSE brand store on Amazon for additional product information and support links.
