Produktua amaituview
The Jocoevol Folding Dining Table is designed for versatility and space efficiency, making it suitable for apartments and small living areas. It can function as a dining table for 4 to 6 people, a desk, or a kitchen island extension. The table features integrated storage, including a drawer and two-tier shelves, and is equipped with lockable casters for easy mobility.

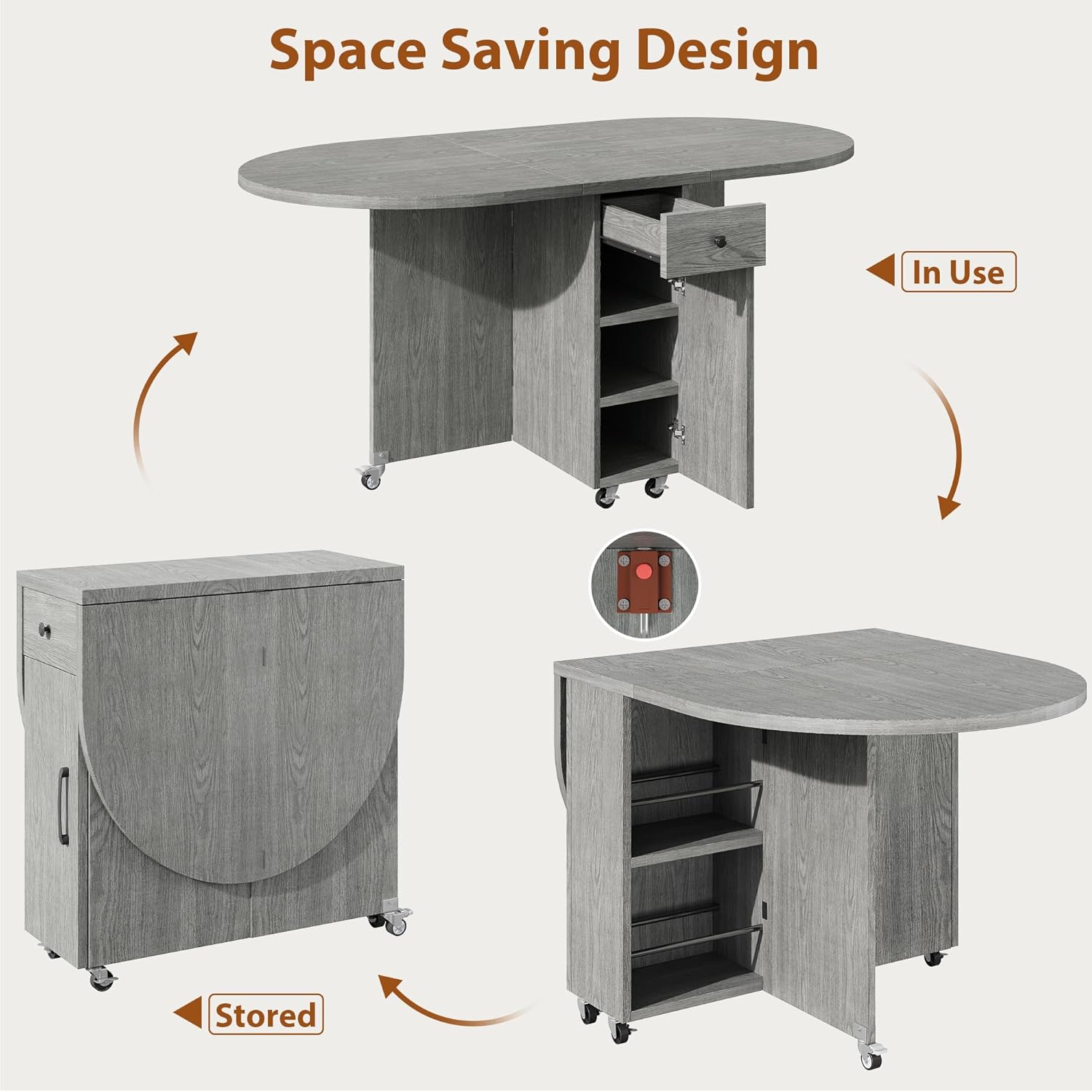

Image: The Jocoevol Folding Dining Table demonstrating its versatility in different configurations: fully folded for compact storage, partially folded for use as a desk or console, and fully extended as a dining table.
Segurtasun Informazioa
To ensure safe use of your Jocoevol Folding Dining Table, please observe the following guidelines:
- Avoid overloading the tabletop beyond 150 lbs (68 kg) to prevent structural damage or instability.
- Keep the storage drawer and casters clear of obstructions. Ensure casters are locked when the table is in a stationary position to prevent unintended movement and tip-overs.
- Exercise caution around sharp edges and corners during assembly, use, and storage, especially in confined spaces.
Paketearen edukia
Muntaketa hasi aurretik, egiaztatu osagai guztiak daudela eta kalterik gabe daudela. Paketeak normalean honako hauek ditu:
- Tabletop panels (main and drop leaves)
- Support legs/panels
- Storage unit components (drawer, shelves, cabinet door)
- Gurpilak (gurpilak)
- Assembly hardware (screws, hinges, brackets, drawer slides, handles)
- Argibide eskuliburua
Piezaren bat falta edo hondatuta badago, jarri harremanetan bezeroarentzako laguntzarekin.
Image: A detailed diagram illustrating the dimensions of the Jocoevol Folding Dining Table when fully extended (47.2" L x 23.6" W x 29.9" H) and the internal dimensions of the storage drawer (13.8" L x 9.0" W x 3.1" H, with a 5.3" height for the drawer face). This image also indicates a 500 lbs weight capacity for the table.
Konfigurazioa eta Muntaketa
Assembly of the Jocoevol Folding Dining Table requires careful attention to the provided instructions. All parts are labeled, and pre-drilled holes are included to facilitate the process.
- Piezak desontziratu eta identifikatu: Lay out all components on a clean, soft surface to prevent scratches. Refer to the parts list in the included manual to identify each piece.
- Muntatu marko nagusia: Follow the step-by-step diagrams to connect the primary structural elements. Ensure all screws are tightened securely but do not overtighten.
- Instalatu gurpilak: Attach the 360° lockable casters to the base of the table. Ensure they are firmly attached for stability and mobility.
- Biltegiratze Unitatea Muntatu: Construct the drawer and shelf compartments according to the instructions. Install drawer slides and hinges for the cabinet door.
- Attach Table Leaves: Secure the foldable drop leaves to the main tabletop using the provided hinges and brackets. Test the folding mechanism to ensure smooth operation.
- Azken egiaztapenak: Behin muntatuta, ziurtatu konexio guztiak ondo finkatuta daudela eta mahaia egonkorra dela.
Aholkua: While a basic tool may be included, using a proper ratchet screwdriver can make assembly easier and more efficient.
Irudia: Xehetasun handikoa views of key components: the storage drawer with its dimensions, the robust industrial-grade folding brackets that support the table leaves, and the 360-degree rotating wheels equipped with locking mechanisms for stability.
Funtzionamendu-argibideak
Mahaia tolestea eta zabaltzea
The table's design allows for multiple configurations to suit your space and needs:
- Fully Extended (Dining Table): To use as a full dining table, extend both drop leaves outwards until they are fully horizontal. Ensure the support mechanisms underneath are engaged to secure the leaves in place. This configuration provides ample space for 4 to 6 people.
- Half-Folded (Desk or Console): For use as a desk or a smaller dining surface, extend one drop leaf while keeping the other folded down. This creates a compact yet functional workspace or dining area.
- Fully Folded (Console Table): To save space, fold both drop leaves downwards. The table transforms into a compact console unit, ideal for entryways or against a wall.
Image: The Jocoevol Folding Dining Table shown in its fully folded, space-saving console configuration, demonstrating how it can be neatly stored when not in use.
Image: The Jocoevol Folding Dining Table fully extended and prepared for a meal, showcasing its spacious oval tabletop. The integrated storage drawer is open, revealing its contents, and the two-tier shelves are visible, offering convenient access to items.
Using the Storage Drawer and Shelves
The table includes a spacious drawer and two-tier enclosed shelves for organizing dinnerware and other essentials.
- Tiradera: Pull the knob to open the drawer. It is suitable for storing cutlery, napkins, or small kitchen tools.
- Apalategiak: Open the cabinet door to access the two-tier shelves. These are ideal for larger items like plates, bowls, or bottles. The shelves feature guardrails to prevent items from slipping.
Irudia: Gertutik view highlighting the smart storage solutions of the Jocoevol Folding Dining Table, showing the pull-out drawer and the open two-tier shelves, both organized with various kitchen and dining accessories.
Mugikortasun eta Blokeo Gurpilak
The table is equipped with 360° lockable casters for easy movement and secure placement.
- Mahaia mugitzea: To move the table, unlock all casters by flipping the lever on each wheel to the 'unlock' position. Gently push the table to its desired location.
- Securing the Table: Once the table is in position, lock all casters by flipping the lever on each wheel to the 'lock' position. This prevents the table from moving unintentionally.
Irudia: Xehetasun zehatza view of one of the 360-degree rotating caster wheels, illustrating its lockable feature. The image shows the lever mechanism used to engage and disengage the wheel's lock, providing both mobility and stability.
Mantentzea
Proper care will extend the life and appearance of your folding dining table:
- Garbiketa: Garbitu mahaiaren gainazalak zapi leun etaamp cloth. Avoid harsh chemicals or abrasive cleaners, which can damage the engineered wood finish. Dry immediately with a clean cloth.
- Isurketak: Clean up spills promptly to prevent staining or moisture damage to the wood.
- Hardwarea: Aldian-aldian egiaztatu torloju eta lotura guztiak ondo estututa daudela ziurtatzeko. Behar izanez gero, berriro estutu egonkortasuna mantentzeko.
- Gurpilak: Keep the caster wheels free of debris (hair, dust, etc.) to ensure smooth movement.
- Saihestu muturreko baldintzak: Do not place the table in direct sunlight or near heat sources, as this can cause warping or fading. Maintain a stable room temperature and humidity.
Arazoak konpontzea
If you encounter issues with your Jocoevol Folding Dining Table, refer to the following common problems and solutions:
| Arazoa | Kausa posiblea | Irtenbidea |
|---|---|---|
| Muntaketa prozesuan zailtasunak | Instructions unclear, misaligned holes, or incorrect hardware usage. | Review the instruction manual carefully. Ensure parts are oriented correctly. Do not force screws; if holes don't align, double-check the part orientation. Contact customer support if issues persist. |
| Table feels wobbly or unstable | Loose fasteners, uneven floor, or casters not locked. | Ensure all screws and bolts are securely tightened. Verify that all casters are in the locked position. If the floor is uneven, consider using furniture pads or shims. |
| Hinges or screws detach/break | Over-tightening, material stress, or manufacturing defect. | Avoid over-tightening screws during assembly. If parts break, contact customer support for replacement parts or assistance. |
| Table does not fold/unfold smoothly | Obstruction in the folding mechanism or misaligned hinges. | Check for any objects blocking the folding path. Ensure hinges are properly installed and lubricated if necessary. |
| Kolorea espero baino desberdina da | Variations in screen display or natural wood grain. | Product images may vary slightly due to lighting or monitor settings. Minor variations in wood grain are natural. If the color discrepancy is significant, contact customer support. |
Zehaztapenak
| Ezaugarri | Xehetasuna |
|---|---|
| Marka | Jokoebol |
| Modelo zenbakia | dining table |
| Kolorea | Grisa |
| Materiala | Ingeniaritza Egurra |
| Produktuaren neurriak (hedatua) | 47 x 23.6 x 30 hazbete (119.4 x 59.9 x 76.2 cm) |
| Elementuaren pisua | 80 libra (36.3 kg) |
| Ezaugarri Berezia | Storage, Foldable, Lockable Casters |
| Estiloa | Modernoa |
Bermea eta Bezeroarentzako Arreta
Jocoevol is committed to providing quality products and customer satisfaction. For any questions, concerns, or assistance with your folding dining table, please contact our customer service team.
Our responsive customer service team is available to help with assembly, missing parts, or any product-related inquiries. Please reach out, and we will endeavor to reply within 24 hours.
Gorde erosketa-agiria berme-erreklamazio edo laguntza-eskaerarik baduzu.
