Sarrera
Thank you for choosing the Jocoevol C-1665 Display Cabinet. This manual provides essential information for the safe assembly, operation, and maintenance of your new display cabinet. Please read these instructions thoroughly before beginning assembly or use to ensure proper function and longevity of the product.
Segurtasun Informazioa
Segurtasun-argibide garrantzitsuak:
- Muntatu beti armairua gainazal leun eta garbi batean, marradurak saihesteko.
- Ziurtatu pieza guztiak daudela eta kalterik gabe muntatu aurretik. Ez erabili kaltetutako piezarik.
- Muntaketa egiteko bi heldu behar dira.
- Ez estutu torlojuak gehiegi, materiala kaltetu baitezake.
- Place the cabinet on a level, stable surface to prevent tipping.
- Ez igo armairuaren gainean edo ez zintzilikatu bertatik.
- Mantendu pieza txikiak haurrengandik urrun muntatzean.
- Tempered glass is strong but can break if subjected to sharp impacts. Handle with care.
- Ensure electrical connections for RGB lighting are secure and follow local electrical codes.
Paketearen edukia
Before assembly, verify that all components are included in your package. Refer to the included parts list in your physical assembly guide for detailed identification.
- Cabinet panels (wood, glass)
- Beira tenplatuko ateak
- Apalategiak
- Tiraderak eta tiraderaren irristagailuak
- RGB LED light strips
- Human body sensor module
- Potentzia-egokigailua
- Assembly hardware (screws, dowels, magnetic latches, etc.)
- Tip-anti kit
- Argibideen eskuliburua (kopia fisikoa)
Konfigurazioa eta Muntaketa
Assembly of the Jocoevol C-1665 Display Cabinet typically requires two people and takes approximately 40 minutes. Follow the numbered steps and diagrams provided in the separate physical assembly instructions included with your product. This section provides general guidance.
- Deskonprimitu eta antolatu: Carefully unpack all components and lay them out on a soft, clean surface. Group similar parts and hardware together.
- Muntatu markoa: Begin by assembling the main frame of the cabinet using the provided panels and hardware. Ensure all connections are secure.
- Instalatu apalategiak: Insert the fixed and adjustable shelves into their designated positions. The upper shelf is removable and can be adjusted to accommodate items of varying heights.
- Tiraderak muntatu: Follow the instructions to assemble the two central drawers and install their slides into the cabinet frame.
- Attach Glass Doors: Carefully attach the tempered glass doors. Ensure the push-to-open magnetic latches are correctly aligned for smooth operation.
- Install RGB Lighting: Adhere the RGB LED light strips to each layer of the cabinet as indicated in the assembly guide. Connect them to the control module and power adapter.
- Mount Human Body Sensor: Install the human body sensor module in its designated location, typically on the right control panel.
- Armairu segurua: For safety, attach the included anti-tip kit to the cabinet and a wall stud. This prevents accidental tipping.
- Azken egiaztapena: Verify that all screws are tightened, and the cabinet is stable.
Image: The Jocoevol C-1665 Display Cabinet fully assembled, showcasing its glass doors and overall structure.
Funtzionamendu-argibideak

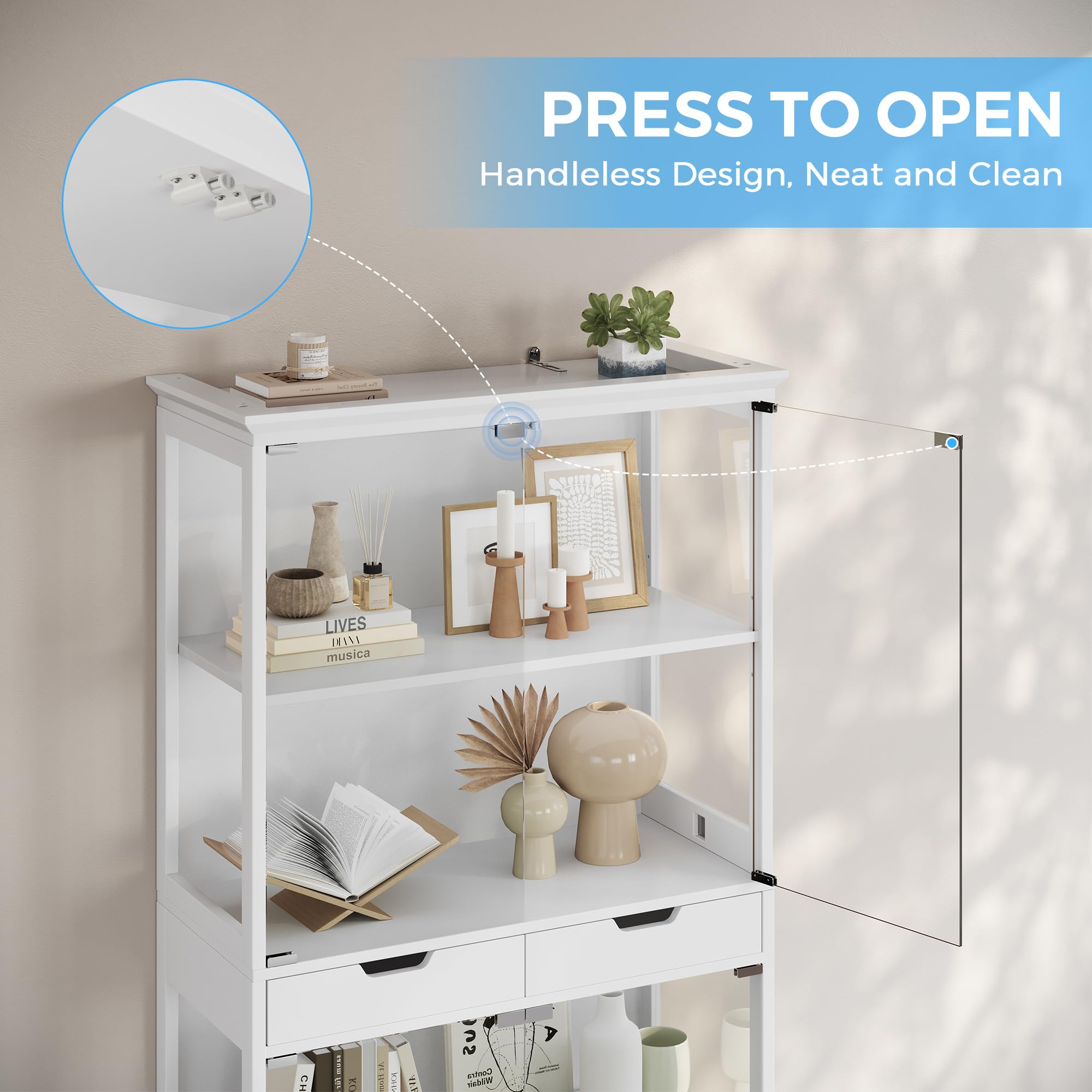

Push-to-Open Glass Doors
The cabinet features a handle-free push-to-open mechanism for its tempered glass doors. To open a door, gently press on the center of the door panel. The magnetic latch will release, allowing the door to swing open. To close, simply push the door shut until the magnetic latch engages.
RGB Lighting and App Control
The integrated RGB LED lighting system can be controlled via a mobile application using Bluetooth. Follow these steps:
- Piztu: Ensure the cabinet's power adapter is plugged into a wall outlet.
- Deskargatu aplikazioa: Scan the QR code provided in your physical manual or search for the recommended app (e.g., "Lotus Lantern" or similar, check physical manual) in your device's app store.
- Bluetooth bidez konektatu: Open the app and follow the on-screen instructions to connect to the cabinet's LED lighting system via Bluetooth.
- Kontrol-funtzioak:
- Kolore aukeraketa: Choose from 16 million colors.
- Distira doitzea: Argien intentsitatea egokitu.
- Argiztapen moduak: Select from various dynamic lighting effects.
- Musika sinkronizazioa: Utilize the built-in microphone feature to synchronize the lights with ambient music.
Note: The specific app name and detailed instructions for app usage will be found in the dedicated lighting control manual or quick start guide included with your product.
Smart Human Body Sensor
The cabinet is equipped with an intelligent human body sensing system that automatically activates the lights. To use this feature:
- Aktibatu sentsorea: Locate the function switch on the right control panel of the cabinet and turn it ON.
- Aktibazio automatikoa: When a person approaches within 2 to 3 meters (approximately 6.5 to 10 feet) of the cabinet, the lights will automatically turn on.
- Desaktibazio automatikoa: The lights will automatically turn off approximately one minute after the person walks away from the sensing range.
Note: Ensure the sensor is not obstructed for optimal performance.
Storage and Display Features
The Jocoevol C-1665 Display Cabinet is designed for versatile storage and display of your collectibles.
- Neurriak: The cabinet measures 31.5"L x 15.7"D x 68.3"H, providing ample space.
- Apalategiak: It features four spacious storage shelves behind tempered glass doors, keeping items dust-free.
- Tiraderak: Two practical drawers are located in the center for concealed storage of smaller items.
- Fenced Top: The top surface includes a fenced edge, offering additional secure space for display or storage.
- Apala erregulagarria: The upper removable shelf can be adjusted to accommodate items of different heights, providing flexibility for your display needs.
Mantentzea
Proper maintenance ensures the longevity and appearance of your display cabinet.
- Cleaning Glass: Use a soft, lint-free cloth and a non-abrasive glass cleaner to clean the tempered glass surfaces. Avoid harsh chemicals that may damage the glass or frame.
- Garbiketa-markoa: Wipe wooden or metal frame surfaces with a soft, damp oihal. Lehortu berehala.
- Hautsa botatzea: Aldian-aldian, garbitu gainazal guztiak zapi lehor eta leun batekin, zikinkeria pilatzea saihesteko.
- Hardwarearen egiaztapena: Aldian-aldian egiaztatu torloju eta konexio guztiak ondo estututa daudela ziurtatzeko. Beharrezkoa bada, berriro estutu.
- Eguzkiaren argia saihestu: Prolonged exposure to direct sunlight may cause fading or damage to the cabinet materials.
- Gehiegizko hezetasuna saihestu: Keep the cabinet away from areas with high humidity or direct water exposure.
Arazoak konpontzea
If you encounter issues with your Jocoevol C-1665 Display Cabinet, refer to the following common solutions:
| Arazoa | Kausa posiblea | Irtenbidea |
|---|---|---|
| Argiak ez dira pizten. | Power adapter unplugged, loose connection, app issue. | Check power connection. Ensure all LED strip connections are secure. Restart the control app and re-establish Bluetooth connection. |
| Human sensor not activating lights. | Sensor switch OFF, obstructed sensor, out of range. | Ensure the sensor function switch on the right panel is ON. Clear any obstructions in front of the sensor. Approach within 2-3 meters. |
| Glass door not opening/closing smoothly. | Misaligned magnetic latch, obstruction. | Check for any objects obstructing the door path. Inspect the magnetic latch for proper alignment and adjust if necessary. |
| Kabinetea ezegonkorra iruditzen da. | Uneven floor, loose hardware, anti-tip kit not installed. | Ensure the cabinet is on a level surface. Retighten all assembly hardware. Install the anti-tip kit securely to a wall stud. |
Zehaztapenak
| Marka | Jokoebol |
| Modelo zenbakia | C-1665 |
| Produktuaren neurriak (L x W x H) | 15.7" x 31.5" x 68.3" |
| Materiala | Tempered Glass, Wood (or similar frame material) |
| Kolorea | Zuria |
| Ezaugarri bereziak | APP Control RGB LED Light, Smart Human Sensor, Push-to-Open Glass Doors |
| Apalategi kopurua | 4 (plus fenced top) |
| Tiraderak | 2 |
| Muntaia Beharrezkoa | Bai |
| Elementuaren pisua | 111 kilo |
Bermea eta Laguntza
Jocoevol is committed to providing top-quality service. While specific warranty details are provided with your purchase documentation, if you have any questions, require assistance with assembly, or encounter any issues with your Jocoevol C-1665 Display Cabinet, please do not hesitate to contact our customer support team.
Please refer to the contact information provided in your product packaging or on the official Jocoevol webuneko laguntza-kanalen gunea.
