KOTLIE EM-308A Single Cup Coffee Maker Instruction Manual

1. Sarrera

This manual provides detailed instructions for the safe and efficient operation and maintenance of your KOTLIE EM-308A Single Cup Coffee Maker. This versatile machine is designed to brew a variety of coffee types, including espresso, Americano, cappuccino, and more, using multiple capsule adapters or ground coffee.

2. Konfigurazioa

2.1. Kutxa irekitzea eta hasierako kokapena

Carefully remove all components from the packaging. Place the coffee maker on a stable, flat, and heat-resistant surface near a power outlet. Ensure adequate ventilation around the unit.

2.2. Ur depositua betetzea

The KOTLIE EM-308A features a 1-liter (34 oz) removable water tank. Lift the water tank from the back of the machine. Fill it with fresh, clean water up to the 'MAX' line. Avoid overfilling. Reinsert the water tank securely into its position.

2.3. Egokigailuaren instalazioa

Your coffee maker comes with multiple adapters for various coffee types. Select the appropriate adapter for your desired coffee. The available adapters include:

• K-Cup Capsule Adapter
• Nespresso Original Capsule Adapter
• Dolce Gusto kapsula egokitzailea
• Powdered Coffee Combo Adapter (includes powdered coffee filter + ESE 44mm filter)

To install, open the lever on the top of the machine, insert the chosen adapter into the brewing chamber, and close the lever firmly. Ensure the adapter is correctly seated.

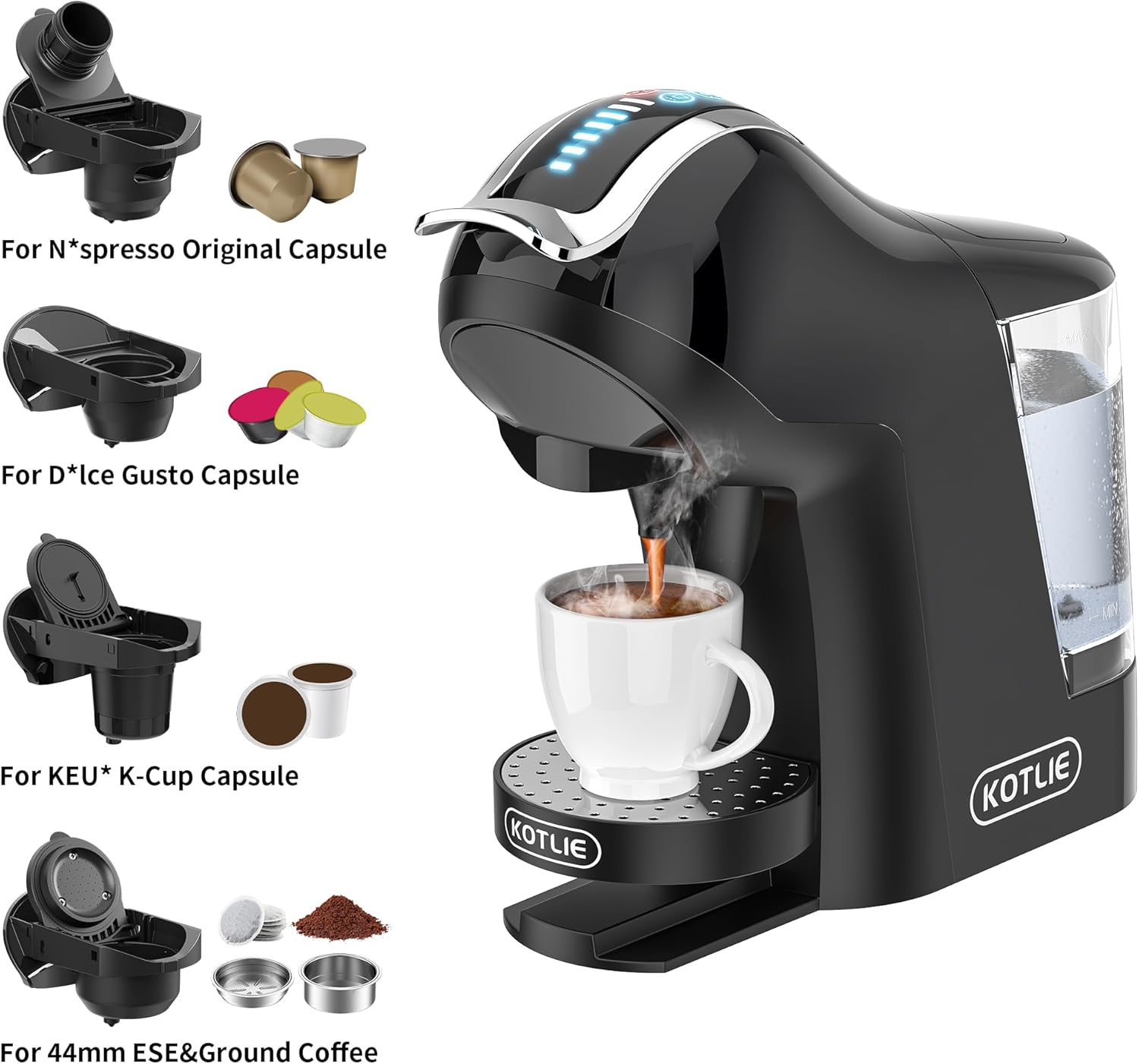

Image: KOTLIE Single Cup Coffee Maker with multiple capsule adapters for Nespresso Original, Dolce Gusto, K-Cup, and 44mm ESE/Ground Coffee.

For a visual guide on setup and adapter usage, please refer to the video below.

3. Funtzionamendu-argibideak

3.1. Power On and Preheating

Plug the machine into a suitable power outlet. Press the power button (usually indicated by a universal power symbol) on the control panel. The machine will begin preheating, indicated by flashing lights. Wait until the lights stabilize, indicating the machine is ready for brewing.

3.2. Selecting Coffee Type and Pre-Soak Function

After inserting your chosen capsule or ground coffee adapter, you can select additional brewing options. The control panel features a coffee bean icon for the pre-soak function. Pressing this button can enhance the flavor and intensity of your brew by pre-wetting the coffee grounds.

3.3. Adjusting Temperature Settings

The KOTLIE EM-308A offers 4 temperature settings to suit your preference:

• Argi urdina: Ambient/Cold coffee (ideal for iced coffee when adding ice to your cup).
• Argi berdea: Medium-low temperature.
• Argi horia: Medium-high temperature.
• Argi gorria: High temperature (recommended for espressos and hot coffee).

Select your desired temperature by pressing the temperature button on the control panel.

Image: KOTLIE coffee maker control panel showing power, pre-soak, temperature, and brew buttons, along with indicators for cold, medium-low, medium-high, and high temperature settings.

3.4. Adjusting Water Volume

Customize your coffee strength with 7 water volume settings. Use the sliding touch buttons on the control panel to select the desired water level. Each level corresponds to approximately 1 to 1.5 ounces, depending on the grind, pressure, and temperature.

Image: Diagram showing how to adjust water volume on the KOTLIE coffee maker and a table detailing recommended water levels for various coffee types.

3.5. Kafea prestatzea

Once the water tank is filled, the adapter is installed, and temperature/volume settings are selected, place your cup under the spout. Press the brew button (usually indicated by a coffee cup icon) to start brewing. The machine will automatically stop once the selected volume is dispensed.

3.6. Specialty Drinks

The KOTLIE EM-308A supports various specialty drinks:

• Kafe izoztua: Select the blue light (ambient/cold) temperature setting. Brew directly over a cup filled with ice cubes.
• Lattes & Cappuccinos: For milk-based drinks, use Dolce Gusto milk capsules or separately froth milk. Brew your espresso shot, then combine with frothed milk.

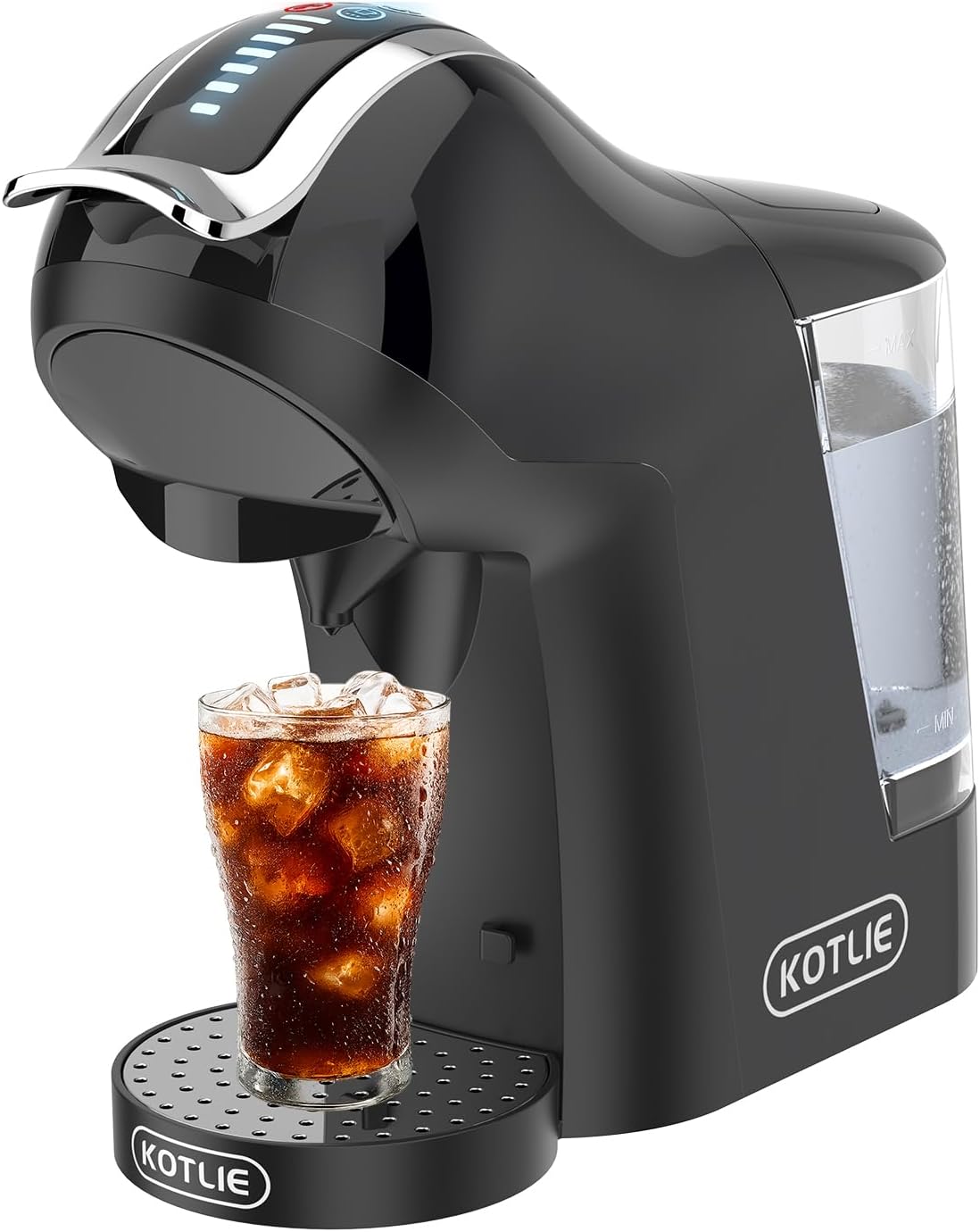

Image: KOTLIE Single Cup Coffee Maker in glossy black, brewing iced coffee into a glass.

Image: Diagram illustrating how to make a latte or cappuccino using milk capsules and coffee capsules with the KOTLIE coffee maker.

4. Mantentzea

4.1. Garbiketa

Regular cleaning ensures optimal performance and taste. The removable drip tray and water tank allow for effortless disassembly and cleaning. All removable parts should be hand-washed with mild soap and warm water. The main unit can be wiped clean with a damp cloth. The machine is ez ontzi-garbigailuan seguru.

4.2. Deskalifikazioa

Over time, mineral deposits can build up inside the machine. The KOTLIE EM-308A will alert you when descaling is necessary. Follow the descaling instructions provided in the full product manual or on the manufacturer's website to remove calcium buildup and maintain machine efficiency.

5. Arazoak

If the machine is not brewing, check if the water tank is filled and properly seated. Ensure the correct adapter is inserted and the lever is fully closed. If an 'Add Water' indicator is lit, refill the water tank. For persistent issues, consult the full product manual or contact customer support.

6. Zehaztapenak

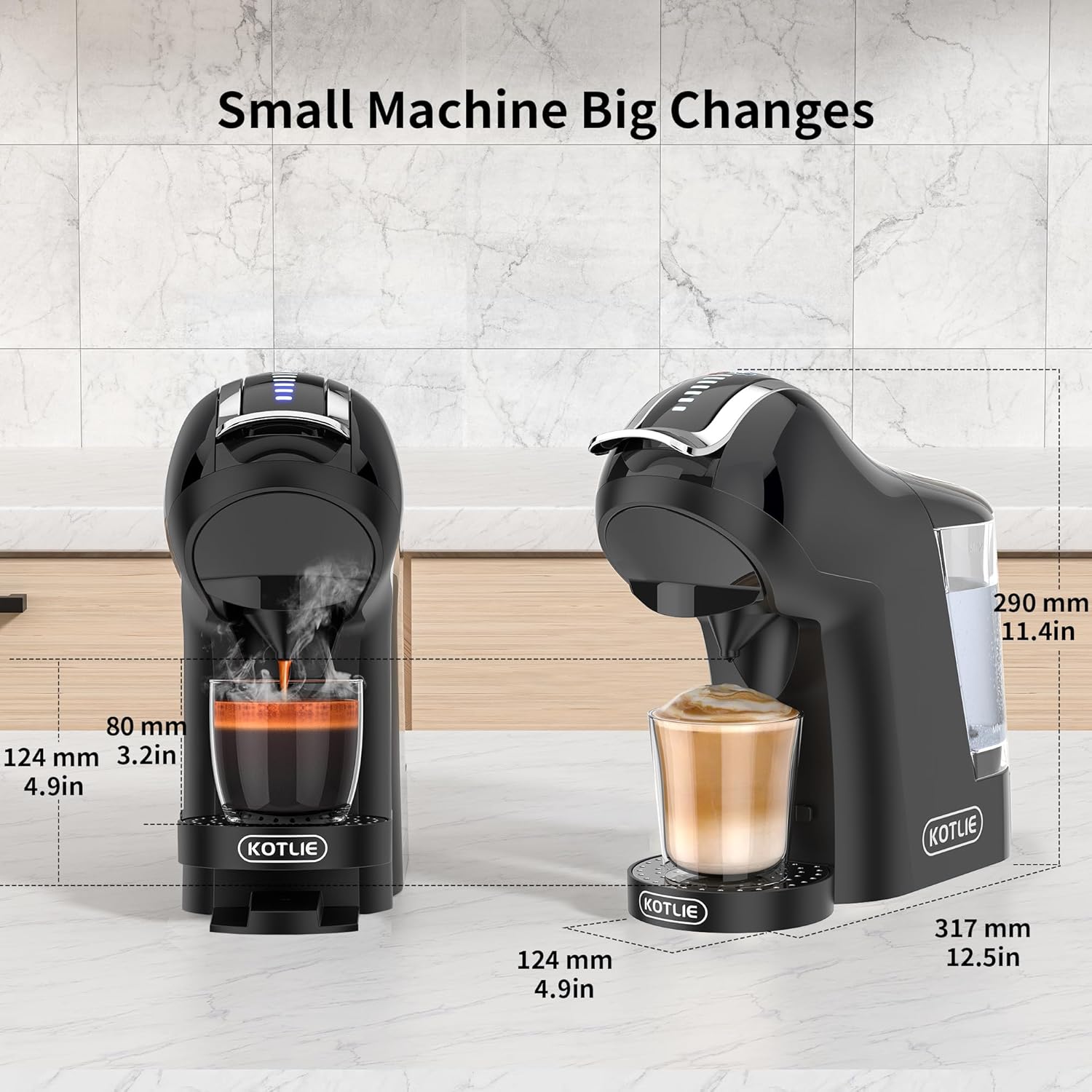

Image: KOTLIE coffee maker shown with dimensions, emphasizing its compact size and ability to accommodate different cup heights.

7. Bermea eta Laguntza

For warranty information, product registration, or customer support, please refer to the official KOTLIE webwebgunera edo jarri harremanetan bezeroarentzako arreta-zerbitzuarekin. Gorde erosketa-agiria berme-erreklamazioetarako.
