Mars Gaming MC-3TCORELCD ATX Gaming Case User Manual

1. Produktua amaitu daview

The Mars Gaming MC-3TCORELCD is an ATX gaming case designed for PC enthusiasts. It features an integrated 7.2-inch IPS screen, triple removable tempered glass panels, and a dual-chamber structure for efficient cable management and optimized airflow. This manual provides instructions for assembly, operation, and maintenance of the MC-3TCORELCD case.

Figure 1: Mars Gaming MC-3TCORELCD ATX Gaming Case.

2. Konfigurazioa eta instalazioa

This section details the steps for installing your components into the MC-3TCORELCD case.

2.1 Kasua prestatzea

1. Kendu alboko panelak: The MC-3TCORELCD features triple tempered glass panels that are removable without screws. Carefully detach the front, side, and central panels to access the interior.
2. Osagarrien kit: Locate the accessory kit containing screws, cable ties, and other mounting hardware.

2. irudia: Panoramika view with removable triple tempered glass for easy access.

2.2 Plaka amaierako instalazioa

The case supports ATX, MicroATX, and Mini-ITX motherboards, including those with inverted connectors.

1. Instalatu Standoffs: Ensure the correct standoffs are installed for your motherboard form factor.
2. Muntatu plaka basea: Carefully place the motherboard onto the standoffs and secure it with the provided screws.

2.3 Diskoaren instalazioa

The case provides internal bays for storage devices.

• 3.5 hazbeteko disko gogorra: Up to 2x 3.5" HDDs can be installed.
• 2.5 hazbeteko SSDa: Up to 3x 2.5" SSDs can be installed.

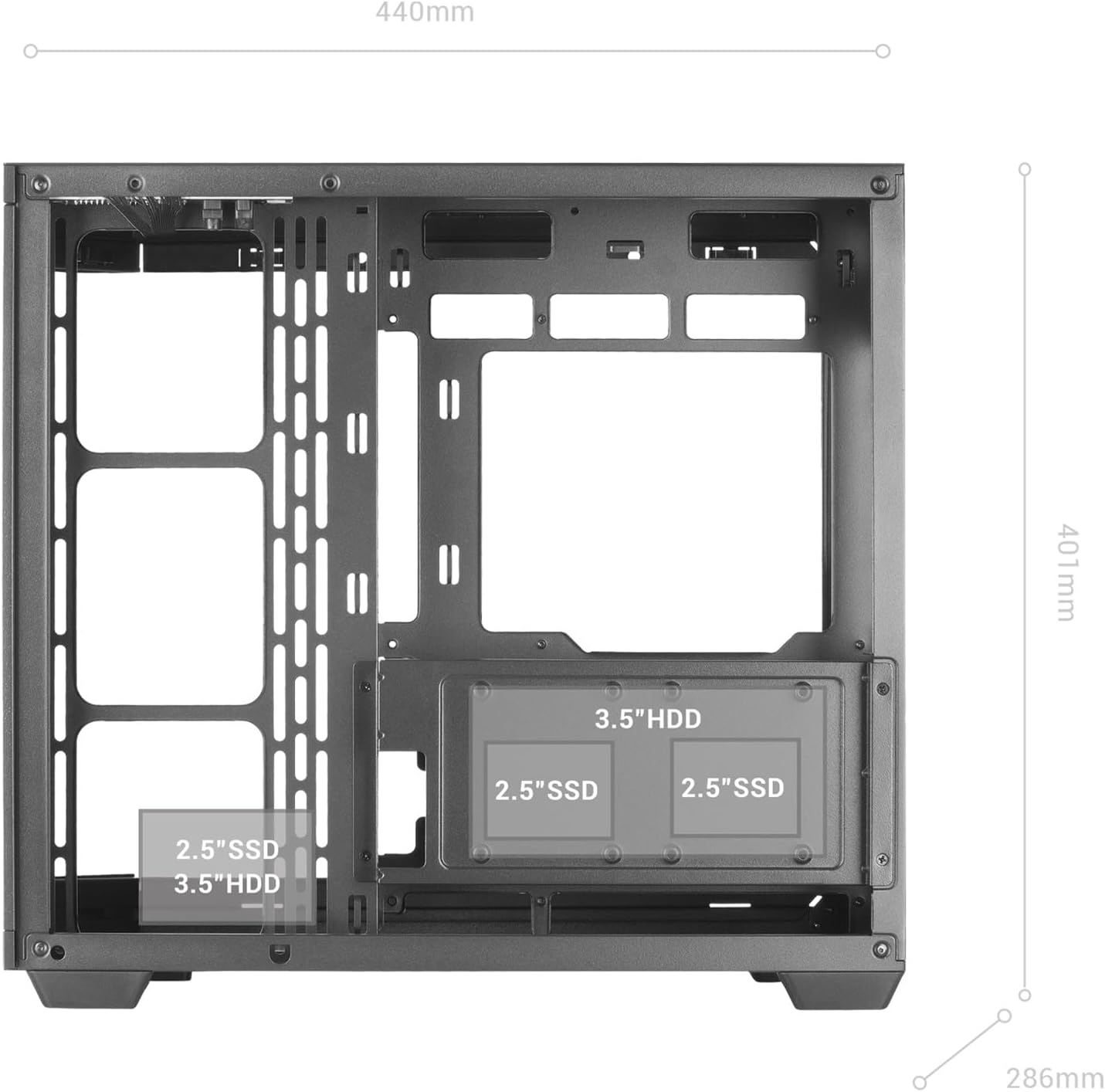

Figure 3: Internal layout indicating drive bay positions.

2.4 Power Supply and Cable Management

The dual-chamber design facilitates clean cable routing.

1. Instalatu elikadura iturria: Mount your ATX power supply in the designated bottom-mount area.
2. Ibilbide kableak: Utilize the dual-chamber structure to route cables behind the motherboard tray, minimizing clutter and improving airflow.

Figure 4: Double side chamber for efficient cable management.

2.5 Hozte-sistemaren instalazioa

The case supports extensive air and liquid cooling solutions.

• Zaleak: Install up to 10x 120mm fans or a combination of 7x 120mm and 2x 140mm fans.
• Hozte likidoa: Supports liquid cooling radiators up to 360mm.

Figure 5: Liquid cooling and fan installation options.

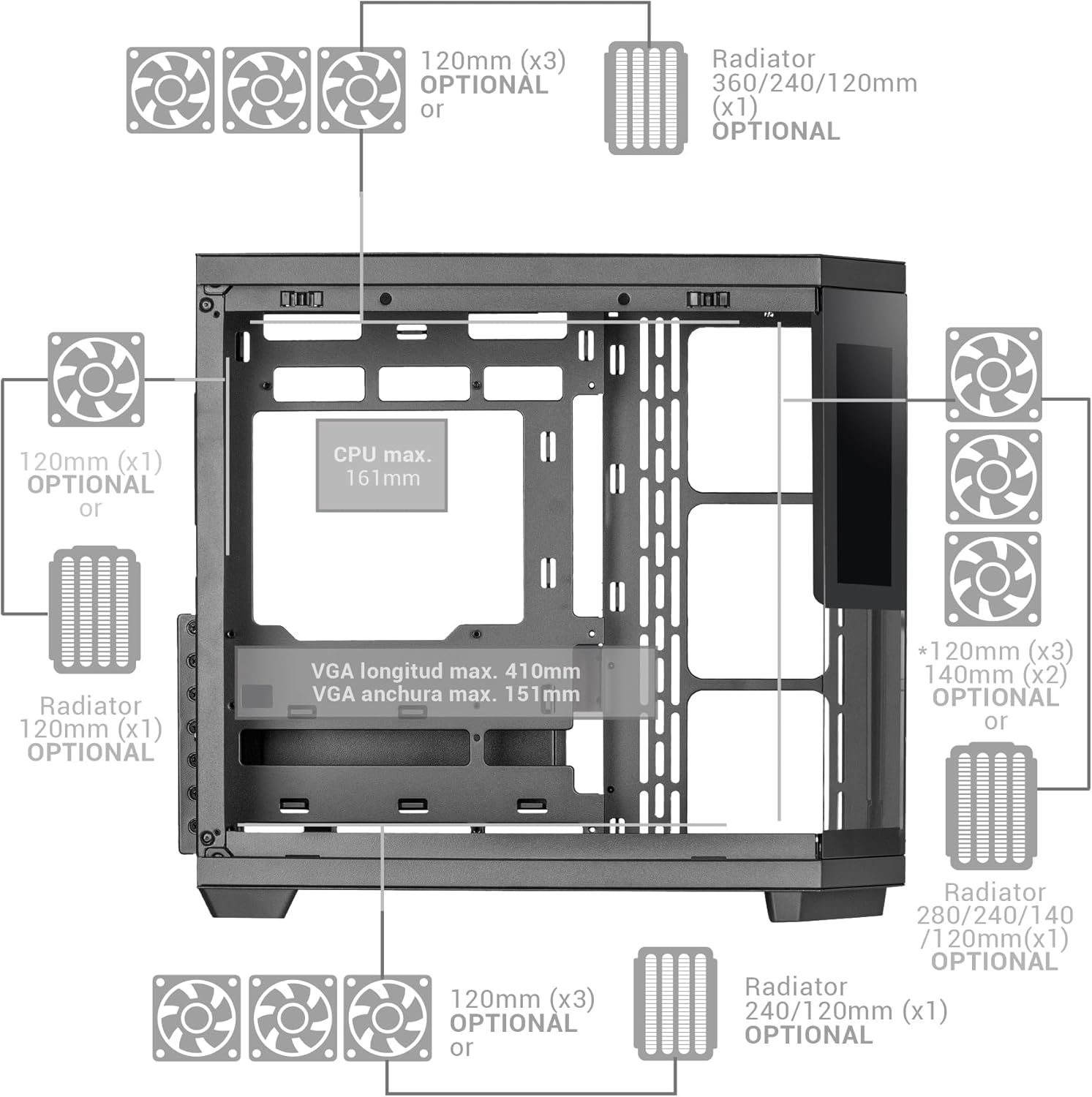

Figure 6: Detailed fan and radiator compatibility diagram.

2.6 Top Panel Connectivity

Connect the front panel headers from your motherboard to the corresponding ports on the case's top panel.

• USB-C ataka
• USB 3.0 ataka
• USB 2.0 ataka
• HD Audio + Microphone Jacks

Figure 7: Top panel connectivity ports.

3. Operating the IPS Screen

The integrated 7.2-inch IPS screen allows for real-time system monitoring and custom visual displays.

1. Softwarearen instalazioa: Install the dedicated control software for the IPS screen (refer to the manufacturer's website for download).
2. Konektibitatea: Ensure the screen is properly connected to your motherboard or graphics card as per the installation guide.
3. Pertsonalizazioa: Use the software to display system telemetry (temperatures, usage), custom images, animations, or videos.

Figure 8: Customizable 7.2-inch IPS screen in operation.

4. Mantentzea

Mantentze-lan erregularrak zure ordenagailuaren kaxaren errendimendu optimoa eta iraupena bermatzen ditu.

• Hauts-iragazkiak: The case includes two magnetic dust filters. Regularly remove and clean these filters to prevent dust buildup and maintain efficient airflow.
• Barruko garbiketa: With the removable tempered glass panels, the interior is easily accessible for cleaning. Use compressed air to remove dust from components and a soft, dry cloth for surfaces.
• Beirazko panelak: Clean tempered glass panels with a microfiber cloth and a glass cleaner suitable for electronics.

5. Arazoak

Atal honek aurki ditzakezun arazo ohikoenei heltzen die.

• Aire-fluxu eskasa: Ensure all fan positions are utilized effectively and dust filters are clean. Verify that cables are managed to not obstruct airflow.
• IPS Screen Not Displaying: Check all cable connections to the motherboard/graphics card. Ensure the control software is installed and running correctly. Consult the software's troubleshooting guide.
• Osagaien egokitzapen arazoak: Refer to the specifications for maximum component dimensions (GPU length, CPU cooler height). Ensure components are correctly seated and secured.

6. Zehaztapenak

7. Bermearen informazioa

Produktu hau a 3 urteko fabrikatzailearen bermea. Please retain your proof of purchase for warranty claims. For detailed terms and conditions, refer to the official Mars Gaming webwebgunean edo jarri harremanetan bezeroarentzako laguntzarekin.

8. Laguntza

For further assistance, technical support, or to download the latest drivers and software for the IPS screen, please visit the official Mars Gaming webgunea:

www.marsgaming.eu

You may also contact Mars Gaming customer service through the contact information provided on their webgunea.
