Sarrera
This manual provides detailed instructions for the installation, operation, and maintenance of your PNI AGD1200 Garage Door Opener Automation Kit. Please read this manual thoroughly before beginning installation or operation to ensure safe and correct use of the product. This kit is designed for automating sectional garage doors up to 17 square meters.
Paketearen edukia
Egiaztatu behean zerrendatutako osagai guztiak zure paketean daudela:
- Unitate Motorra
- Urrutiko aginteak (2 unitate)
- Rail Sections (3 x 110 cm)
- Rail Connection Pieces (2 units)
- Muntatzeko Osagarriak
- Erabiltzailearen eskuliburua (dokumentu hau)
Image: Included mounting accessories for installation.
Image: Rail sections and chain mechanism.
Segurtasun Informazioa
Always observe the following safety precautions to prevent injury or damage to the product and property:
- Irakurri arretaz argibide guztiak instalatu eta erabili aurretik.
- Irekitzailea instalatu aurretik, ziurtatu garaje atea orekatuta eta funtzionamendu egoera onean dagoela.
- Mantentze-lan edo konponketarik egin aurretik, deskonektatu garaje-atearen irekigailuaren korrontea.
- Mantendu haurrak eta maskotak garaje atearen eremutik urrun, batez ere martxan dagoen bitartean.
- Do not allow children to play with the remote controls.
- Install the wall control button at least 1.5 meters (5 feet) above the floor and away from all moving parts of the door.
- Ez ibili edo egon inoiz mugitzen ari den garaje ate baten azpian.
- Ensure the safety reversal system is tested monthly.
- Erabili jatorrizko ordezko piezak eta osagarriak soilik.
Zehaztapenak
| Ezaugarri | Zehaztapena |
|---|---|
| Produktuaren Kodea | PNI-AGD1200 |
| Energia hornidura boltage | 230 V AC 50/60 Hz |
| Motor Force (Closing/Opening) | 1200 N |
| Urruneko kontrolaren maiztasuna | 433 MHz |
| Urruneko Kontrol Potentzia | 27A 12V bateria |
| Signal Encoding | Kode dinamikoa |
| LED Argia | 3 V 0.045 W |
| LED Illumination Duration | 3 minutu |
| Funtzionamendu-tenperatura | -26 ~ 80 °C |
| Product Dimensions (Motor Unit) | 21 x 11 x 37 cm |
| Produktuaren pisua | 13.7 kg |
| Materiala | Metala |
| Recommended Door Type | Sectional Garage Doors up to 17m² |
Konfigurazioa eta Instalazioa
Instalazioaren aurreko egiaztapenak
- Ensure the garage door operates smoothly manually and is properly balanced.
- Check for any obstructions in the door's path.
- Verify that the power outlet is within reach and meets the specified voltage eskakizunak.
Assembling the Rail
- Connect the three rail sections using the provided rail connection pieces. Ensure the chain is correctly threaded through the entire rail assembly.
- Secure all connections firmly with the appropriate hardware.
Image: Rail mounting brackets.
Motor Unitatea muntatzea
- Attach the assembled rail to the motor unit.
- Position the motor unit centrally above the garage door, ensuring it is level.
- Secure the motor unit to the ceiling joists or a sturdy mounting board using the provided mounting accessories.
- Connect the other end of the rail to the garage door header bracket.
Irudia: Aurrealdea view unitate motorra.

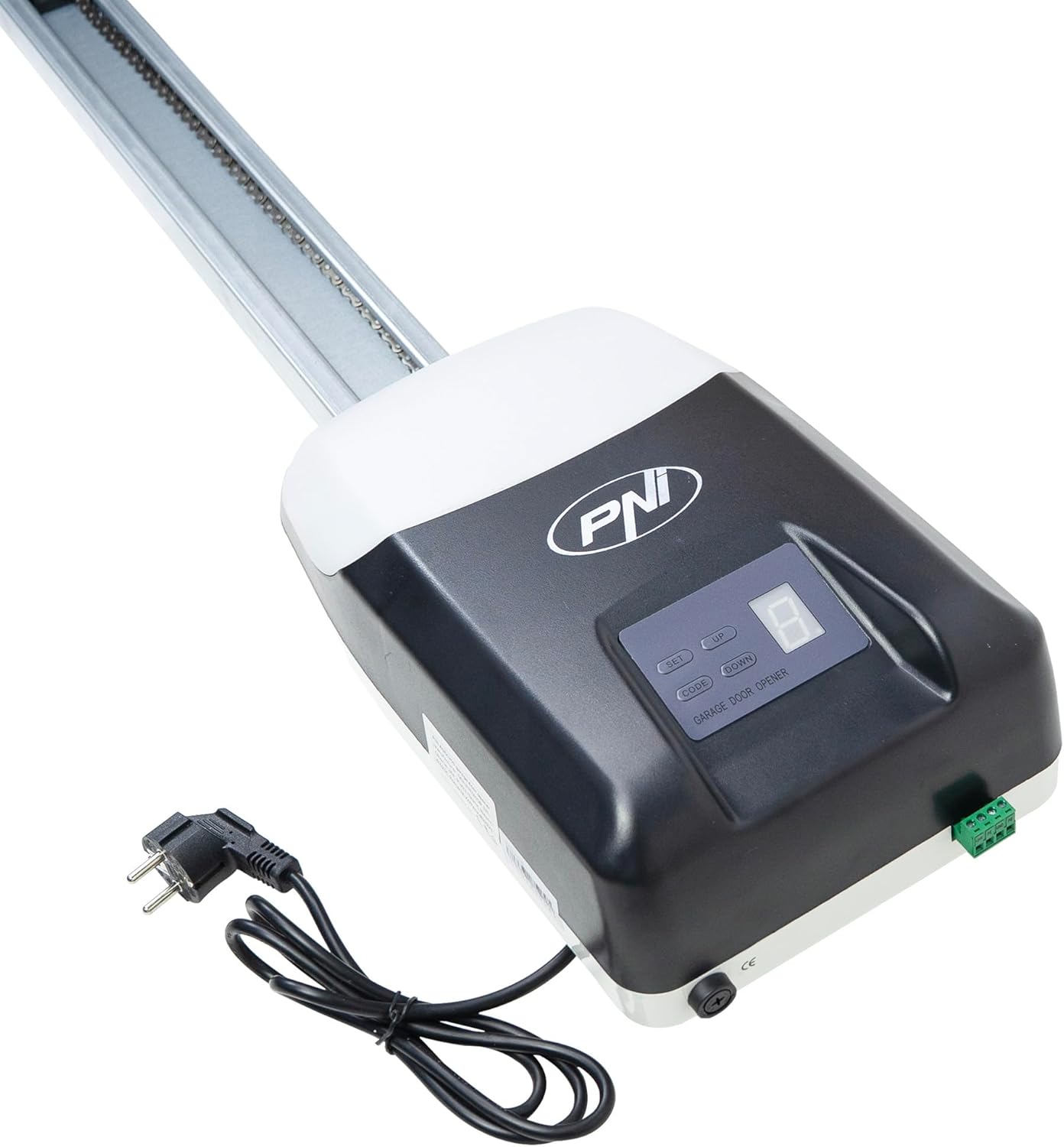

Image: Motor unit with rail and power cable.

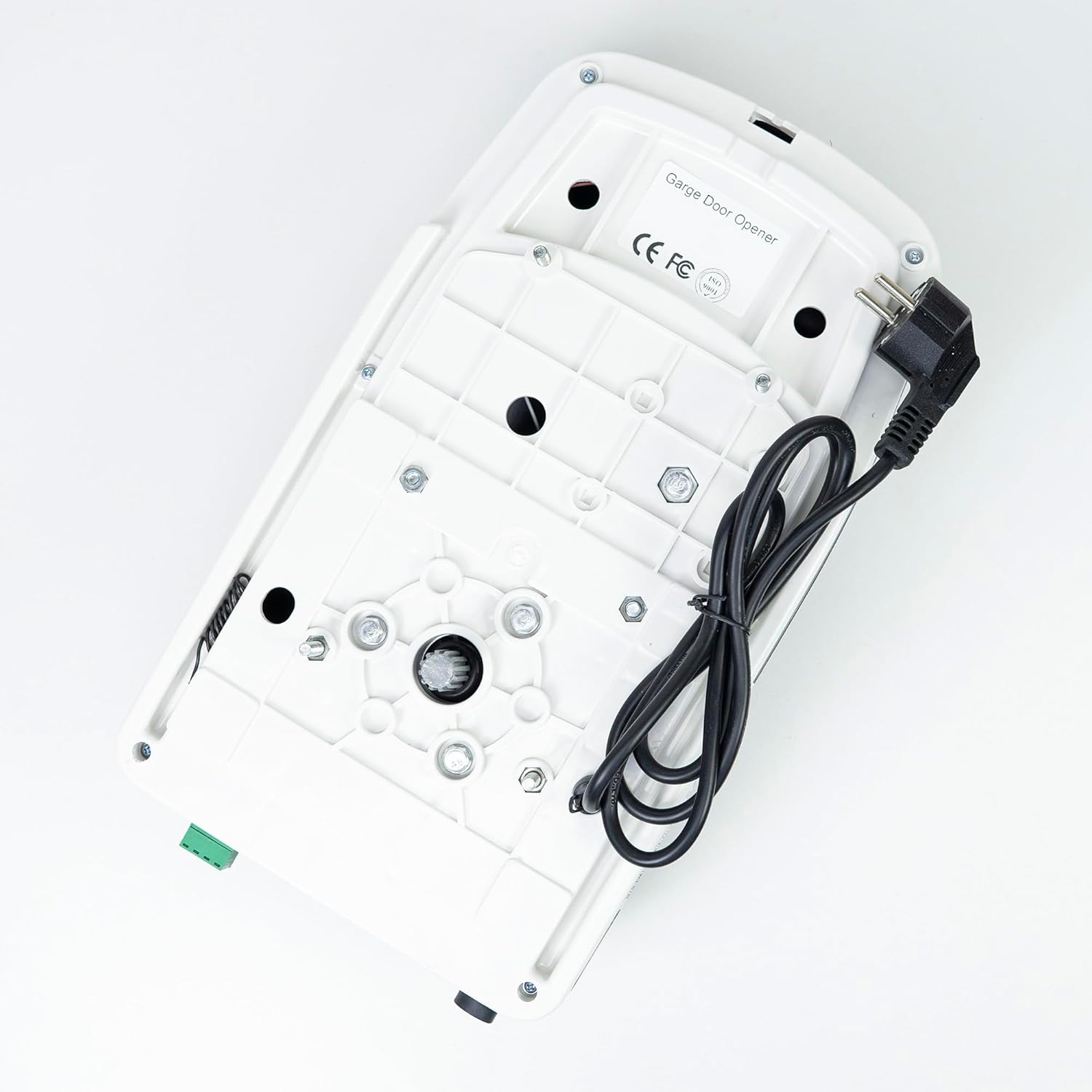

Irudia: Behealdea view of the motor unit, showing mounting points.
Konexio elektrikoa
Once the motor unit and rail are securely mounted, plug the power cord into a grounded 230V AC outlet. Ensure the power cord is routed safely and not pinched by any moving parts.
Funtzionamendu-argibideak
Urruneko kontrola parekatzea
- Press and hold the 'CODE' button on the motor unit's control panel until the LED display shows 'P'.
- Within 30 seconds, press the desired button on your remote control. The LED display will flash to confirm successful pairing.
- Repeat for any additional remote controls.
Image: Motor unit with two remote controls.

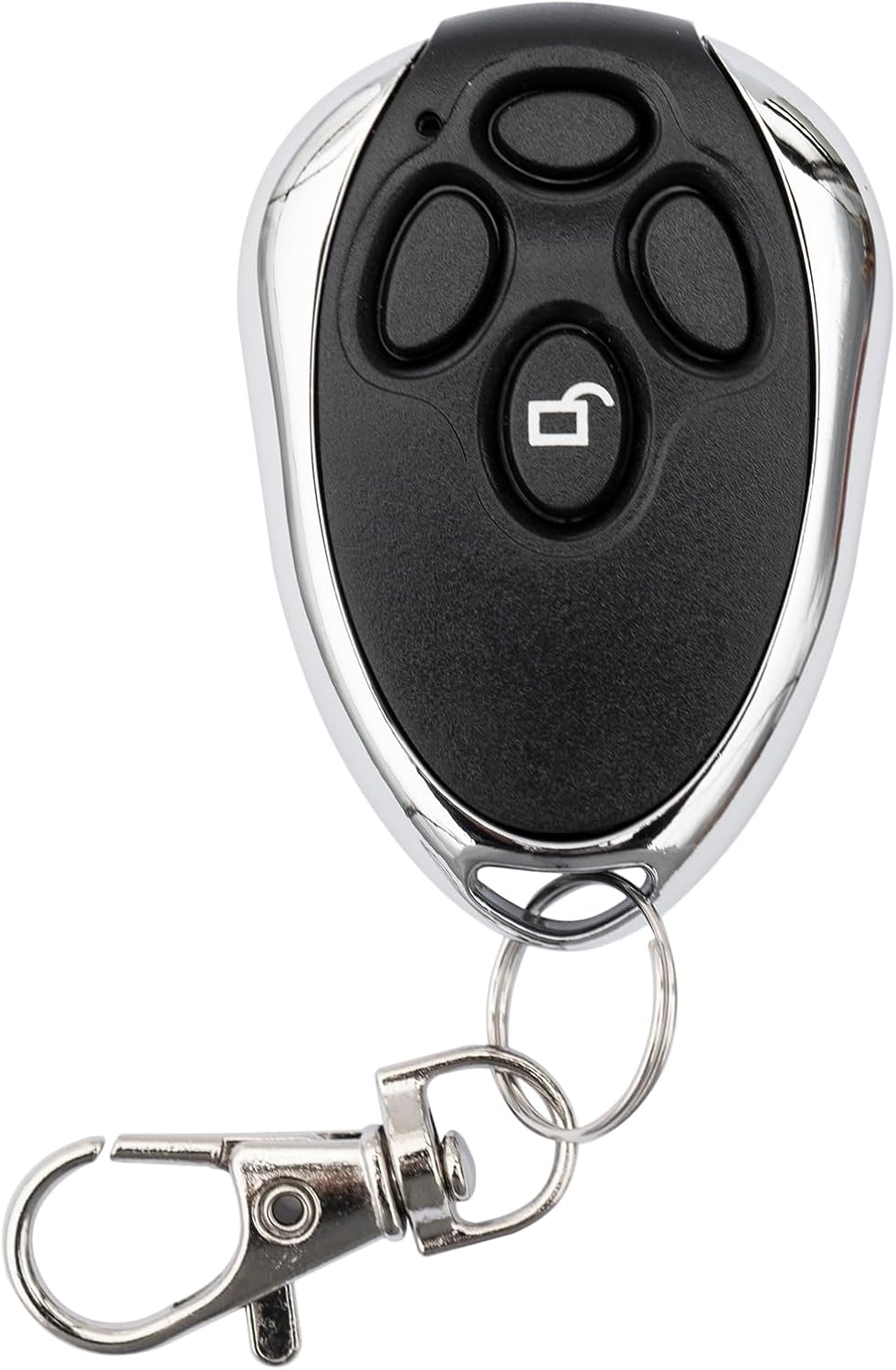

Image: Remote control for the garage door opener.
Oinarrizko Funtzionamendua
- Ate Irekia: Press the programmed button on the remote control or the 'UP' button on the control panel.
- Itxi atea: Press the programmed button on the remote control or the 'DOWN' button on the control panel.
- Stop Door: Press any button on the remote control or the 'SET' button on the control panel while the door is in motion.
Mugak doitzea
The opener automatically learns the door's travel limits during initial setup. If adjustments are needed:
- Press and hold the 'SET' button until the LED display shows '1' for the open limit or '2' for the close limit.
- Use the 'UP' and 'DOWN' buttons to move the door to the desired open or close position.
- Press 'SET' again to confirm the new limit.
Mantentzea
Regular maintenance ensures optimal performance and longevity of your garage door opener:
- Hilero: Test the safety reversal system. Place a 2x4 inch board flat on the floor in the door's path. The door should reverse upon contact. If it does not, adjust the force settings or consult a technician.
- Hiruhileko: Lubricate the door's moving parts (rollers, hinges, bearings) with a garage door lubricant. Do not lubricate the rail or chain unless specifically instructed.
- Urtero: Inspect all hardware for loose bolts, worn parts, or signs of damage. Tighten any loose fasteners.
- Keep the motor unit and rail clean from dust and debris.
Arazoak konpontzea
Ikusi beheko taula arazo ohikoenak eta haien irtenbide posibleak ikusteko:
| Arazoa | Kausa posiblea | Irtenbidea |
|---|---|---|
| Irekigailuak ez du erantzuten urrutiko aginteari. | Remote battery is dead; remote is not paired; signal interference. | Replace remote battery; re-pair remote control; check for sources of interference. |
| Door does not open or close completely. | Bidaia-mugak doitu behar dira; oztopoa dago atearen bidean. | Adjust travel limits as per instructions; remove any obstructions. |
| Atea ustekabean alderantzikatzen da. | Safety reversal system activated by obstruction; force settings too high/low. | Check for obstructions; test safety reversal system; adjust force settings if necessary (consult manual for specific steps). |
| Motor runs but door does not move. | Trolley disengaged from door; chain/belt broken or loose. | Re-engage trolley; inspect chain/belt for damage or tension. |
| LED argia ez da pizten. | LED bulb faulty; power issue. | Check power connection; if problem persists, contact support. |
Bermea eta Laguntza
Your PNI AGD1200 Garage Door Opener Automation Kit is covered by a manufacturer's warranty against defects in materials and workmanship. Please retain your proof of purchase for warranty claims.
For technical assistance, troubleshooting beyond this manual, or warranty service, please contact PNI customer support through their official website or the retailer where the product was purchased. Provide your model number (AGD1200) and a detailed description of the issue when seeking support.
