VEVOR Commercial Ice Maker Machine (Model B0FWJHSTD9) - User Manual

1. Segurtasun-argibideak

Please read all safety instructions carefully before operating the VEVOR Commercial Ice Maker Machine to ensure safe and efficient use. Keep this manual for future reference.

• Segurtasun elektrikoa: Ziurtatu gailua behar bezala lurrera konektatutako entxufe batera konektatuta dagoela, bolumen egokia duena.tage (110 Volts). Do not operate with a damaged power cord or plug.
• Ur-konexioa: Use only potable water. Ensure all water connections are secure to prevent leaks.
• Aireztapena: Maintain adequate clearance around the unit for proper ventilation. Do not block air vents.
• Lekua: Place the ice maker on a stable, level surface. Avoid direct sunlight or heat sources.
• Hozgarria: This appliance uses R290a refrigerant. Servicing should only be performed by qualified personnel.
• Garbiketa: Deskonektatu beti unitatea garbiketa edo mantentze-lanak egin aurretik.

2. Produktua amaitu daview

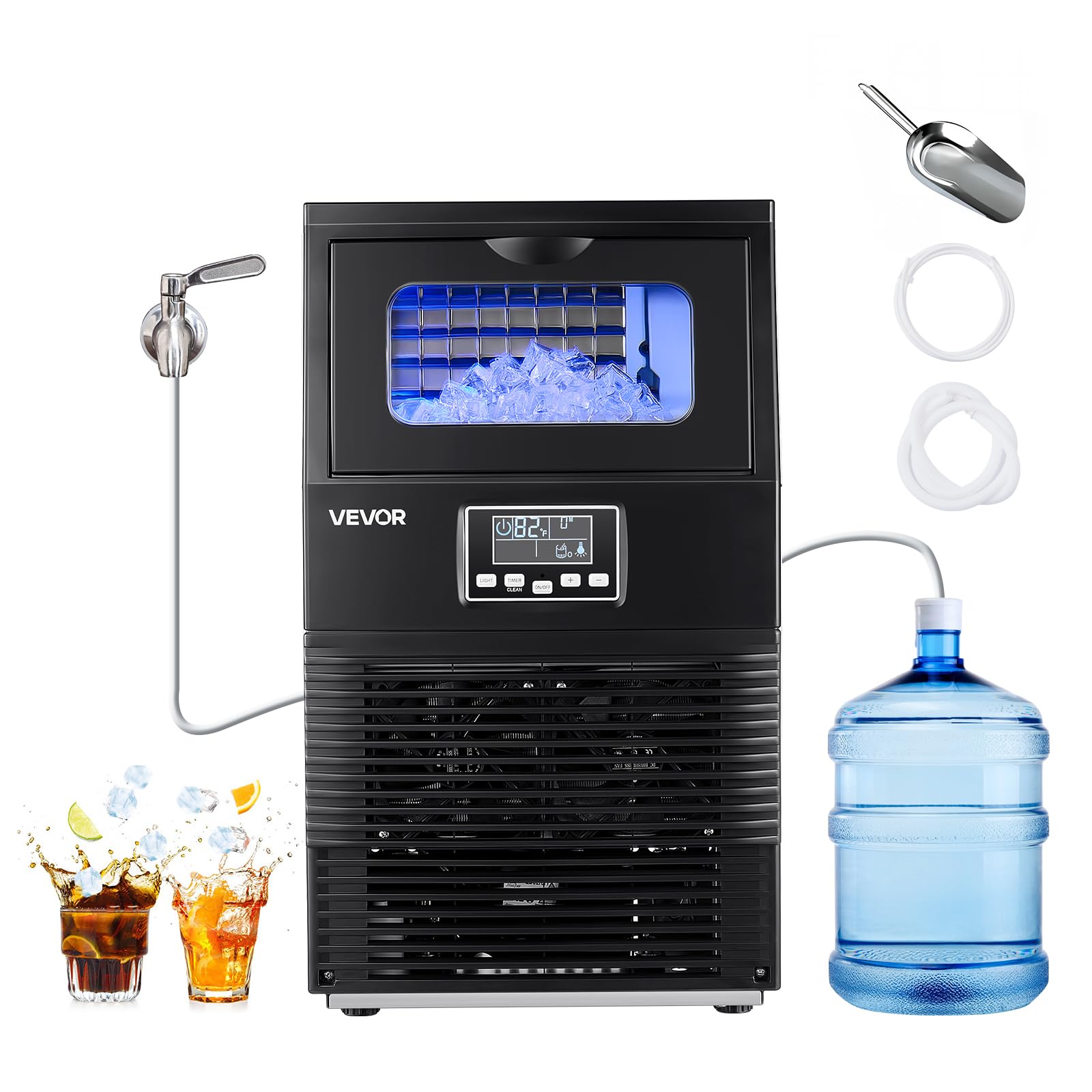

The VEVOR Commercial Ice Maker Machine is designed for efficient ice production, capable of producing up to 90 lbs of ice per day with a 12 lbs storage capacity. It features a stainless steel construction, LED digital display, and a self-cleaning function, making it suitable for home, bar, or light commercial use.

3. Dakarten osagaiak

Desontziratzean, ziurtatu osagai guztiak daudela:

• 1 x VEVOR Commercial Ice Maker Machine
• 1 x Water Inlet Hose (for direct tap water connection)
• 1 x Water Outlet Hose (drainage)
• 1 x Medium Stainless Steel Ice Scoop
• 1 x Erabiltzailearen eskuliburua

4. Konfigurazioa

4.1 Desontziratzea eta kokatzea

Carefully remove the ice maker from its packaging. Place the unit in a location with sufficient ventilation, ensuring the rear vents are not obstructed. The unit can be used freestanding or as a countertop appliance.

4.2 Ur-konexioa

This ice maker supports two water inlet modes:

1. Txorrotako uraren konexio zuzena: Connect the provided water inlet hose to a potable water supply with appropriate pressure.
2. Bottled Water Pump: For areas without direct water access, use the internal pump to draw water from an external bottled water source. Activate this mode via the control panel.

4.3 Drainatze-konexioa

Connect the water outlet hose to a suitable drain. Ensure the drain pipe is positioned completely below the ice maker's drainage outlet for optimal performance and to prevent water backup.

4.4 Hasierako garbiketa

Before first use, it is recommended to run a cleaning cycle. Refer to the 'Maintenance' section for instructions on activating the self-cleaning function.

5. Funtzionamendu-argibideak

5.1 Kontrol-panela

The ice maker features an intuitive LED digital display and control buttons:

• ON/OFF: Unitatea pizten edo itzaltzen du.
• ARGIA: Activates or deactivates the blue interior lighting.
• TEMPORIZATORIA/GARBITU: Initiates the self-cleaning cycle (long press) or sets a timer for operation.
• +/- Botoiak: Adjusts ice cube thickness or timer settings.

5.2 Izotza egiteko prozesua

Once powered on and water is supplied, the machine will begin the ice-making process. It produces 32 cubes per cycle. You can adjust the ice cube thickness using the +/- buttons on the control panel.

• Izotz mehea: Ideal for quick chilling of beverages.
• Izotz lodia: Suitable for longer-lasting cooling or specific drink preparations.

5.3 Blue Interior Lighting

The ice maker features a blue interior light that can be turned on or off using the 'LIGHT' button. This allows you to monitor the ice-making process and ice levels without opening the lid.

6. Mantentzea

6.1 Auto-garbiketa funtzioa

The ice maker is equipped with a one-touch self-cleaning function:

1. Ensure the unit is connected to a water supply and the drain hose is properly installed.
2. Press and hold the 'TIMER/CLEAN' button for 3 seconds to activate the 20-minute automatic rinse cycle.
3. The display will indicate the cleaning process. Once complete, the unit will return to standby mode.

6.2 Ohiko garbiketa

Regular cleaning is recommended based on usage to maintain hygiene and performance. This includes wiping down interior surfaces and ensuring the water filter in the inlet pipe is clean.

6.3 Draining the Water

To completely drain the water reservoir, unplug the unit and remove the drain plug located at the bottom rear of the machine. Ensure a container is placed to collect the water.

7. Arazoak

If you encounter issues with your VEVOR Commercial Ice Maker Machine, refer to the following common troubleshooting tips:

• Ez da izotz ekoizpenik: Check water supply connection, ensure the unit is powered on, and verify no error codes are displayed on the LED panel. Ensure proper ventilation.
• Ur-ihesak: Inspect all water inlet and outlet hose connections for tightness. Ensure the drain hose is correctly positioned and not blocked.
• Ezohiko zarata: Verify the unit is on a level surface. Check for any obstructions in the fan or ice-making components.
• Ice Not Forming Properly: Ensure the ambient temperature is within the recommended operating range (50°F to 100.4°F / 10°C to 38°C). Check water quality and consider running a cleaning cycle.

Arazo iraunkorren kasuan, jarri harremanetan VEVOR bezeroarentzako arreta-zerbitzuarekin.

8. Zehaztapenak

9. Bermea eta Laguntza

For technical support, warranty information, or any inquiries regarding your VEVOR Commercial Ice Maker Machine, please visit the official VEVOR Support Center at www.vevor.com/support.
