Okin Overbed Bedside Table with Wheels

1. Sarrera

This manual provides instructions for the assembly, operation, and maintenance of your Okin Overbed Bedside Table with Wheels, Model OKPM50502716WAS. This versatile table is designed for various uses, including reading, writing, eating, or using a laptop, and features adjustable height and a tilting desktop for ergonomic comfort.

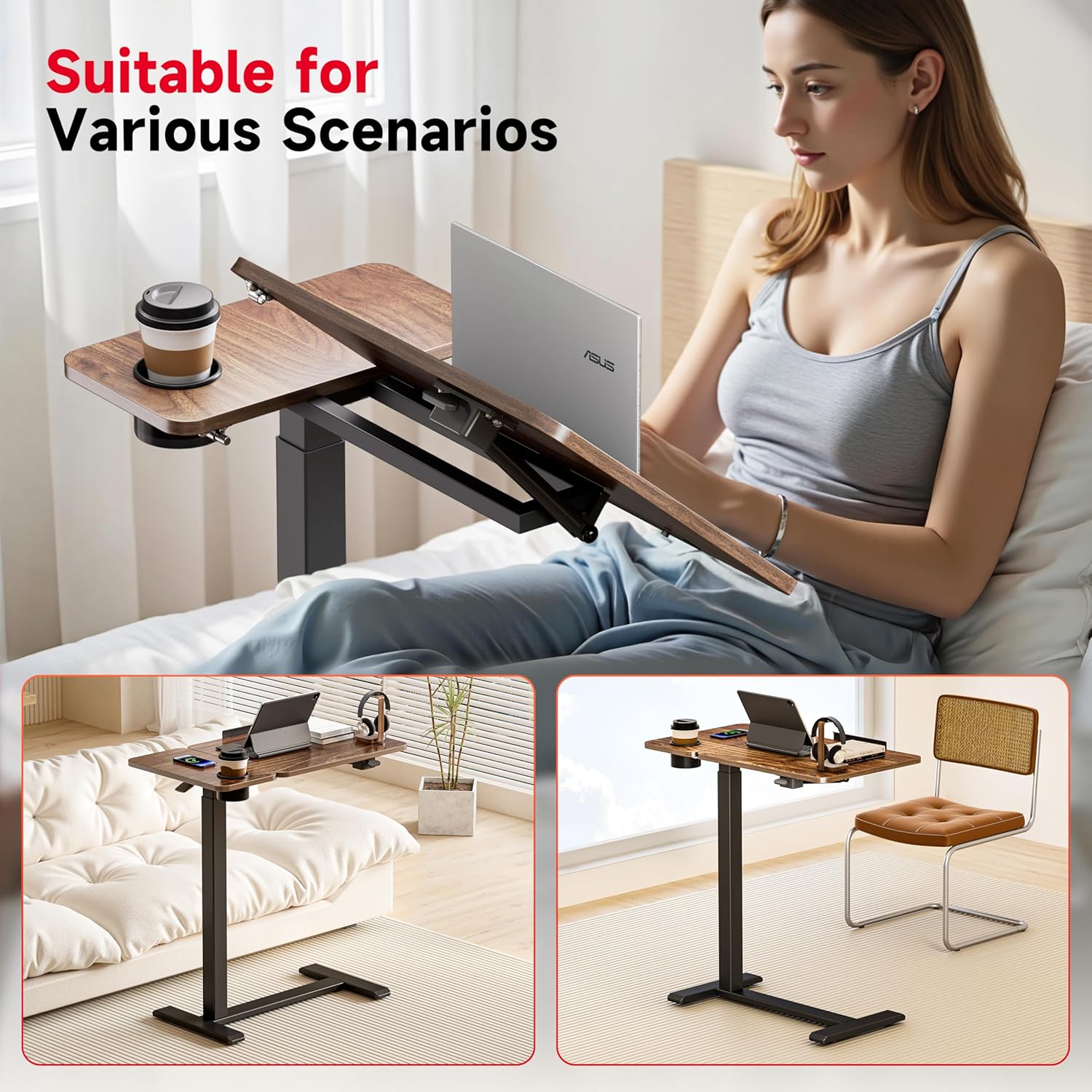

Image 1.1: The Okin Overbed Table is suitable for various scenarios, including use over a bed, next to a couch, or with a chair.

2. Segurtasun informazioa

• Gehienezko karga-gaitasuna: Do not exceed the maximum static load capacity of 22 lb (10 kg) mahaigainean. Gehiegi kargatzeak ezegonkortasuna eta kalteak eragin ditzake.
• Egonkortasuna: Ensure the table is placed on a flat, stable surface. Lock the wheels when the table is in a stationary position to prevent unintended movement.
• Tilting Section: When the desktop is tilted, ensure items placed on it are secure and will not slide off. Avoid placing heavy or fragile items on the tilting section when it is not flat.
• Likidoak: Exercise caution when placing beverages on the table, especially near electronic devices. Use the integrated cup holder for added security.
• Muntaia: Follow all assembly instructions carefully. Ensure all screws and fasteners are tightened securely before use.
• Haurrak: Keep children away from the table during assembly and adjustment to prevent injury.

Image 2.1: The H-base design provides stability, supporting up to 22 lbs (10 kg) of weight. Always adhere to the maximum load capacity.

3. Paketearen edukia

Muntaketa hasi aurretik, egiaztatu osagai guztiak daudela. Piezarik falta edo hondatuta badago, jarri harremanetan bezeroarentzako arreta-zerbitzuarekin.

• Desktop with tilting mechanism and cup holder
• Main Support Column (with pneumatic lifting system)
• Oinarrizko Markoa
• Hidden Wheels (pre-installed or to be installed)
• Muntatzeko Gida
• Installation Tool (Hex key/Wrench)

4. Muntatzeko jarraibideak

Muntaketak normalean 15 minutu inguru irauten du. Jarraitu urrats hauek arretaz:

1. Deskonprimitu osagaiak: Kontu handiz atera pieza guztiak paketetik eta jarri gainazal garbi eta leun batean marradurak saihesteko.
2. Attach Main Support Column to Base: Secure the main support column to the base frame using the provided screws and installation tool. Ensure it is firmly attached.
3. Attach Desktop to Main Support Column: Connect the desktop assembly to the top of the main support column. Align the mounting points and secure with the provided fasteners.
4. Egiaztatu egonkortasuna: Once assembled, gently shake the table to ensure all connections are secure and the table is stable.

Image 4.1: Visual guide illustrating the quick installation process, typically completed within 15 minutes.

4.2 irudia: Leherketa bat view of the table components, demonstrating how they fit together for assembly.

5. Funtzionamendu-argibideak

5.1. Altuera doitzea

The table features a gas spring pneumatic lifting system for smooth and quiet height adjustment. To adjust the height:

1. Locate the height adjustment lever, typically found under the desktop.
2. Eduki sakatuta palanka.
3. Gently raise or lower the desktop to your desired height (range: 29.7 to 43.3 inches).
4. Release the lever to lock the desktop in place.

Image 5.1: The pneumatic lift system allows for easy and smooth height adjustments, accommodating both sitting and standing postures.

5.2. Desktop Tilt Function

The desktop is designed with a split surface: a larger section that tilts and a smaller fixed section with a cup holder. The tilting section can be adjusted from 0° to 70°.

1. To tilt the desktop, locate the adjustment mechanism (usually a lever or knob) underneath the tilting section.
2. Engage the mechanism to unlock the tilt.
3. Adjust the tilting section to your desired angle. An anti-slip edge is present to prevent items from sliding off.
4. Release the mechanism to lock the tilt in place.
5. The smaller, fixed section remains flat, providing a stable surface for drinks or other items.

Image 5.2: The desktop can be tilted to various angles (0-70 degrees) for comfortable reading or laptop use, with a fixed section for beverages.

Image 5.3: The table features a movable desktop that tilts and a fixed desktop section to keep items steady and secure.

5.3. Mugikortasuna

The table is equipped with hidden wheels for easy movement. The low-profile base (1.57 inches high) allows it to slide under most beds and furniture.

1. To move the table, ensure the wheels are unlocked (if applicable).
2. Mahaia astiro-astiro bultzatu edo tiratu nahi den tokira.
3. Once positioned, lock the wheels to prevent accidental movement.

Image 5.4: The table features hidden casters for smooth movement, allowing it to easily slide under furniture.

6. Mantentzea

• Garbiketa: Wipe the tabletop and frame with a dry cloth. For stubborn marks, a slightly damp cloth can be used, followed by immediate drying. Avoid abrasive cleaners or harsh chemicals.
• Ohiko egiaztapenak: Aldian-aldian egiaztatu torloju eta lotura guztiak ondo estututa daudela ziurtatzeko. Beharrezkoa bada, berriro estutu egonkortasuna mantentzeko.
• Gurpilen zaintza: Mugimendu leuna bermatzeko, mantendu gurpilak hauts eta hondakinik gabe.

7. Arazoak

• Mahaiaren dardarak:
  Irtenbidea: Ensure all assembly screws are securely tightened. Verify the table is on a level surface.
• Altuera doitzeko zailtasuna:
  Irtenbidea: Check if the height adjustment lever is fully engaged or disengaged. Ensure there are no obstructions in the pneumatic lifting mechanism.
• Mahaigaina ez da leunki okertzen:
  Irtenbidea: Inspect the tilting mechanism for any obstructions or debris. Ensure the locking mechanism is fully disengaged before attempting to tilt.
• Wheels Not Rolling:
  Irtenbidea: Check if the wheels are locked. Clean any hair or debris that may be caught in the wheel casters.

8. Zehaztapenak

Image 8.1: Detailed dimensions and weight capacity of the Okin Overbed Table.

9. Bermea eta Laguntza

Okin is committed to customer satisfaction. While specific warranty details are not provided in this manual, we offer 24-hour customer service for any pre- or post-purchase issues.

For assistance, please contact us via the Amazon Message Center. Your satisfaction is our priority.
