Prechen 15.6 Inch Portable Touchscreen Monitor (Model HD-156) User Manual

1. Sarrera

This manual provides essential information for setting up, operating, and maintaining your Prechen 15.6 Inch Portable Touchscreen Monitor. Featuring a 10-point multi-touch IPS FHD 1080P display with a 60Hz refresh rate, this monitor is designed for versatility and clear visuals. It includes built-in stereo speakers and supports various connectivity options, making it suitable for diverse environments and applications.

2. Zer dago kutxan

Egiaztatu elementu hauek guztiak zure paketean sartuta daudela:

Prechen 15.6 Inch Portable Touchscreen Monitor
HDMItik HDMI kablea
USB-A USB-C kablea
USB-C USB-C kablea
Elikatze-moldagailua
Protective Carry Sleeve
Erabiltzailearen eskuliburua eta hasiera azkarraren gida

Contents of the Prechen Portable Monitor box including the monitor, cables, power adapter, and documentation. — Figure 2.1: Included accessories for the Prechen Portable Touchscreen Monitor.

3. Produktua amaitu daview

3.1 Portuak eta kontrolak

The monitor features various ports and control buttons for connectivity and settings adjustment:

DC potentzia sarrera: Kanpoko elikatze-iturrirako.
VGA sarrera: For connecting to devices with VGA output.
HDMI Sarrera: Definizio handiko bideo eta audio sarrerarako.
AV sarrera: For analog video and audio input.
Mikrofonoaren sarrera: For microphone connection.
Entzungailuen kablea: Entzungailuak edo kanpoko bozgorailuak konektatzeko.
USB ataka: USB gailuak konektatzeko.
USB-B ataka: Essential for enabling touch functionality when connected to a compatible device.
Kontrol-botoiak: For navigating the On-Screen Display (OSD) menu, adjusting brightness, volume, and other settings.

Diagram showing the various input and output ports on the back of the Prechen monitor, including DC, VGA, HDMI, AV, Mic, Ear, USB, and USB-B. — 3.1. Irudia: Atzealdea view of the monitor displaying multiple signal interfaces.

3.2 Zutik erregulagarria

The monitor features an integrated adjustable stand that allows for up to 180° rotation, providing versatile viewhainbat erabilerarako angeluak.

Image showing the monitor with its adjustable stand tilted at various angles, demonstrating its 180-degree rotation capability. — Figure 3.2: The monitor's adjustable stand allows for flexible positioning.

4. Konfigurazioa

4.1 Energia-konexioa

Connect the power adapter to the DC power input on the monitor and plug it into a power outlet. Alternatively, if using a USB-C connection that supports power delivery, the monitor can draw power directly from the connected device.

4.2 Video and Touch Connection

The monitor supports multiple connection methods. For touch functionality, a USB-B connection is required in addition to the video input.

HDMI konexioa: Connect one end of the HDMI cable to your device and the other end to the HDMI input on the monitor. For touch functionality, also connect the USB-B cable from your device to the USB-B port on the monitor.
USB-C konexioa: If your device has a full-featured USB-C port (supporting video, audio, and power delivery), connect the USB-C to USB-C cable directly from your device to one of the USB-C ports on the monitor. This single cable can provide video, audio, power, and touch functionality.
VGA/AV Connection: Connect the appropriate VGA or AV cable from your device to the monitor. For touch functionality, a separate USB-B connection from your device to the monitor is required.

Diagram showing how to connect a laptop to the portable monitor using HDMI, USB-B, and DC power to enable the touchscreen function. — Figure 4.1: Essential connections for enabling touchscreen functionality.

Image illustrating the plug-and-play setup for touch function, showing USB-B touch cable, HDMI cable, and power cable connected to the monitor. — Figure 4.2: Plug and Play setup for touch functionality.

4.3 Compatibility Notes for Touch Function

The touch function is compatible with Windows and Chromebook systems. However, it is bateraezina with the following devices:

PS3/4/5
Nintendo Switch
Xbox kontsolak
Steam Deck
Fire TV Stick
Fire TV Cube
Some Apple products

Image highlighting devices that do not support the touch function of the monitor, including gaming consoles and Apple devices. — Figure 4.3: Devices not compatible with the monitor's touch function.

5. Monitorea funtzionatzea

5.1 Piztu/Itzali

Sakatu monitorearen alboan dagoen pizteko botoia pizteko edo itzaltzeko. Pizteko adierazlearen argia piztuko da monitore aktibo dagoenean.

5.2 Pantailan bistaratzeko (OSD) menua

Use the control buttons to navigate the OSD menu. Here you can adjust various settings:

Distira eta kontrastea: Doitu pantailaren argitasuna eta kontraste mailak.
Bolumena: Control the output level of the built-in stereo speakers.
Sarrera iturria: Select between HDMI, USB-C, VGA, or AV inputs.
Kolore efektua: Choose from various color modes to optimize your viewesperientzia.
Hizkuntza: Select your preferred language for the OSD menu.
Sistemaren ezarpenak: Access advanced display and power management options.

5.3 Ukipen-pantailaren keinuak

The 10-point multi-touch display supports intuitive gestures for navigation and interaction:

Sakatu: Single tap to select items or activate functions.
Sakatu birritan: Double tap to open files edo aplikazioak.
Arrastatu: Touch and drag to move items or scroll through content.
Handiagotu/Umindu: Use a two-finger pinch gesture to zoom in or out.
Biratu: Use a two-finger twist gesture to rotate images or objects.
Pasatu hatza: Swipe across the screen to navigate between pages or applications.

Image illustrating various 10-point touchscreen gestures like tap, double tap, drag, zoom in, zoom out, and multi-touch. — Figure 5.1: Supported touchscreen gestures for intuitive interaction.

5.4 Barneko bozgorailuak

The monitor is equipped with integrated dual stereo speakers, providing audio output without the need for external devices. Volume can be adjusted via the control buttons or the OSD menu.

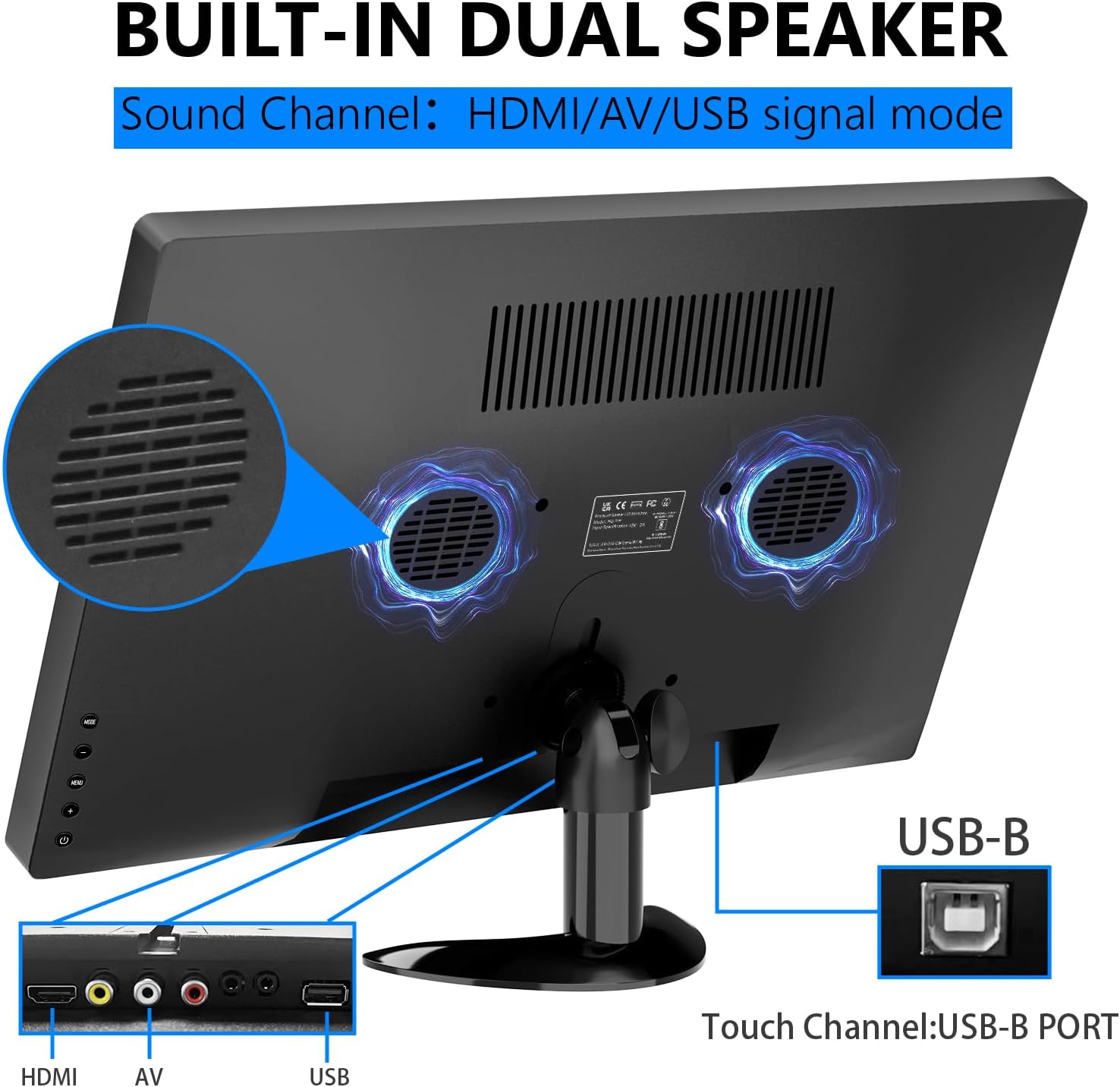

Close-up image of the back of the monitor highlighting the built-in dual speakers and the USB-B port for touch functionality. — Figure 5.2: Built-in dual speakers for integrated audio.

6. Muntatzeko aukerak

In addition to the adjustable stand, the monitor supports VESA 75x75mm wall mounting for fixed installations in offices, homes, or kiosks.

Image showing the back of the monitor with VESA mounting holes, indicating compatibility with VESA mounts. — Figure 6.1: VESA mount compatibility for flexible installation.

7. Zehaztapenak

Ezaugarri	Xehetasuna
Produktuaren neurriak	14.17 x 1.18 x 9.05 hazbete
Elementuaren pisua	4.2 kilo
Pantailaren tamaina	15.6 hazbete
Ebazpena	1920 x 1080 pixel (FHD 1080p)
Aspektu-erlazioa	16:9
Irudiaren distira	300 Kandela
Pantailaren gainazalaren deskribapena	Distiratsua
USB portuak guztira	1 (USB-B for touch)
Fabrikatzailea	Shenzhen Kenowa Electronics Co., LTD

8. Arazoak

Ez dago pantailarik: Ensure the monitor is powered on and all video cables (HDMI, USB-C, VGA, AV) are securely connected to both the monitor and your source device. Try different cables or ports if available.
Ukipen-funtzioa ez dabil: Verify that the USB-B cable is correctly connected from your device to the monitor. Confirm your device's operating system (Windows/Chromebook) is compatible with the touch function. Note that gaming consoles and some Apple products do not support touch.
Soinurik ez: Check the monitor's volume settings via the OSD menu. Ensure your audio source is correctly selected and that any external headphones/speakers are properly connected to the earphone jack.
Touch Screen Effect Displayed on Main Screen (Windows): If the touch effect is incorrectly displayed on your main laptop screen instead of the portable monitor, you may need to calibrate the touch screen. Access the 'Control Panel' -> 'Hardware and Sound' -> 'Tablet PC Settings'. In the 'Display Options', select 'InnoView' (or the corresponding name for your portable monitor) and then click 'Setup'. Follow the on-screen prompts to tap the portable monitor to identify it as the touchscreen.

Video 8.1: Guide on how to correct the touch screen effect if it's misaligned or displayed on the wrong screen.

9. Mantentzea

Pantaila garbitzea: Erabili zapi leun eta pelurik gabeko bat pantaila astiro-astiro garbitzeko. Orban egoskorrak izanez gero, garbitu pixka bat.ampen the cloth with water or a screen-cleaning solution. Avoid using harsh chemicals, abrasive cleaners, or alcohol-based solutions.
Garbiketa orokorra: Wipe the exterior of the monitor with a soft, dry cloth. Keep vents clear of dust and debris to ensure proper airflow.
Biltegiratzea: When not in use or during travel, store the monitor in its protective carry sleeve to prevent scratches and damage.

10. Bermea eta laguntza

For warranty information, technical support, or service inquiries, please refer to the documentation included in your product package or contact Prechen customer service directly. Keep your purchase receipt for warranty claims.
