ORICO K5Mini-VB-480GB-OR Magnetic External SSD User Manual

1. Produktua amaitu daview

The ORICO K5Mini-VB-480GB-OR is a compact and portable magnetic external Solid State Drive (SSD) designed for expanding storage on various devices, including smartphones, tablets, and laptops. Featuring a durable aluminum alloy construction and a strong magnetic attachment, it offers high-speed data transfer and reliable performance.

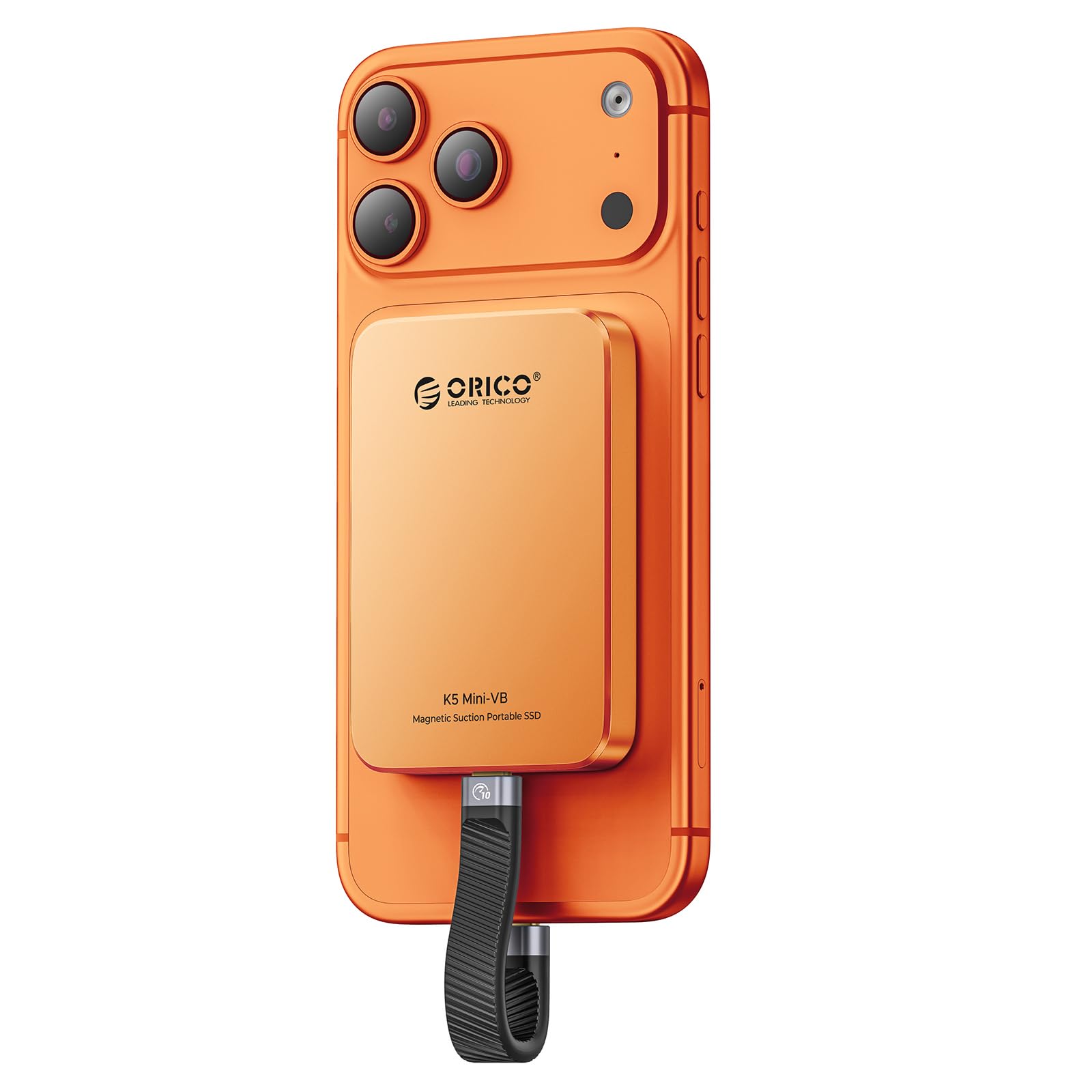

Image 1.1: The ORICO K5Mini-VB-480GB-OR Magnetic External SSD in Cosmic Orange.

Ezaugarri nagusiak:

• Lotura magnetiko sendoa: Securely attaches to compatible devices, including MagSafe-enabled iPhones, and can be used with other devices via an included magnetic ring.
• Abiadura handiko datuen transferentzia: Offers read speeds up to 460MB/s and a data transfer rate of 5Gbps (USB 3.0 interface) for quick file transferentziak.
• Diseinu trinkoa eta eramangarria: Ultra-small (2.4 x 3.55 x 0.42 inches) and lightweight (0.13 lbs) for easy portability.
• Eraikuntza iraunkorra: Aluminum alloy body facilitates rapid heat dissipation and ensures data security.
• Bateragarritasun zabala: Compatible with iPhone 15/16 series, USB-C Android smartphones, laptops, and tablets.

2. Konfiguratzeko argibideak

Follow these steps to set up your ORICO Magnetic External SSD with your device.

2.1 Attaching the SSD

The SSD features a strong magnetic design for easy attachment to compatible devices.

Image 2.1: The magnetic ring included with the SSD allows for magnetic attachment to devices without built-in magnetic capabilities, such as non-MagSafe iPhone cases or Android phones.

• For MagSafe-compatible iPhones (iPhone 15/16 series): Simply align the SSD with the back of your iPhone. The magnetic attraction will secure it in place.
• For other devices (e.g., non-MagSafe iPhones, Android phones): Use the included magnetic attraction ring. Attach the ring to the back of your phone or phone case. Ensure the ring is centered for optimal magnetic hold. Once the ring is attached, the SSD can be magnetically secured to it.

2.2 SSDa konektatzea

Connect the SSD to your device using the provided USB-C cable.

• Connect one end of the USB-C cable to the ORICO SSD.
• Connect the other end of the USB-C cable to the USB-C port on your smartphone, tablet, or laptop.
• Note for iPhone 14 and earlier models: These models require a Lightning adapter. The ORICO LC10 Lightning adapter is recommended. Adapters from other brands may not be supported.

3. Funtzionamendu-argibideak

Once connected, the ORICO SSD functions as an external storage device. It is plug-and-play, meaning no special drivers are typically required.

3.1 Data Transfer with iPhone (iPhone 15/16 Series)

To transfer photos and videos from your iPhone to the SSD:

Image 3.1: Step-by-step guide for connecting and saving files from an iPhone 15/16 series to the ORICO SSD.

1. 1. urratsa: Connect the SSD to your iPhone 15/16 Series.
2. 2. urratsa: Open your Photos app, select the photos/videos you wish to transfer.
3. 3. urratsa: Tap the Share icon (usually a square with an arrow pointing up) and select "Save to Files ".
4. 4. urratsa: urtean Files app, tap "Browse".
5. 5. urratsa: Select "ORICO" from the locations.
6. 6. urratsa: Tap "Save" to complete the transfer.

Oharra: This process is not applicable for iPhone 14 and earlier models (iPhone 13, iPhone 12, iPhone 11, iPhone XS, iPhone XR, iPhone X, iPhone SE).

3.2 Data Transfer with Android Phone

Transferitzeko files from your Android phone to the SSD:

Image 3.2: Step-by-step guide for connecting and copying files from an Android phone to the ORICO SSD.

1. 1. urratsa: Connect the SSD to your Android phone.
2. 2. urratsa: Open your phone's "Files" or "File Manager" application.
3. 3. urratsa: Nabigatu kokapenera files you wish to transfer (e.g., "Images").
4. 4. urratsa: Hautatu filekopiatu nahi duzun.
5. 5. urratsa: Choose the "ORICO" drive as the destination.
6. 6. urratsa: Tap "Copy" or "Move" to complete the transfer.

3.3 Usage with Laptops and Tablets

The SSD can be used with laptops and tablets that have a USB-C port. Connect the SSD using the provided cable. The device will appear as an external drive in your operating system's file esploratzailea (adibidez, File Explorer on Windows, Finder on macOS, Files app on iPadOS/Android tablets). You can then drag and drop fileSSDra eta SSDra.

Image 3.3: The ORICO SSD can be used to expand storage for laptops, tablets, and smartphones.

4. Mantentzea

Proper maintenance ensures the longevity and optimal performance of your ORICO SSD.

• Garbiketa: Use a soft, dry, lint-free cloth to clean the exterior of the SSD. Avoid using liquid cleaners or solvents, as they may damage the device.
• Biltegiratzea: Store the SSD in a cool, dry place away from direct sunlight, extreme temperatures, and strong magnetic fields when not in use.
• Manipulazioa: While the aluminum alloy body is durable, avoid dropping the SSD or subjecting it to strong impacts.
• Segurtasunez kanporatu: Always safely eject the SSD from your computer or device before disconnecting it to prevent data corruption.

5. Arazoak

If you encounter issues with your ORICO SSD, refer to the following common troubleshooting steps.

• SSD ez da detektatu:
  • Ziurtatu USB-C kablea SSDra eta zure gailura ondo konektatuta dagoela.
  • Try using a different USB-C port on your device.
  • Test with a different USB-C cable to rule out cable issues.
  • Berrabiarazi gailua eta saiatu berriro konektatzen.
  • For iPhones 14 and earlier, ensure you are using a compatible Lightning adapter (ORICO LC10 recommended).
• Transferentzia-abiadura motelak:
  • Ensure your device's USB port supports USB 3.0 or higher for optimal speeds. Older USB 2.0 ports will result in slower transfers.
  • Verify the cable used is a high-quality USB 3.0 (or higher) compatible cable.
  • Itxi sistemaren baliabideak erabiltzen edo atzeko planoan datuen transferentziak egiten ari diren beste aplikazioak.
• Lotura magnetikoaren arazoak:
  • Ensure the magnetic ring (if used) is properly centered and securely attached to your device or case.
  • Check for any obstructions or thick cases that might weaken the magnetic connection.
• Datuen ustelkeria:
  • Always safely eject the SSD before disconnecting it from your device.
  • If data corruption occurs, you may need to reformat the drive (this will erase all data). Back up important data regularly.

6. Zehaztapenak

Detailed technical specifications for the ORICO K5Mini-VB-480GB-OR Magnetic External SSD.

Image 6.1: The ORICO K5Mini SSD is designed to be light, small, and thin.

Image 6.2: The ORICO SSD offers high-speed data transmission for efficient file manipulazioa.

7. Bermea eta Laguntza

ORICO provides comprehensive support for its products.

7.1 Bermearen informazioa

Produktu honek honekin dator: 18 hilabeteko fabrikatzailearen bermeaGorde erosketaren egiaztagiria bermearen erreklamazioetarako. Bermeak materialen eta fabrikazioaren akatsak estaltzen ditu erabilera normalaren pean.

7.2 Bezeroarentzako laguntza

For technical assistance, troubleshooting, or warranty inquiries, please contact ORICO customer support through their official website or the retailer where the product was purchased. You may find contact information on the ORICO official webgunean edo produktuaren ontzian.

When contacting support, please have your product model number (K5Mini-VB-480GB-OR) and purchase details readily available.
